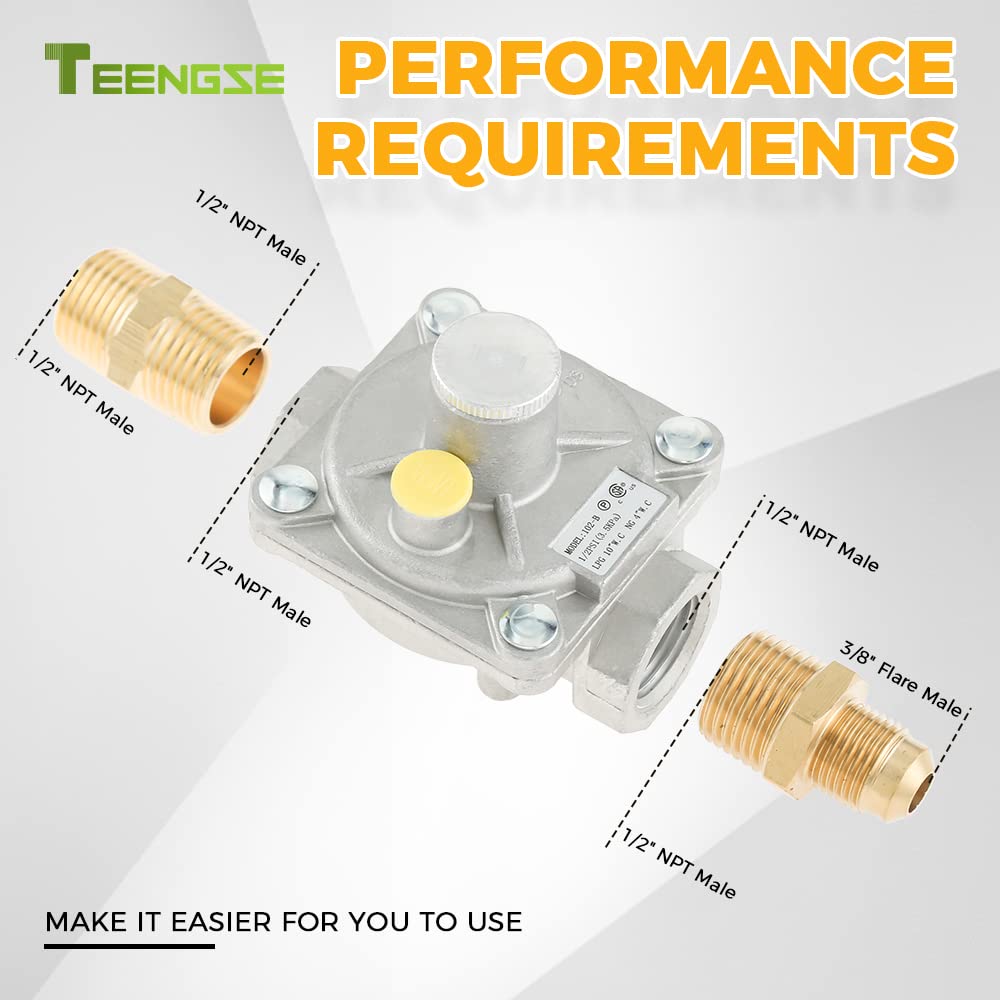

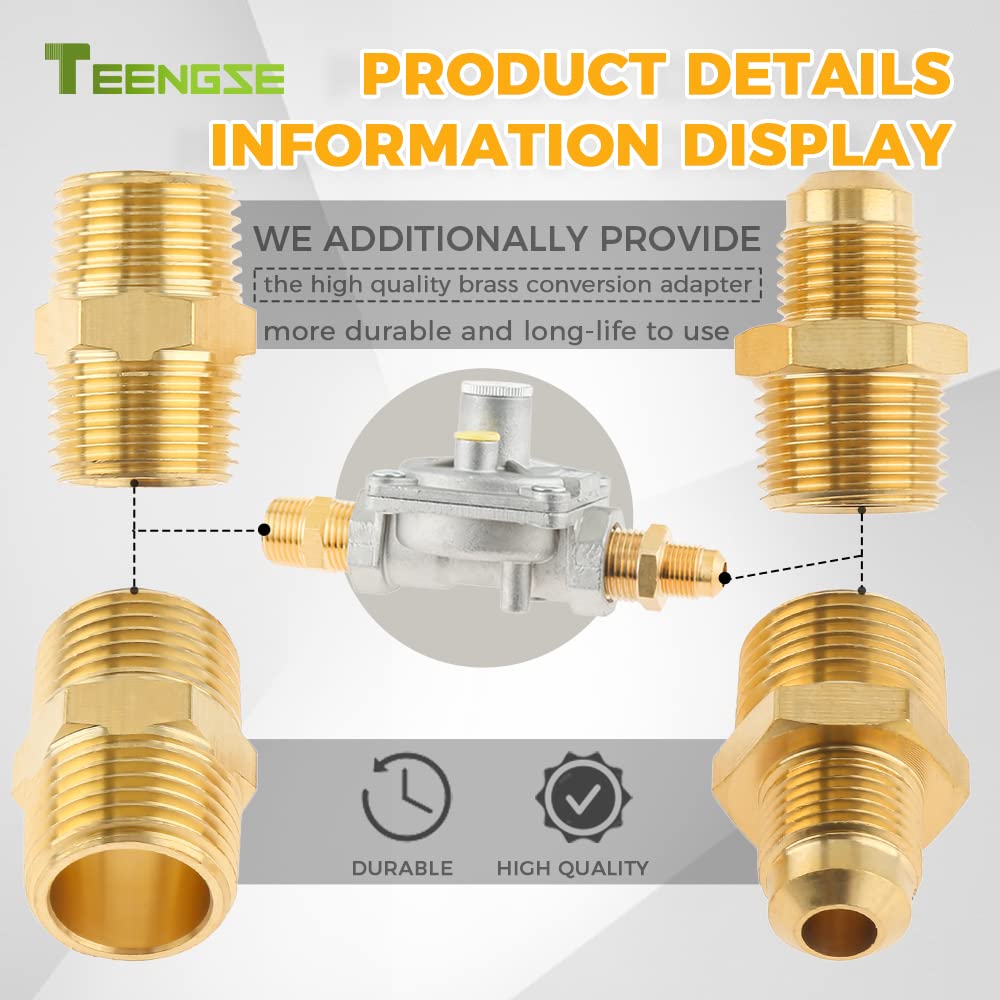

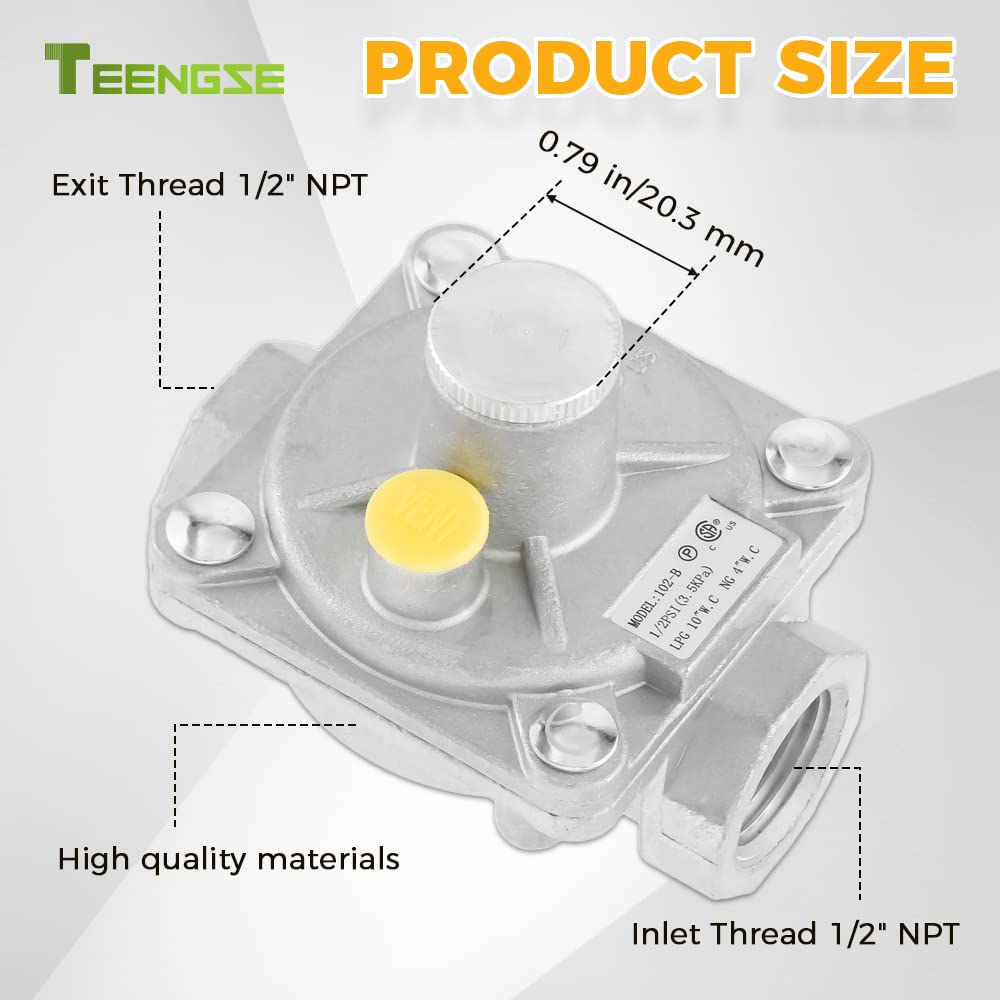

【SPECIFICATIONS】The 1/2 PSI gas regulator of the 102-B model fit for natural gas and liquefied gas valves. Both the inlet and outlet of the valve are 1/2" FPT pipe threads. We additionally furnish a brass 1/2" NPT conversion adapter-1/2" NPT male x 3/8" flare male. 1/2" NPT male x 1/2" NPT male. Plus joint thread tape.

【INSTRUCTIONS FOR USE】When the LPG gas regulating valve is used: LP inlet pressure is 2.74Kpa(11"w.c), outlet pressure is 2.45~2.55 kpa(10"w.c), and gas flow rate is 30L/min; when the natural gas regulating valve is used: LP inlet pressure is 1.74Kpa(7"w.c). Outlet pressure is 0.95~1.05 kpa(4"w.c), flow rate: 50L/min

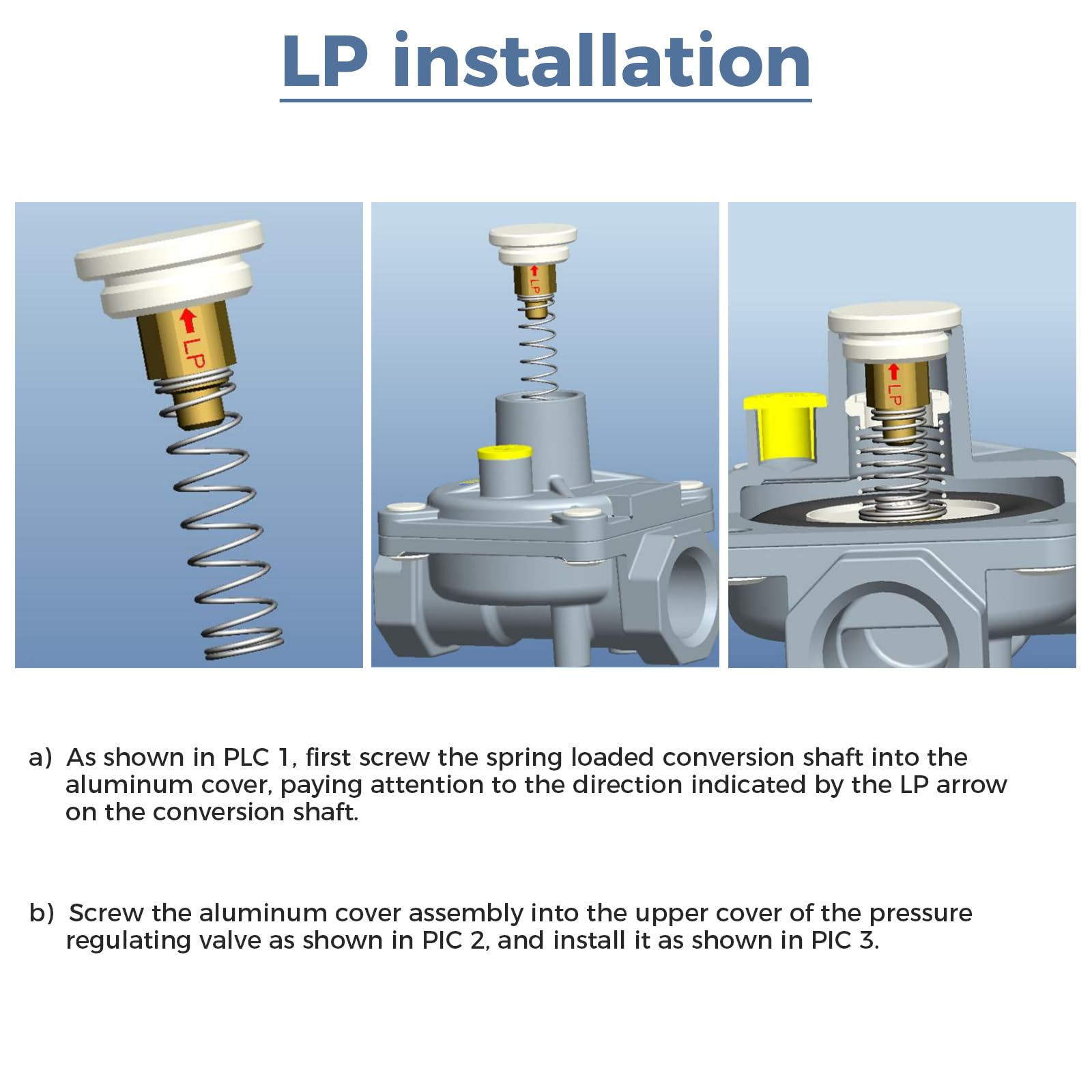

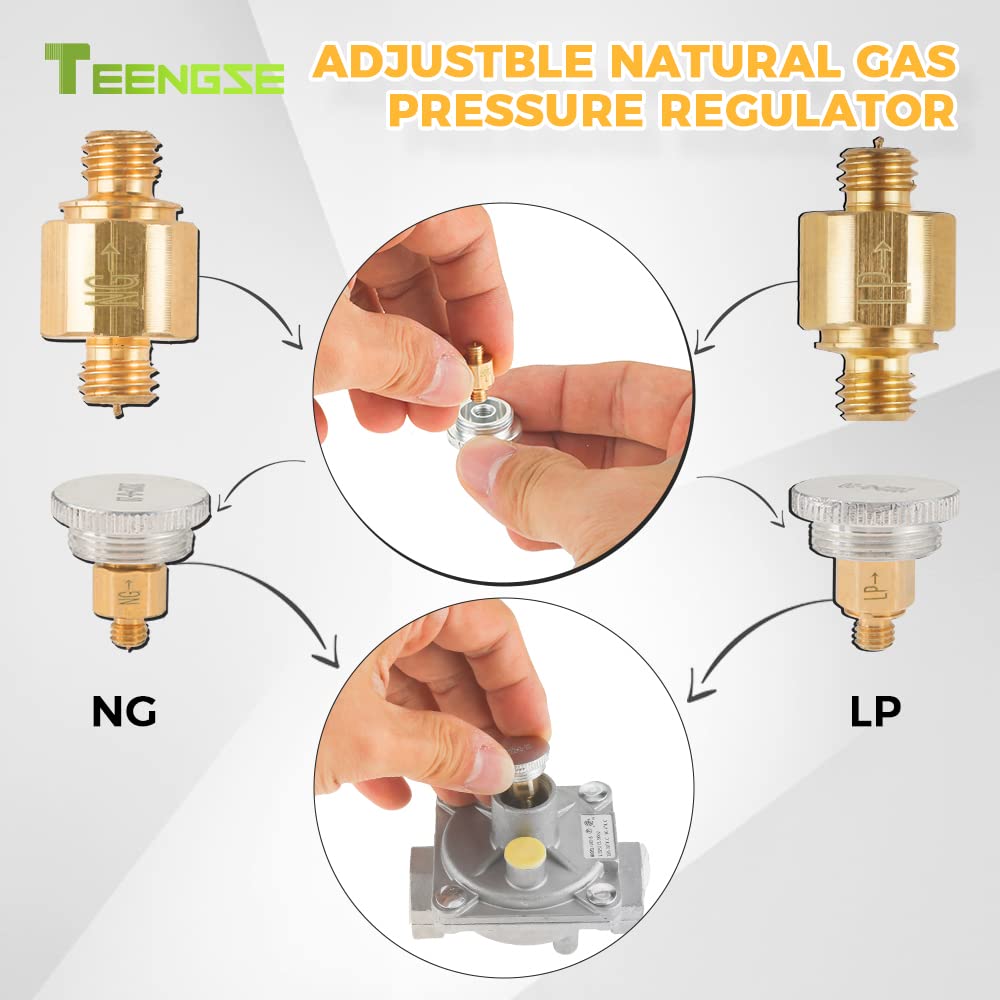

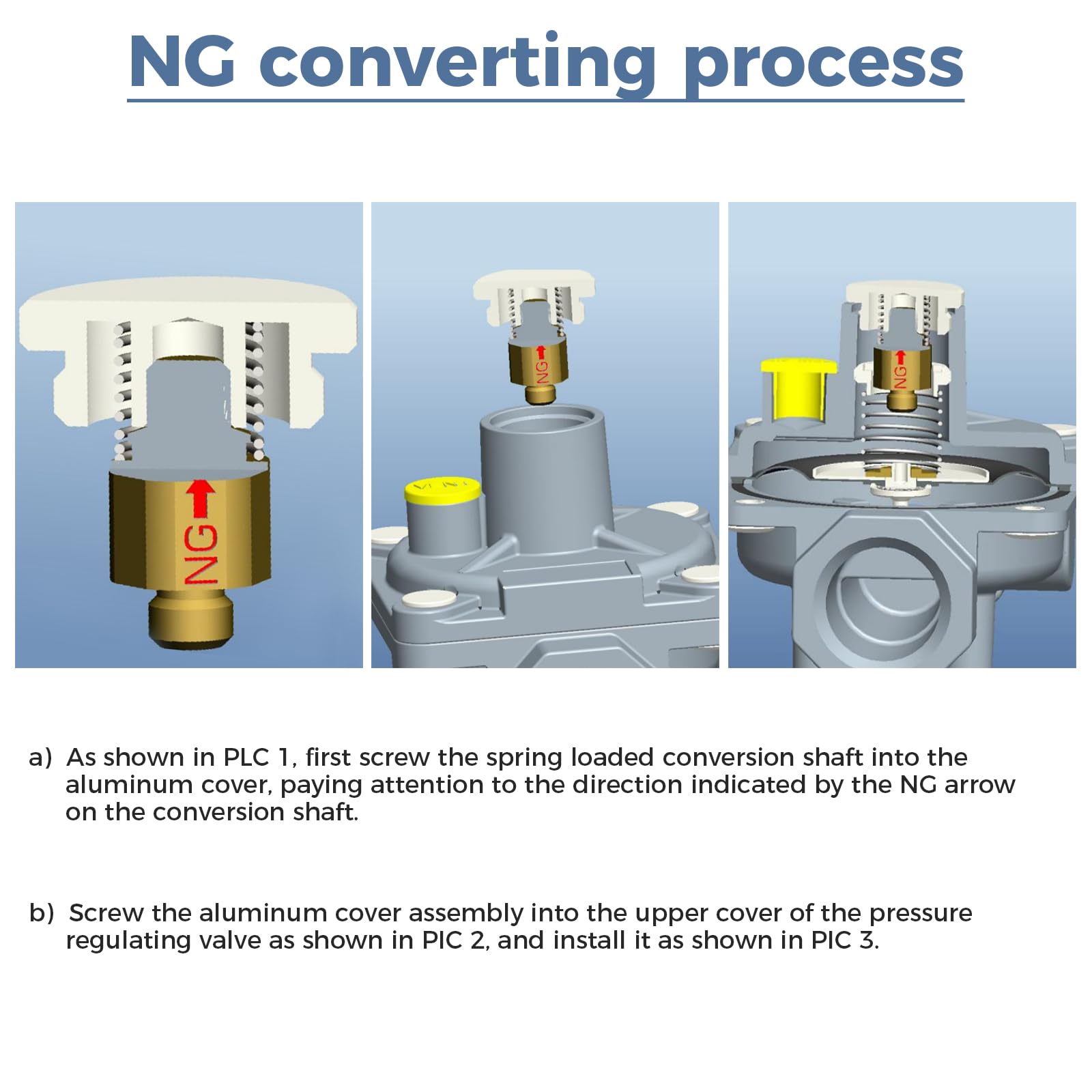

【CONVENIENCE USE】This gas regulator is adjustable, which can be used for natural or propane application, but original setting is LP state. Please unscrew the 20.3mm diameter aluminum knob in the gas valve to switch the direction of the LP/NG copper shaft core. It is more simple, fast, and convenient.

【PERATE TEMPERATURE】32°F-225°F (0°C-107°C). Do not install the regulator too close to the heating equipment or use in very cold environment. Heat or cold can change the resistance of the spring inside the regulator. And the gas pressure regulator will not turn off the flow of gas.

【APPLICATION】This natural gas pressure regulator fit for natural gas grills, heater, oven, gas welding equipment, NG gas and liquefied interchange pressure regulator, etc.
