Product ID:
1480545
Identifier:
B0CX6KSRJJ
Brand:
Yosoo
Model:
huhufsMRhrnvS1
Shipping Weight:
0.35 lbs
Manufacturer:
Yosoo
Shipping Dimension:
6.69 x 3.94 x 2.36 inches
₱4,678
+ ₱ 252
Shipping Cost from USA to Philippines inclusive of custom fees.
Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.
Get it between 2026-04-23 to 2026-04-30.
Additional 3 business days for provincial shipping.
- Price and Stocks may change without prior notice
- Packaging of actual item may differ from photo shown
Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.
Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

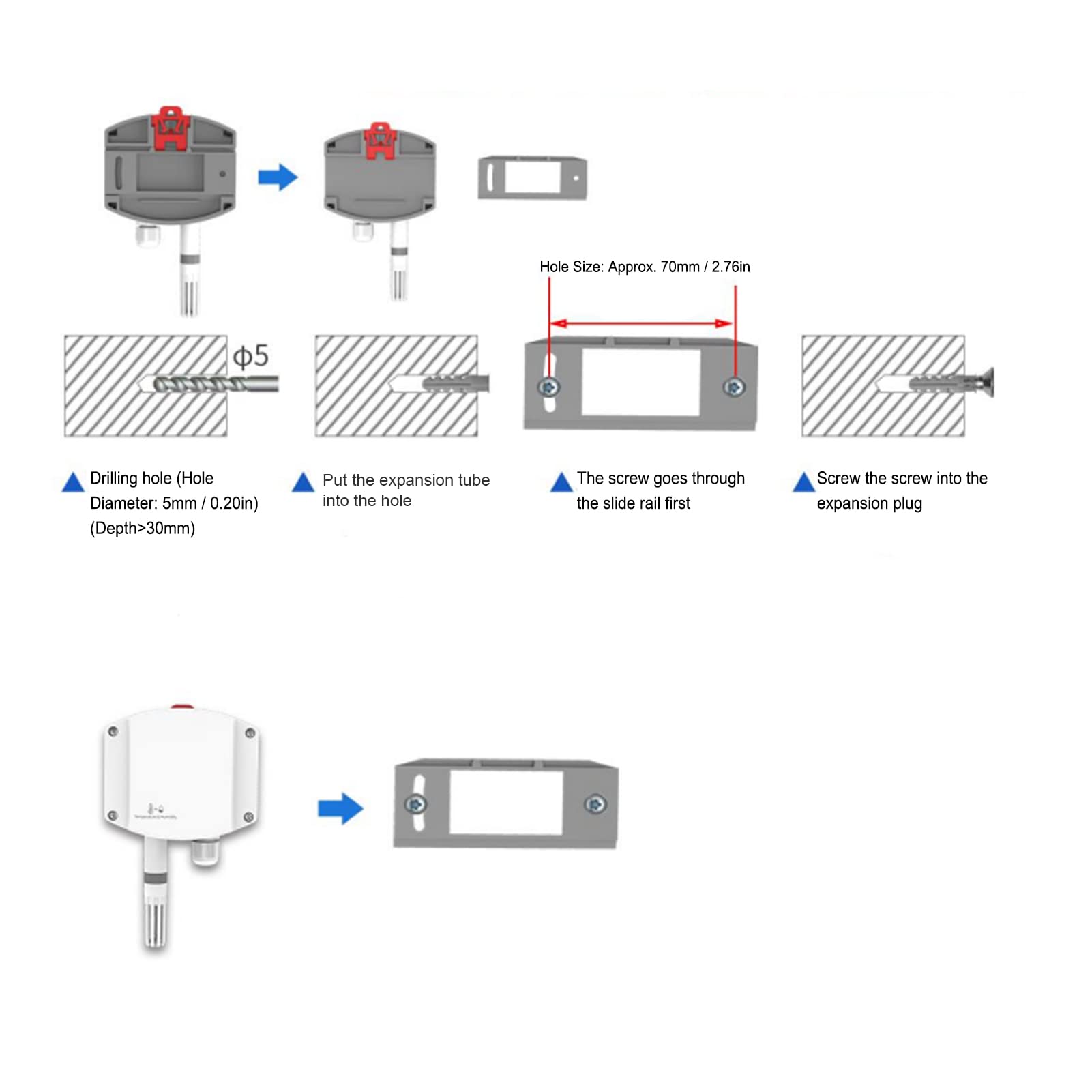

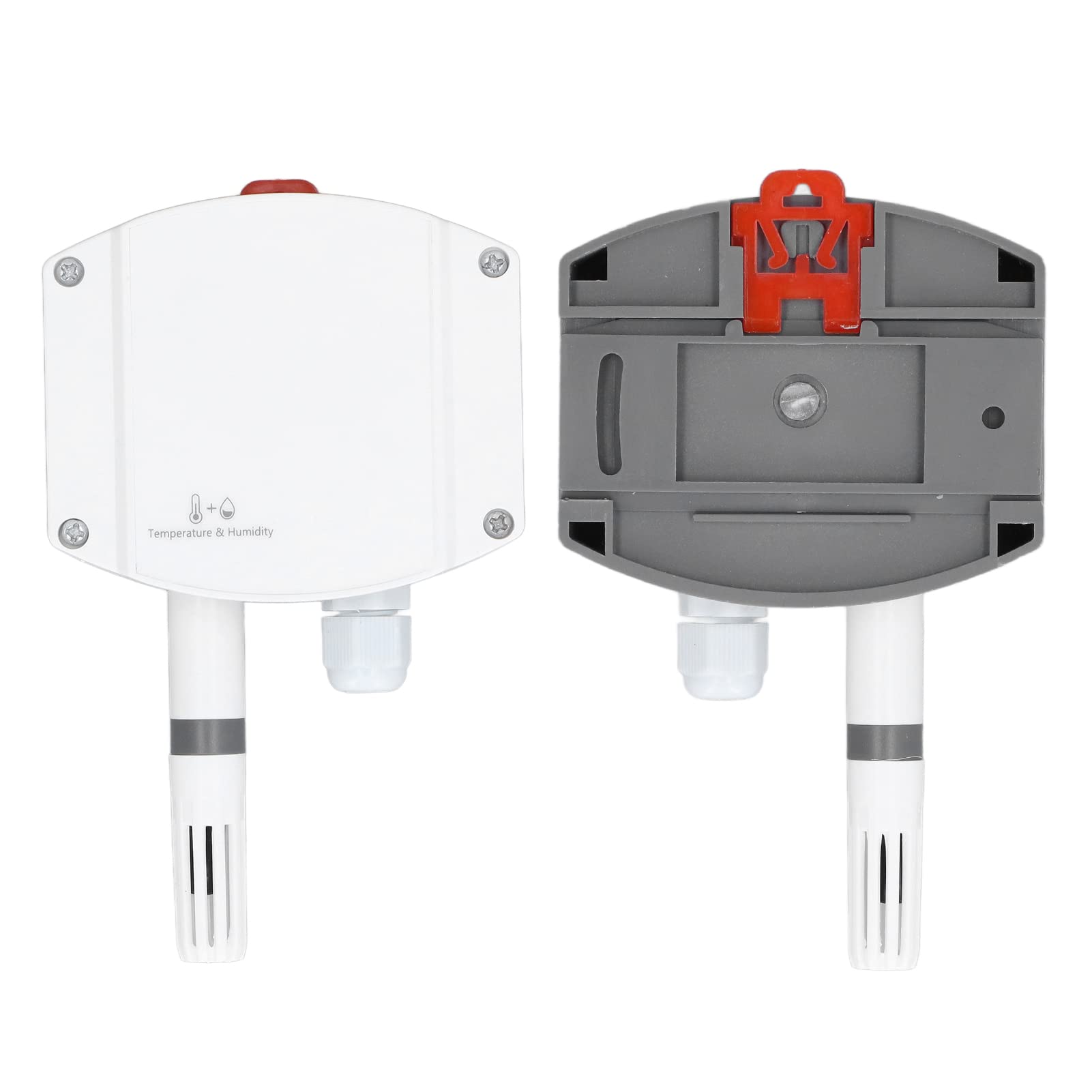

【With Compact Size】Adopt high accuracy temperature and humidity measurement unit, long term stability, small size, wall mounted, rail mounted.
【Easy to Operate】Using dedicated 485 circuit, standard RTU communication protocol, communication address and baud rate can be set.
【Basic Specifications】10~30V wide voltage range power supply, the output type is RS485, the longest communication is 2000 meters.
【Grade】Industrial wall mounted high grade housing, grade IP65, rain and snow and good air permeability.
【Advanced Chip】The circuit adopts industrial grade microprocessor chip and imported temperature and humidity sensor to ensure excellent reliability, and interchangeability
Specification: Item Type: Temperature Humidity Transmitter Material: ABS Product Size: Approx. 147 x 88 x 41 mm / 5.8 x 3.5 x 1.6 in Anti Dust Grade: IP65 Power Supply Wiring: Wide voltage 10~30V DC power input Output Interface Wiring: The device is equipped with 2 independent analog outputs as standard Weight: Approx. 157g / 5.5oz Specific Wiring: Circuit Identification Instruction Power Supply VCC Positive Power Supply GND Negative Power Supply Output TH Positive Temperature RH Positive Humidity (Note: The device does not provide a communication line by default) Parameter: DC Power Supply (Default) DC 10~30V Maximum Power Consumption Current Output 1.2W Voltage Output 1.2W A Accuracy Humidity ±2%RH (60%RH，25℃) Temperature ±0.4℃)25℃) B Accuracy Humidity ±3%RH (60%RH,25℃) Temperature ±0.5℃ (25℃) Temperature Range -40℃~+120℃, default -40℃~+80℃ Humidity Range 0%RH-100%RH Transmitter Circuit Working Temperature And Humidity -20℃~+60℃, 0%RH~95%RH A9:(non B25condensing) Probe Operating Temperature -40℃~+120℃, default -40℃~+80℃ Probe Working Humidity 0%RH-100%RH Long Term Stability Humidity ≤1%RH/y Temperature ≤0.1℃/y Response Time Humidity ≤8s(1m/s wind speed) Temperature ≤25s(1m/s wind speed) Output Current Output 4-20mA Load Capacity Voltage Output Output resistance≤250Ω Current Output ≤600Ω Hole Size 70mm/2.8in Parameter Settings Set By Software Product Model: RS- Company Codes WS- Temperature And Humidity Transmitter, Sensor 120- 4~20mA Current Output Package List: 2 x Screw 2 x Expansion Tube 1 x Transmitter 1 x Manual
