Hub Motor Convert Extension Cable 9 Pin Waterproof Connector 36V 48V 52V 250W-1200W Ebike Motor Conversion Line 60cm 130cm 160cm Electric Bike Accessories (60cm Female)

4.4 / 5

Product ID:

485633

Identifier:

B09PMHSPB2

Brand:

HUDAMZKY

Model:

Shipping Weight:

0.13 lbs

Manufacturer:

YUNNY Ebike Kit Store

Shipping Dimension:

5.08 x 4.06 x 1.14 inches

Share on Social Media

Share on Facebook

Share on X

Share on Instagram

Share on Tiktok

₱1,530

+ ₱ 150

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2026-04-18 to 2026-04-25.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

FEATURES

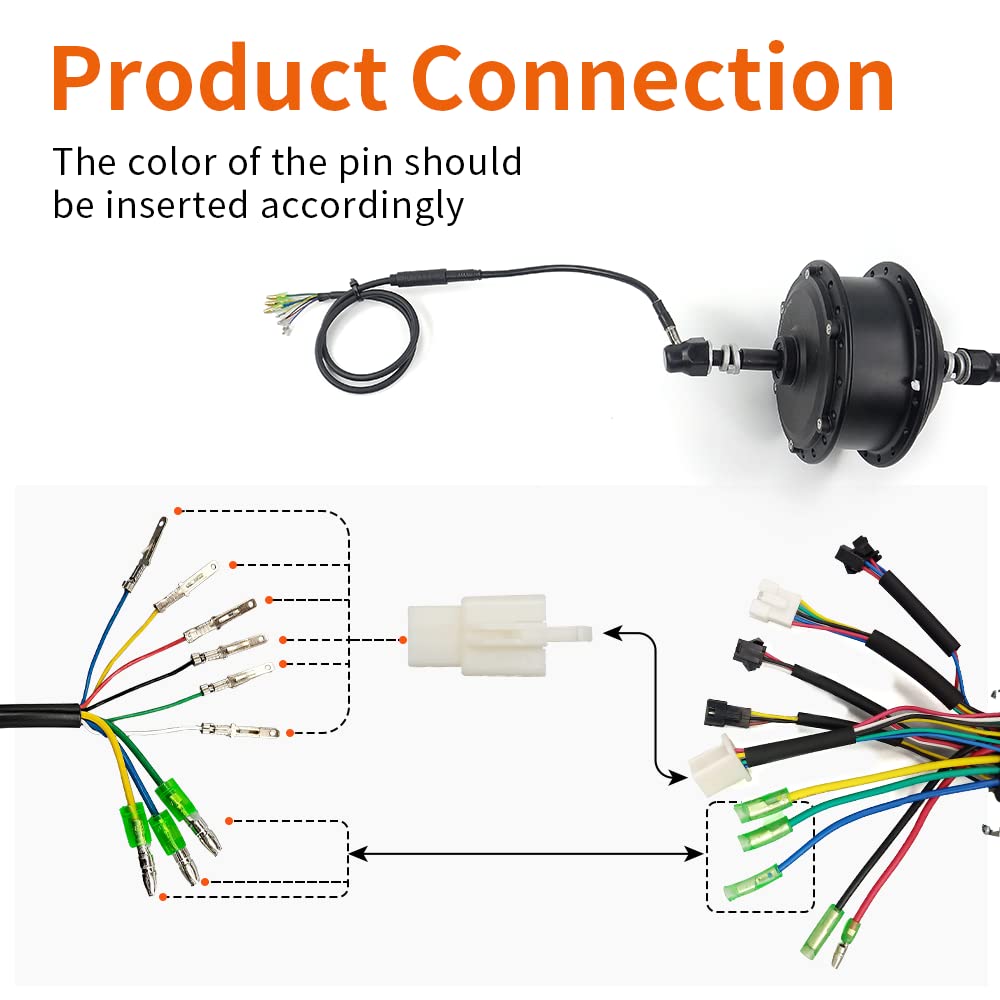

Connector: One end is connected to the controller, the other end is connected to the motor (female), which perfectly solves the connection problem between the ordinary socket controller and the motor waterproof head. The controller end is 3 to bit lines and 6 Hall signal lines.

Applicability: Most 250W--1000W hub motors on the market are easy to connect and install.

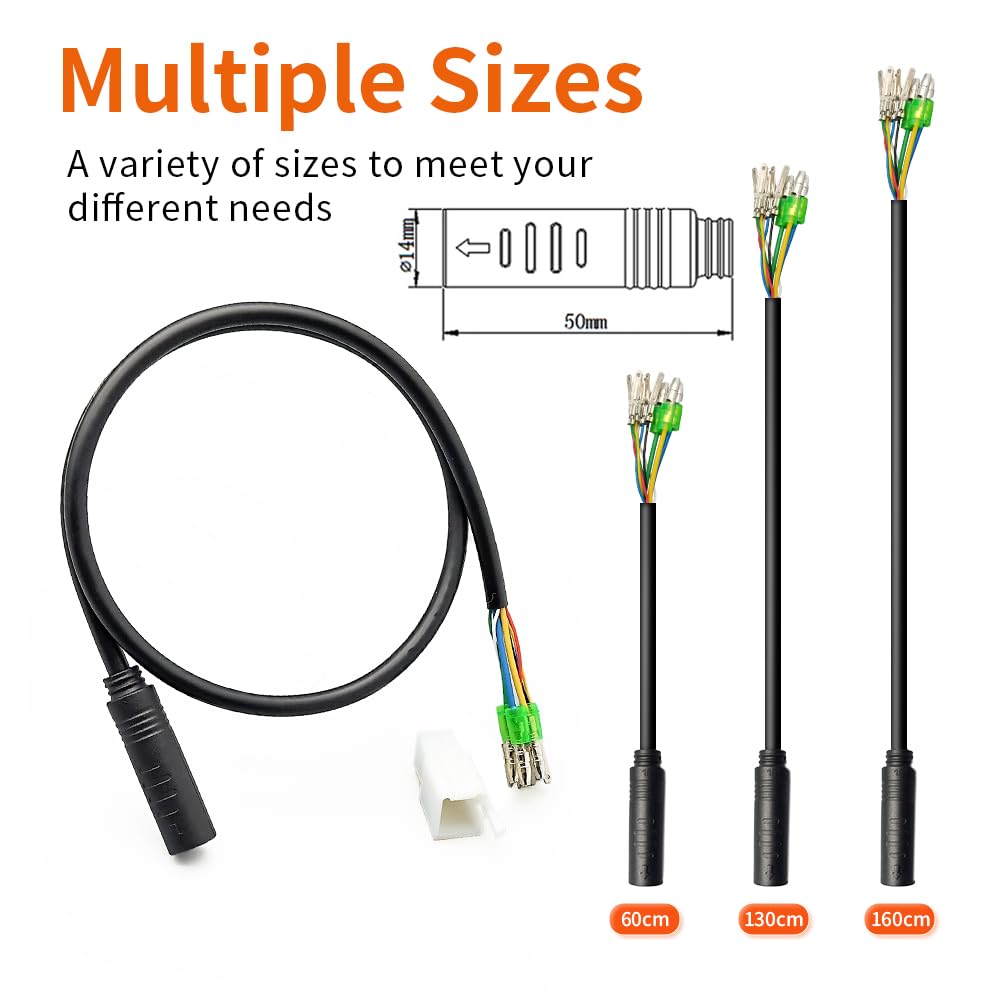

Cable length: three lengths are optional, generally 60cm for the front hub motor and 130cm/160cm for the rear hub motor depending on the model

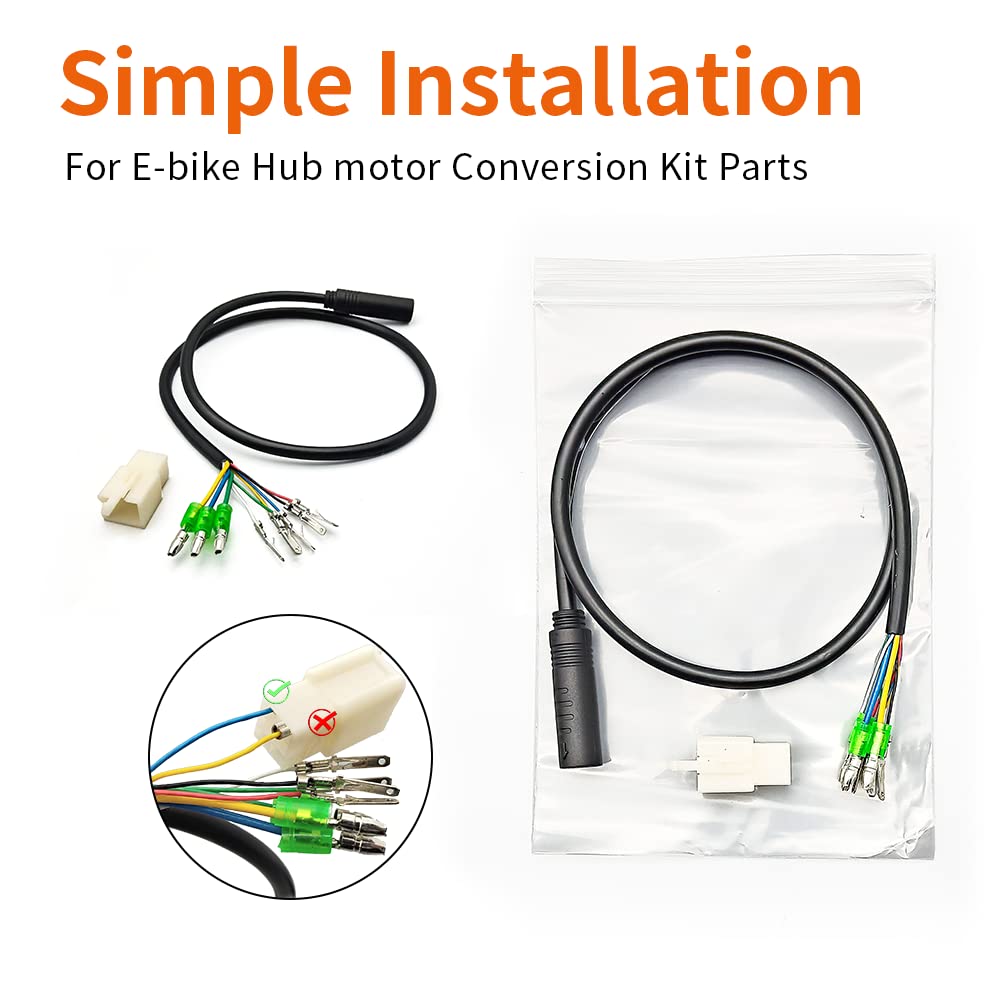

Connection method: This electric bicycle motor extension cable is connected to the motor through a waterproof connector. Waterproof grade IP66, safe for outdoor use in rainy days.

DESCRIPTIONS

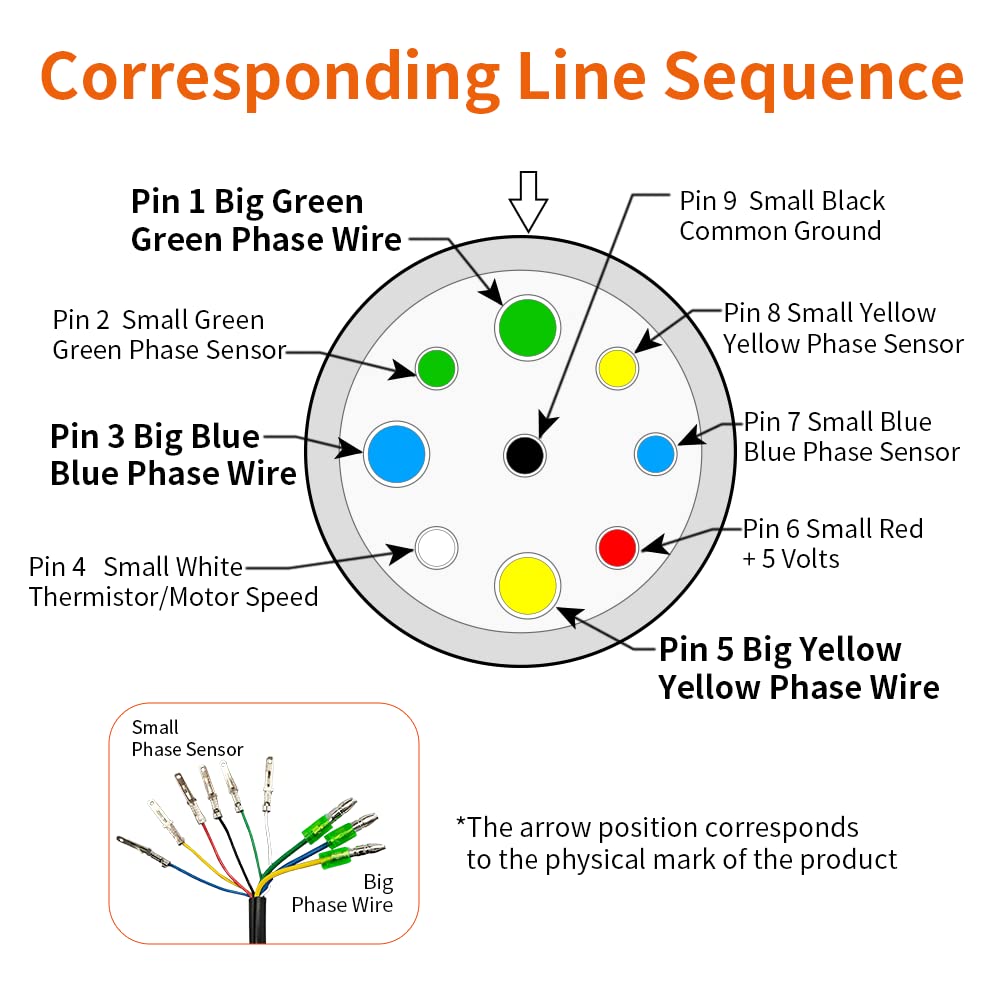

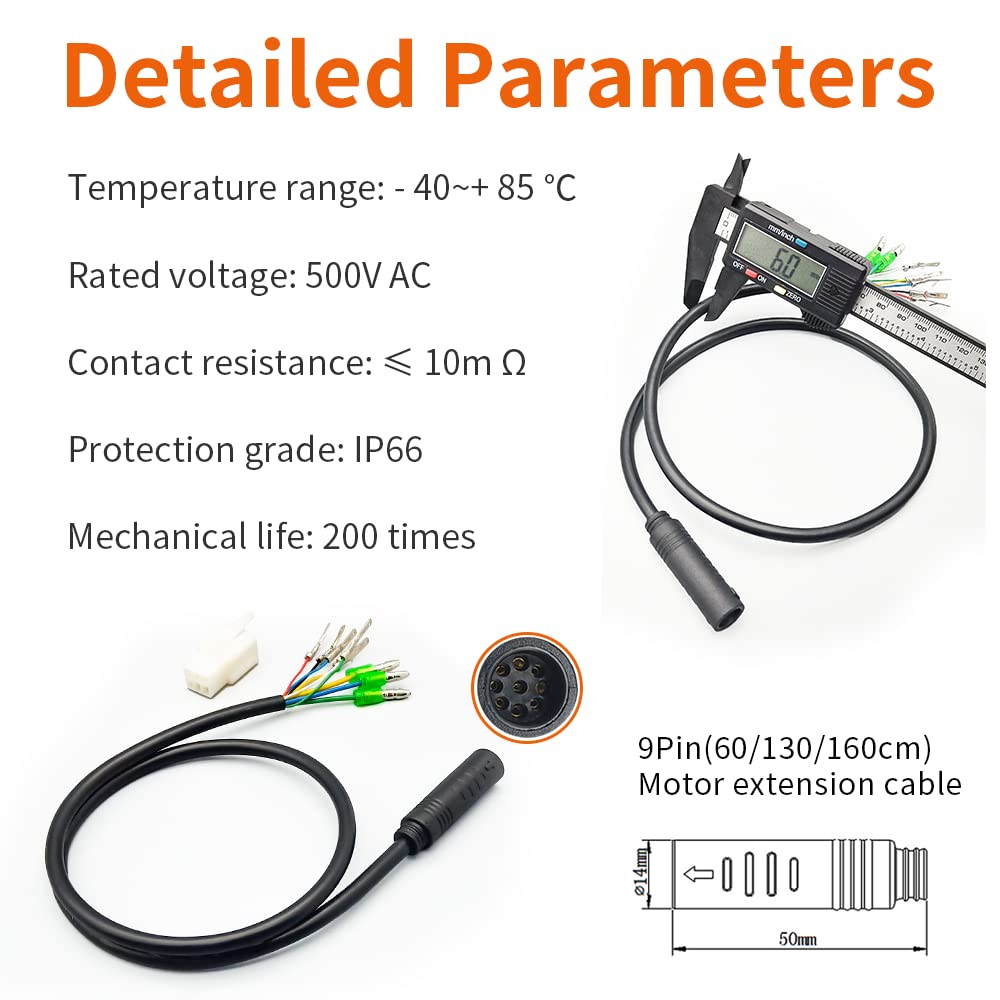

Note: We recommend using a 60cm cable for the rear hub motor and a 130cm/160cm cable for the front hub; the blue, green and yellow wires are phase wires, and the other 6 wires are Hall current sensors, of which the white wire is the speed measurement signal wire. Parameter: Model: One waterproof 9pin (Female), one loose quick connector Applicability: 250w-1000w motor extension cord Cable length: 60cm/130cm/160cm Pin Surface Treatment: Gold Plated IP code: IP 65 Certification: ROHS Applicable models: electric bicycles, electric folding cars, electric motorcycles...
