FEATURES

DESCRIPTIONS

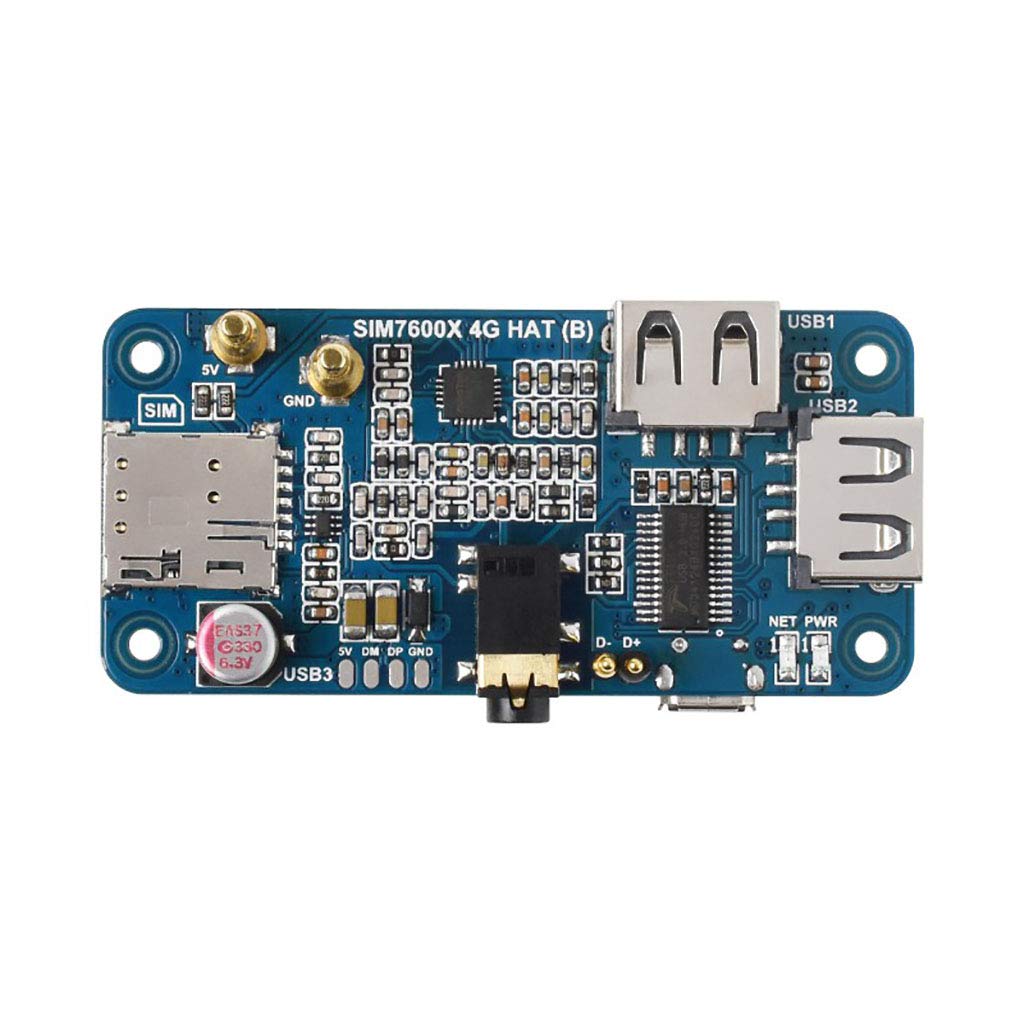

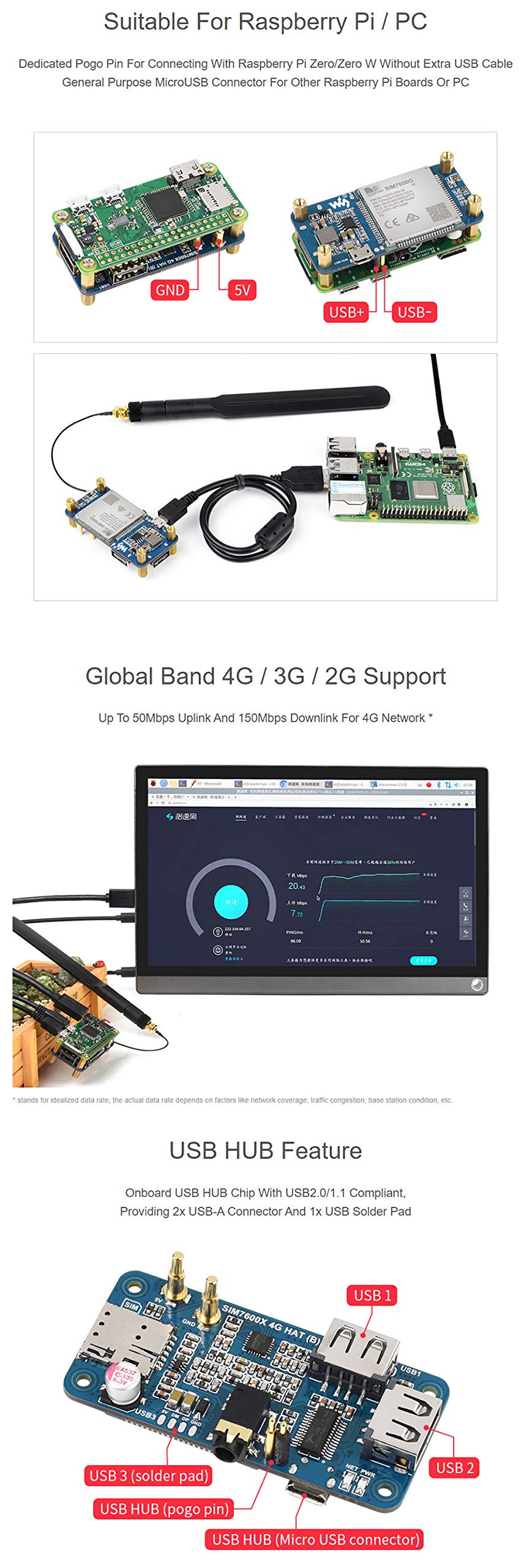

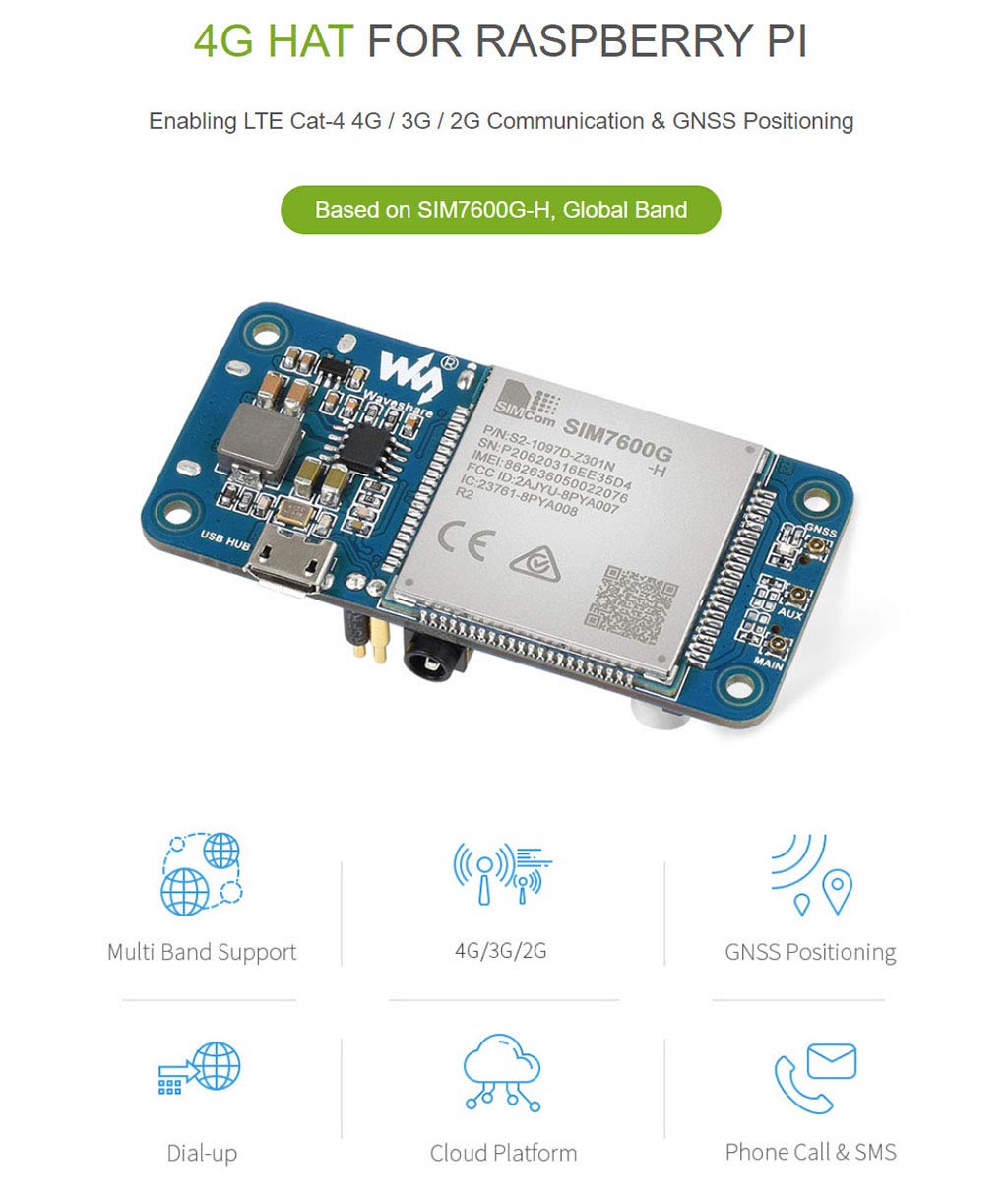

Features Connected via pogo pin or MicroUSB connector ---Dedicated pogo pin for Raspberry Pi Zero/Zero W ---MicroUSB connector for other Pi boards or PC Incorporates SIM7600G-H global band 4G module, compatible with 2G/3G/4G network with global support USB HUB connector for other Pi boards or PC, providing USB extension and 4G network access Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc. Supports GPS, BeiDou, Glonass, LBS base station positioning SIM card slot, supports 1.8V/3V SIM card Onboard audio jack and audio decoder for making telephone call 2x LED indicators, easy to monitor the operating status Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set) Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT Comes with development resources and manual (examples for Raspberry Pi) Package List 1. SIM7600G-H 4G HAT (B) x1 2. LTE Antenna x1 3. GPS Antenna x1 5. USB-A to micro-B cable x1 6. Screws pack x1
