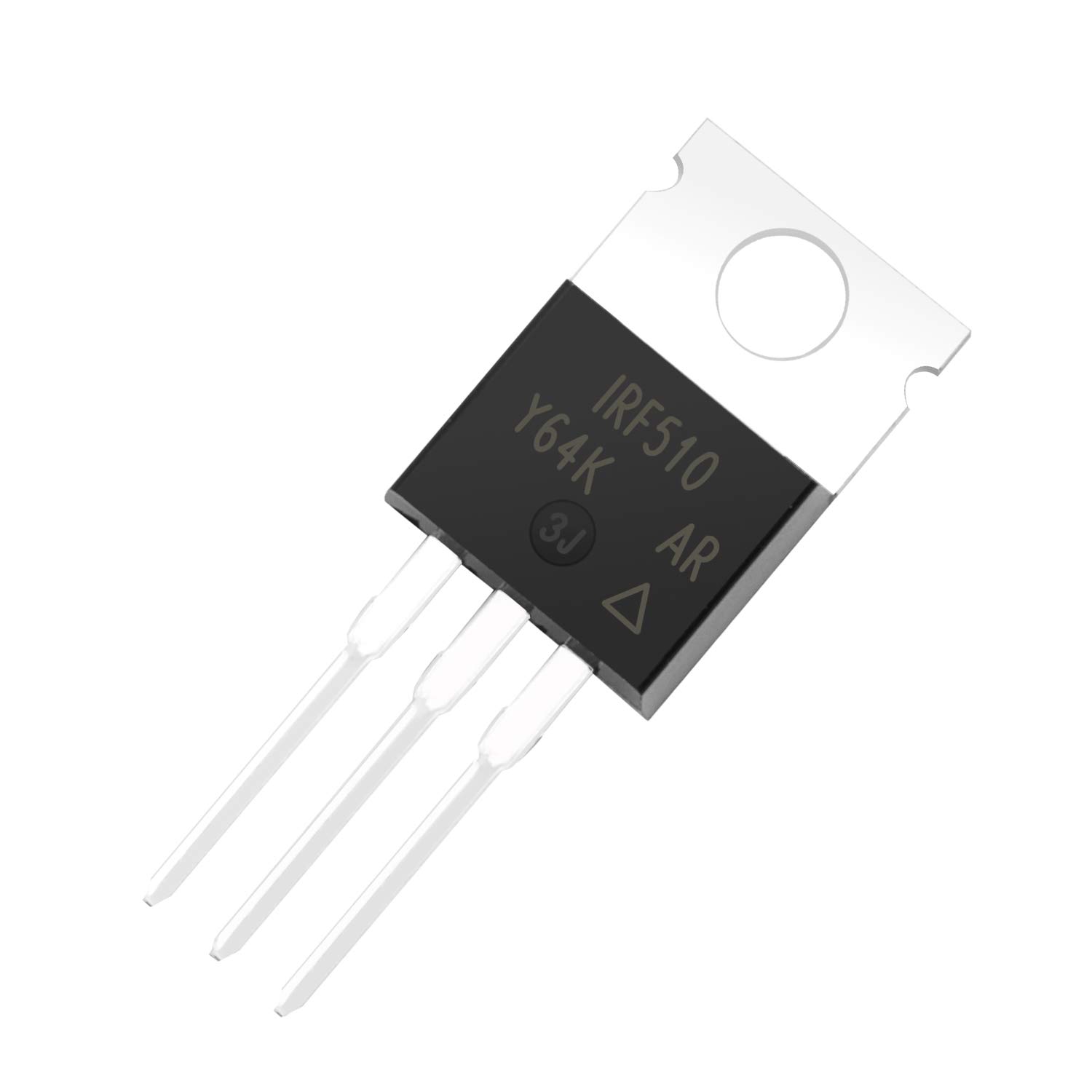

Chanzon IRF510NPBF TO-220AB NMOS MOS N-Channel Power MOSFET Transistor (Pack of 10pcs)

4.6 / 5

₱678

+ ₱ 109

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2026-06-04 to 2026-06-11.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

DETAILS

Product ID:

76532

Copy Link

Identifier:

B08M3DRBK1

Brand:

CHANZON

Model:

Shipping Weight:

0.07 lbs

Manufacturer:

CHANZON

Shipping Dimension:

6.3 x 5.51 x 0.51 inches

FEATURES

Transistor Type: Power MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor).

Transistor Polarity: N-Channel NMOS Transistor.

Specification: Detailed parameters to be determined, offering high performance and efficiency.

Application: Ideal for high power switching and amplification tasks in various electronics circuits like power supplies and motor control units.

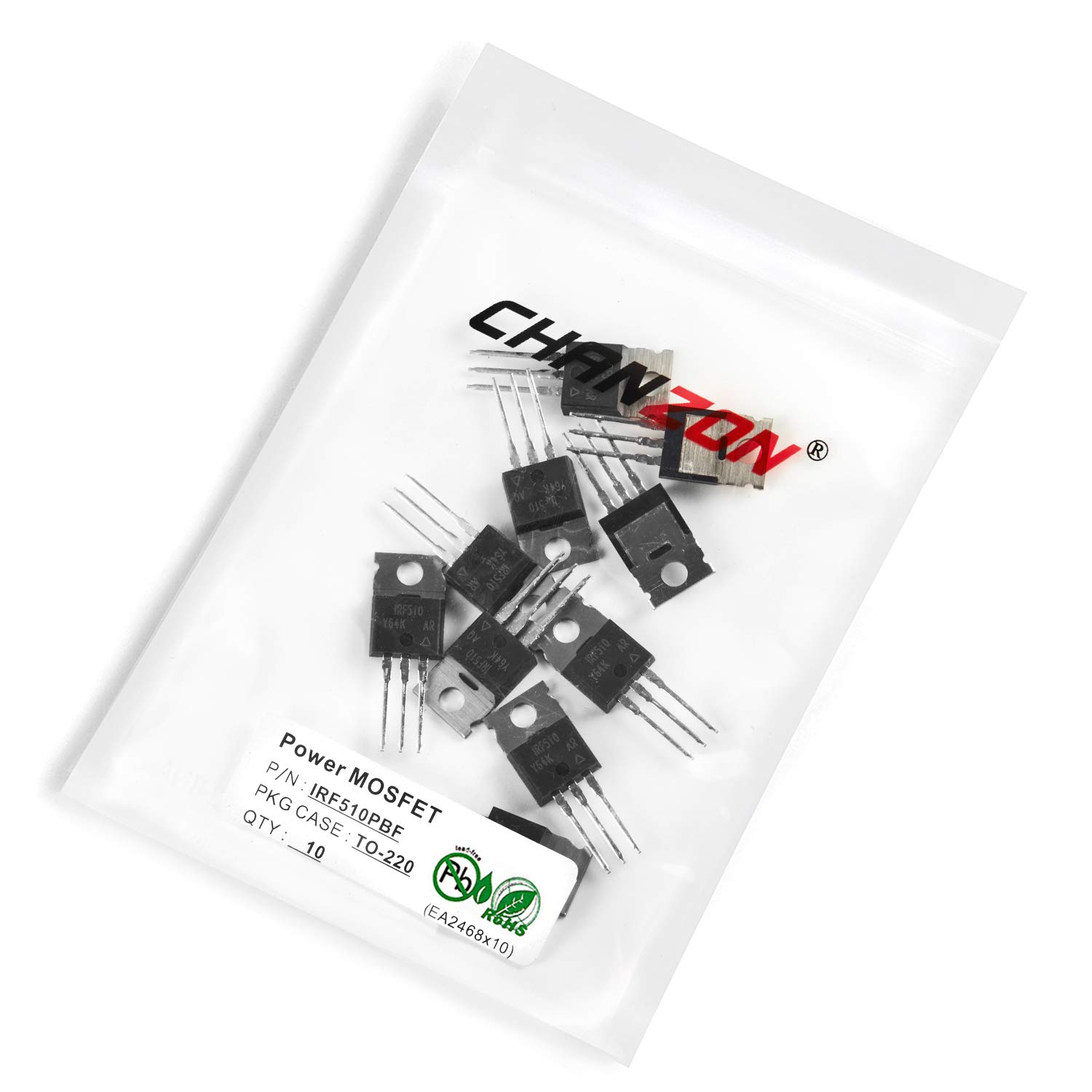

Package: Comes in an Anti-Static bag ensuring electrostatic protection, ESD safety, and long shelf life.

DESCRIPTIONS

Product Description Introducing a high-performance power MOSFET designed for demanding applications requiring fast switching and high reliability. This third-generation combines rugged device design with cost-effectiveness, making it ideal for commercial-industrial use. Key Features: Dynamic dv/dt Rating: Ensures robust performance under rapid voltage changes. Repetitive Avalanche Rated: Built to withstand high-energy transients repeatedly. Operating Temperature up to 175°C: Suitable for high-temperature environments. Fast Switching: Designed for applications requiring quick response times. Ease of Paralleling: Facilitates the use of multiple units for higher current handling. Simple Drive Requirements: Easy to integrate into existing circuit designs. Technical Highlights: Drain-to-Source Breakdown Voltage (V(BR)DSS): 100V Static Drain-to-Source On-Resistance (RDS(on)): Min. 0.54Ω at VGS=10V Gate Threshold Voltage (VGS(th)): 2.0V to 4.0V Forward Transconductance (gfs): 1.3s at VDS=50V, ID=3.4A Turn-On Delay Time (td(on)): Typically 6.9ns Rise Time (tr): 16ns at ID=5.6A Turn-Off Delay Time (td(off)): Typically 15ns Fall Time (tf): 9.4ns Internal Drain Inductance (Ld): 4.5nH Internal Source Inductance (Ls): 7.5nH Input Capacitance (Ciss): 180pF at VGS=0V
