NooElec HackRF Complete Bundle - Genuine HackRF One Software Defined Radio (SDR) with 0.5PPM TCXO in a Custom Black Aluminum Enclosure. ANT500, USB Cable & SMA Adapter Bundle Included

4.6 / 5

Product ID:

184556

Identifier:

B0BKJGKCDP

Brand:

NooElec

Model:

100807-1

Shipping Weight:

0.75 lbs

Manufacturer:

Nooelec Inc & Great Scott Gadgets

Shipping Dimension:

7.72 x 4.57 x 1.57 inches

Share on Social Media

Share on Facebook

Share on X

Share on Instagram

Share on Tiktok

SAVE 23%

₱45,051

₱35,171

+ ₱ 326

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2026-06-07 to 2026-06-14.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

FEATURES

Your bundle includes a genuine HackRF One, installed an inconspicuous black aluminum enclosure with a 0.5PPM TCXO module, an ANT500 antenna, 4 SMA antenna adapters and a USB cable for powering the HackRF

HackRF One is capable of half-duplex operation in the range of 1MHz to 6000MHz. The TCXO module ensures impeccable tuning accuracy in nearly any environment

HackRF One is an open-hardware device which is compatible with a wide range of SDR software applications, most of which are free to download and open source

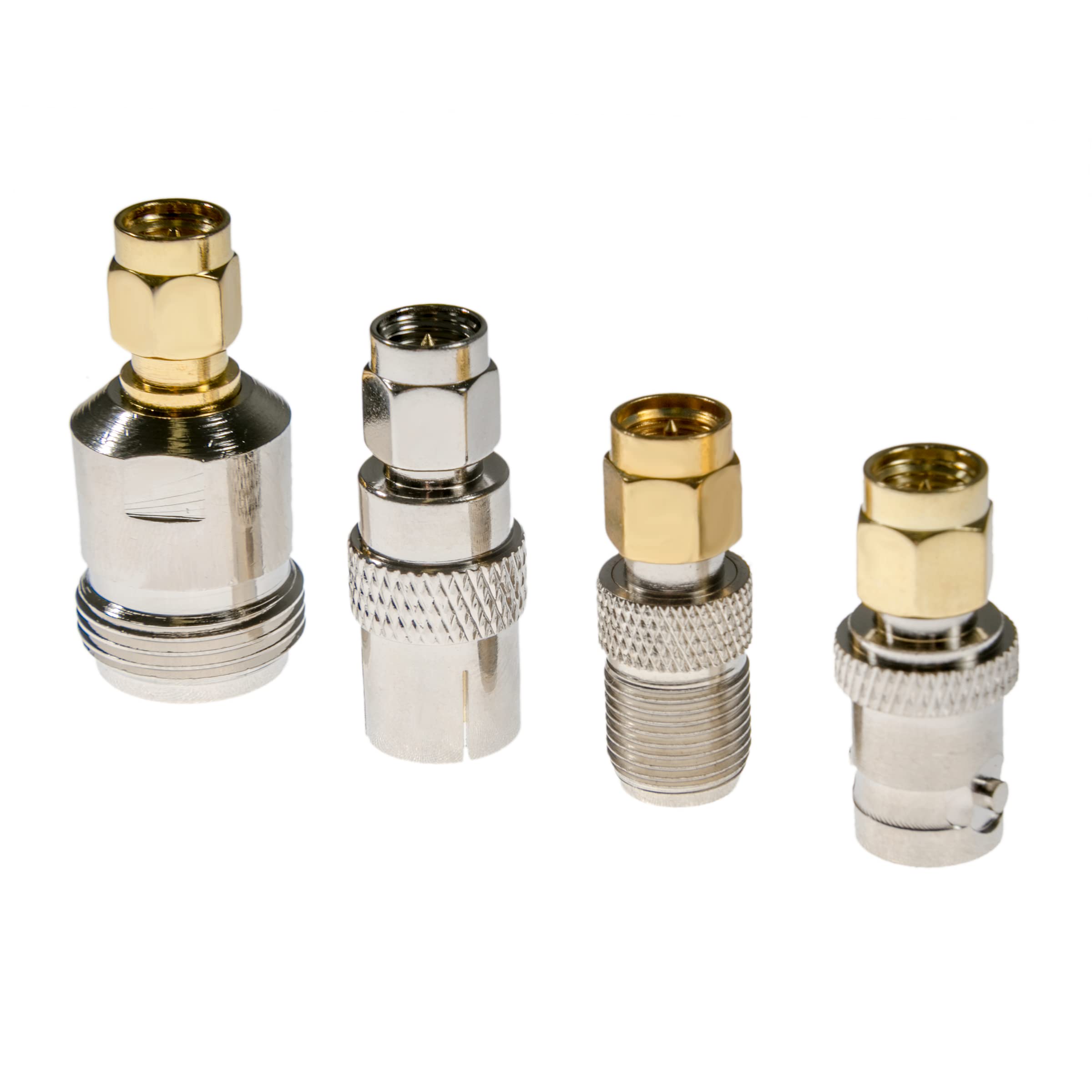

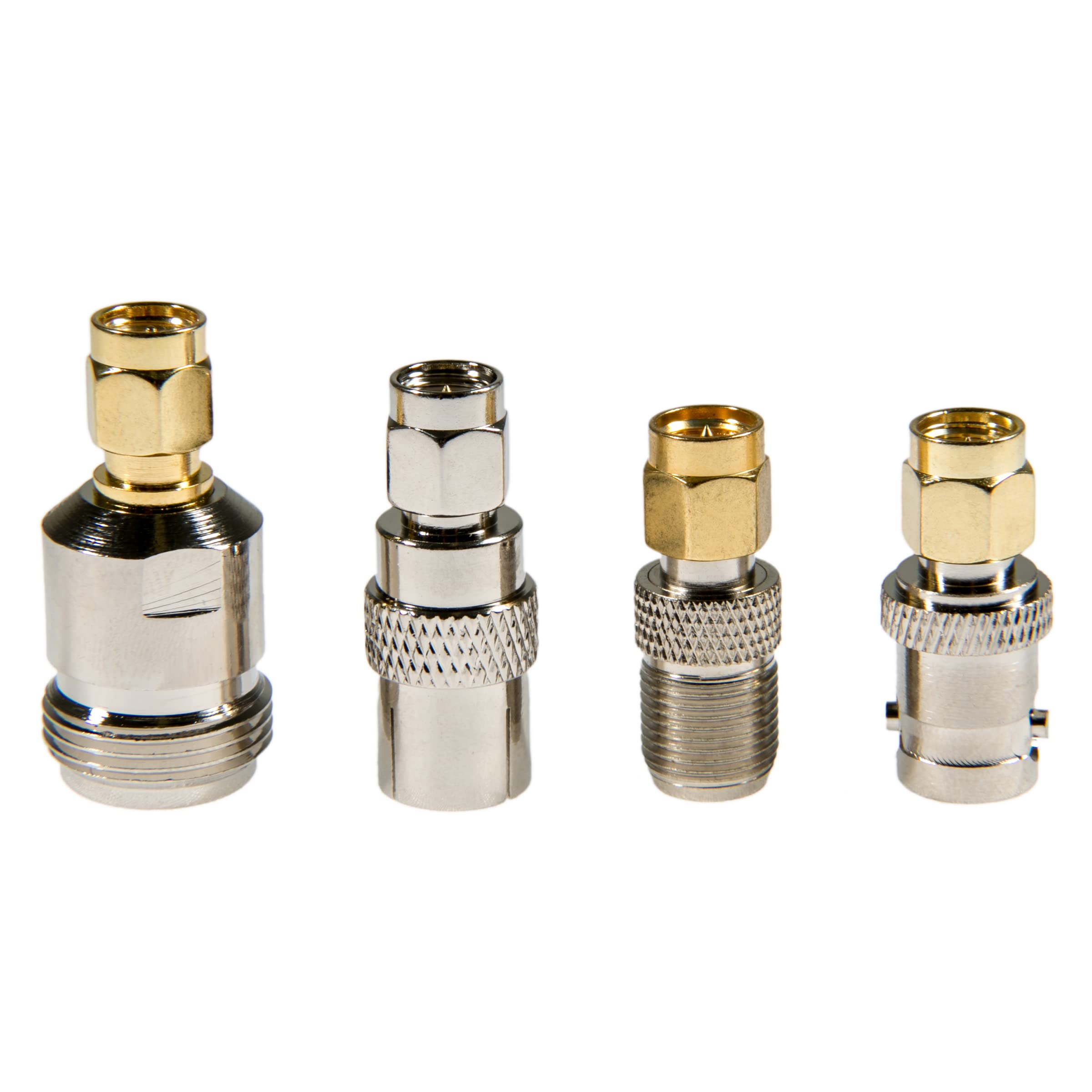

The included adapters will allow you to connect a wide range of antennas to your HackRF One, including F-connector, N-connector, BNC and PAL antennas

Installation support and assistance available directly from Nooelec

DESCRIPTIONS

Your purchase includes everything you need to get started with software defined radio. A metal-encased HackRF One with custom 0.5PPM TCXO module, ANT500 antenna from Great Scott Gadgets and 4 SMA antenna adapters from Nooelec are included in your custom bundle purchase. HackRF One from Great Scott Gadgets is a Software Defined Radio peripheral with a frequency of operation from 1 MHz to 6 GHz. Designed to enable test and development of modern and next generation radio technologies, HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation. ● 1 MHz to 6 GHz operating frequency ● half-duplex capability ● up to 20 million samples per second ● 8-bit quadrature samples (8-bit I and 8-bit Q) ● compatible with GNU Radio, SDR#, and more ● software-configurable RX and TX gain and baseband filter ● software-controlled antenna port power (50 mA at 3.3 V) ● SMA female antenna connector ● SMA female clock input and output for synchronization ● convenient buttons for programming ● internal pin headers for expansion ● Hi-Speed USB 2.0 ● USB-powered ● open source hardware HackRF One has an injection molded plastic enclosure and ships with a micro USB cable. HackRF One is test equipment for RF systems. ANT500 from Great Scott Gadgets is a telescopic antenna designed for operation from 75 MHz to 1 GHz. Its total length is configurable from 20 cm to 88 cm. ANT500 is constructed of stainless steel and features an SMA male connector, rotating shaft, and adjustable elbow. ANT500 is a 50 ohm general purpose antenna. It is the perfect first antenna for use with HackRF One or YARD Stick One.
