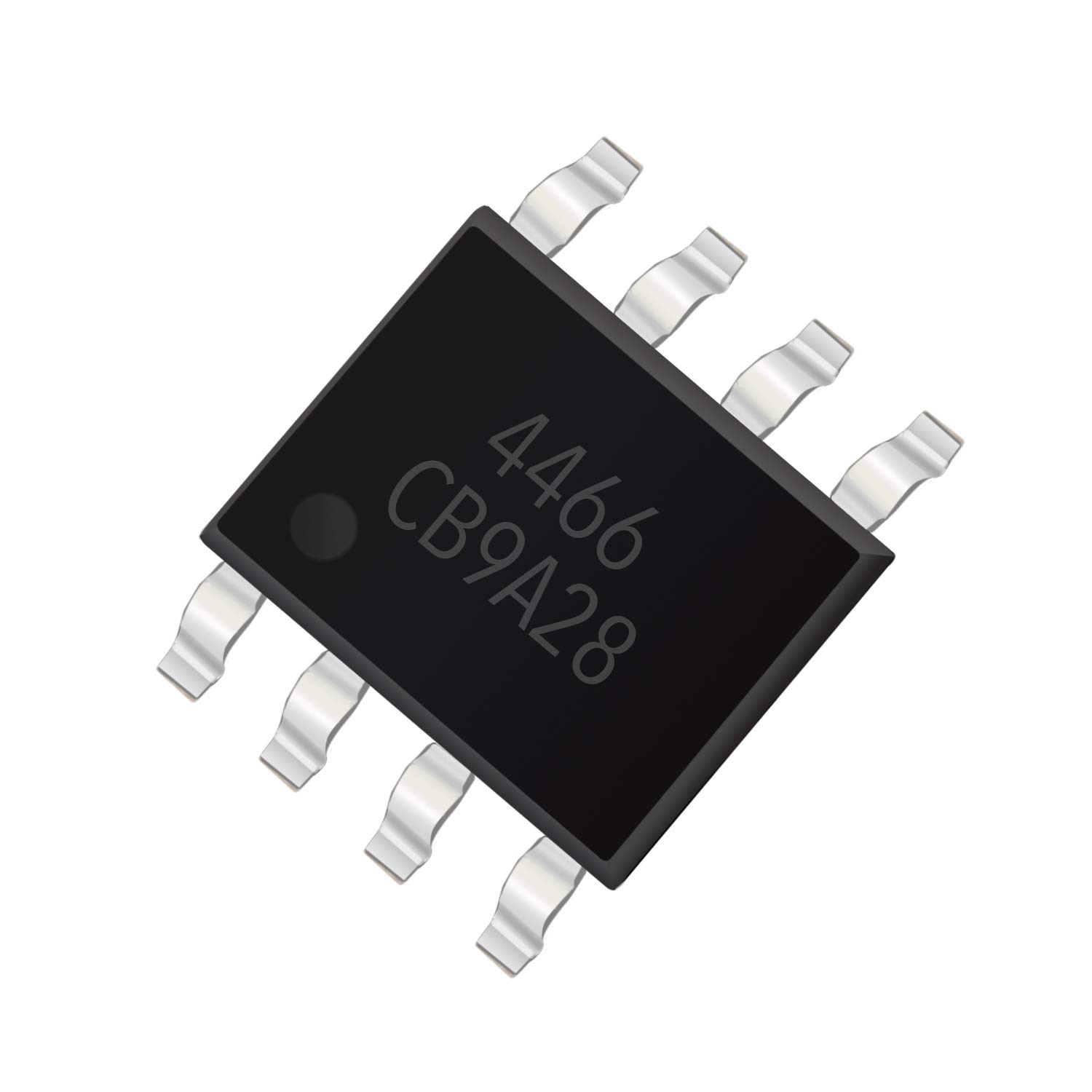

Chanzon AO4466 SOP-8 NMOS MOS N-Channel Power MOSFET Transistor, High Efficiency SMD (Pack of 10pcs)

4.3 / 5

Product ID:

78635

Identifier:

B08LVK9WFW

Brand:

CHANZON

Model:

Shipping Weight:

0.03 lbs

Manufacturer:

CHANZON

Shipping Dimension:

6.3 x 5.51 x 0.39 inches

Share on Social Media

Share on Facebook

Share on X

Share on Instagram

Share on Tiktok

₱525

+ ₱ 150

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2026-06-05 to 2026-06-12.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

FEATURES

Transistor Type: High efficiency N-Channel Power MOSFET Transistor.

Transistor Polarity: NMOS, offering enhanced speed and low gate drive power.

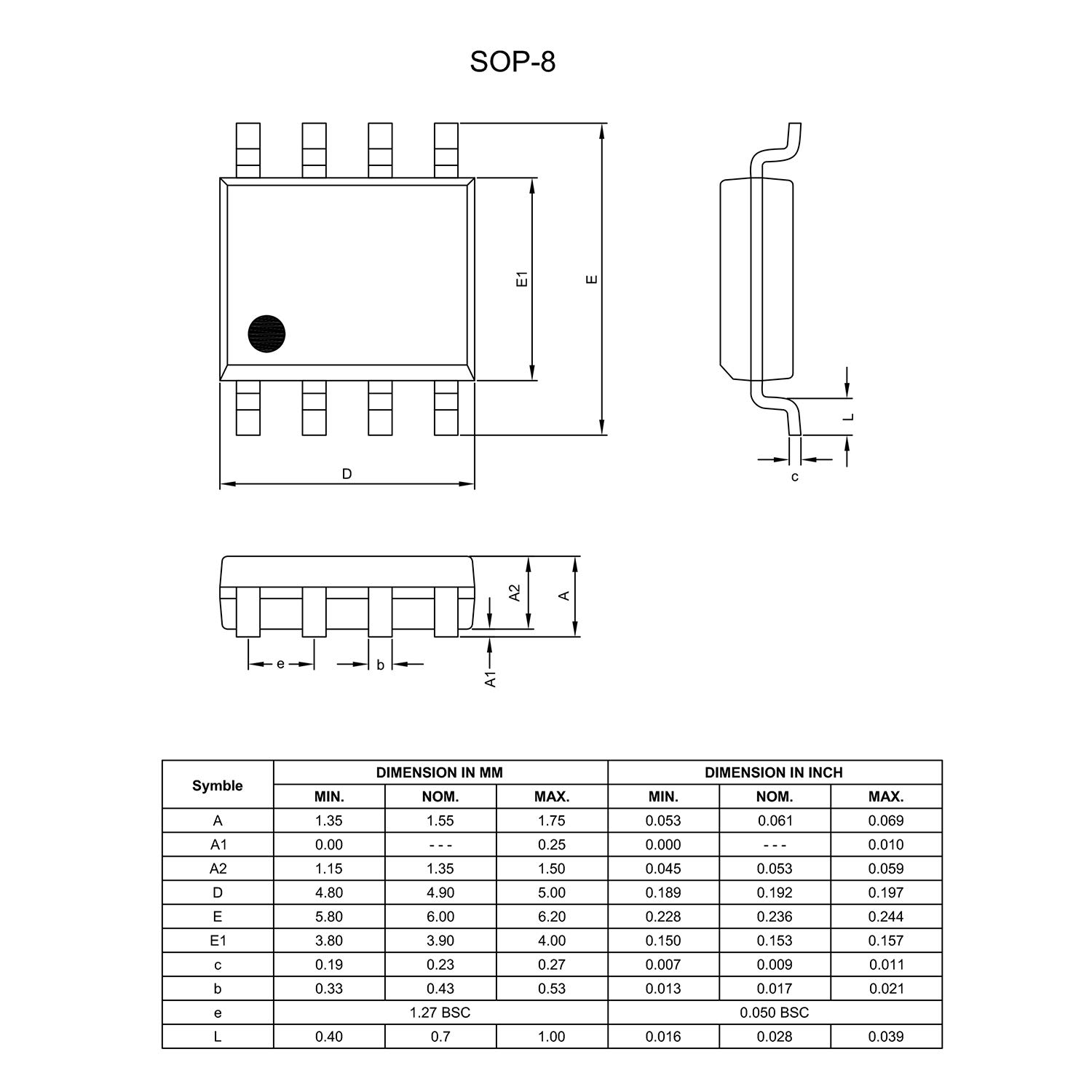

Specification: With a compact SOP-8 form factor and advance design for robust performance.

Application: Perfect for a variety of power control applications such as power supplies, motor control, and amplifiers due to its high switching speed.

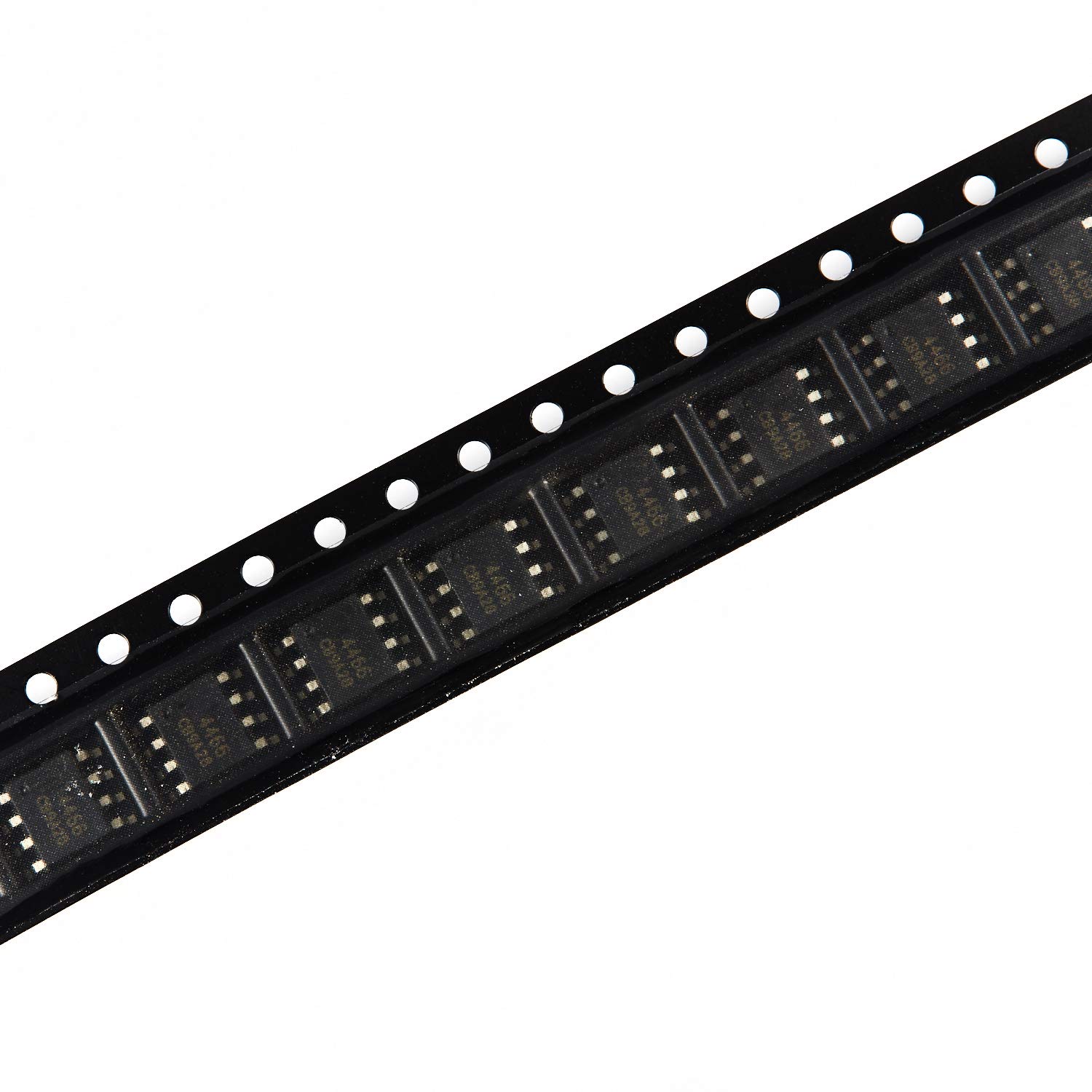

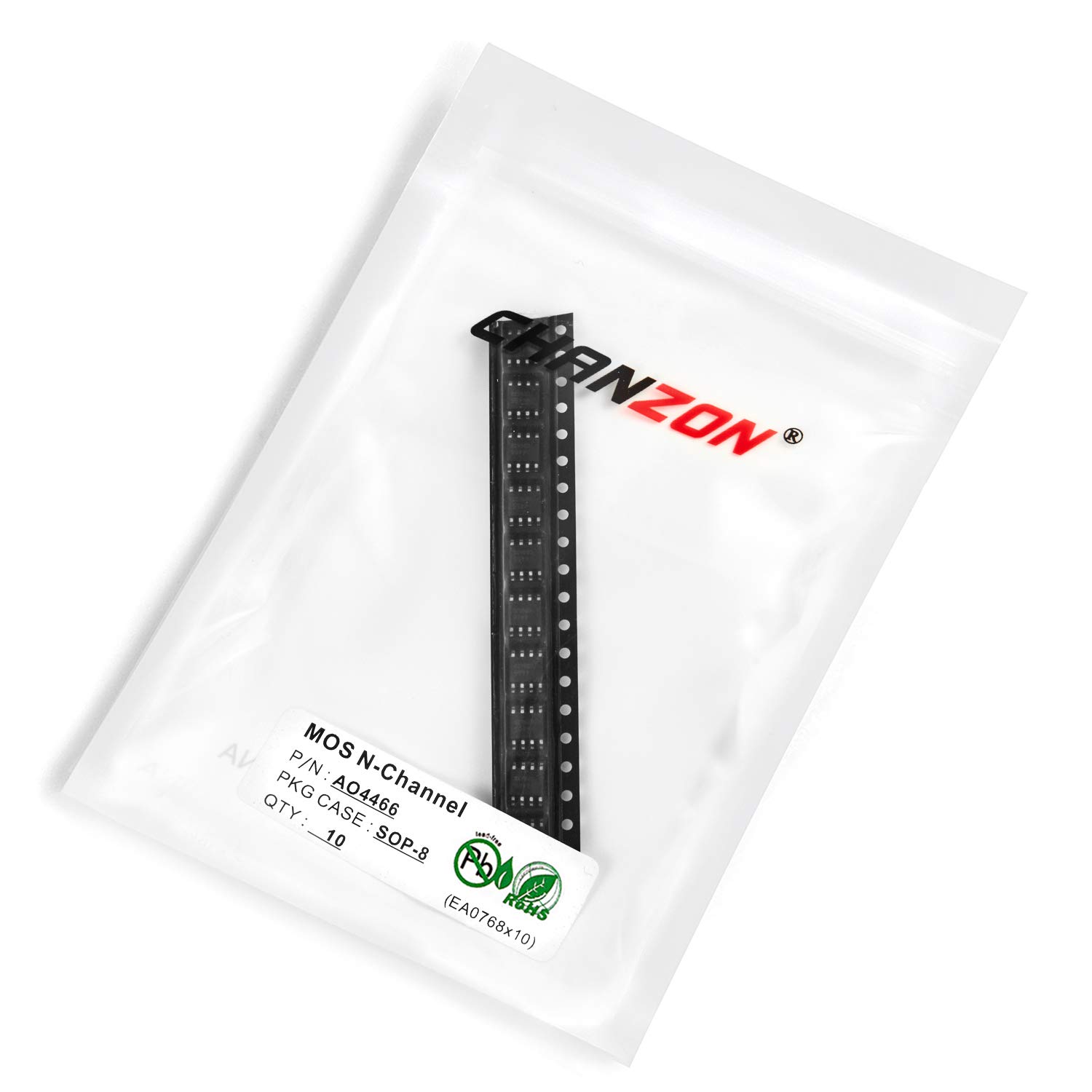

Package: Comes in a pack of 10 and safely sealed in an anti-static bag for protection against electrostatic discharge, ensuring long shelf life and reliability.

DESCRIPTIONS

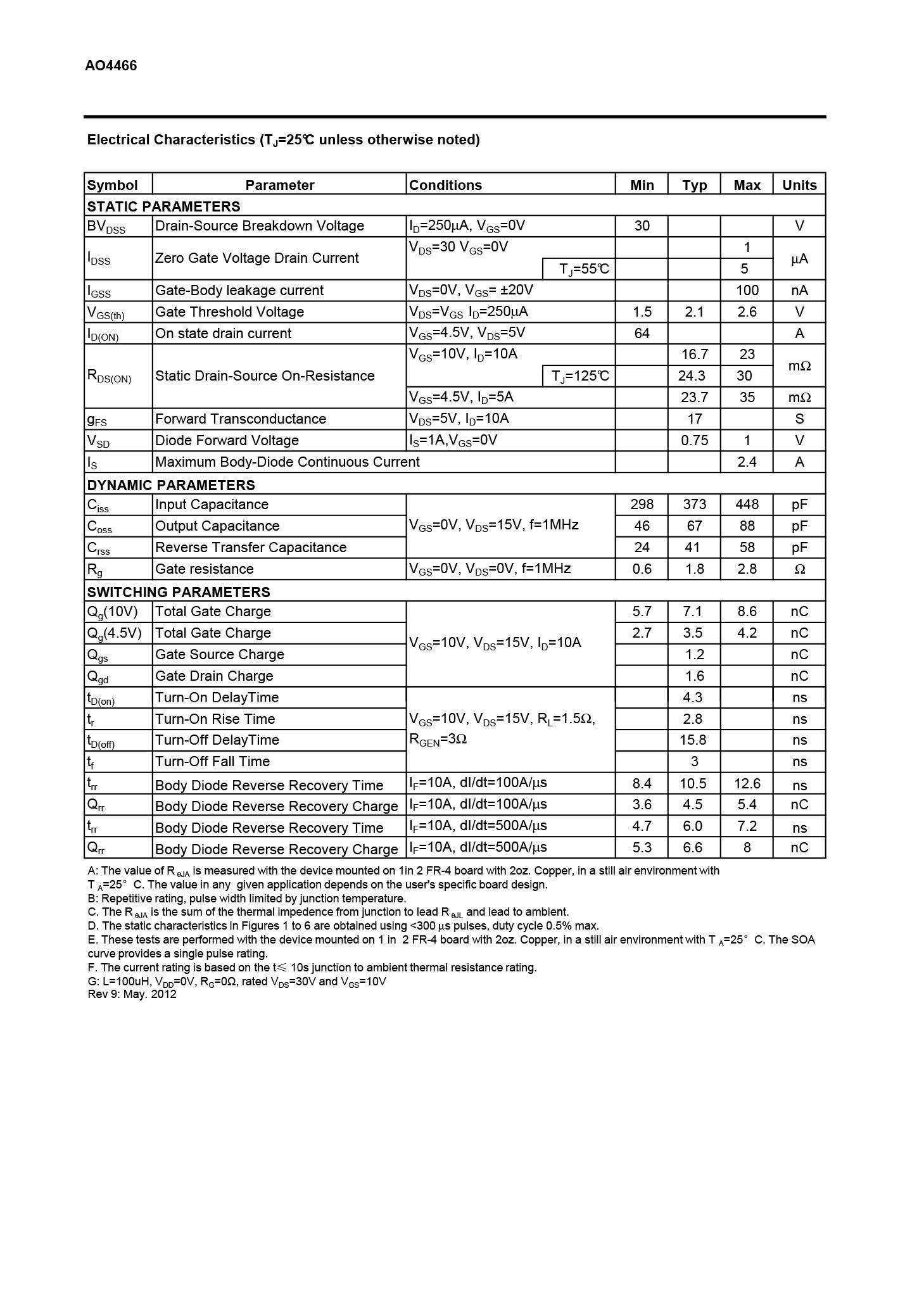

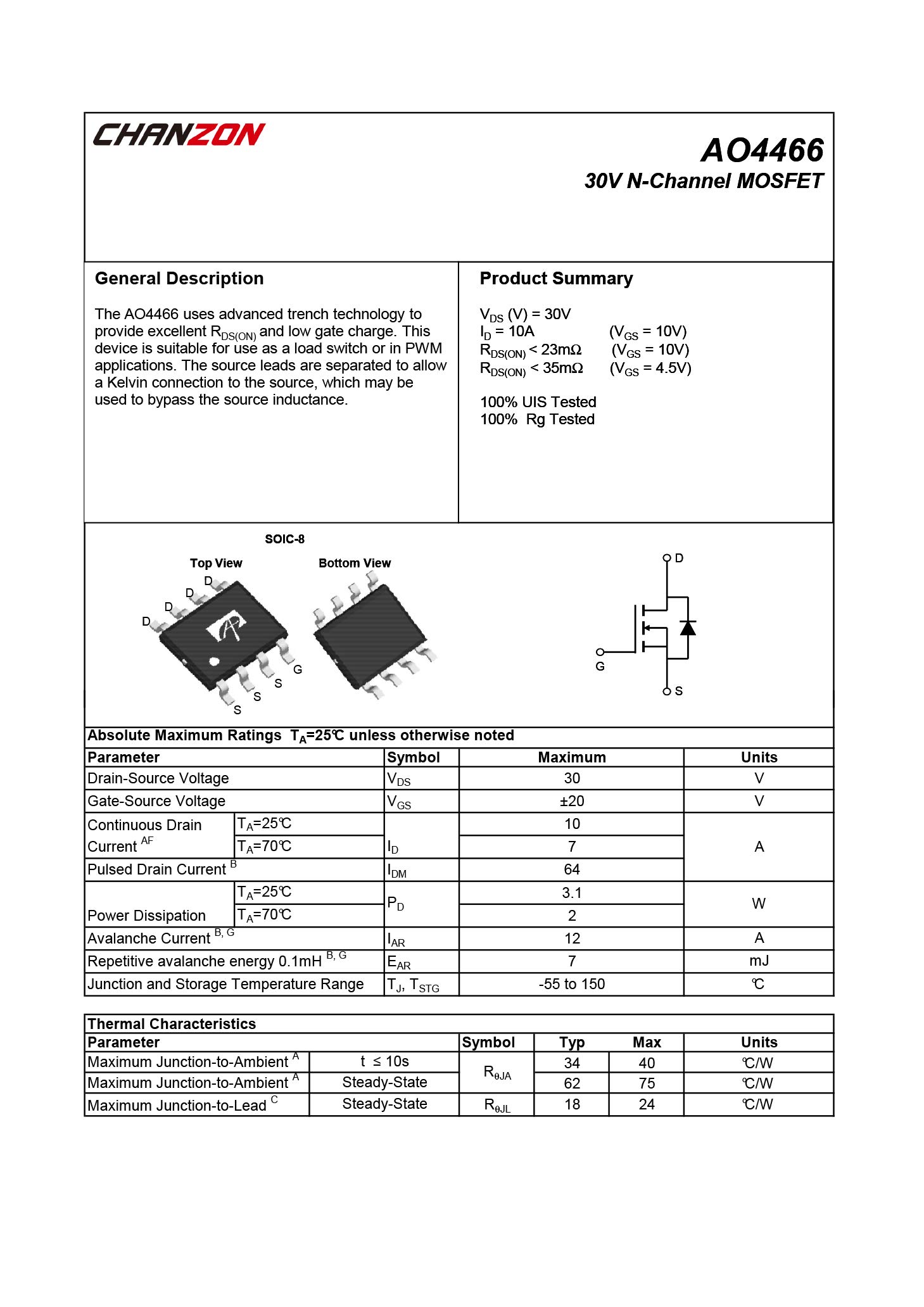

Product Description: This 30V N-Channel MOSFET is designed for high performance in applications such as load switches or PWM. Key Features: - Voltage Rating (VDS): 30V - Continuous Drain Current (ID): 10A at VGS = 10V - On-Resistance (RDS(ON)): <23mΩ at VGS = 10V, <35mΩ at VGS = 4.5V - Gate Charge (Qg): 5.7 - 8.6nC at 10V, 2.7 - 4.2nC at 4.5V - Gate Threshold Voltage (VGS(th)): 1.5 - 2.6V - Input Capacitance (Ciss): 298 - 448pF - Forward Transconductance: Suitable for efficient switching - Body Diode Characteristics: Optimized for fast recovery - Thermal Design: Includes thermal resistance parameters for reliable heat dissipation - Static and Dynamic Parameters: Ensure stable operation over a range of conditions - Absolute Maximum Ratings: Defined for safe operation - UI Tested: 100% UIS Tested for reliability
