₱9,359
₱8,902
+ ₱ 1,512
Shipping Cost from USA to Philippines inclusive of custom fees.
Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.
Get it between 2026-06-08 to 2026-06-15.
Additional 3 business days for provincial shipping.
- Price and Stocks may change without prior notice
- Packaging of actual item may differ from photo shown
Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.
Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods
Product ID:
1308140
Identifier:
B0DTTNFBNZ
Brand:
KAINSC PRODUCTS KAWAGUCH INDUSTRIAL SCIENTIFIC
Model:
SDR-240-48
Shipping Weight:
2.22 lbs
Manufacturer:
MEAN WELL ENTERPRISES CO., LTD.
Shipping Dimension:
6.14 x 6.06 x 4.09 inches
Output Voltage: 48V; Rated Current & Rated Power: 5A, 240W
UL and CE Certificated; Input Voltage : 88 ~ 264VAC / 124 ~ 370 VDC
Protections: Short circuit / Overload / Over Voltage / Over Temperature
High Operating Temperature up to 70℃; Ripple & Noise (max.): 200mVp-p (measured at 20MHBuild-in active PFC function, PF>0.93; Ripple & Noise (max.): 50mVp-p; Setup, Rise Time: 650ms, 60ms/230VAC & 1300ms, 60ms/115VAC at full load (measured at 20MHz of bandwidth by using 12” twisted pair-wire terminated with 0.1uf & 47uf parallel capacitor)z of bandwidth by using 12” twisted pair-wire terminated with 0.1uf & 47uf parallel capacitor)
High Efficiency 94% and Low power dissipation; UL 508 (Industrial Control Equipment) approved

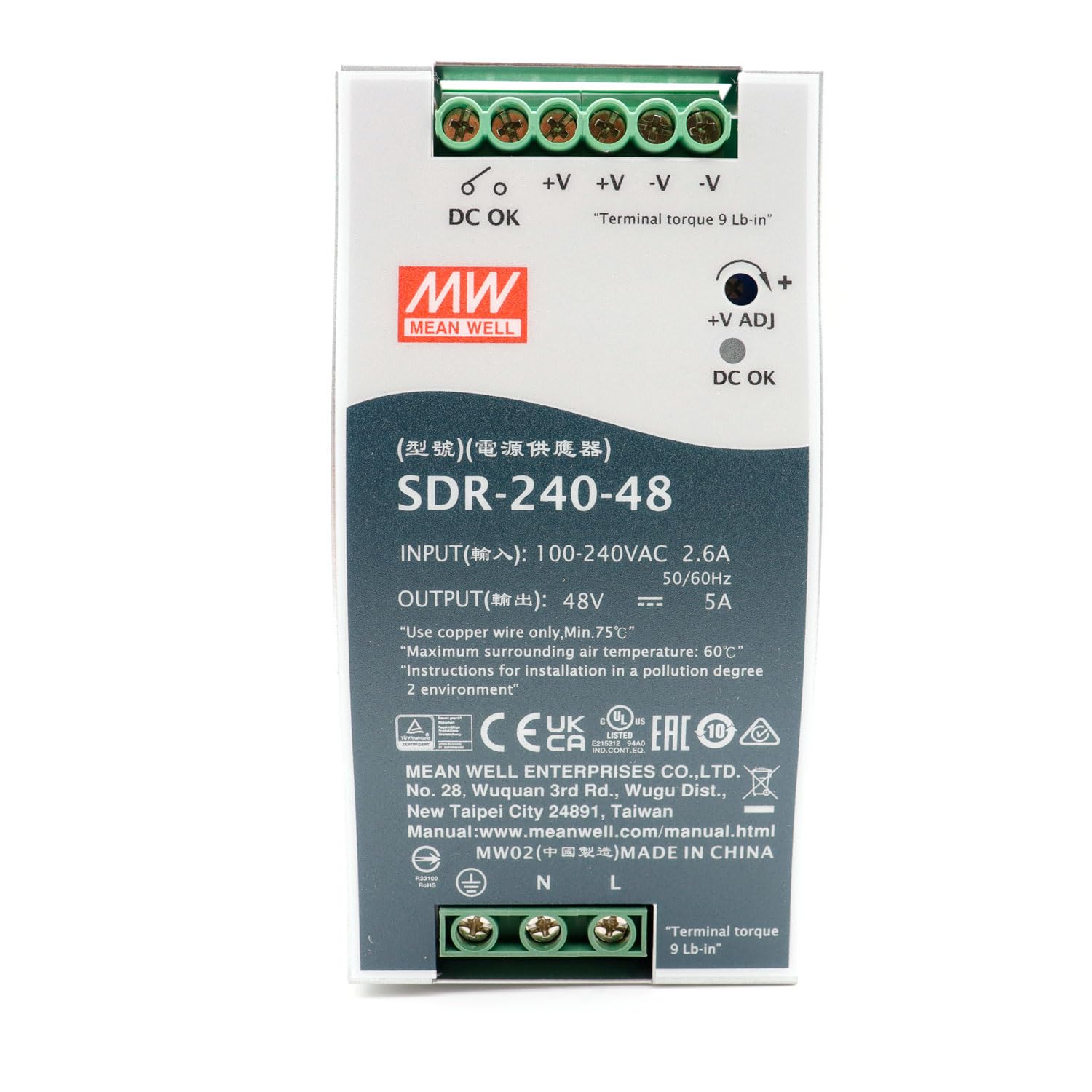

SDR-240-48 AC to DC power supply from MEAN WELL converts an alternating current source to a direct current supply. It has a voltage of 48 V and maximum output power of 240 W. This part's single output can handle a current up to 5 A. This part has a temperature range of -25 °C to 70 °C. EU RoHS: Compliant PCB changed: 9 Mounting: DIN Rail Item Height: 125.2mm Item Width: 113.5mm Item Length: 63mm Type: Regulated Style: DIN Rail Input/Output Type: AC/DC Number of Outputs: 1 Output Type: Fixed Output Voltage (V): 48 Output Current (A): 5 Output Power (W): 240 Minimum AC Input Voltage (V): 88 Maximum AC Input Voltage (V): 264 Minimum DC Input Voltage (V): 124 Maximum DC Input Voltage (V): 370 Minimum Isolation Voltage: 3000VAC Line Regulation: 0.5% Load Regulation: 1% Maximum Input Current (A): 2.6(Typ) Input Frequency (Hz): 47 to 63 Tolerance (%): ±1 Efficiency (%): 94(Typ) Configurable: No Input Connector Type: Screw Terminal Block Output Connector Type: Screw Terminal Block Power Indicator: No Ripple & Noise: 100mV(Max) Medical: No Minimum Operating Temperature (°C): -25 Maximum Operating Temperature (°C): 70 Product Weight (g): 1030 Pin Count: 9
