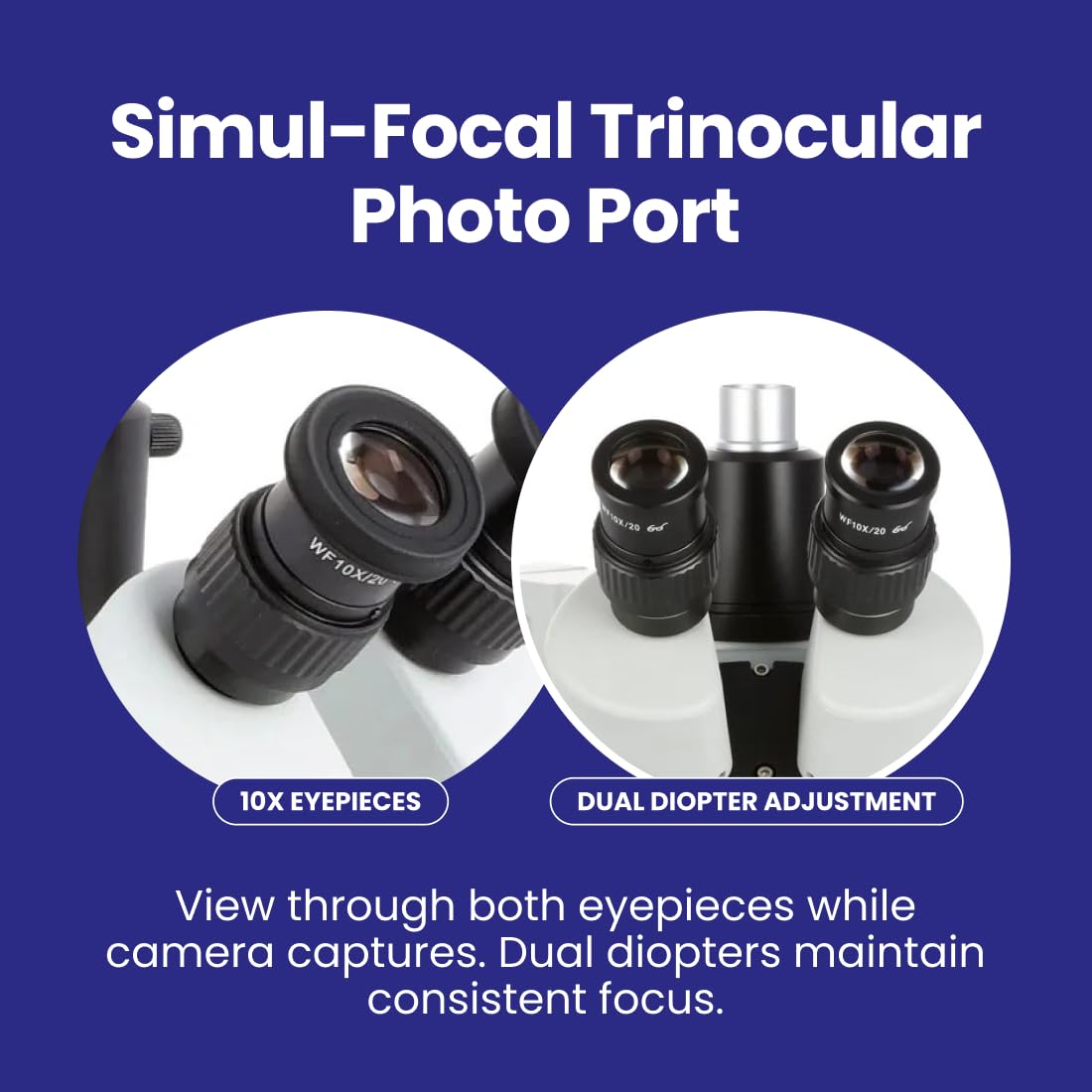

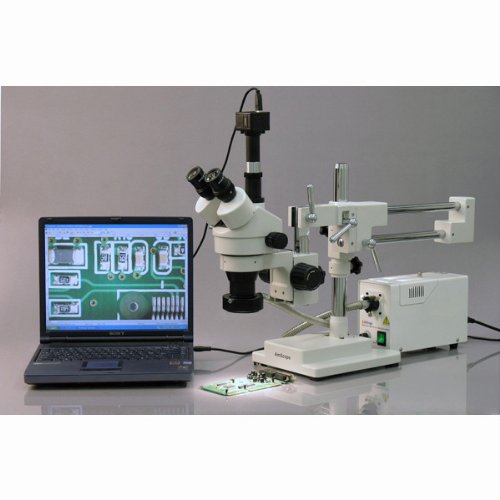

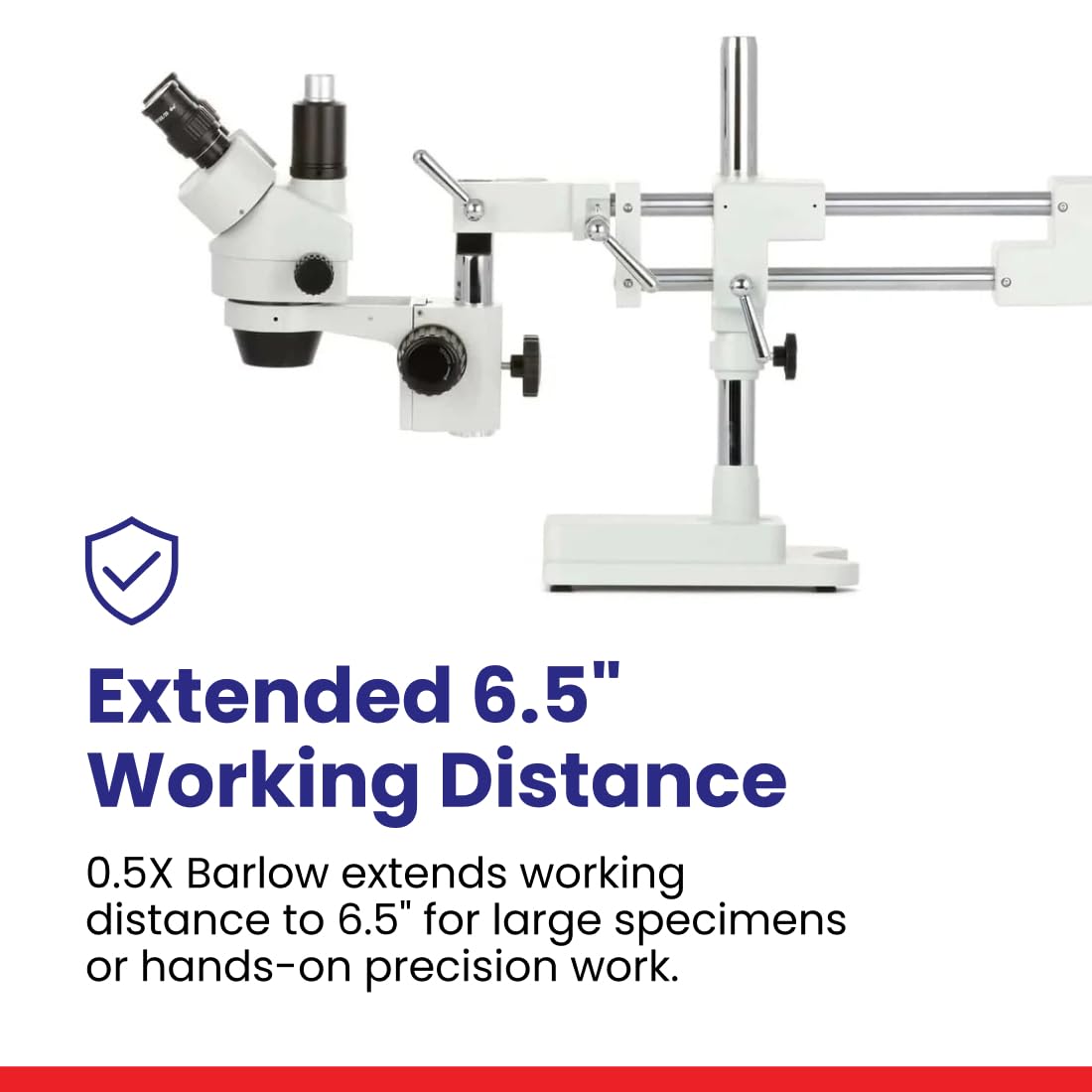

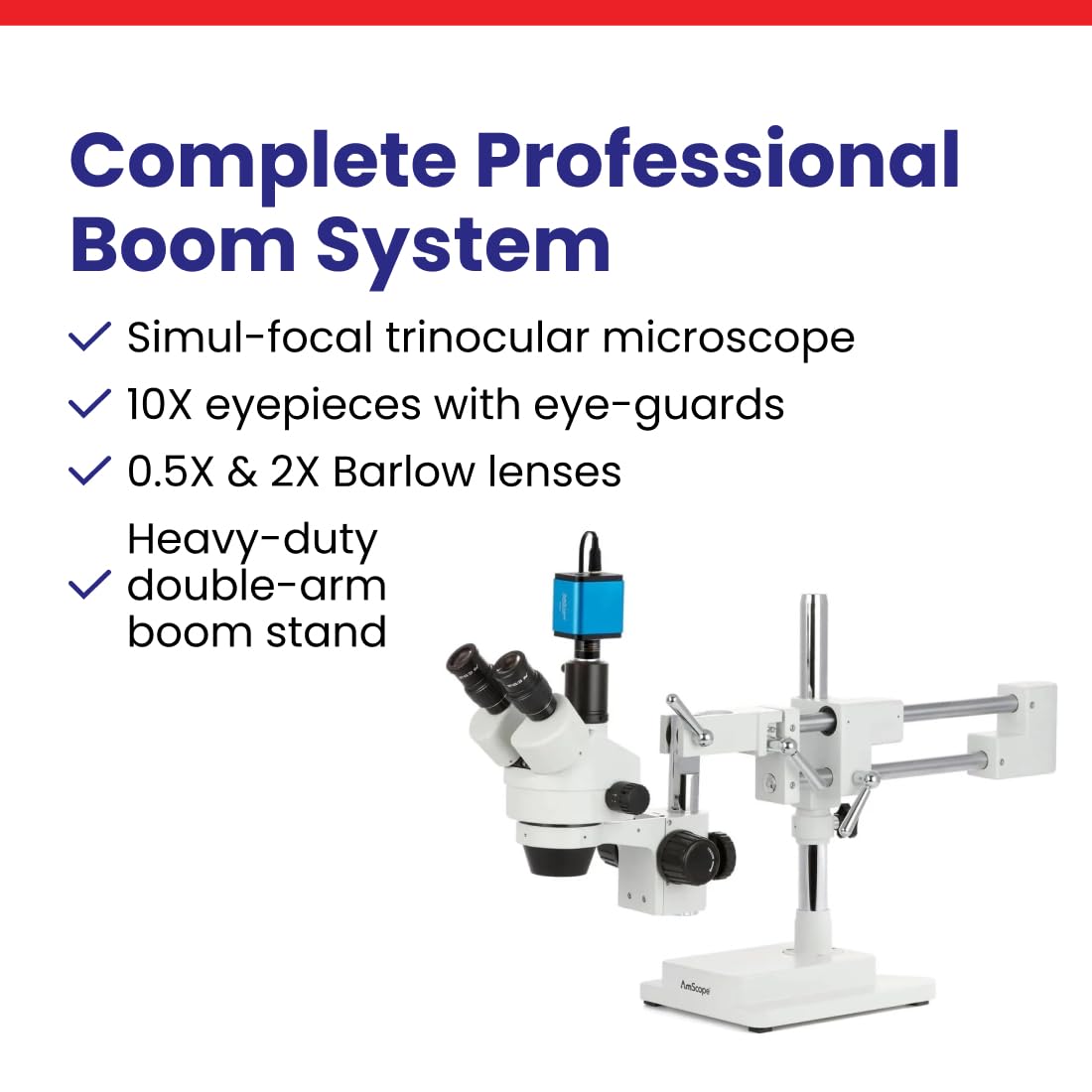

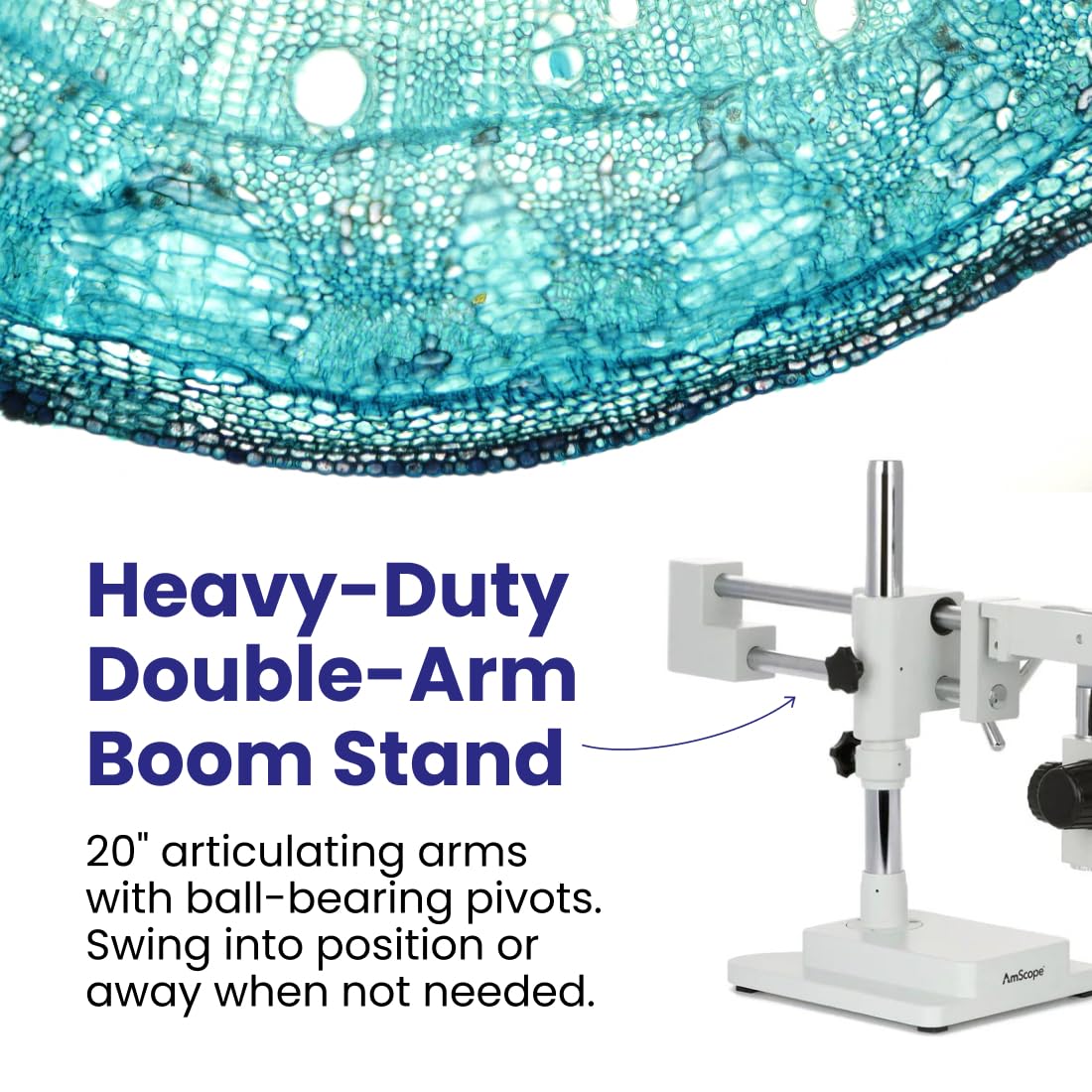

The AmScope SM-4TPZ professional trinocular stereo zoom microscope has a pair of 10x super-widefield high-eyepoint eyepieces, a 0.7x-4.5x zoom objective, two Barlow lenses, and a double-arm boom stand. The microscope has an overall magnification range of 3.5x-90x. The trinocular viewing head offers simultaneous viewing through the eyepieces and trinocular port, and has an interpupillary range of 55 to 75mm, a 45-degree inclination to reduce eye and neck strain, and 360-degree rotation to enable sharing. The vertical trinocular port can be used as a C-Mount or 23mm photo port (camera sold separately). The WH10x20mm super-widefield high-eyepoint eyepieces combine with the 0.7x-4.5x zoom objective to provide continuous zoom magnification and a longer working distance for inspecting large-scale specimens that require handling or repair. The microscope comes with 0.5x and 2.0x Barlow lenses that can be added to the objective to increase the magnification range. A Barlow lens with a magnification of less than 1.0 reduces magnification and increases the working distance, while a Barlow lens with a magnification greater than 1.0 increases the magnification and reduces the working distance. High-eyepoint eyepieces ease viewing for users who wear glasses, and dioptric adjustment accommodates individual eye-strength differences. A stereo microscope, sometimes called an inspection or dissection microscope, has low magnification and a long working distance that enables users to manipulate the object being inspected. Ambient lighting illuminates the specimen, eliminating the need for power or batteries. The microscope has a double-arm boom stand that enables users to position the microscope head on all three axes (X, Y, and Z). Bilateral focus eases use for left- and right-handed users. The stand has 20" double arms, and a 30" overall length. The pillar is 17" and the focus rack has a 3" diameter. The solid cast-steel base is 2 x 8-1/4 x 10-1/4 inches (H x W x D, where H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back). SpecificationsHeadTrinocularMagnification range3.5x-90xZoom objective power 0.7x-4.5xEyepieces (DIN, 30mm)WH10x20mm high-eyepointTrinocular portC-Mount or 23mmField of view2-1/2"Optical working distanceUp to 8"Microscope standDouble-arm boom standHead movementX-, Y-, and Z-axesIllumination typeN/ALight sourceAmbientPowerN/A Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries. United Scope manufactures microscopy equipment and accessories under the brand name AmScope. The company, founded in 1996, is headquartered in Irvine, CA. What's in the Box? AmScope SM-4TPZ stereo zoom microscope with double-arm boom stand WH10x20mm eyepieces, 30mm, one pair 0.5x Barlow lens 2.0x Barlow lens 0.7x-4.5x zoom objective Focus rack Eye guards, one pair Instructions
