DIY kit suitable for all Propane & Natural Gas Gears gas appliance, grill, fireplace, stove,but you may need do some modification during installation, It not fits all the current hole for install or the length of wire,The cable length 11.8inch for the current one. (if power is not enough you can use two）

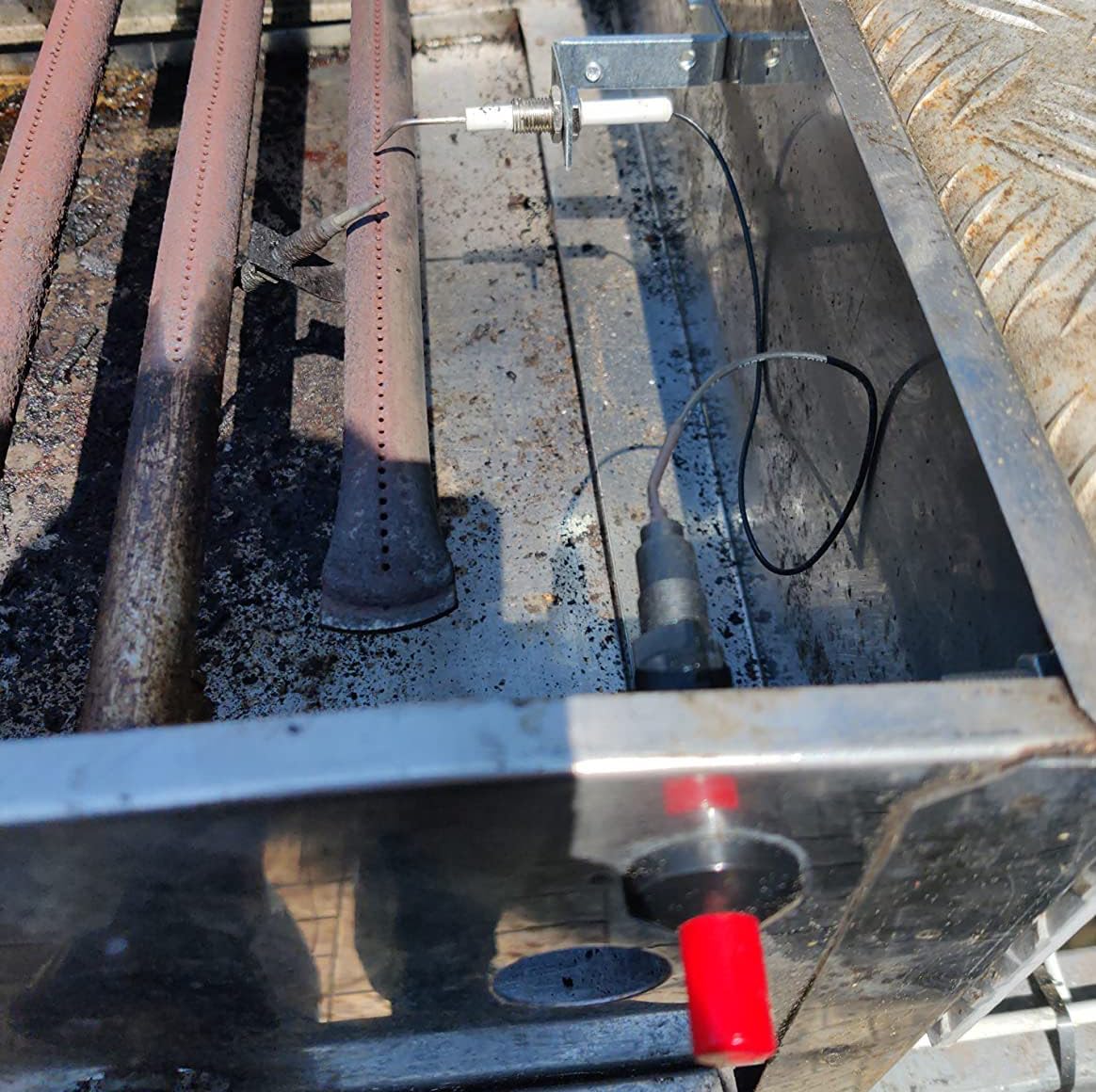

Output voltage: >=20kv,Sparking distance: 3-5mm, wire length 30cm, Electrode : M10*1 length: 57mm. Head with universal mounting thread. Important to read the photo diagram to build up in your grill. Make sure all the connection are correct to keep from the spark jump, The groud point connection is very important to get enough spark to igniter the burner gas.

No battery needed just press, one press one spark but 𝐌𝐚𝐤𝐞 𝐬𝐮𝐫𝐞 𝐲𝐨𝐮 𝐜𝐨𝐧𝐧𝐞𝐜𝐭 𝐭𝐡𝐞 𝐠𝐫𝐨𝐮𝐝 𝐰𝐢𝐫𝐞 𝐨𝐫 𝐭𝐨𝐮𝐜𝐡 𝐠𝐫𝐨𝐮𝐝𝐢𝐧𝐠 𝐩𝐨𝐢𝐧𝐭𝐬. Otherwise the spark will jump to bottom instead of top burner, Life time: Over 30000times. You may need serveral push to get a right spark.

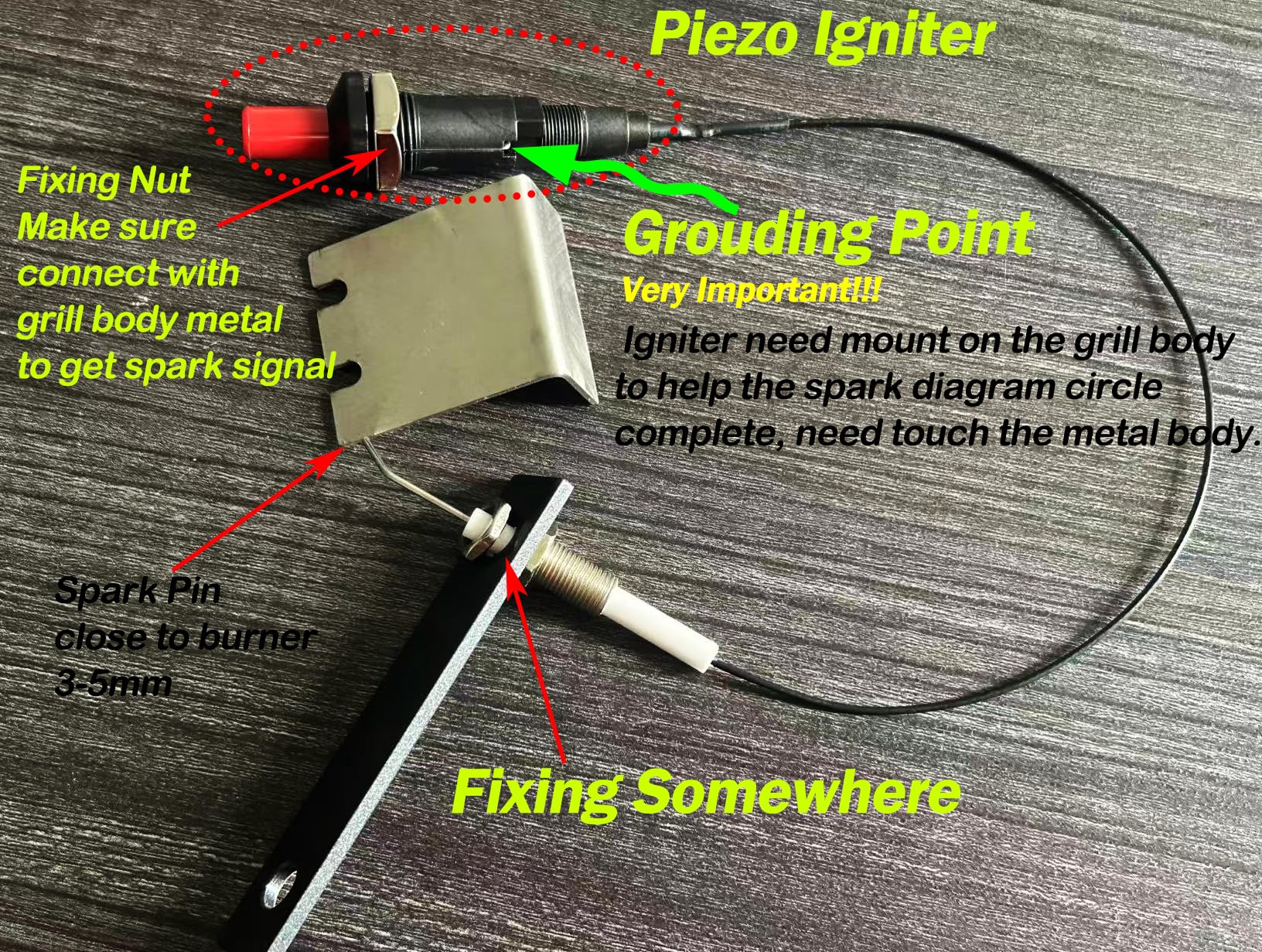

Installtion Tips: VERY IMPORTANT!!! - 𝐭𝐡𝐞 𝐩𝐢𝐞𝐳𝐨 𝐢𝐠𝐧𝐢𝐭𝐞𝐫 𝐡𝐚𝐬 𝐚 𝐬𝐢𝐥𝐯𝐞𝐫 𝐬𝐢𝐧𝐠𝐥𝐞 𝐥𝐢𝐧𝐞 𝐰𝐡𝐢𝐜𝐡 𝐚𝐜𝐭 𝐚𝐬 𝐠𝐫𝐨𝐮𝐧𝐝 𝐜𝐨𝐧𝐧𝐞𝐜𝐭𝐢𝐨𝐧 𝐩𝐨𝐢𝐧𝐭. you must tough that point to a metal control pannel or add some metal to get a singnal there so you can get it correct spark. Without Connect well, The igniter cannot ignite the burner because the spark will not come from the head of electrode pin.

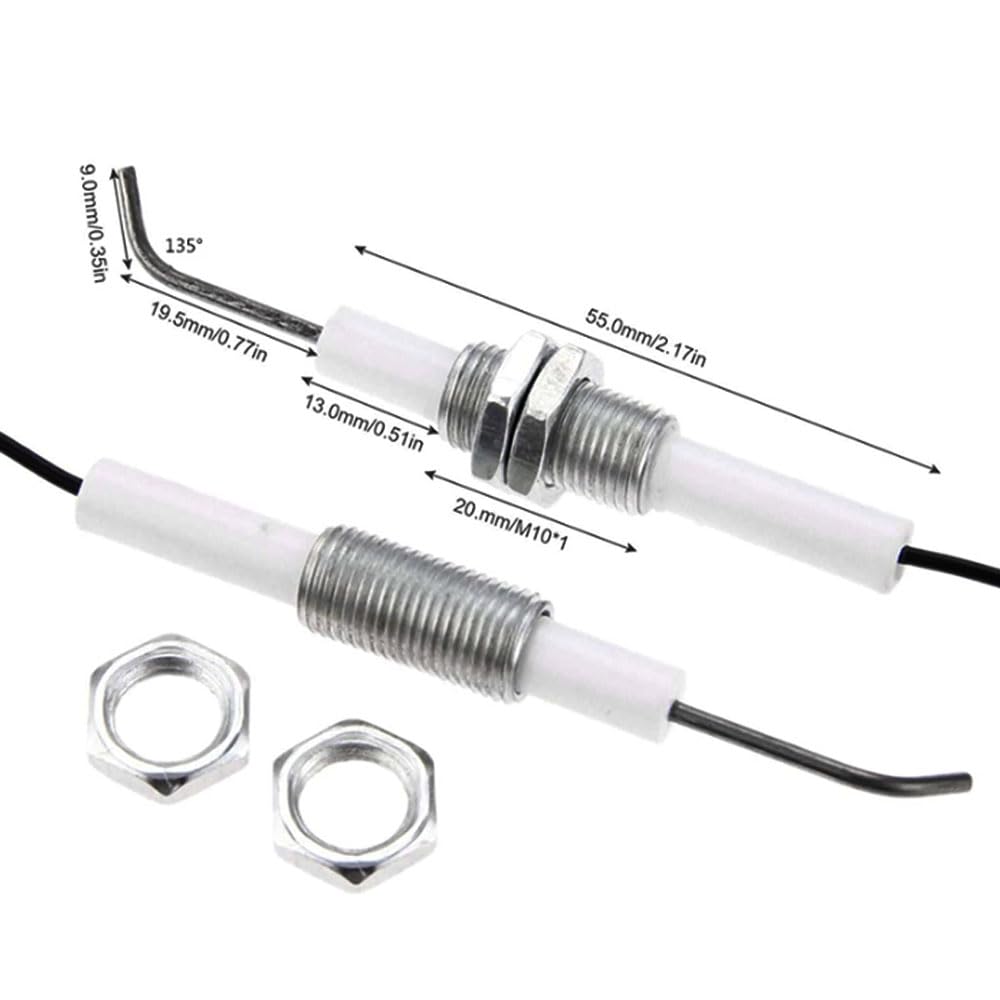

Pin straight length: 19.5mm 135degree at head 9.0mm, Wire resistance 392℉. If the kit cannot ignite the burner, please check if the body are insolated and make sure the grouding point on igniter are well connected with your metal sheet grill body. ( it cannot connect the insolated subject but need connect something conductive.
