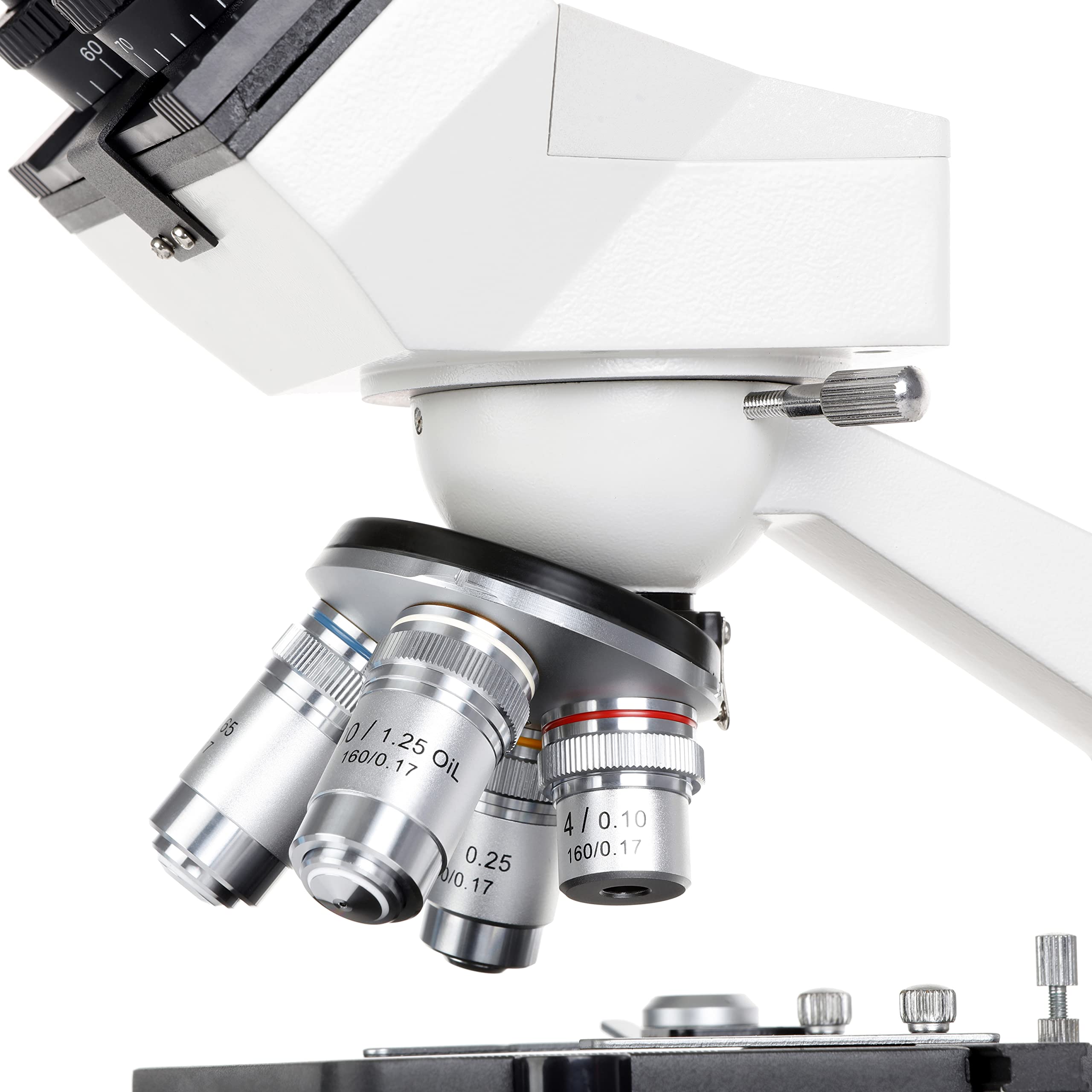

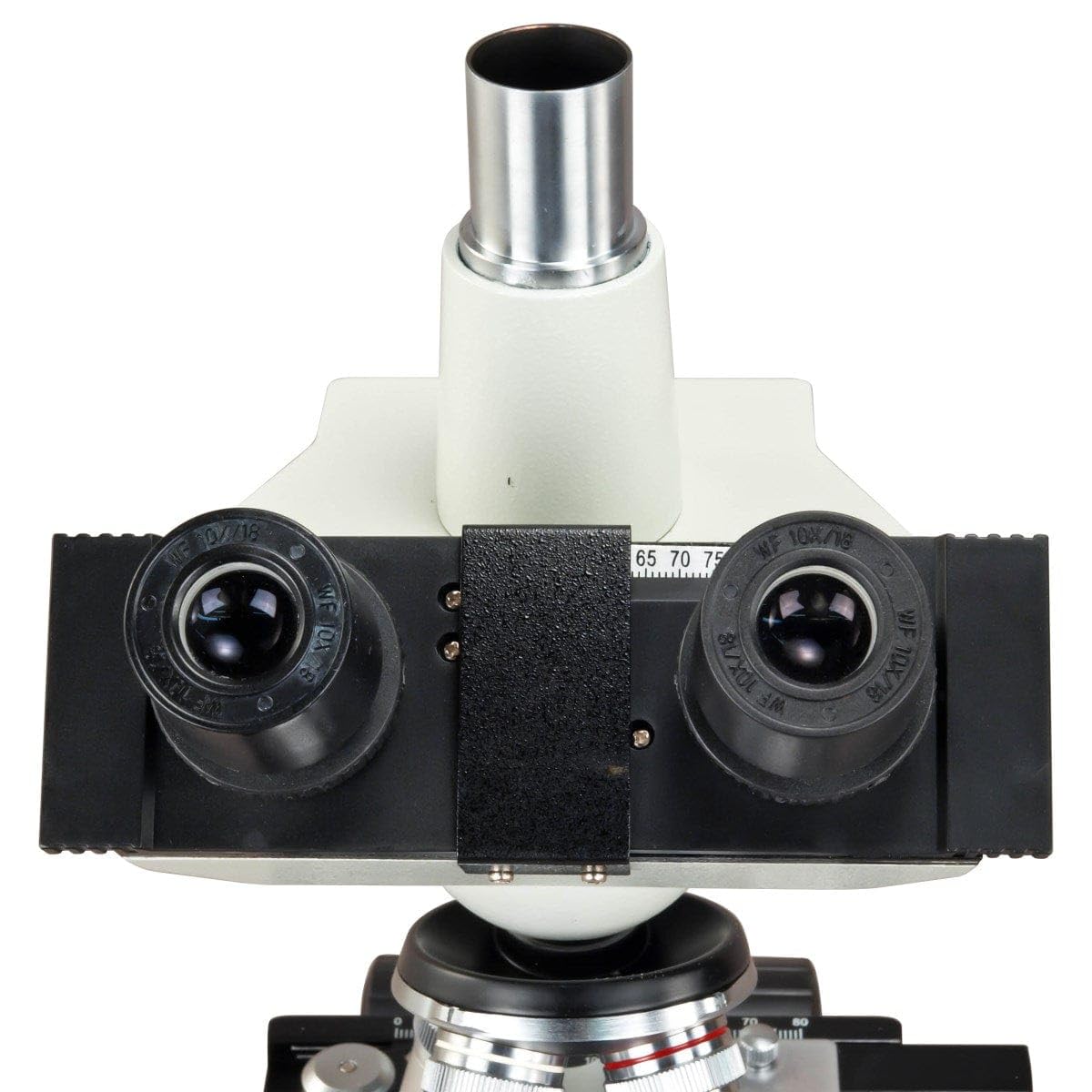

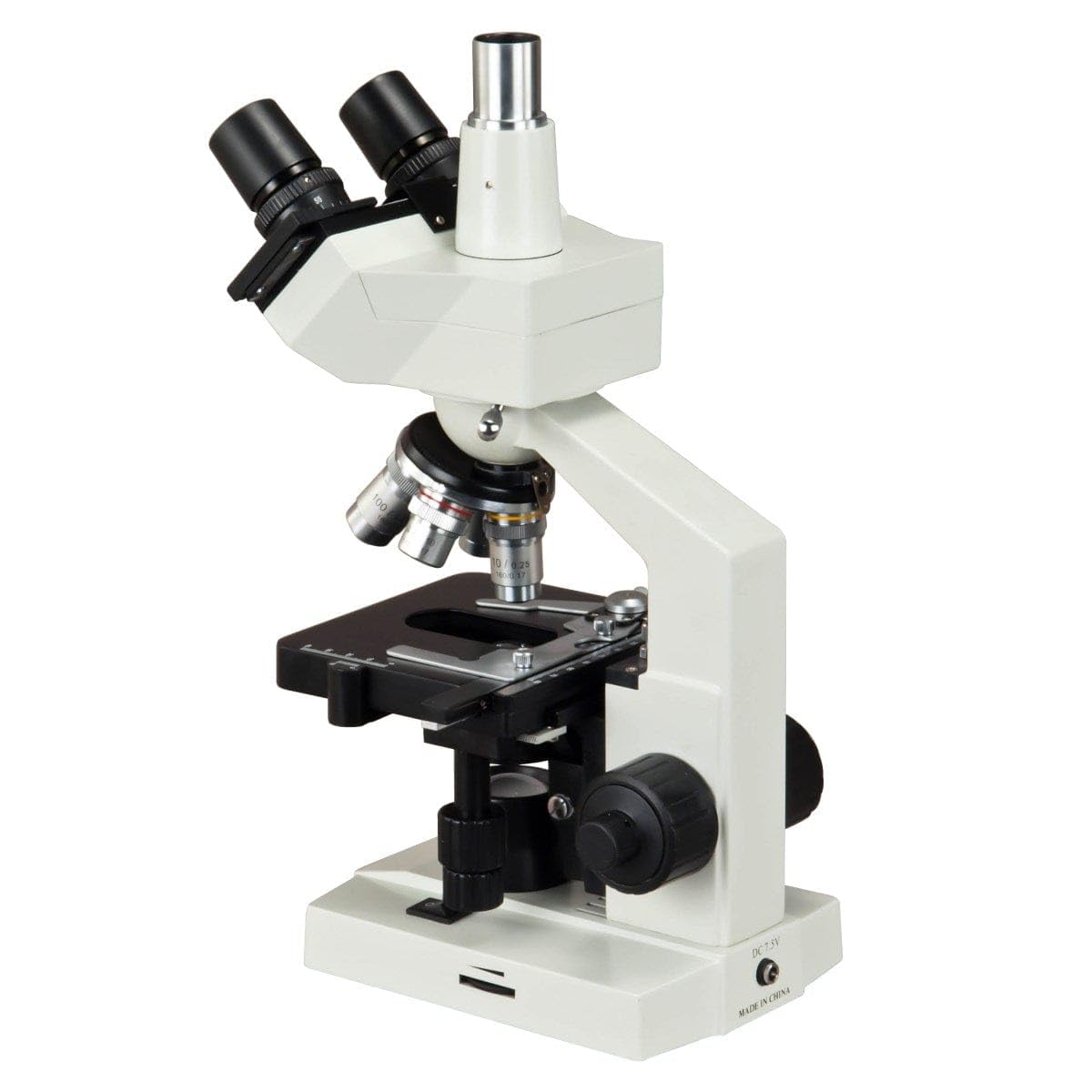

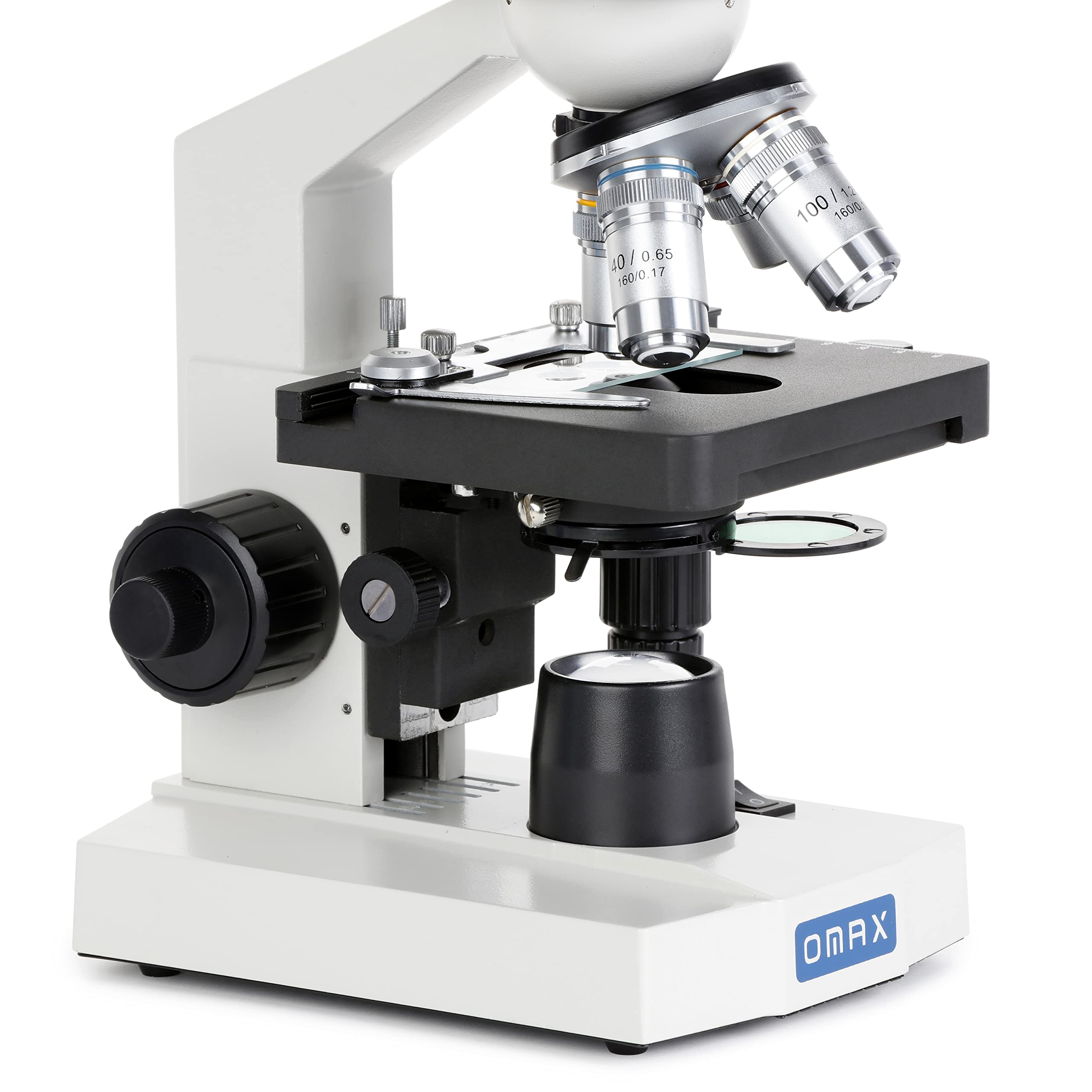

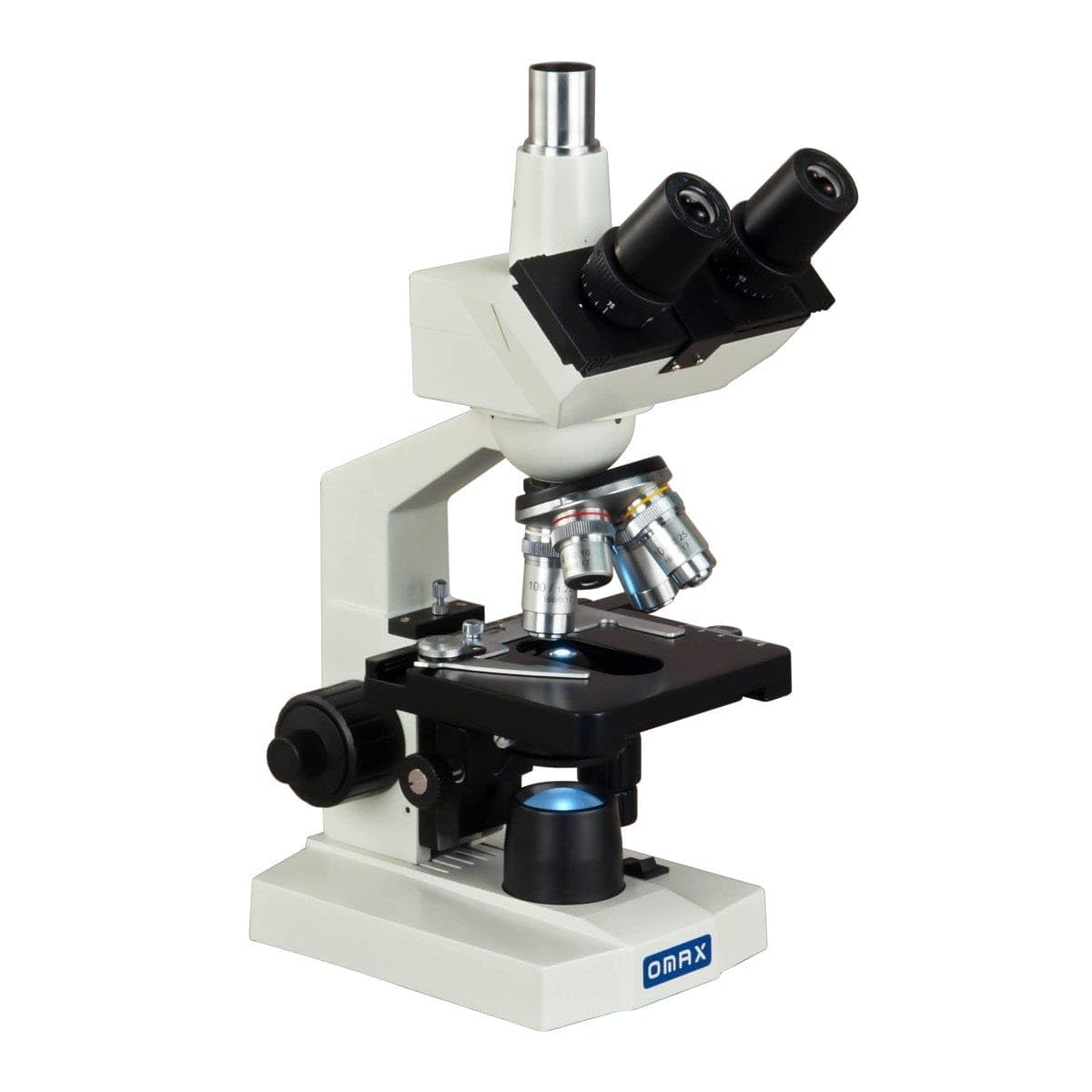

This is a biological trinocular compound OMAX microscope that offers eight magnifications: 40X-2000X. The lab microscopy comes with a 45° inclined 360° swiveling trinocular sliding viewing head, two pairs of widefield eyepieces with adjustable diopter on oculars, four achromatic objectives, stain-resistant double layer mechanical stage with scales, coarse & fine focusing on both sides, NA 1.25 Abbe condenser with iris diaphragm and variable intensity LED transmitted illumination system. This type of microscopy is perfect for teaching demonstration and clinical examination, laboratories and advanced applications. It is easy to mount electronic eyepiece (digital microscope camera) for capturing images and live video on computer. It can also be added a darkfield condenser to switch a brightfield microscope to a darkfield microscope. Features: 8 levels of magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X Trinocular viewing head with sliding adjustable interpupillary distance Variable intensity transmitted LED illumination NA1.25 Abbe condenser with iris diaphragm & filters Coaxial coarse & fine focus knobs on both sides Specifications: Model: M83ES Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X Eyepieces: widefield WF10X and WF20X Objectives: achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil) Viewing head: 45°Inclined 360°swiveling trinocular Sliding adjustable interpupillary distance: 2-3/16" ~ 2-15/16"(55~75mm) Ocular diopter adjustable on both eyetubes Nosepiece: revolving quadruple Stage: mechanical double layer size: 4-1/2"x 4-15/16" (115mm x 125mm) Stage x-y stroke (travel range): 2-13/16" x 1-3/16" (70mm x 30mm) Condenser & diaphragm: NA1.25 Abbe condenser with iris diaphragm Transmitted (lower) illuminator: LED light, intensity adjustable Focus adjustment: Coaxial coarse & fine knobs on both sides All metal mechanical components Power supply: AC/DC adapter, 100V-240V (UL approved) Dimension: 9-1/16" x 7-1/8" x 14-1/4" (23cm x 18cm x 36cm) Net weight: 7 lbs 2 oz (3.25 kg) Package weight: 4 kg Packing List: Trinocular microscope 4 DIN objectives 4X, 10X, 40X, 100X A pair of eyepieces WF10X A pair of eyepieces WF20X A bottle of Immersion oil AC adapter (US and Canada standard) Dust cover Color filter
