FEATURES

DESCRIPTIONS

One FLEX-IN-1 motor replaces 18 general purpose motors The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3 Out-of-the-box motor with provisions for multiple kits*** - Adding SGR (shaft grounding ring) kit; Adding a brake kit; Adding a drip cover (ODP); Adding lint guard (TEFC). Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option *** Kits sold separately. Light assembly required. General Specifications Nameplate Specifications Technical Specifications Speed Characteristics Load Characteristics General Specifications UPC: 691720115060 Weight: 46.00 LB Packaged Length: 16.12 IN Packaged Width: 10.25 IN Packaged Height: 8.12 IN Country of Origin: Mexico Nameplate Specifications Output HP: 2 Hp Output KW: 1.5 kW Frequency: 60 Hz Voltage: 208-230/460 V Current: 6.2-6.0/3.0 A Speed: 1725 rpm Service Factor: 1.15 Phase: 3 Efficiency: 86.5 % Power Factor: 74.5 Duty: Continuous Insulation Class: F Design Code: A KVA Code: N Frame: 56HC Enclosure: Drip Proof Thermal Protection: No Protection Ambient Temperature: 40 °C Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203 UL: Recognized CSA: Y CE: Y IP Code: 22 Number of Speeds: 1 Technical Specifications Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter Poles: 4 Rotation: Reversible Resistance Main: 6.4 Ohms Mounting: Bolt-on Base Motor Orientation: Horizontal Drive End Bearing: Ball Opp Drive End Bearing: Ball Frame Material: Rolled Steel Shaft Type: NEMA 56 Shaft Diameter: 0.625 in Assembly/Box Mounting: F1 ONLY Inverter Load: CONSTANT 2:1 Speed Characteristics Curvepoint Current (Amps) Current (%) Torque (-) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp) Full Load 3.00 100.0 6.00 100.0 1,750 0.00 0.0 2.00 Break-Down 17.60 607.0 30.70 512.0 1,220 0.00 90.0 2.00 Locked-Rotor 28.40 979.0 24.10 402.0 0 16.10 71.5 2.00 1/3 27.00 931.0 20.50 342.0 600 0.00 0.0 2.00 Pull-Up 25.50 879.0 22.00 367.0 125 0.00 0.0 2.00 No Load 1.75 60.0 0.00 0.0 1,800 0.11 7.9 2.00 2/3 22.70 783.0 25.30 422.0 1,200 0.00 0.0 2.00 Load Characteristics % of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 120 % 125 % 150 % Current (Amps) 1.75 1.85 2.10 2.50 3.00 3.20 3.30 3.40 4.00 Rated Output (KW) 0.11 0.50 0.90 1.30 1.72 2.00 2.10 2.16 2.62 Efficiency (%) 0.0 76.2 82.8 85.8 86.5 86.8 86.9 87.0 86.0 Power Factor (%) 7.9 33.9 53.8 65.3 74.5 78.4 79.1 79.7 82.2 Speed (RPM) 1,800 1,789 1,778 1,765 1,750 1,745 1,743 1,740 1,725 Temp. Rise @ FL 0.0 0.0 0.0 0.0 38.0 50.0 0.0 60.0 0.0 Torque (-) 0.00 1.50 2.95 4.45 6.00 7.00 7.30 7.60 9.20

RELATED PRODUCTS

SAVE 30%

20 options

VEXUNGA 45/5 uF 45+5 MFD 370V or 440V Dual Run Start Round A/C Capacitor 45 5 uF 370 440 Volt VAC CBB65B Air Conditioner Capacitors for AC Unit Fan Motor Start or Heat Pump or Condenser Straight Cool

4.6 / 5

₱2,981.00 ₱2,150.00

SAVE 35%

5 options

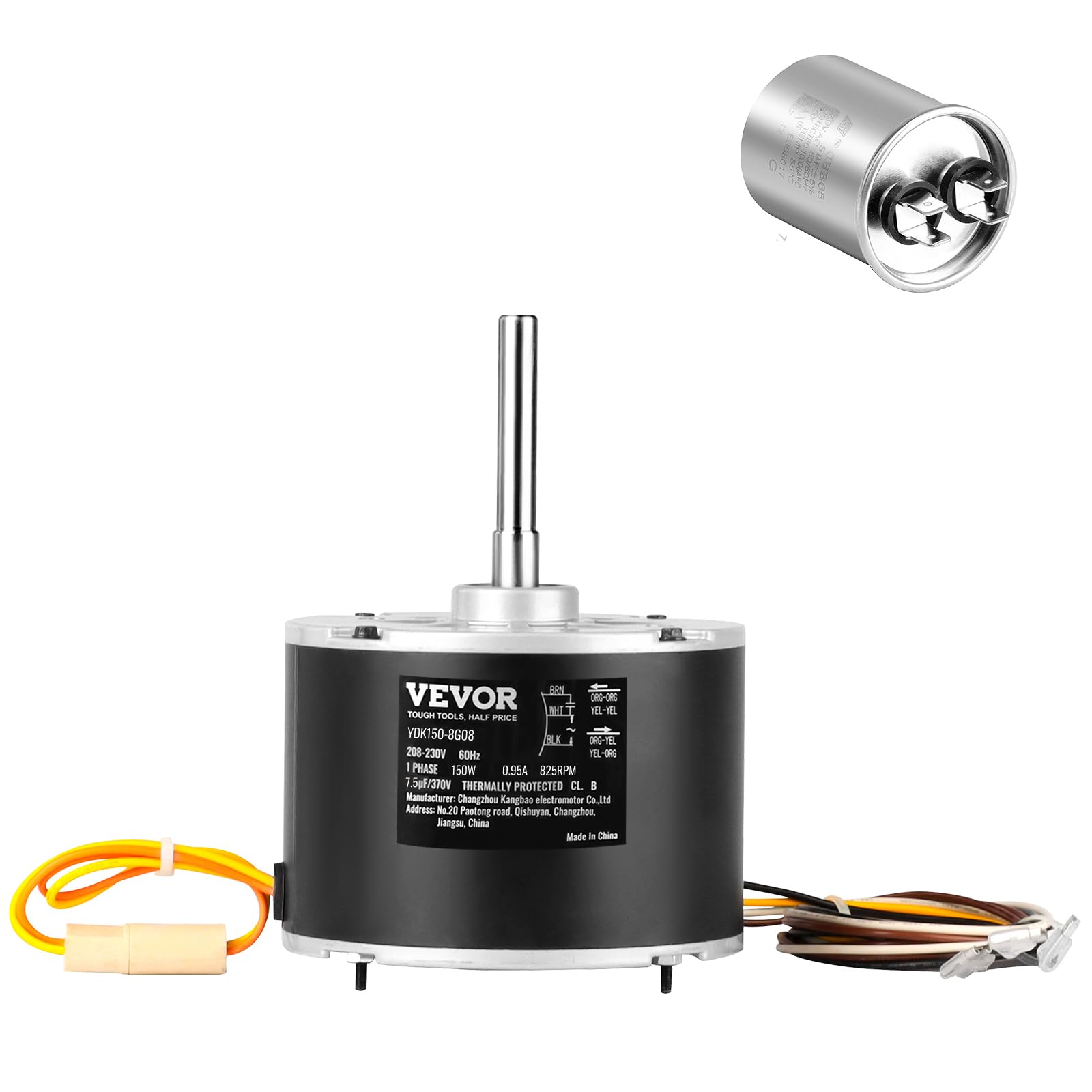

VEVOR OEM Upgraded Condenser Fan Motor, 1/5HP, 825RPM, Replacement for ac GE Genteq Carrier Bryant Payne Dayton, 5KCP39GFS166S, 3S003, Reversible Rotating + Capacitor

4.5 / 5

₱9,173.00 ₱6,977.00
