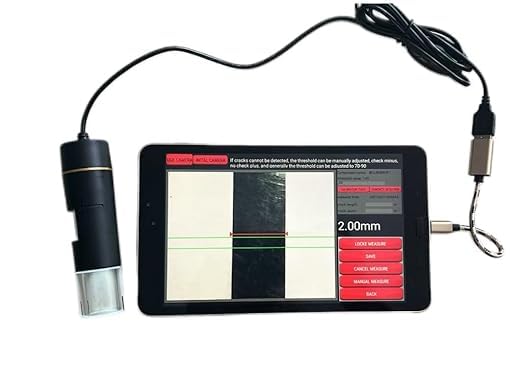

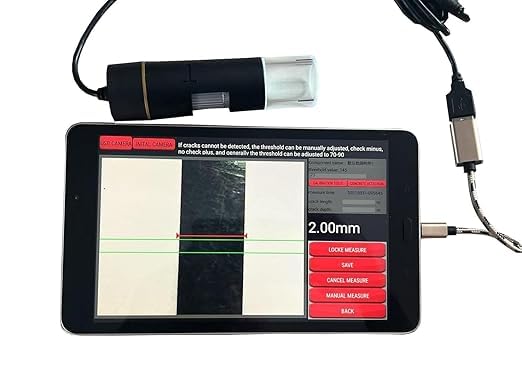

Concrete crack width gauge 2. Usb link mode 3. Lens pixels: 1000x HD microscope 4. Photo resolution: 640x480 5. Measuring range: 0.01-10cm 6. interpreting accuracy: 0.01mm

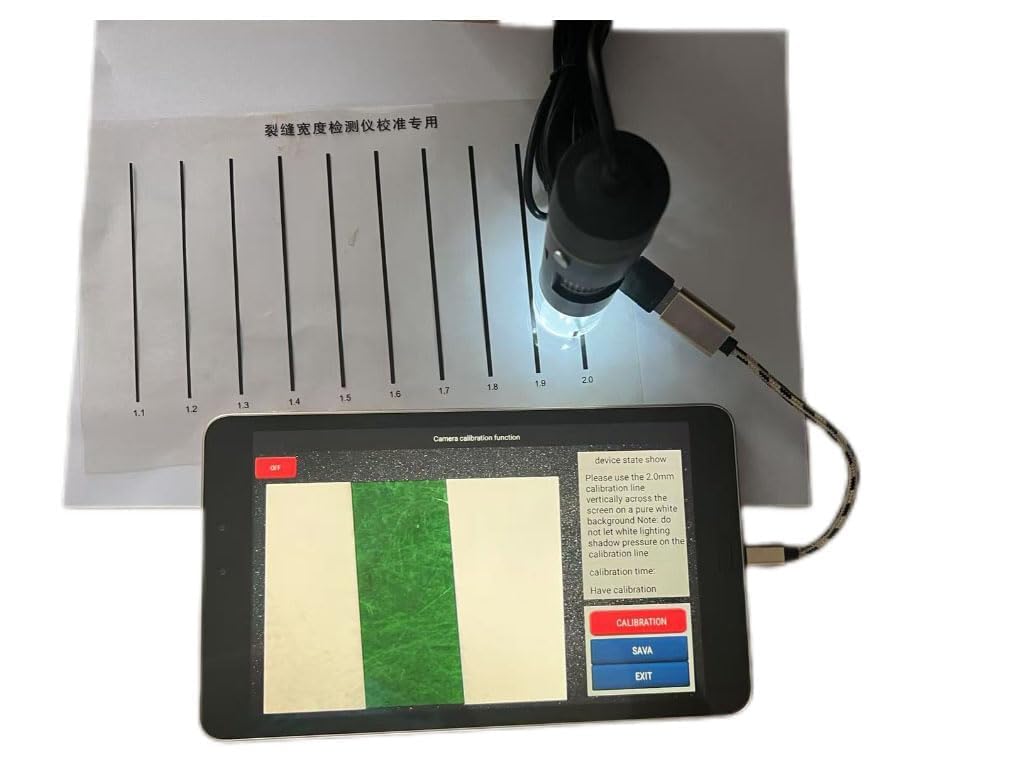

Concrete crack measurement gauge Crack width 7. Estimable accuracy: 0.01mm 8. The amount of data saved is determined by the pad or memory capacity of mobile phone 9. Functional index 10. The camera does not require the user to match the lighting device, designed with constant light source device; 11. Automatic interpreting, recording the crack width of the interpreted value displayed on the screen;

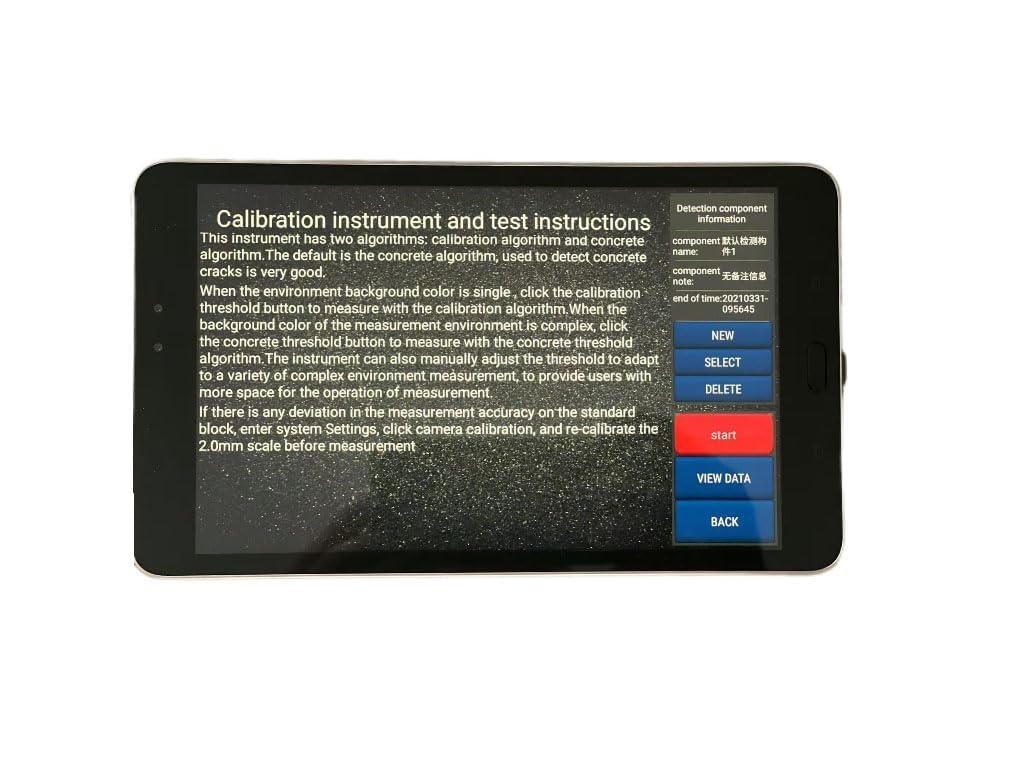

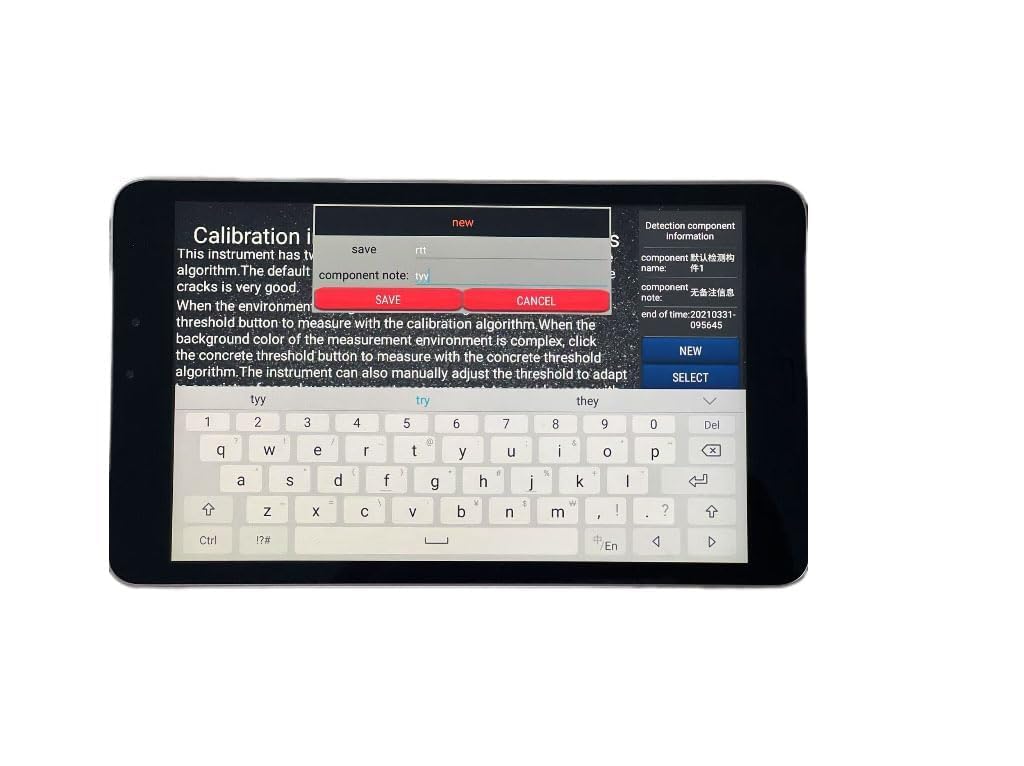

Crack width measuring device 12. Real-time image display and width interpreting; 13. Automatically monitor the real-time situation of cracks and automatically save real-time data of cracks; 14. The crack width can be interpreted manually; 15. Engineering information can be input and recorded on the picture; 16. Index of complete machine

Digital concrete crack width gauge Interpreting accuracy: 0.01mm 18. Technical index Detection range: 0.01 ~ 10.0mm Interpreting accuracy: 0.01mm 19. Functional index The camera does not need the user to match the lighting device, designed with constant light source device; Automatic interpreting, the crack width values will be directly displayed on the screen

Crack width gauge test Real-time image display and width interpreting; Automatically monitor the real-time situation of cracks and automatically save the real-time data of cracks; The crack size can be interpreted manually. Information can be entered and recorded on the picture.

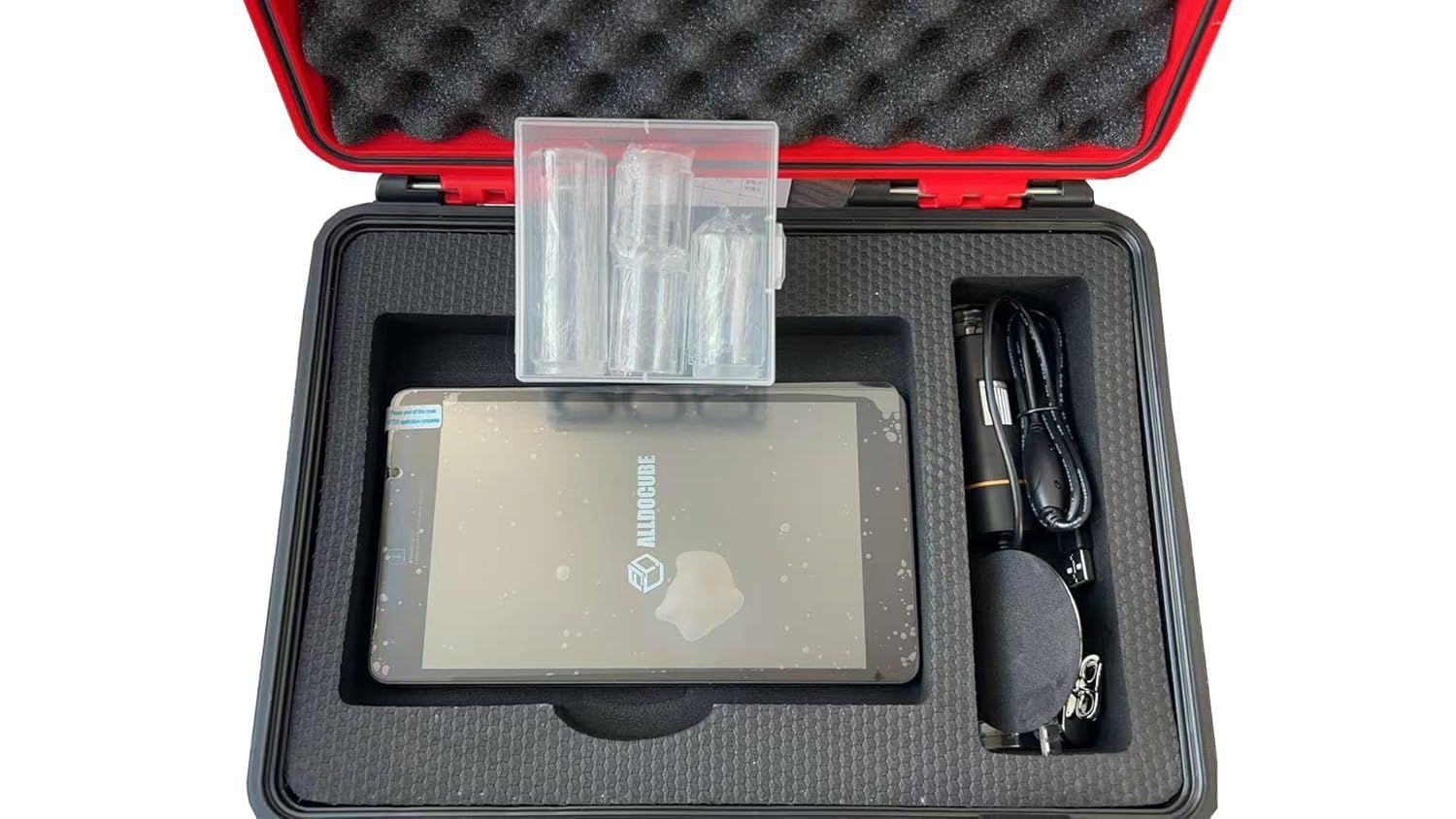

Index of complete machine: Portable The power supply is powered by the built-in battery Operating temperature range: -10° -40 °C
