FEATURES

DESCRIPTIONS

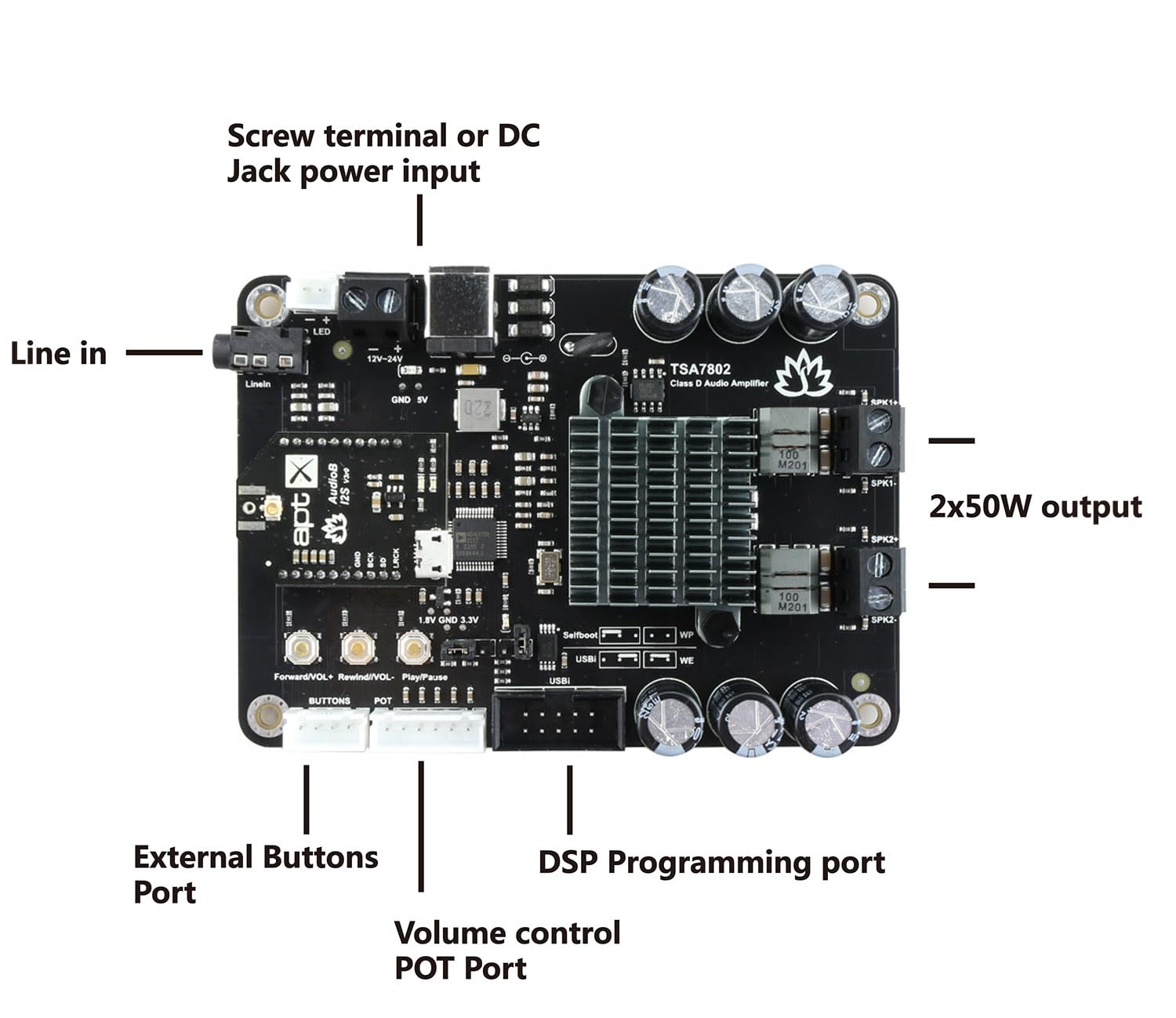

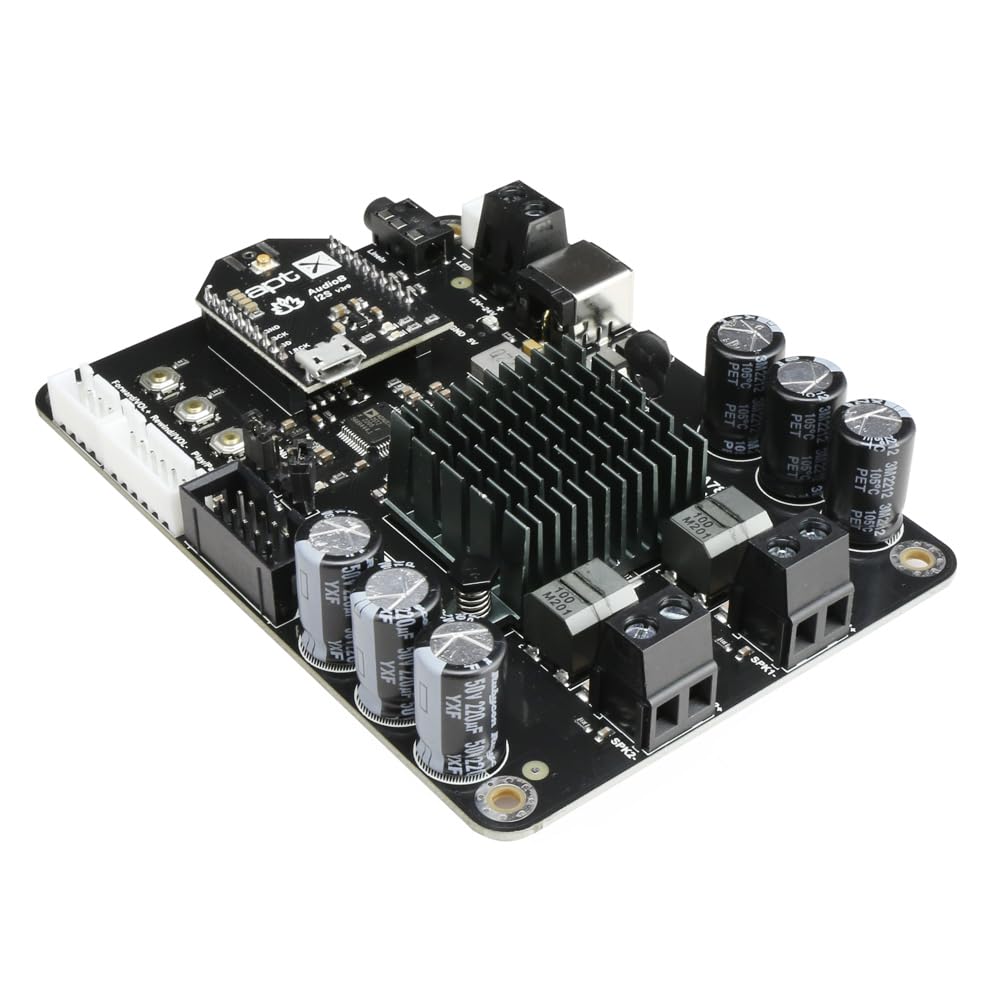

TSA7802B 2x50W 2 channels Bluetooth+DSP amplifier board with an AudioB I2S Bluetooth module that supports Apt-X. TSA7802B is a very flexible DSP/DAC/Amplifier combination board. It has perfect class-D architecture(Based on TPA3116D2) and 2 channels have 50W power output. All the channels are capable of outputting nominal power simultaneously and continuously. This board can be powered by any DC12V-24V power supply. It can be used to drive any 4Ω or 8Ω passive speakers(Subwoofer channel can drive 2Ω speaker). It's a 2 channels amplifier board.(User can change the DSP program to let it becomes right or left channel). You can pair it with a mobile phone or a computer (etc). Power the amplifier board. Use your phone or PC (etc) to search for a new Bluetooth device. The module will appear as "TSA7802B". You don't need a PIN, pair it and then you can play music. The highlight point is ADAU1701 DSP chip on board. User can set each channel audio tones separately. Apt-X and TWS supported. Therefore, Users can stream audio to 2 paired amplifier boards at the same time wirelessly.
