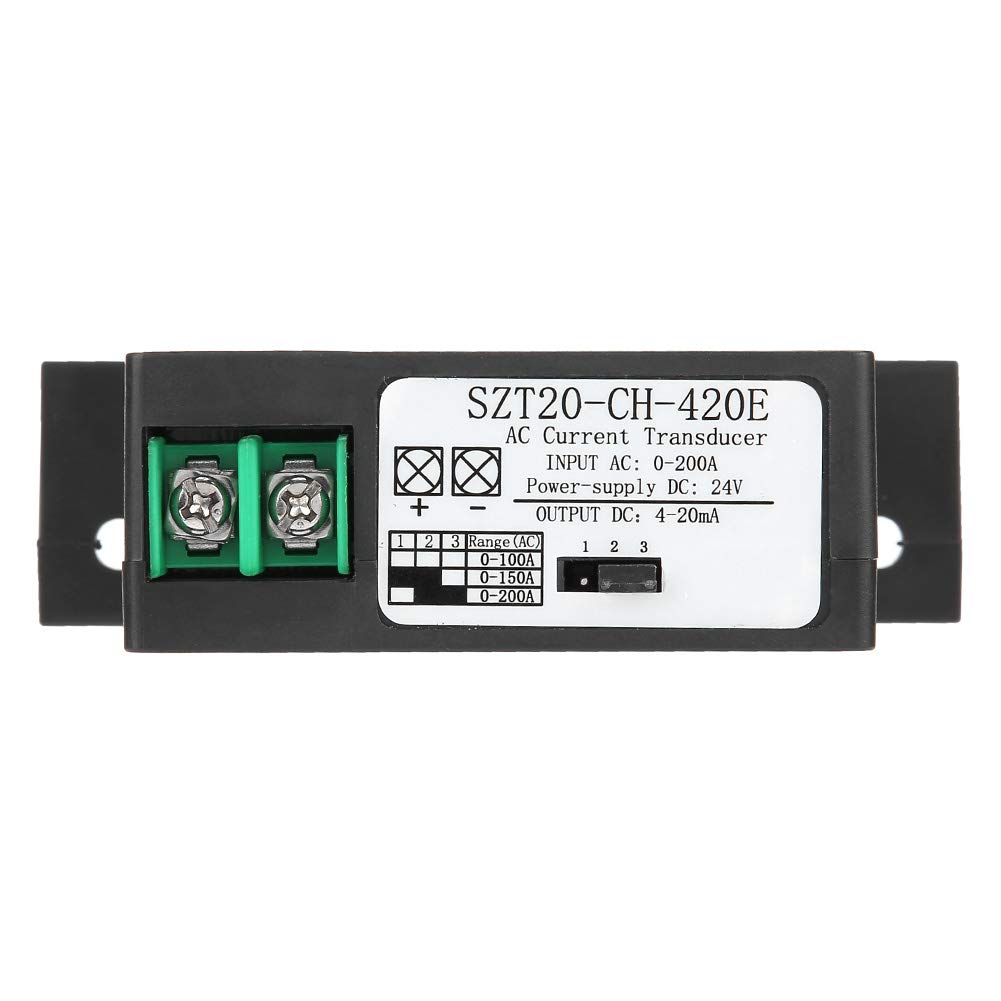

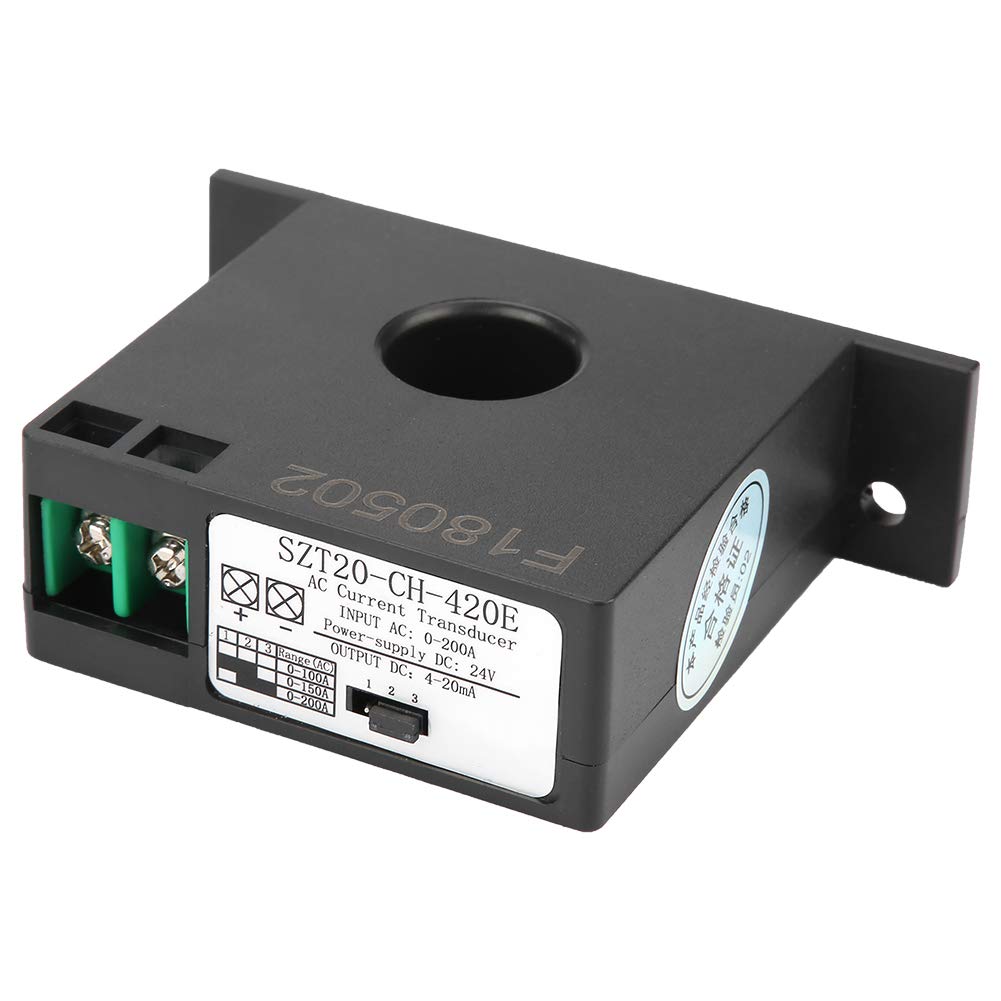

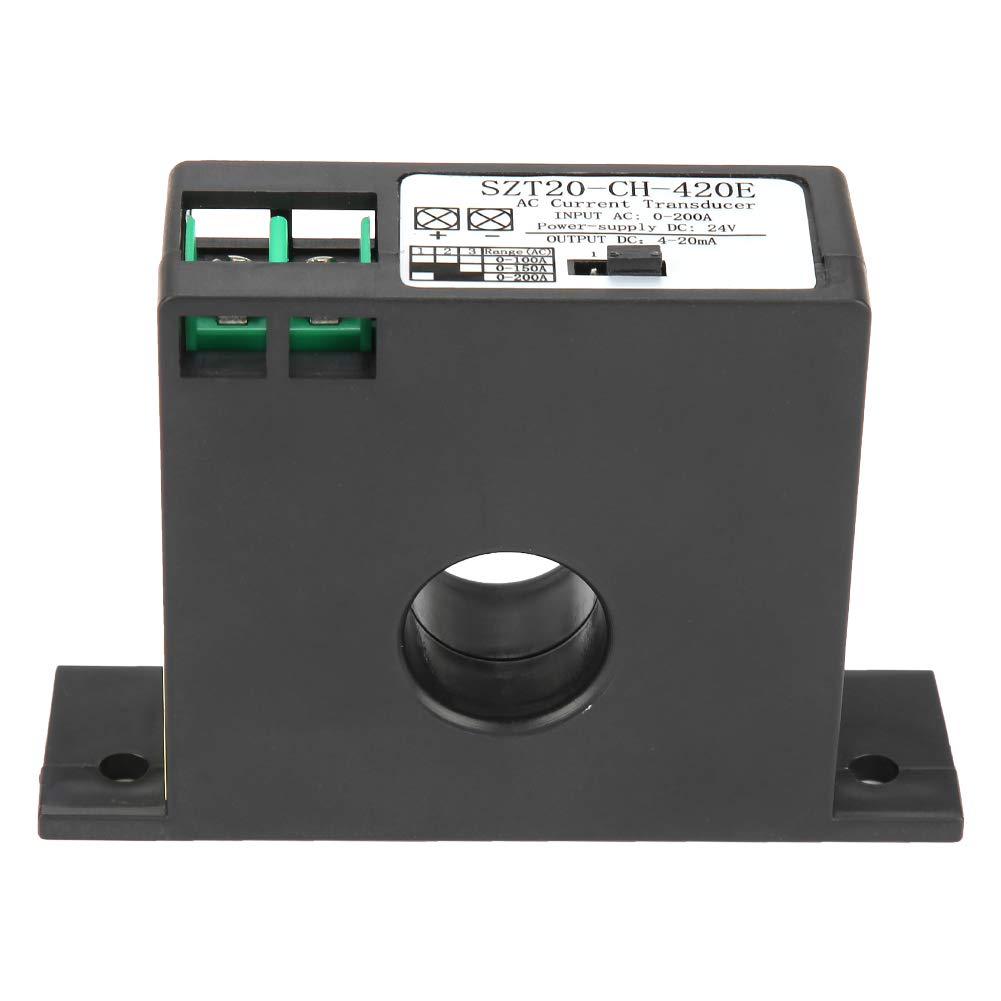

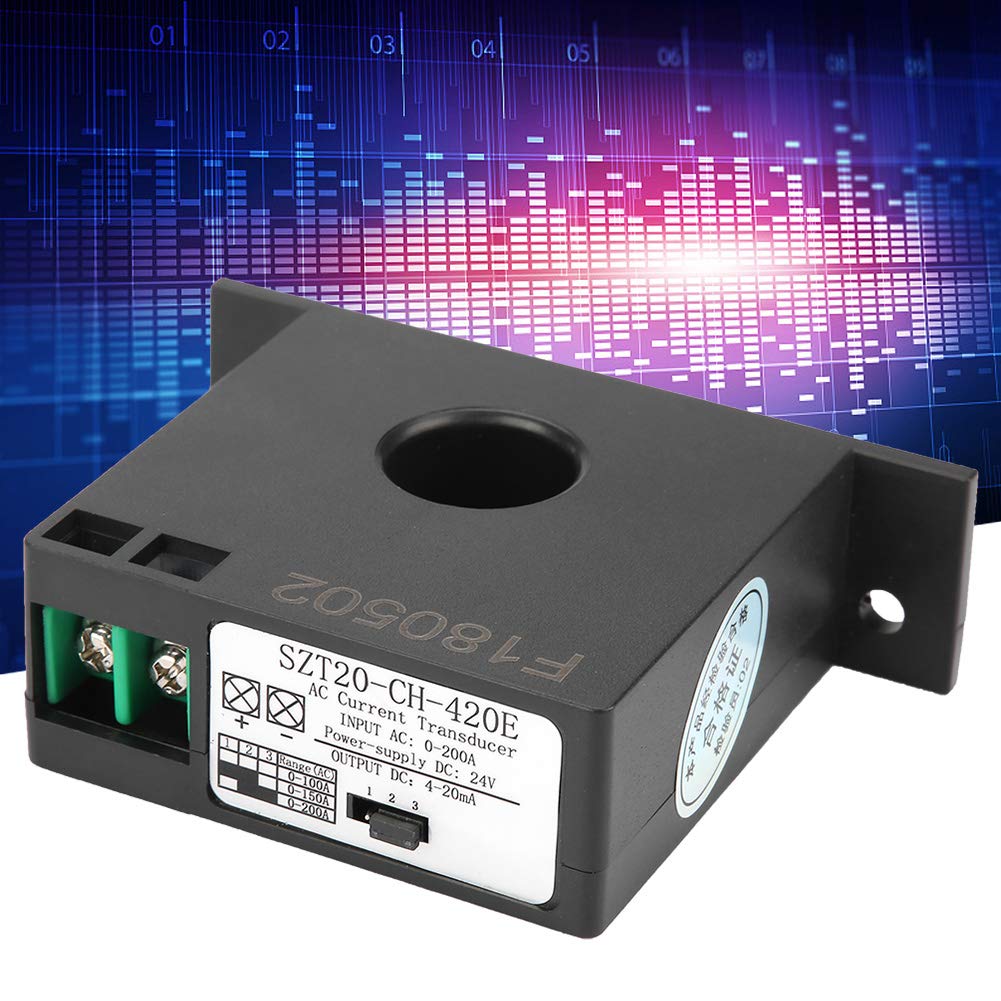

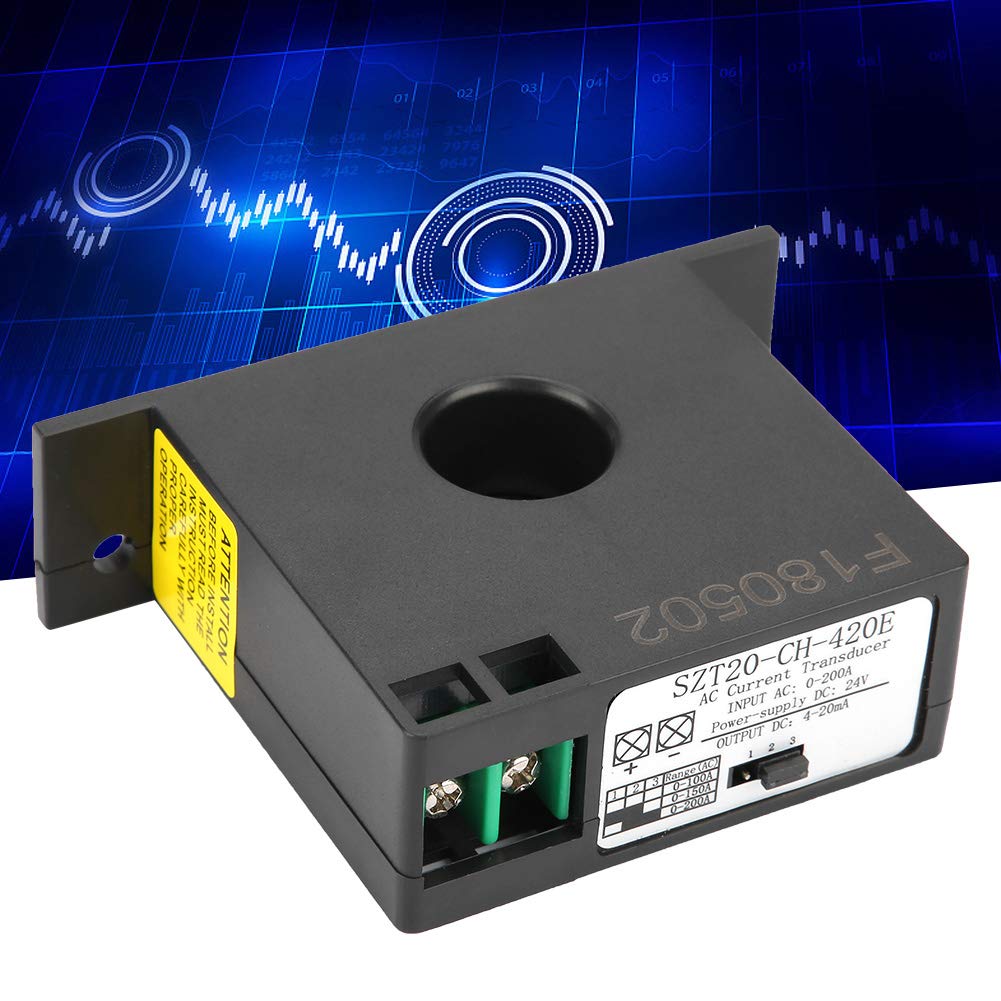

SZT20-420E Current Transducer, Measuring Current AC 0-10A / 20A / 50A, 0-100A / 150A / 200A,Three Forms Output DC 0-5V / 0-10V /4-20mA

Product ID:

78660

Identifier:

B0D84BJZ3F

Brand:

Gugxiom

Model:

Gugxiom14or2x89pv

Shipping Weight:

0.29 lbs

Manufacturer:

Gugxiom

Shipping Dimension:

3.94 x 3.94 x 1.57 inches

Share on Social Media

Share on Facebook

Share on X

Share on Instagram

Share on Tiktok

SAVE 7%

₱2,335

₱3,249

+ ₱ 217

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2026-06-05 to 2026-06-12.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

FEATURES

Mutual inductance current monitoring, high current detection accuracy, stable performance, isolation of input and output.

The measured current AC: 0-10A / 20A / 50A, 0-100A / 150A / 200A can be selected.

Output DC: 0-5V / 0-10V /4-20mA three forms are available.

Installation and using are easy and convenient, there is no need to connect the dc series into the circuit during measurement.

Through-heart structure design, isolation withstand voltage up to 2000V AC.

DESCRIPTIONS

Specification: Product Name: AC Current Transmitter Model: SZT20--420E Power supply: Voltage output type, self-power supply does not require external current. Current output type requires external DC: 24V ± 10% Input feedthrough current (AC): 0-10A / 20A / 50A (SZT15 series) 0-100A / 150A / 200A (SZT20 series) Output Type (DC): Voltage output type: 0-5V/10V Current output type: 4-20mA Switch on minimum: 0.5±0.2A (round type) 1.5±0.2A (clamp type) Maximum current through current: 200%, the feed current cannot exceed 200% of the rated value Power consumption: ≤1W Tape: ≤1% Accuracy: ±1% Maximum leakage current: ≤0.1mA Linearity: Response time: ≤200ms Through the heart wire diameter: 0.35-20mm Working temperature: -20-60 °C Working humidity: 5-95% (no condensation) Housing material: self-extinguishing material ABS (Cycolac 94v-0) Insulation withstand voltage: 2000VAC 50/60Hz 1min Package list: 1 * AC Current Transducer
