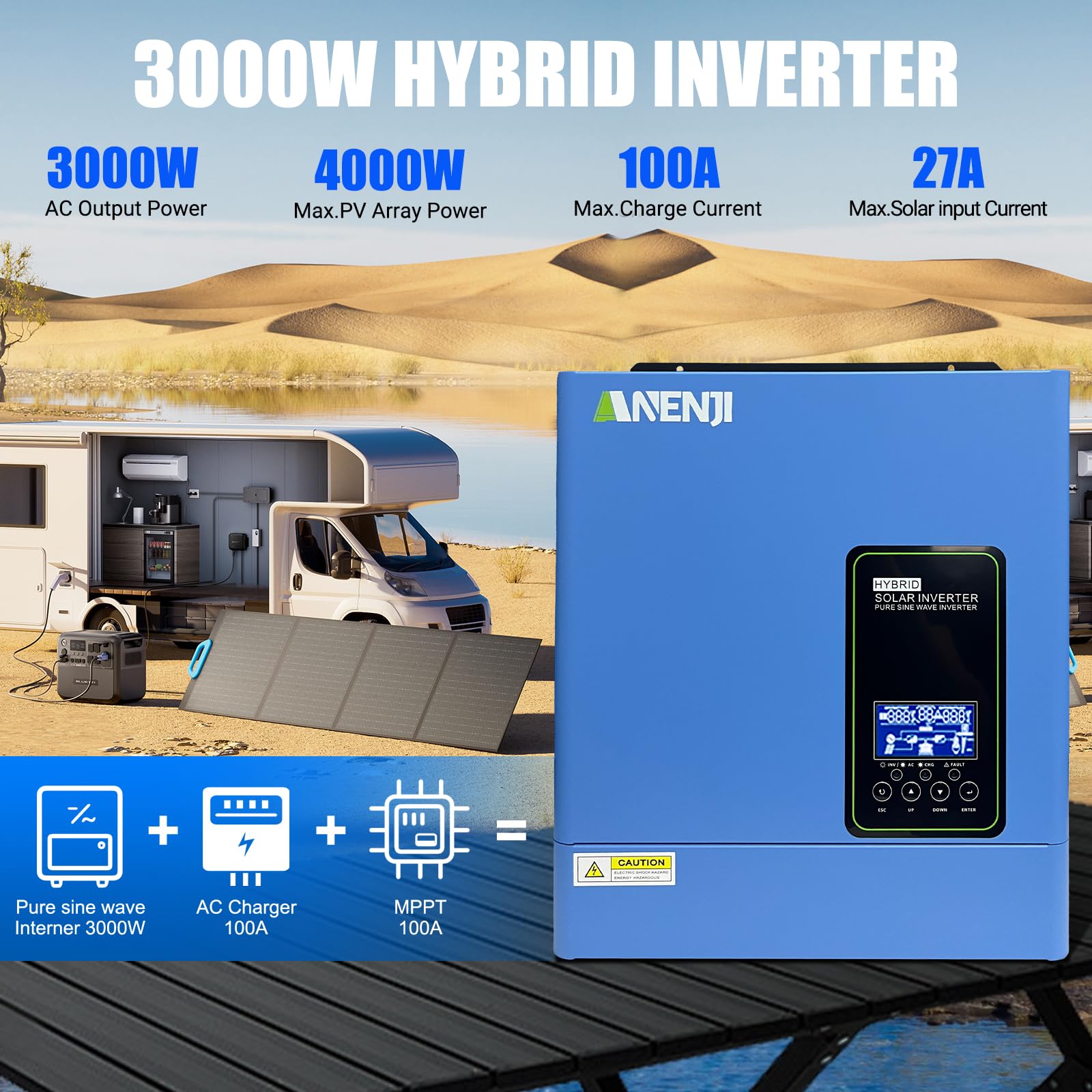

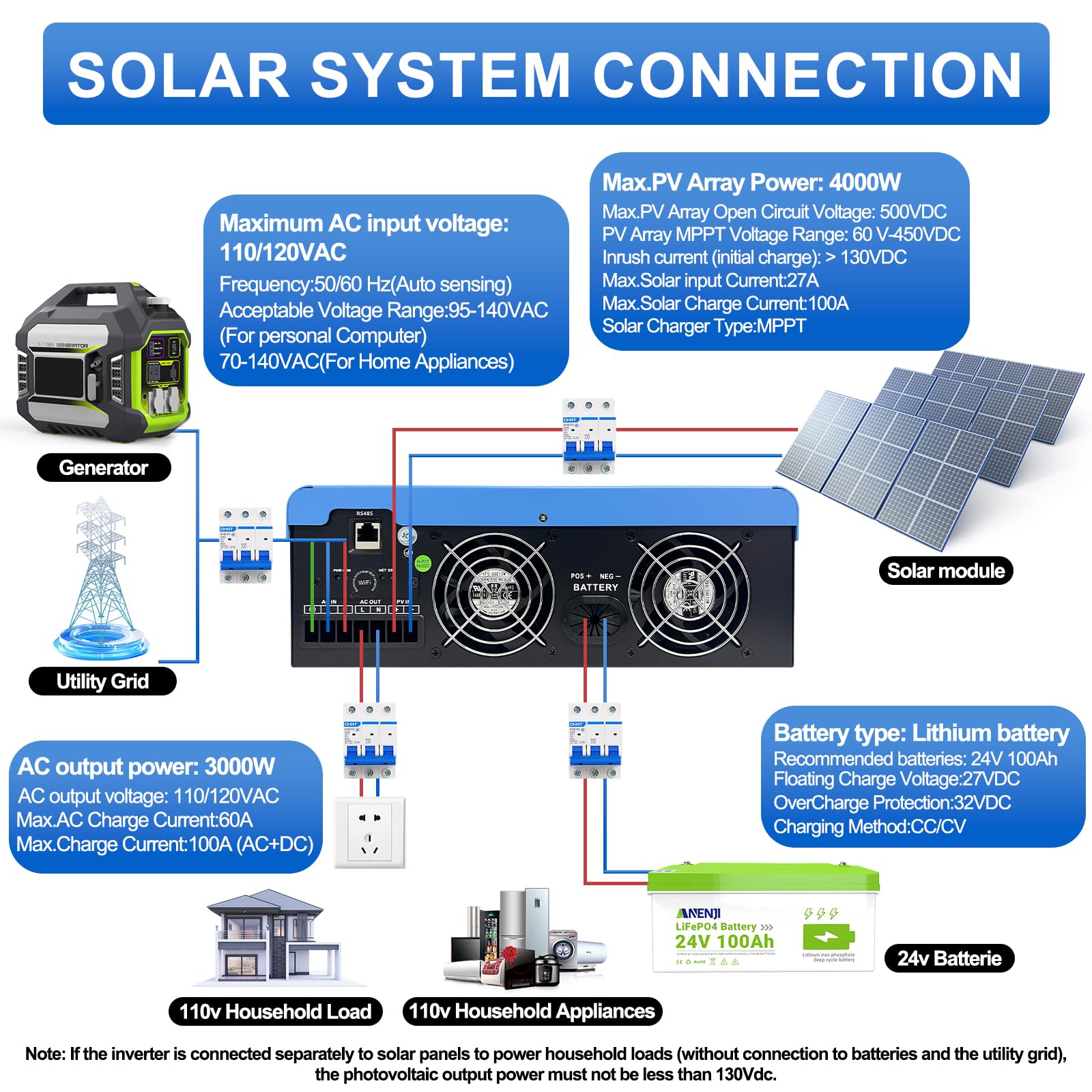

【100A MPPT Solar Charger & Maximum Efficiency】This hybrid inverter features a built-in 100A MPPT solar charger, optimizing energy harvest from PV arrays with a 500V max input. It supports up to 4,000W solar input and operates within a wide MPPT voltage range (60V–450V), ensuring compatibility with most solar panels. High conversion efficiency (97% PV to AC) reduces energy waste, ideal for off-grid or backup systems.

【Battery Mode Flexibility】The charger offers Battery Power Mode for standard battery operation and No-Battery Mode for operation without a battery, requiring PV ≥130Vdc or utility power to directly supply loads. Li-ion activation can be enabled via setting 42 and is disabled by default.

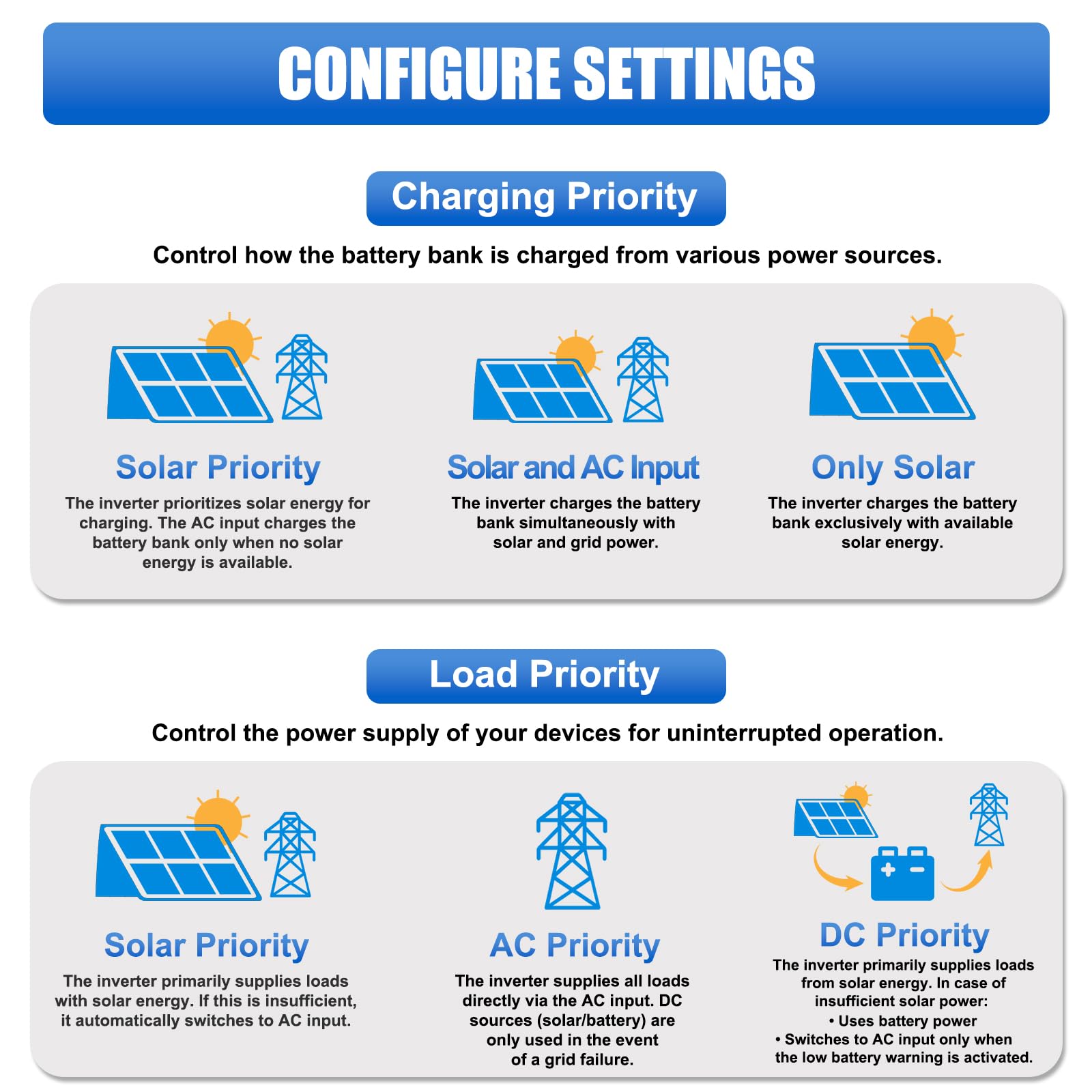

【Four Output Priority Modes】Key modes include UTL Mode as the default utility power priority for loads, SOL Mode with solar priority for loads supplemented by utility power if insufficient, SBU Mode with solar priority using battery supplementation if needed, and SUB Mode with solar priority charging supplying loads supplemented by utility power if insufficient.

【Charging Modes & Safety Protection】Three charging modes adjusted via setting 16 include hybrid PV+utility charging (default), PV charging only, and another PV-only option (potential duplication; confirm prioritization via manual). Multi-layer protection features overcharge/discharge prevention and external BMS support to extend battery life.

【Built-in WiFi for Remote Monitoring】Includes WiFi connectivity for real-time tracking of power usage, PV input, and battery status via the SmartESS app. Adjust settings remotely (e.g., output priority, charging current) and receive fault alerts (e.g., overload, high temp), reducing troubleshooting time.

【No-Battery Operation & Li-ion Battery Compatibility】No-Battery Mode supports grid-tied operation relying on PV or utility power. With RS485 protocol, it auto-syncs with PYLON US2000 batteries for real-time SOC and charge-discharge limits display. For non-communicating Li-ion batteries, user-defined settings prevent BMS conflicts.

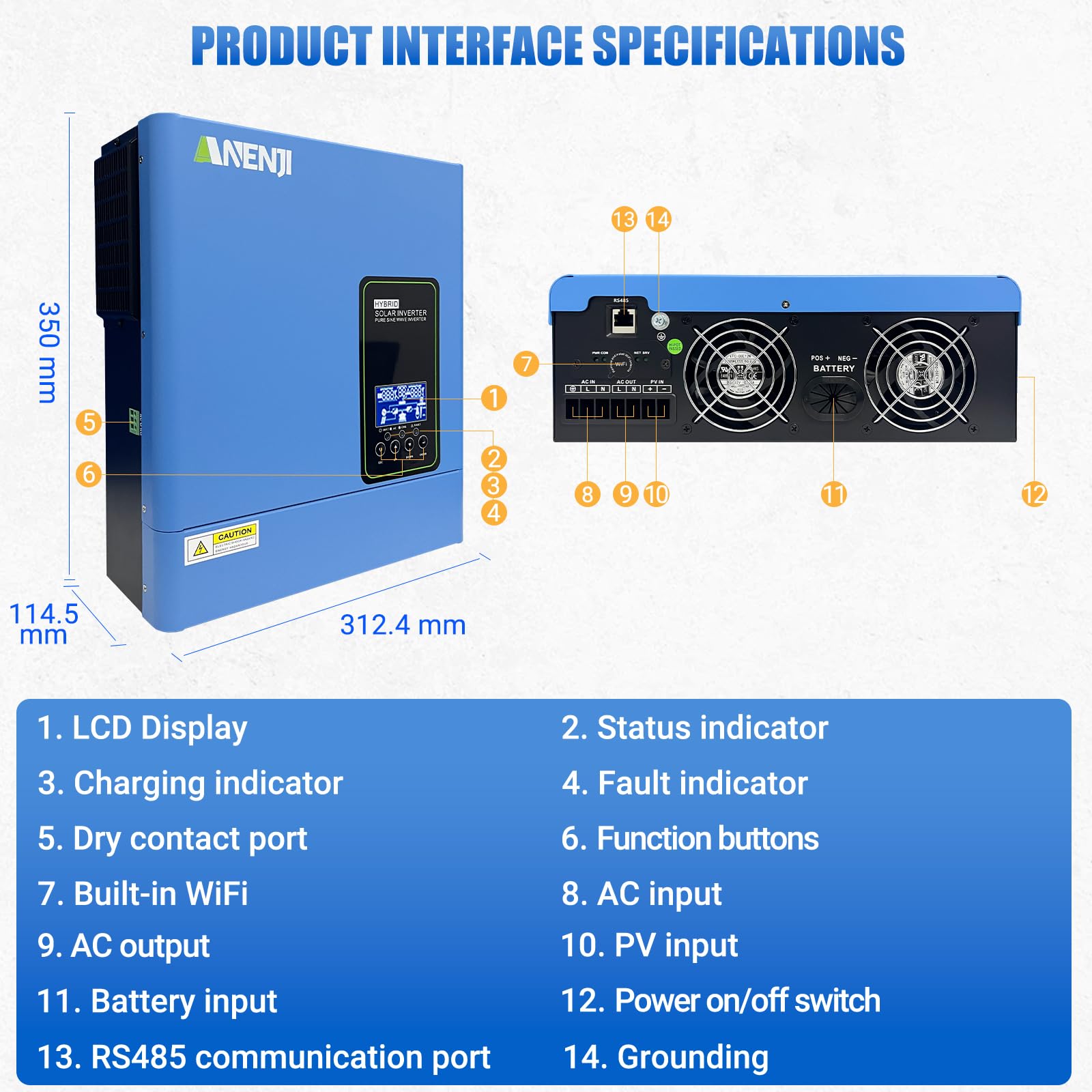

【LCD Real-Time Monitoring & Diagnostics】LCD displays real-time data and operational status, auto-error codes for troubleshooting, and three LED indicators for quick status alerts.

【Industrial-Grade Safety & Durability】Rated IP21 with a removable dust cover, protection includes overload shutdown after 140% sustained load for 5s, overheat/surge cutoff at DC ≤32V or AC ≤150V input, and configurable auto-restart post-fault. Operating temperature: -10°C to 50°C, supporting harsh conditions.
