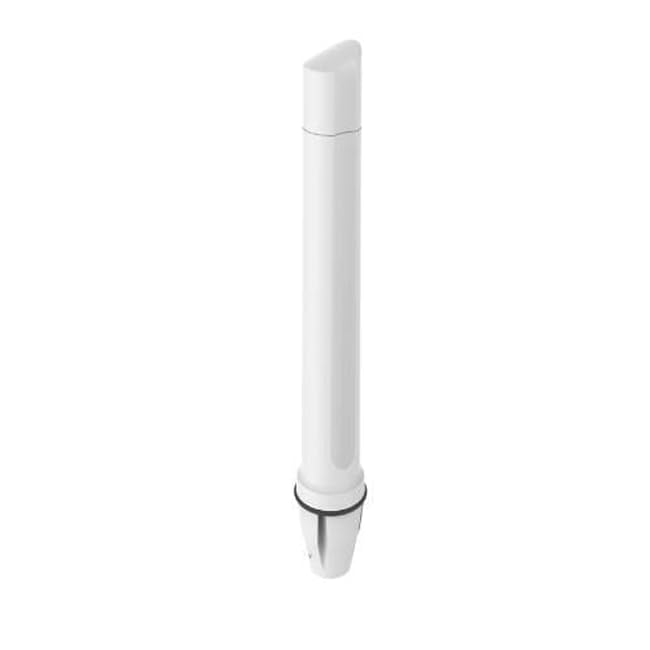

Poynting OMNI-402-5G Omni-Directional, Marine & Coastal 5G/4G 2x2 MIMO Antenna

Product ID:

63854

Identifier:

B0DS2WPRNS

Brand:

Poynting

Model:

A-OMNI-0402-V2-01

Shipping Weight:

3.87 lbs

Manufacturer:

Poynting

Shipping Dimension:

32.99 x 5.98 x 5.98 inches

Share on Social Media

Share on Facebook

Share on X

Share on Instagram

Share on Tiktok

₱41,692

+ ₱ 3,038

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2025-11-06 to 2025-11-13.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

FEATURES

High performance wideband omni-directional marine antenna

2x2 MIMO capability for improved performance

Easy mounting with feed through 1-inch marine standard adapter bracket included

Robust and all-weather proof for harsh conditions at sea (IP 68)

Various 316 stainless steel mounting brackets available optionally

UV and saltwater protected against tempestuous weather conditions

Technology: Cellular (LTE/2G/3G/4G/CBRS/5G), CDMA450/LTE-M 450

Cellular Frequency Range and Gain; 410 – 4200 MHz / 5.8dBi // Wi-Fi Standard: Wi-Fi 3 (802.11g)

Connectors: SMA

Mounting Type: Pole Mount, Marine Mount, Wall Mount

DESCRIPTIONS

The OMNI-402-5G is an ultra-wideband antenna, which covers all contemporary 5G/LTE operating frequencies with excellent balanced gain across all frequencies. The antenna operates from 410 to 4200 MHz, with a peak gain of 5.8 dBi across the ultra-wideband. The antenna also offers 2x2 MIMO capability from its vertically separated elements, further enhancing overall performance. The antenna design allows superior pattern control over the entire frequency range, making the OMNI-402 a true high-performance omni-directional MIMO antenna, ideal for the marine and coastal applications. The OMNI-402 is usable in all parts of the world, guaranteeing signal reception almost everywhere. Poynting achieves this through a new antenna configuration using multiple dipoles and a unique (patented) feed network. The antenna is future-proof as it covers the lower 450 MHz LTE frequency and the upper 4.2 GHz 5G band for coastal and inland applications.
