FEATURES

DESCRIPTIONS

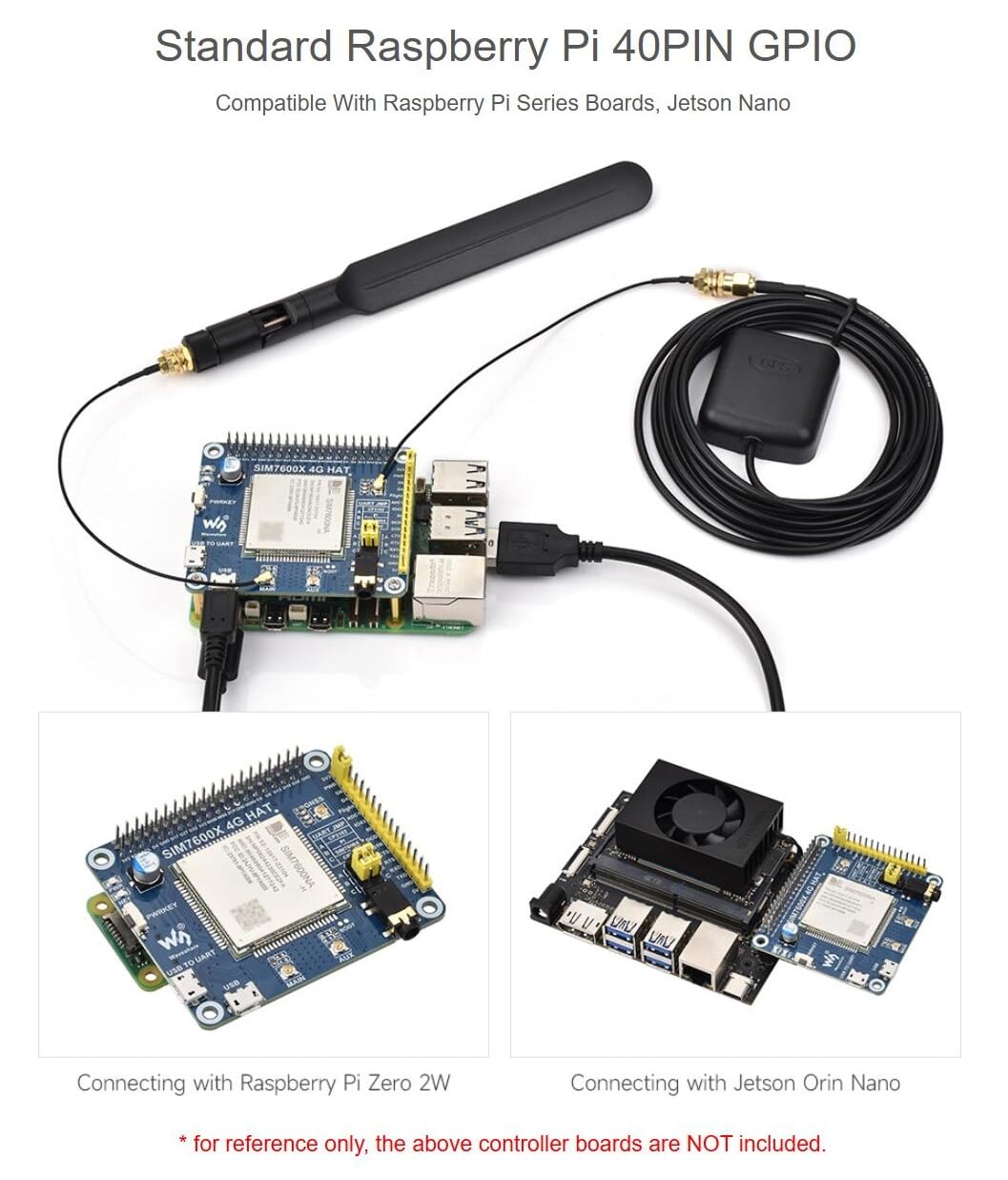

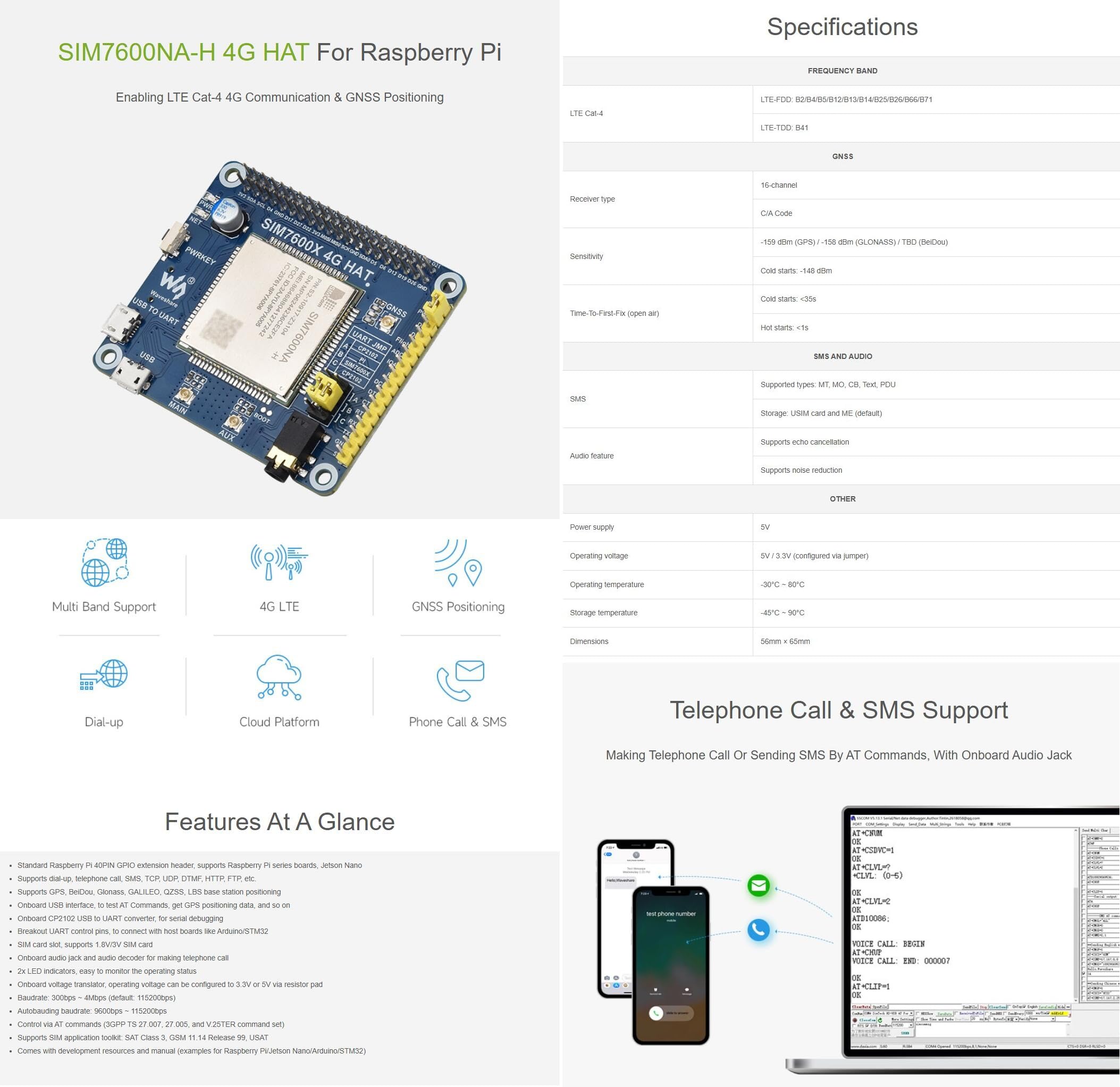

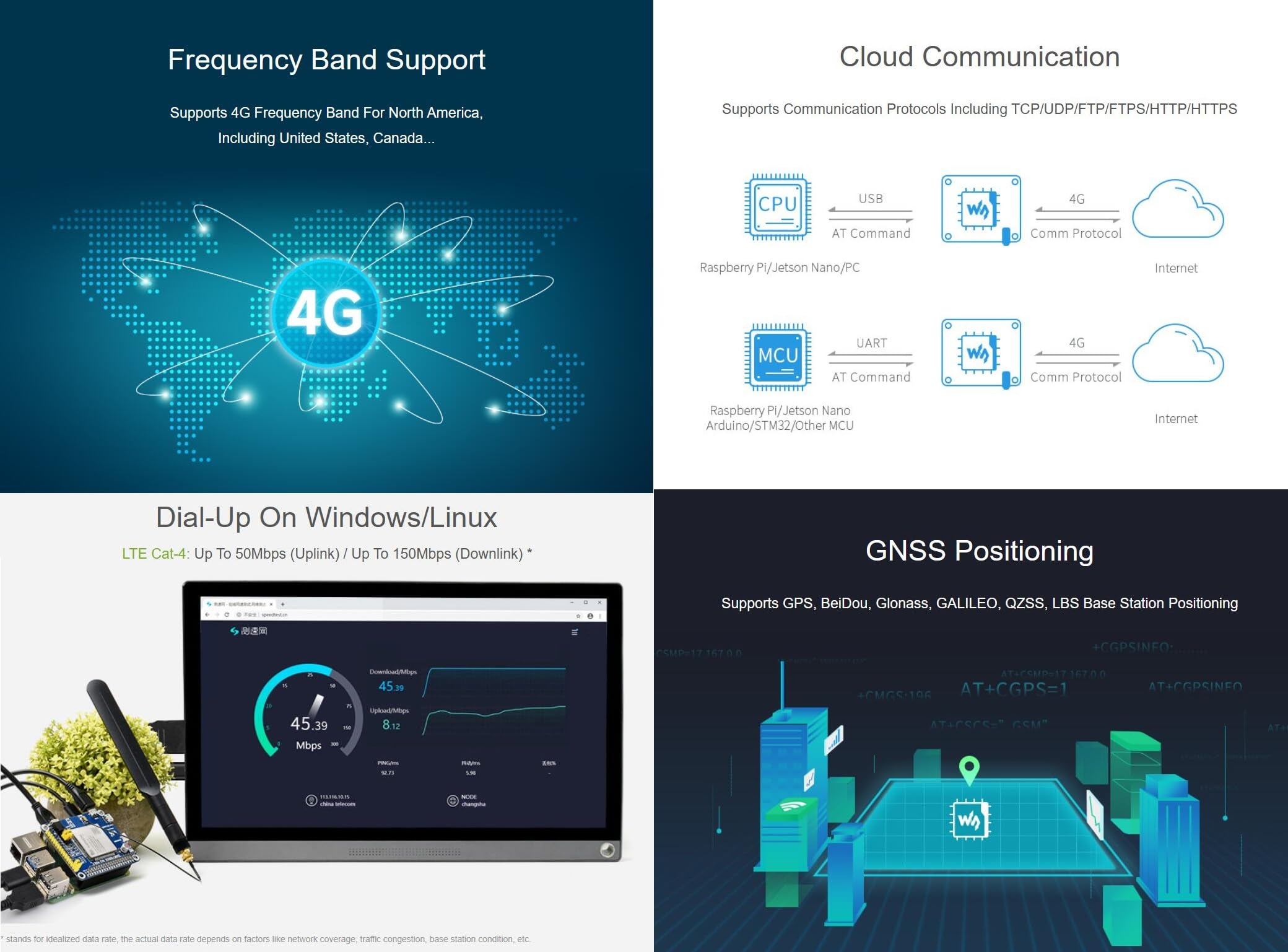

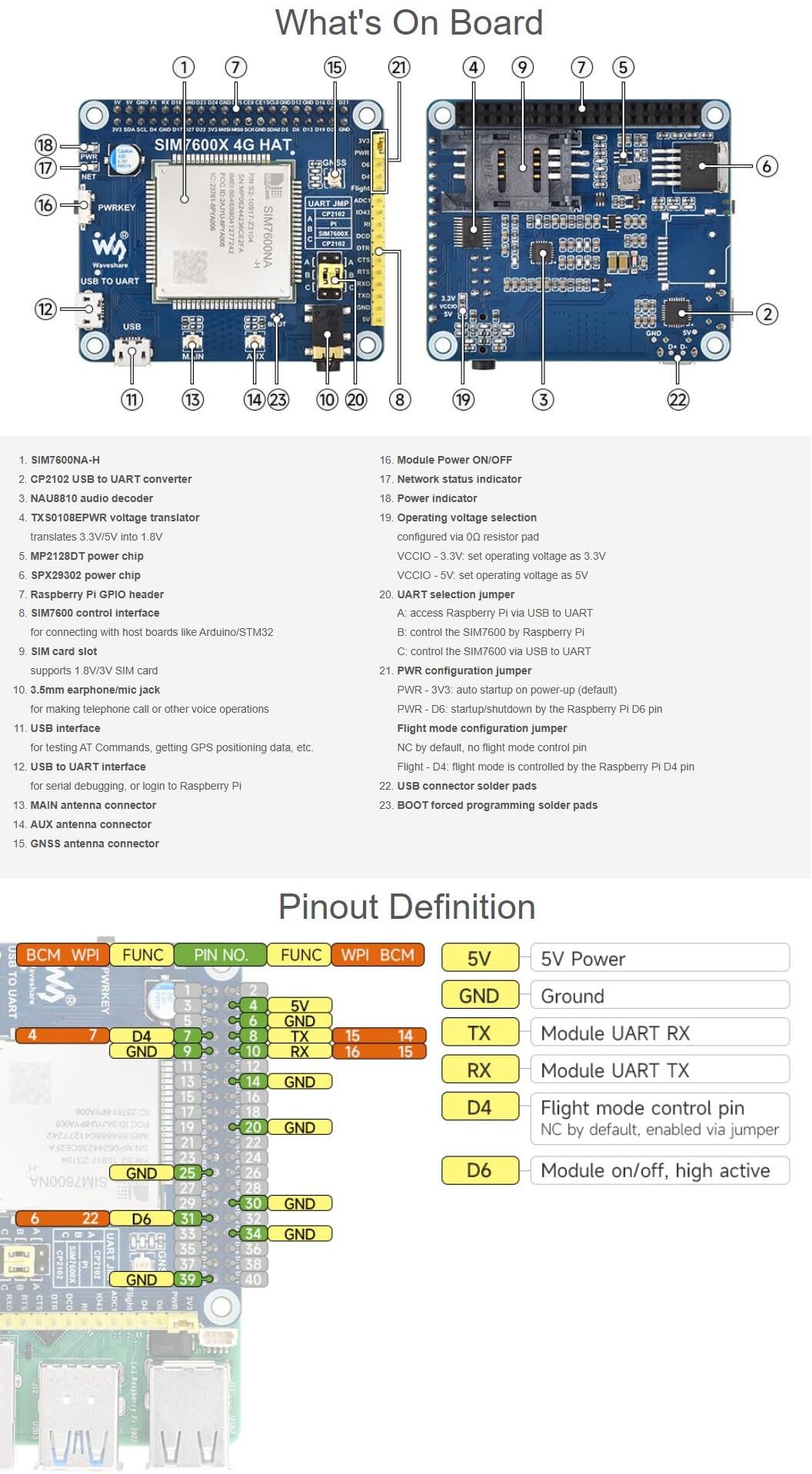

Features at a glance ● Standard Raspbery Pi 40PIN GPIO extension header, supports Raspbery Pi series boards, Jetson Nano. ● Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc. ● Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning. ● Onboard USB interface, to test AT Commands, get GPS positioning data, and so on. ● Onboard CP2102 USB to UART converter, for serial debugging. ● Breakout UART control pins, to connect with host boards like for arduino/STM32. ● SIM card slot, supports 1.8V/3V SIM card. ● Onboard audio jack and audio decoder for making telephone call. ● 2x LED indicators, easy to monitor the operating status. ● Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via resistor pad. ● Baudrate: 300bps ~ 4Mbps (default: 115200bps). ● Autobauding baudrate: 9600bps ~ 115200bps. ● Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set). ● Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT. ● Comes with development resources and manual (examples for Raspbery Pi/Jetson Nano/for arduino/STM32). Package Content 1. SIM7600NA-H 4G HAT x1 2. SMA Antenna x1 3. GPS External Antenna (A) x1 4. USB type A plug to micro plug cable x2 5. RPi screws pack (2pcs) x1
