₱1,347
+ ₱ 150
Shipping Cost from USA to Philippines inclusive of custom fees.
Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.
Get it between 2026-04-21 to 2026-04-28.
Additional 3 business days for provincial shipping.
- Price and Stocks may change without prior notice
- Packaging of actual item may differ from photo shown
Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.
Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods
Product ID:
1461916
Identifier:
B0B5KRQKTJ
Brand:
XWST
Model:
755621742739
Shipping Weight:
0.11 lbs
Manufacturer:
XWST
Shipping Dimension:
4.57 x 2.48 x 0.67 inches

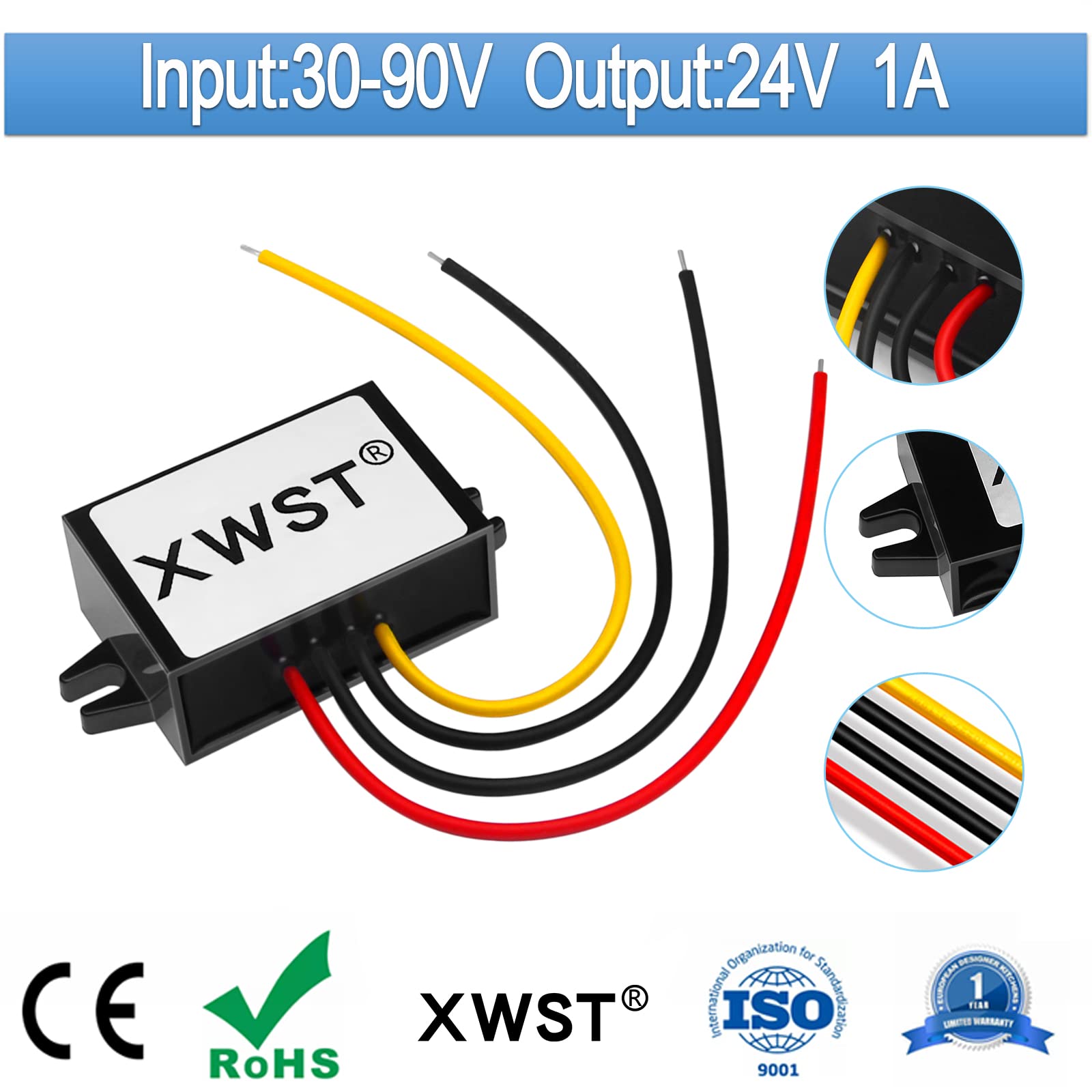

PARAMETER --- XWST DC-DC converter input voltage range is DC 30~90V (24V 36V 48V 72V); output voltage is DC 24V; output current is 1A; output power is 24W.
APPLICATION --- the 24v buck converter module can be used in integrated wiring for monitoring fire alarming system; car radio, audio; bus, minibus, truck display screen, taxi advertising screen; LCD television, LED; solar power generation system; interphone, etc.
PROTECTION --- this BUCK voltage comes with over-current protection, over-temperature protection; adopts potting technology, characterized by waterproof, dust-proof, moisture-proof and shock-proof, can be used in various situations such as car, outdoor, underground, etc.

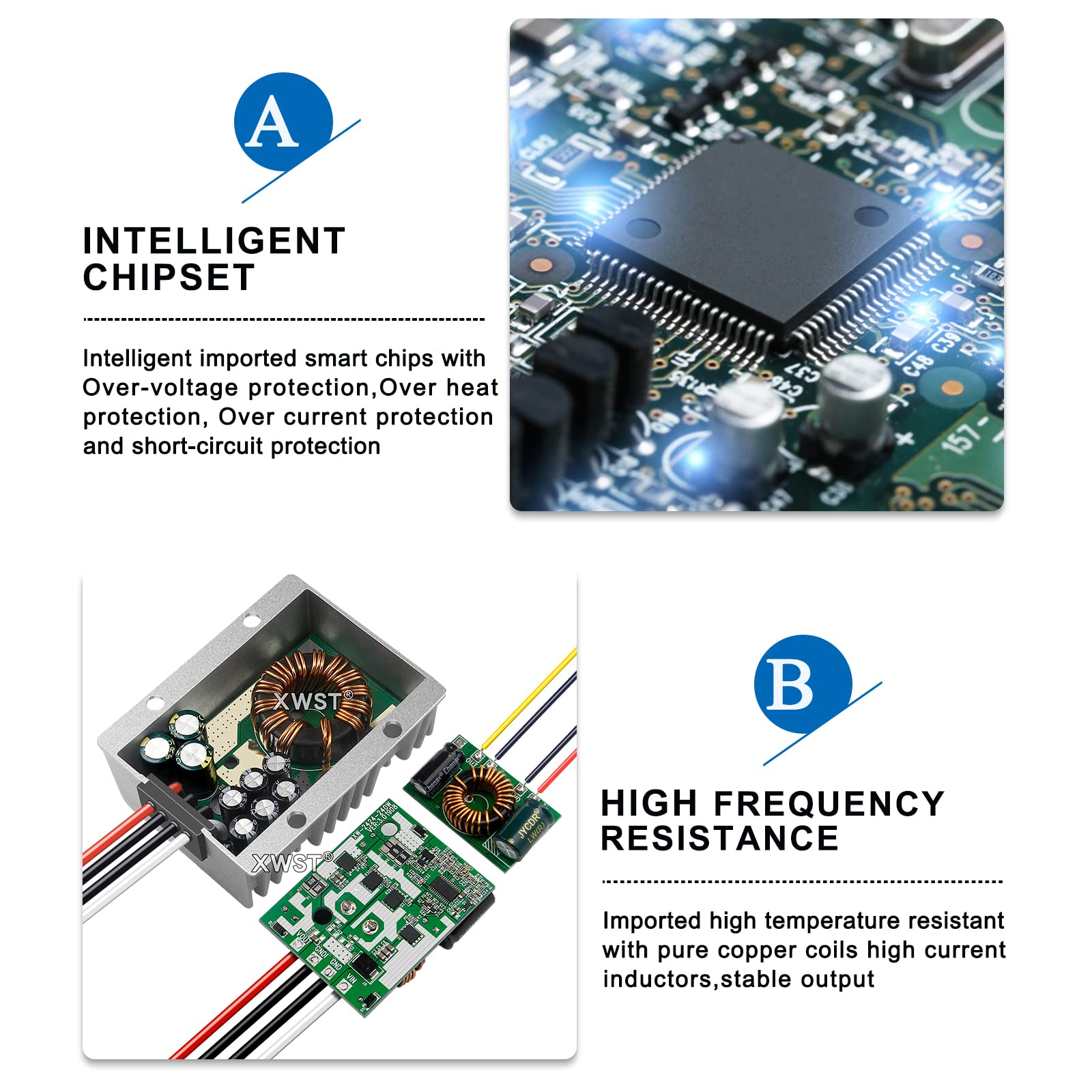

FEATURE --- the BUCK power module adopts high-integrated chip, stable and reliable; synchronous rectification technology, with conversion efficiency of over 93% and low heat generated.
NOTE --- Leave a margin for the power supply to ensure it can long-term stably working.

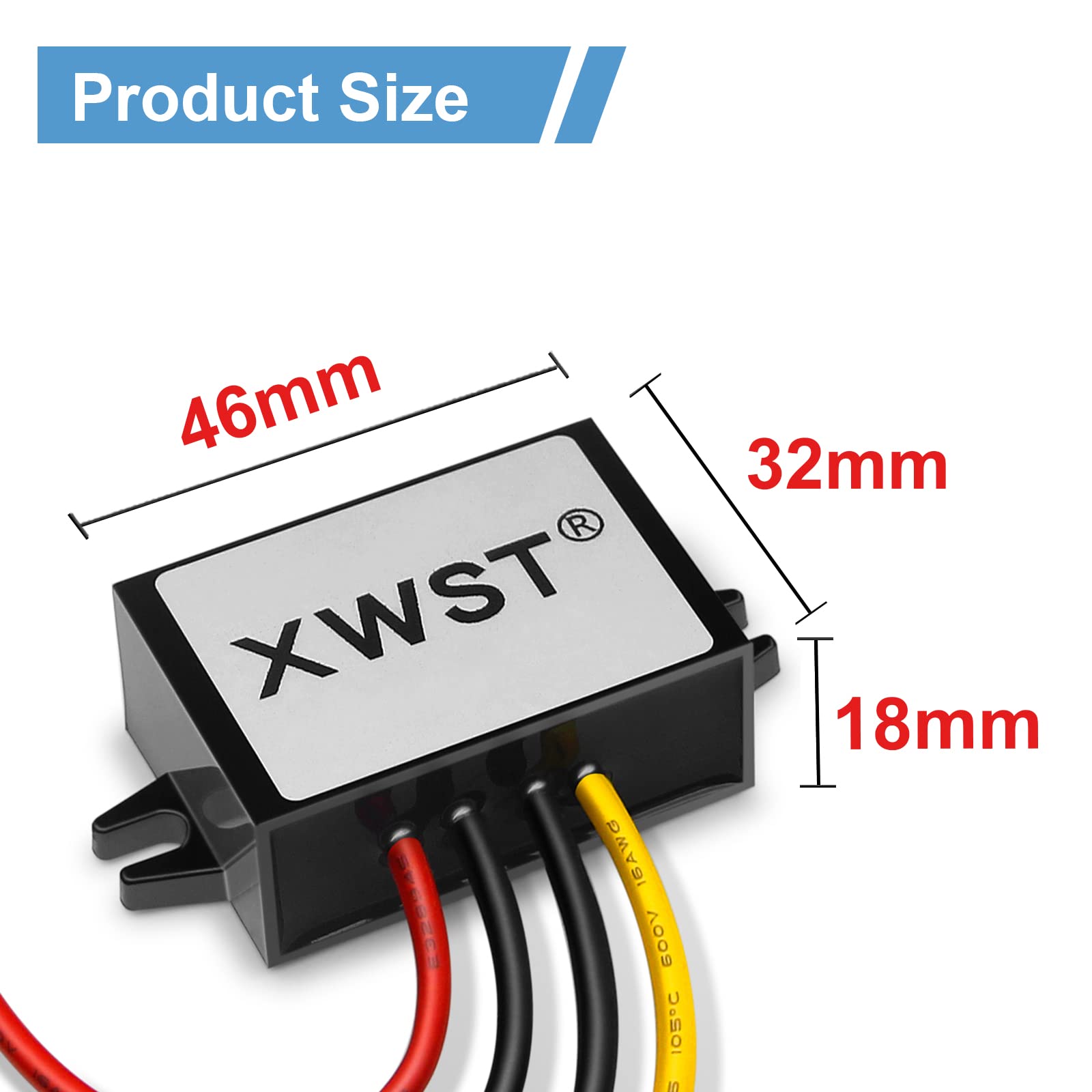

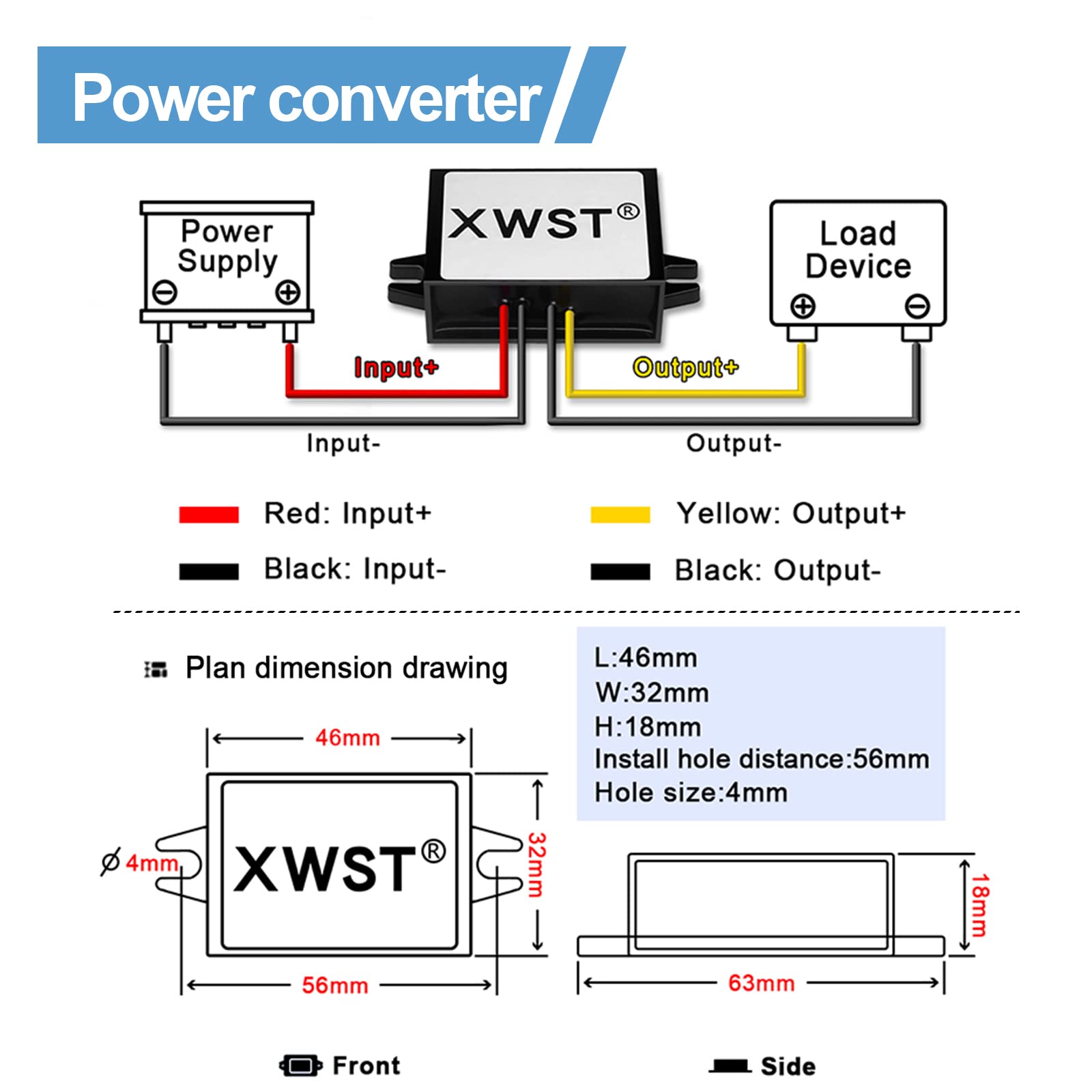

XWST DCDC Power Supply Step Down Buck Module Technical Specification: Input Voltage: DC 30V~90V (24V 36V 48V 60v 72v) Output Voltage: DC 24V Output Current: 1A Output Power: 24W Conversion Efficiency: >93% No Load Voltage Range: Set voltage ±3% Load Regulation: ±3% Quiescent Power Dissipation: <10mA Operating Temperature: -25~65℃ Storage Temprature: -40~80℃ Operating Humidity: 10%~90% Waterproofing Grade: IP67 Over-current Protection: Yes Over-temperature Protection: Yes Short-circuit Protection: No Dimension: 46mm x32mm x 18mm Material:ABS plastic shell Note: 1. Connect the wiring in strict according with the wiring instruction. 2. Use short and thick input & output wire to ensure output enough voltage and power. 3. If there are multiple output wire, do not combine the load. 4. Leave a margin for the power supply to ensure it can long-term stably working. Package Included: 1x Step Down Buck Module
