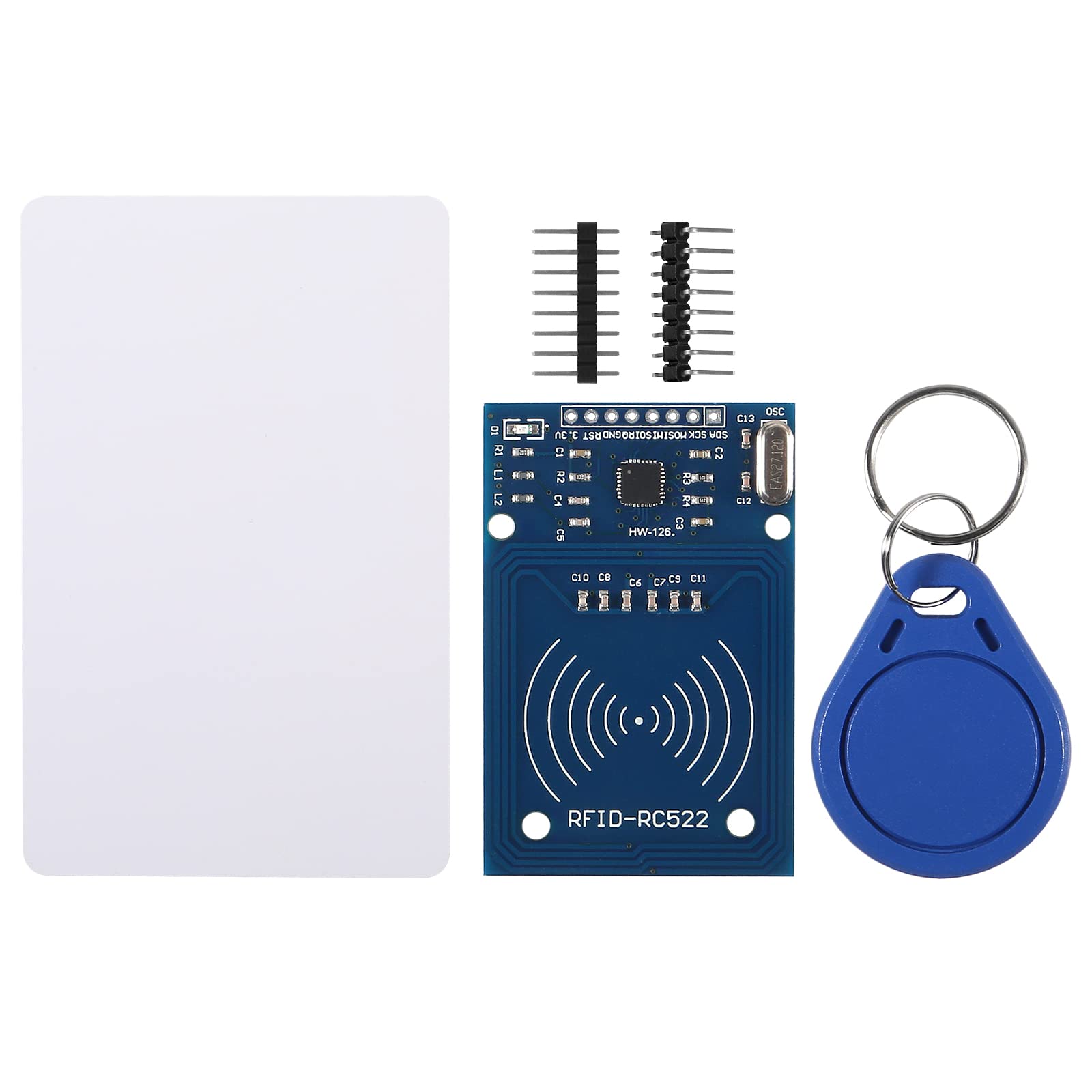

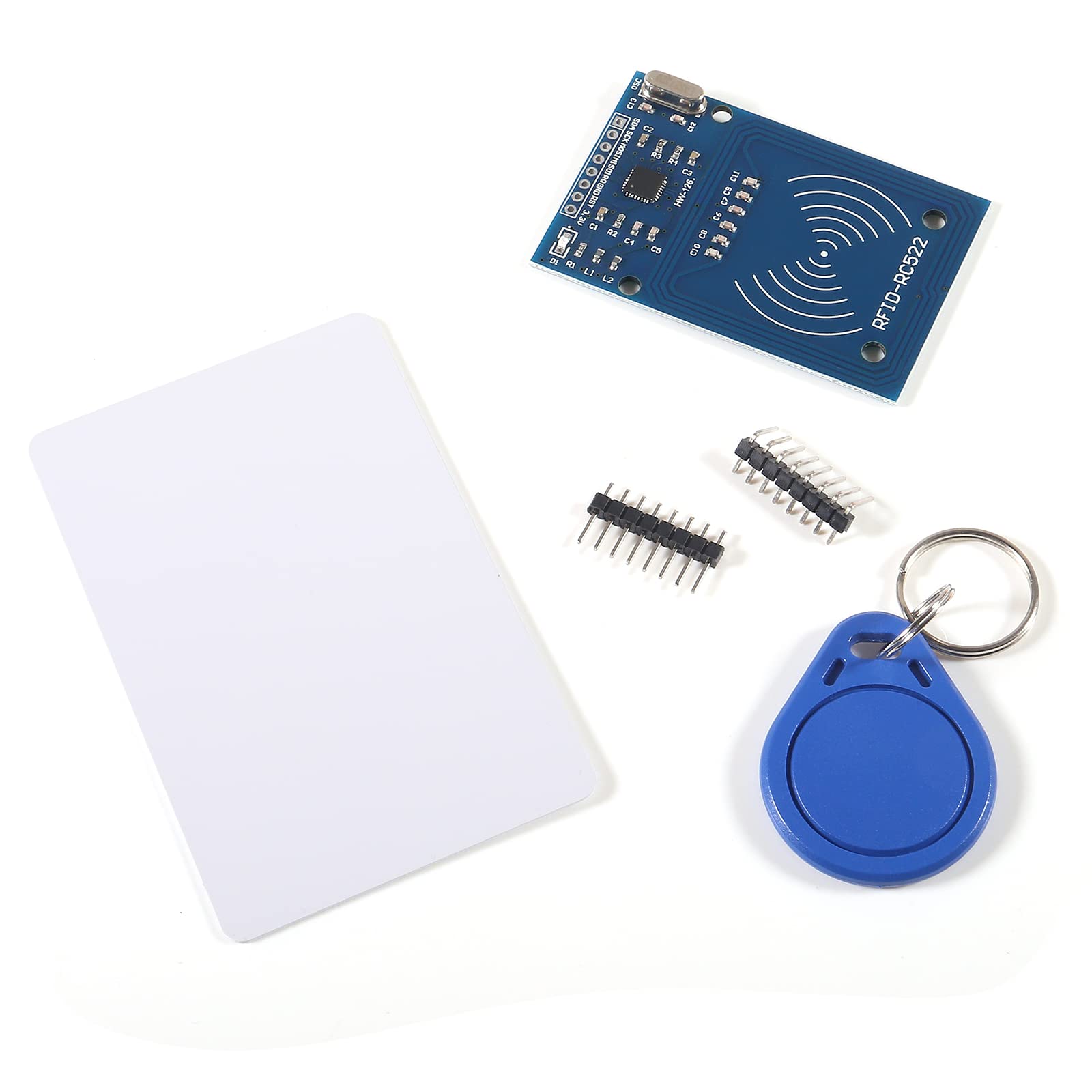

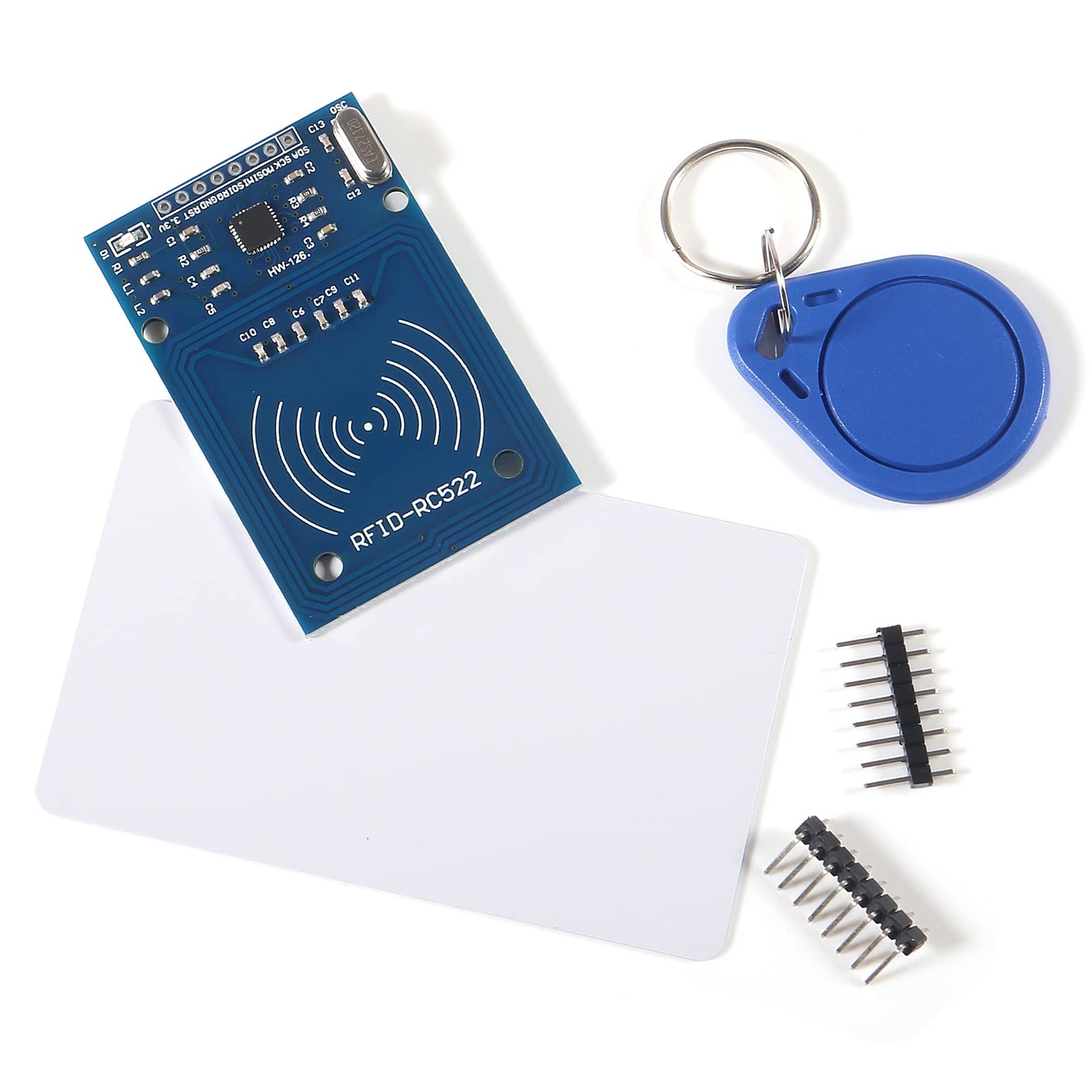

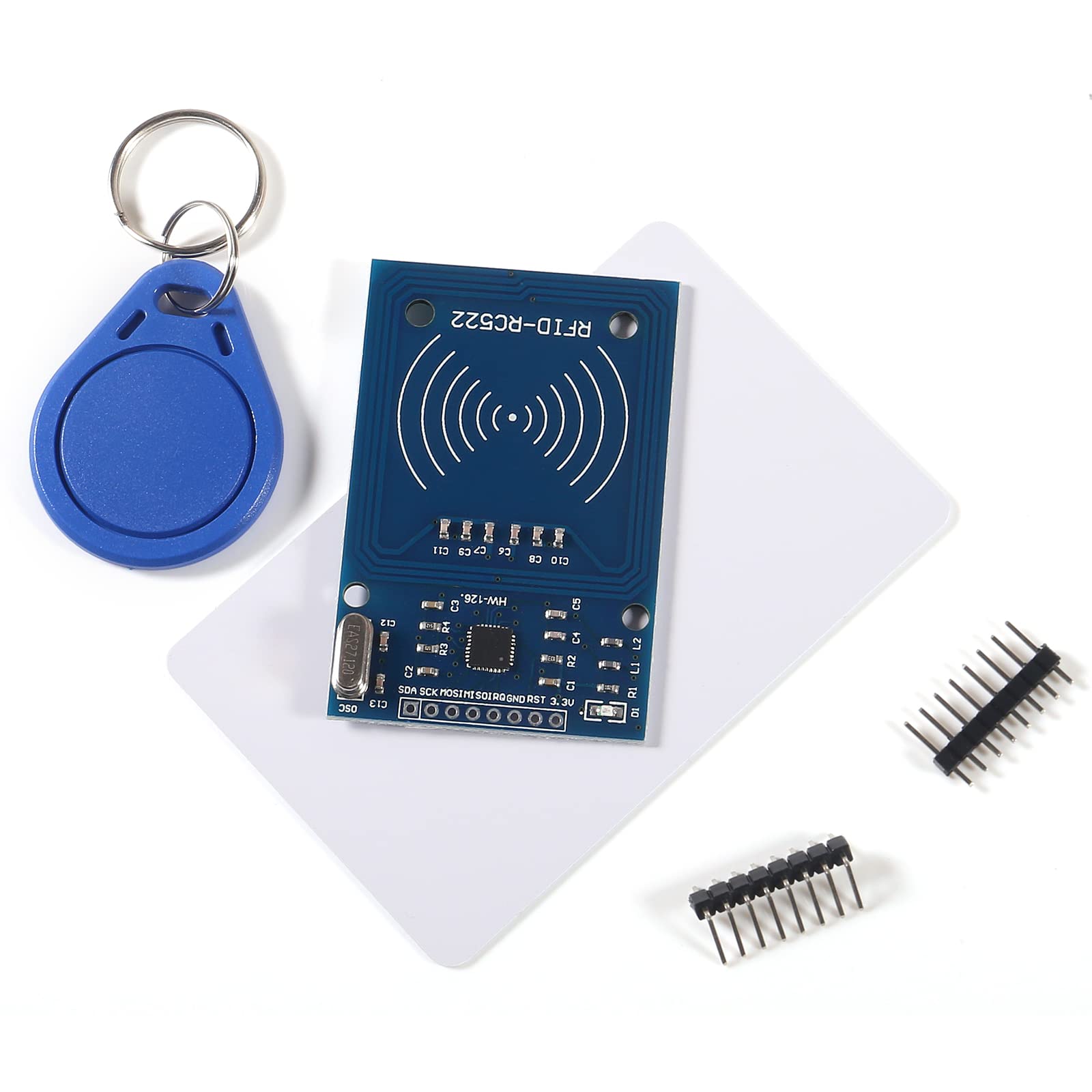

AITIAO 4Pcs RFID Kit Mifare RC522 RF IC Card Sensor Module MFRC-522 RFID Reader Module + S50 White Card + Key Ring for Raspberry Pi

5 / 5

Product ID:

289788

Identifier:

B09MQC93W1

Brand:

AITIAO

Model:

00892-4PCS

Shipping Weight:

0.18 lbs

Manufacturer:

AITIAO

Shipping Dimension:

6.18 x 4.33 x 0.98 inches

Share on Social Media

Share on Facebook

Share on X

Share on Instagram

Share on Tiktok

₱890

+ ₱ 150

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2026-06-13 to 2026-06-20.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

FEATURES

Current: 13-26mA/DC 3.3V; Idle Current: 10-13mA/DC 3.3V; Data Transfer Rate: Max.10Mbit/s; Power Voltage: 3.3V; Operating frequency: 13.56MHz

The sensor module can be directly loaded into the various reader molds.Applicable for the user who need to design or manufacture the RF card terminal

The RF IC Card module design the circuit of card read by using the original MFRC522 chip,with pin header and easy to use

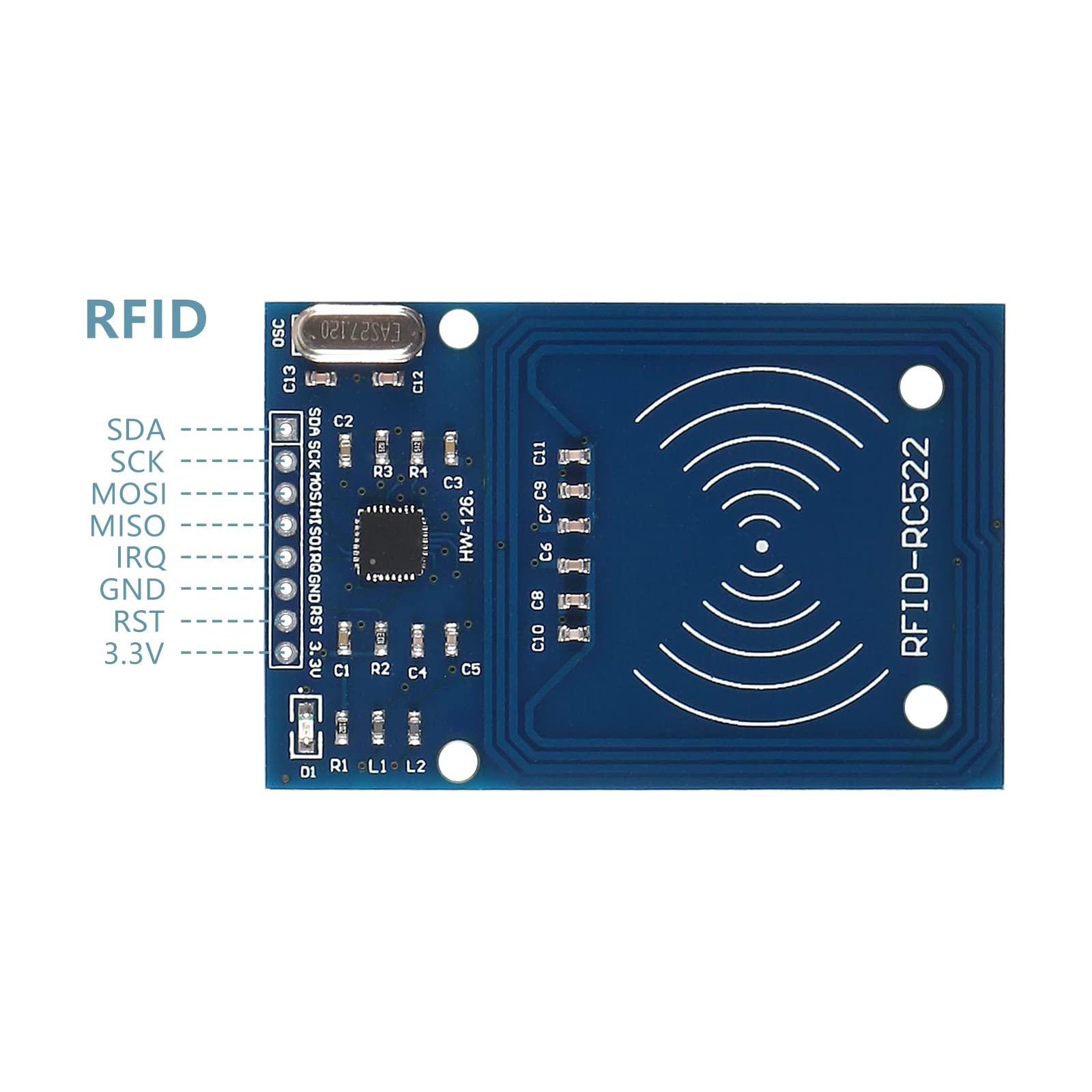

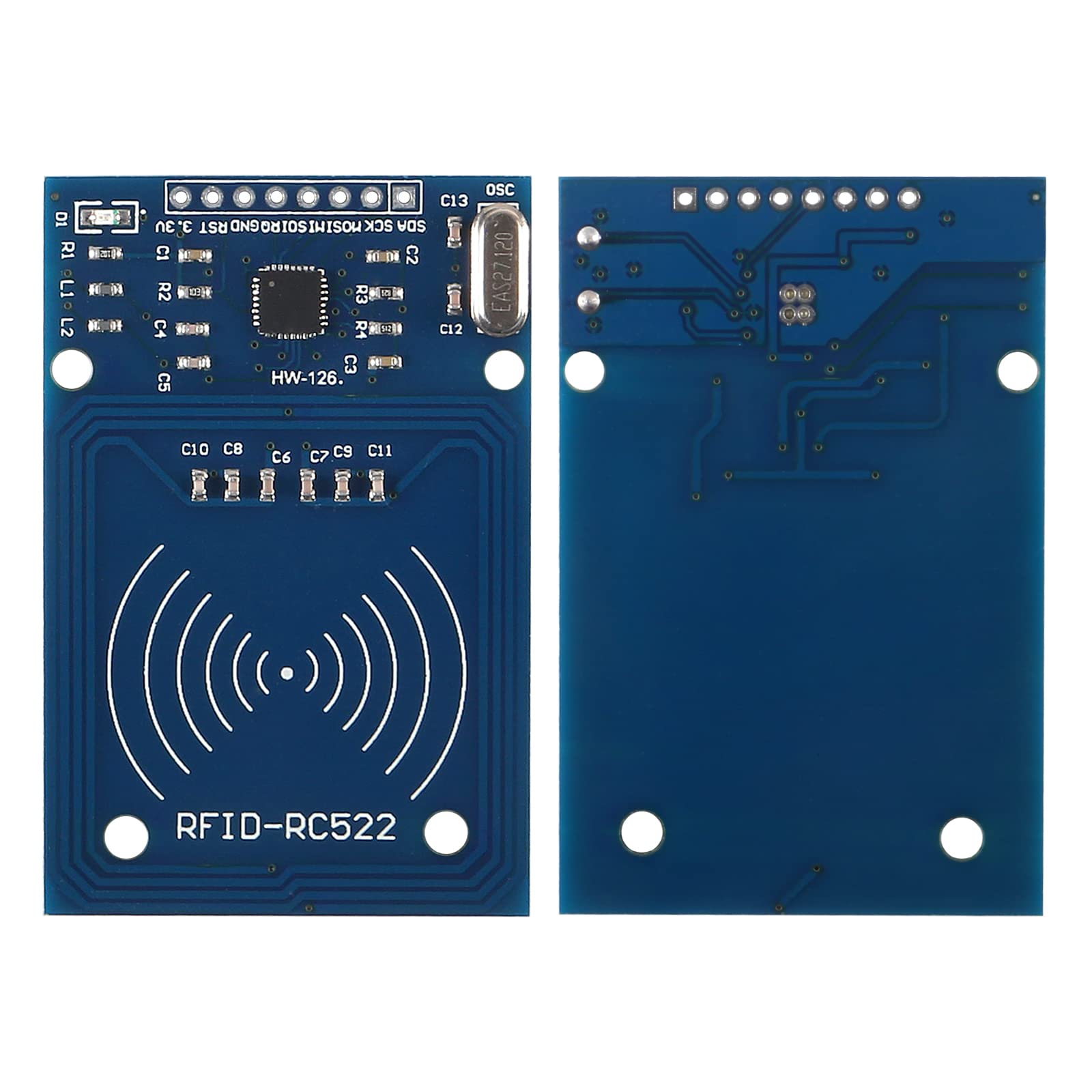

The module is equipped with onboard antenna, thus no external antenna coil is needed.It is compatible with SPI, IIC and UART interface for communication,it can ensure stable and reliable work, and reader distance

Package & after-sale service: you will receive 4 sets RFID Kit.If you have any questions about the RFID Kit, please feel free to contact us,we will provide you with a satisfactory solution

DESCRIPTIONS

About RC522 Chip 1. MFRC522 is a highly integrated read and write chip which is applicable to 13.56MHz contactless communications. 2. It is a non-contact read and writer card chip, low voltage, low cost and small size, is a better choice for smart meters and portable handheld devices development. 3. MF RC522 completely integrated in all types of 13.56MHz passive contactless communication methods and protocols. 4. Support 14443A compatible transponder signals. The digital part handles ISO14443A framing and error detection. In addition, support fast CRYPTO1 encryption algorithms, terminology validation MIFARE products. 5. The sensor module can be directly loaded into the various reader molds.Applicable for the user who need to design or manufacture the RF card terminal Specifications: Operating current :13-26mA/DC 3.3V Idle current :10-13mA/DC 3.3V Sleep current: <80uA Peak current: <30mA Operating Frequency: 13.56MHz Read Range: 0 ~ 35mm (mifare1 card) Size: 40mm×60mm Environmental Operating temperature: -20-80 degrees Celsius Environmental Storage Temperature: -40-85 degrees Celsius Relative humidity: relative humidity 5% -95% Module interfaces SPI: Data transfer rate maximum 10Mbit/s Supported card types: Mifare1 S50, Mifare1 S70, MIFARE Ultralight, Mifare Pro, and MIFARE DESFire. Package included: 4 * RFID-RC522 Module 4 * S50 Blank IC Card 4 * S50 Key Ring 8 * Pin Headers
