Product ID:
184569
Identifier:
B00R09WHT6
Brand:
NooElec
Model:
Balun One Nine
Shipping Weight:
0.04 lbs
Manufacturer:
Nooelec Inc.
Shipping Dimension:
3.11 x 2.36 x 0.47 inches
₱1,860
₱1,411
+ ₱ 150
Shipping Cost from USA to Philippines inclusive of custom fees.
Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.
Get it between 2025-11-20 to 2025-11-27.
Additional 3 business days for provincial shipping.
- Price and Stocks may change without prior notice
- Packaging of actual item may differ from photo shown
Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.
Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods
1:9 HF antenna balun for long wire antennas; includes excellent ESD protection on input
Great match for attaching a long wire to the Ham It Up
Fully assembled, and easy to use
Excellent specifications
Only 39.2mm x 13.0mm and 5g!

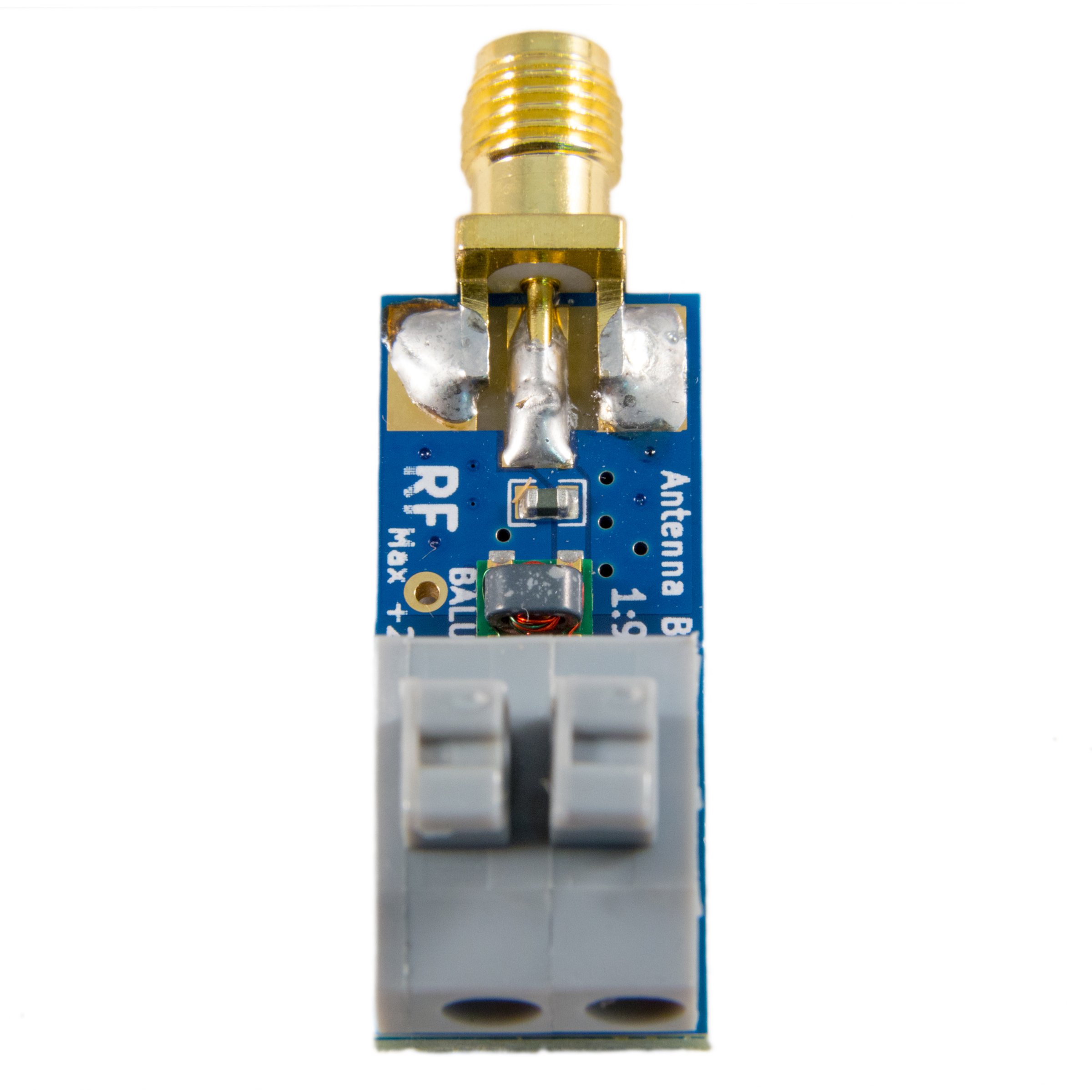

Meet 'Balun One Nine', a small, cost-effective balun. An excellent way to attach a long wire antenna to the Ham It Up, this 1:9 balun has an SMA output port and high-quality spring-type terminal block input for your coax. Balun One Nine includes an AntennaGuard varistor on the input, protecting your SDR setup from spurious ESD. The ESD protection is excellent--it passes IEC61000-4-2, an 8kV contact discharge test, with a response time of just 300ps. At 39.2mm x 13.0mm in total size (including connectors!) this balun was designed to be light in weight and light on your wallet. Very low insertion loss of -1.3dB (typical), with a maximum input power of 28dBm. Designed for HF applications, but specifications are accurate to frequencies up to 90MHz .
