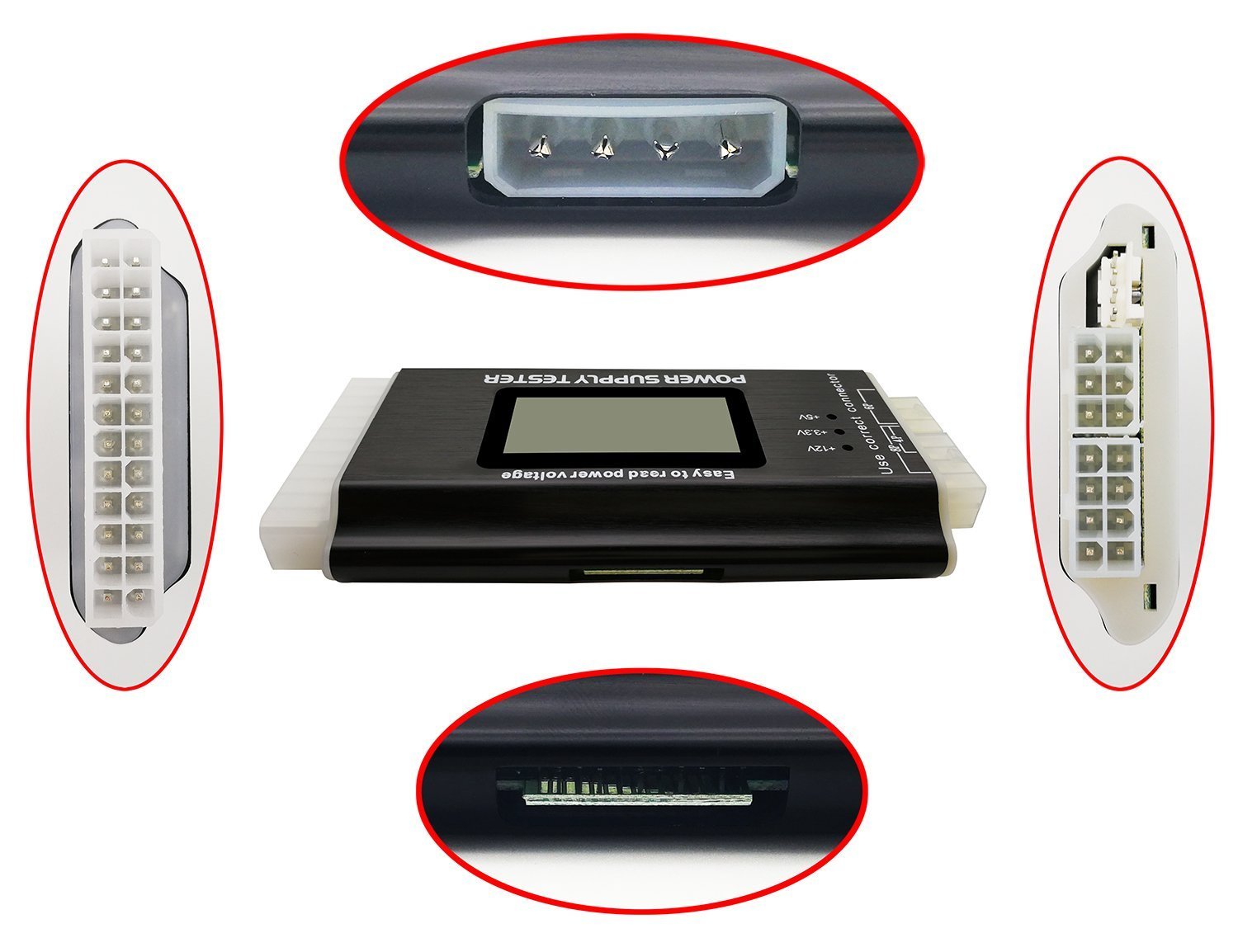

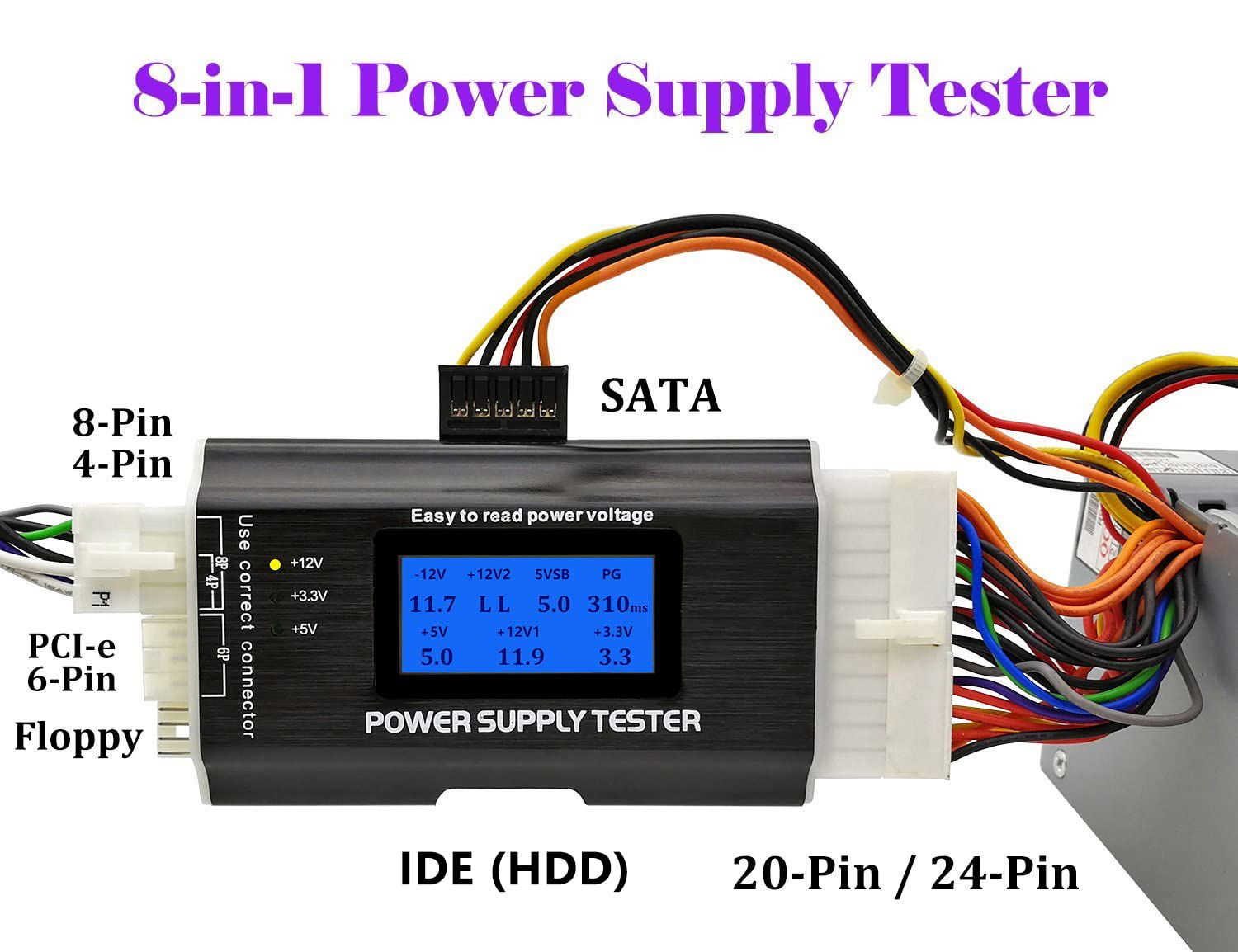

[8-in-1 ATX Power Supply Tester] -- Support test 20-pin ATX / 24-pin ATX / HDD (IDE) / Floppy 4-pin / PCI-e 6-pin / 4-pin / EPS 8-pin (NOTE: can not fit for PCI-e 8-pin) / SATA connectors

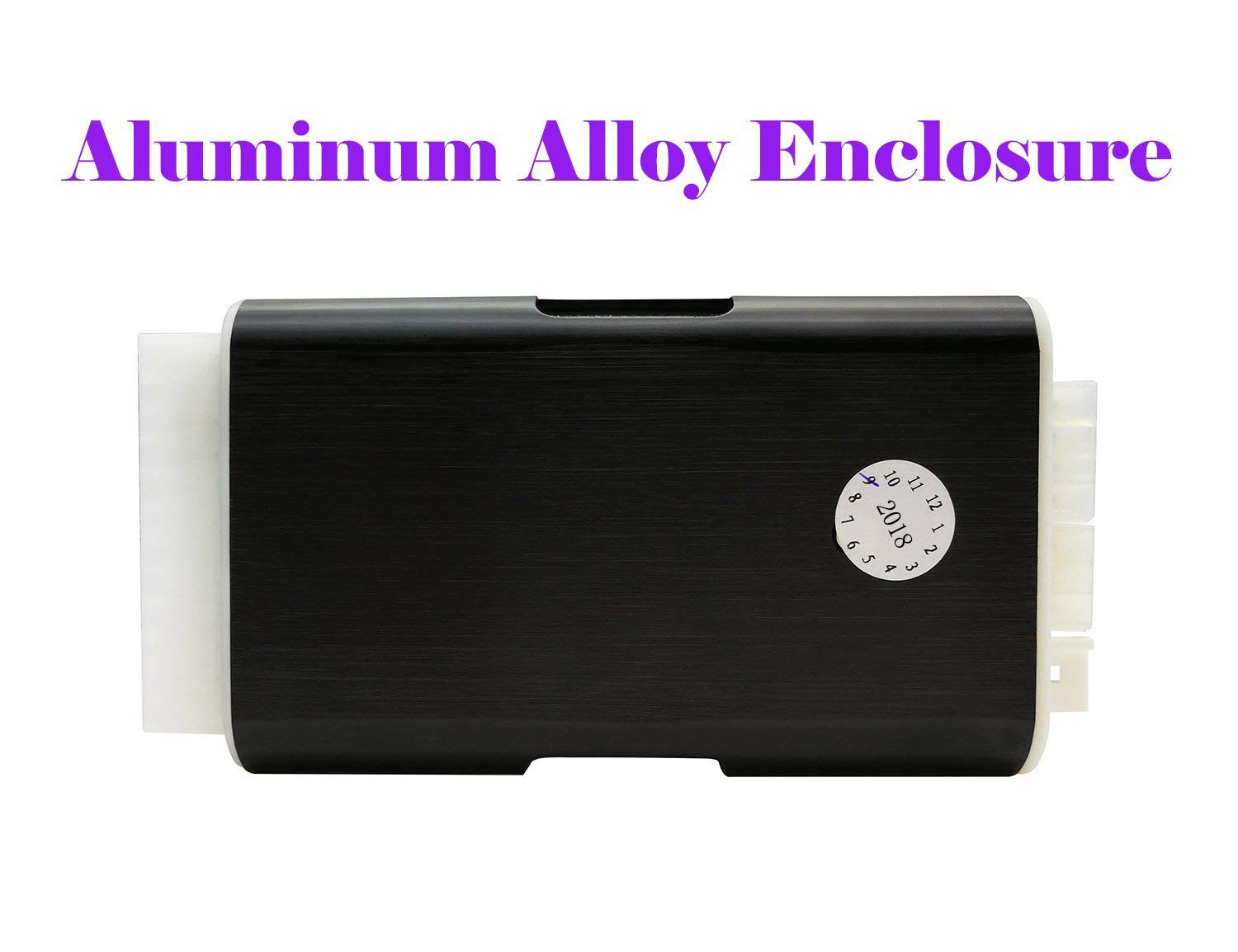

[Aluminum Alloy Enclosure] -- Light and Easy to Carry, High Strength, Nice Thermal Conductivity & Corrosion Resistance

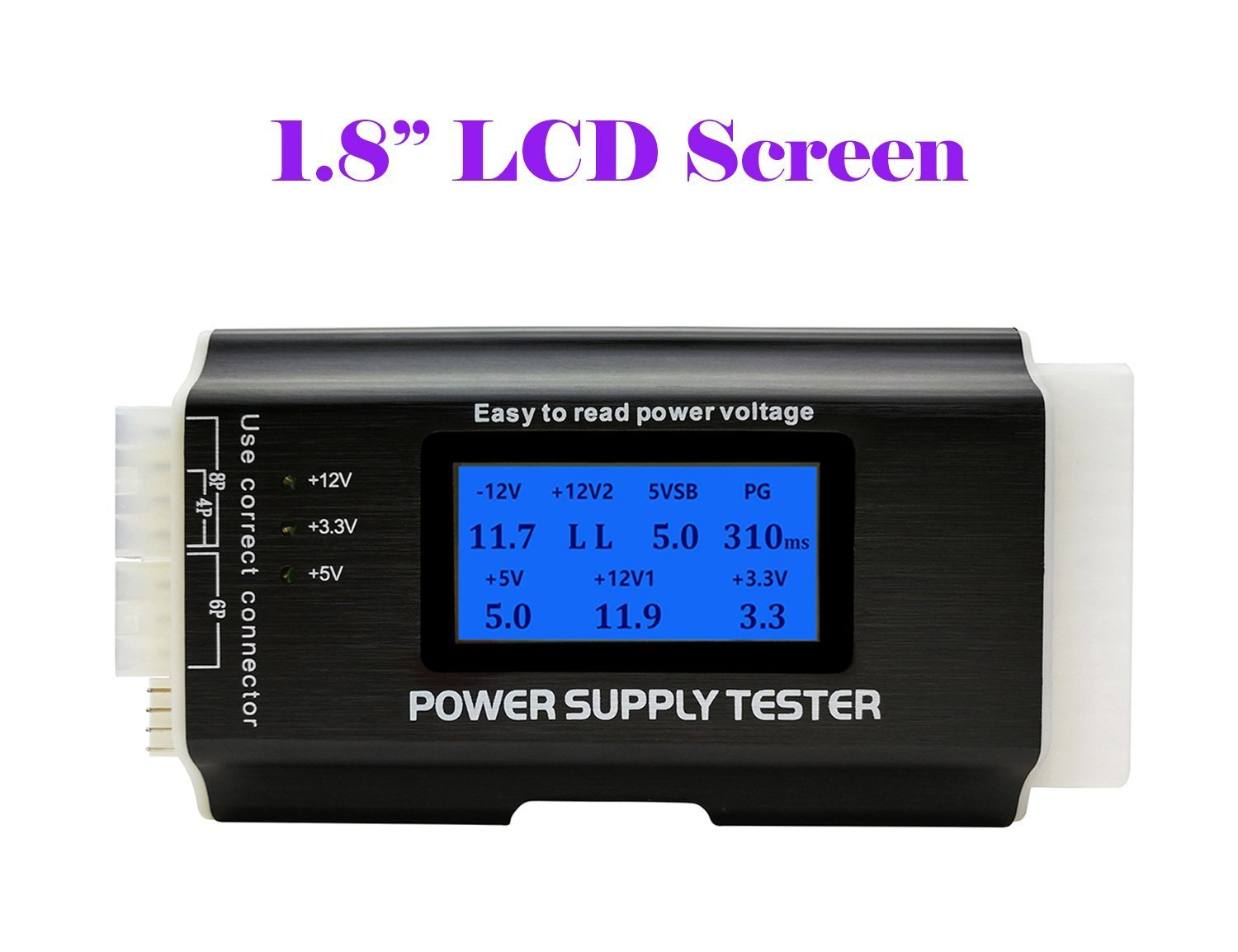

[1.8'' LCD Screen] -- Outputted Voltages shows on the 1.8'' LCD Screen, Easy to Read ( The 1.8'' LCD Screen was Powered by 20-pin / 24-pin Connector ), Note: The Product Screen Has a Load of Scratches All Over It？Because The Screen is Easy to Scratch, We Put a Protective Film on It, If You Think It's Not Beautiful, You Can Tear It Off by Yourself

[Beep Alarm] -- When your power supply test value is beyond normal range, the Power Supply Tester would issue a buzzer alarm, Easy to Know

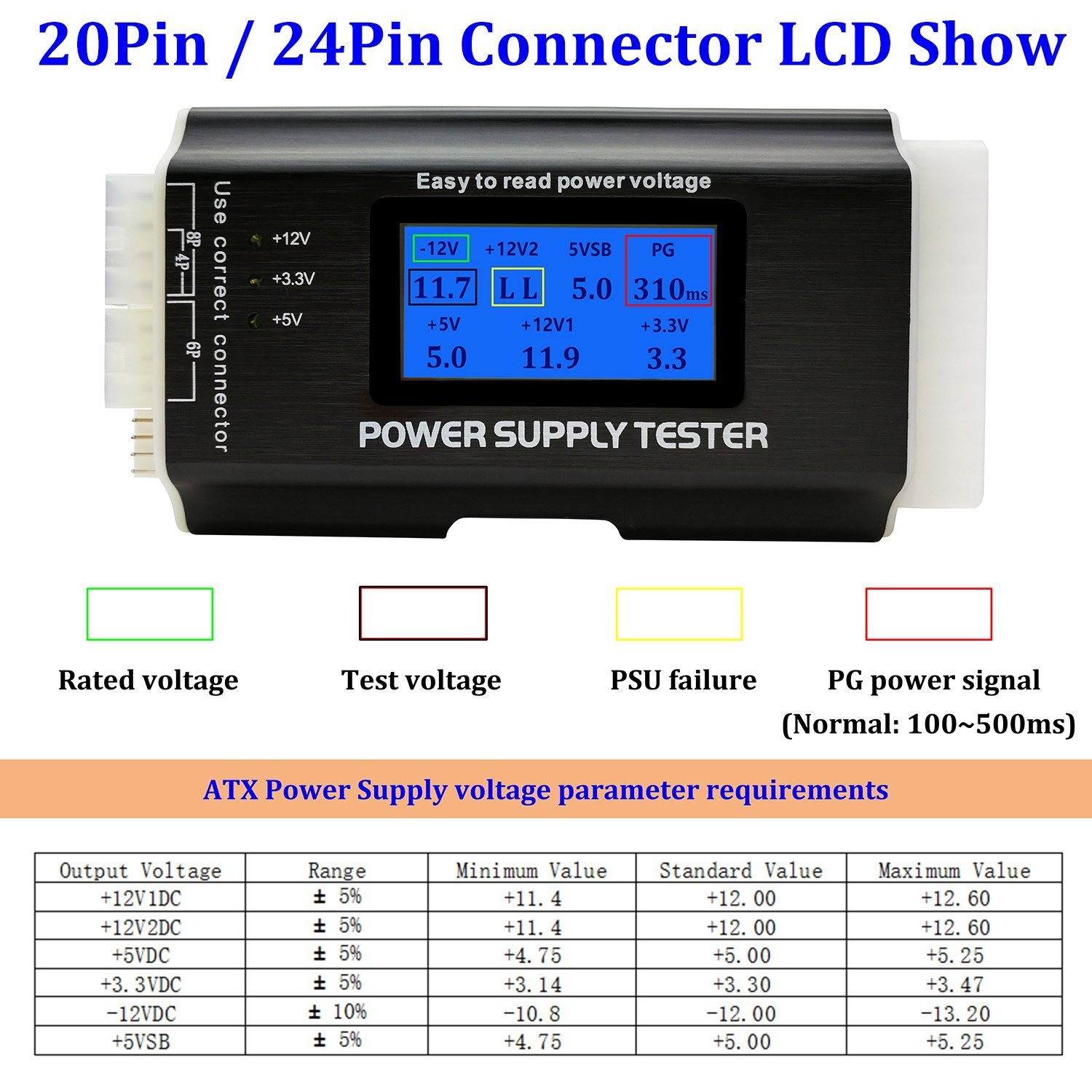

NOTE: The voltage of 20pin / 24pin connectors is displayed by the LCD Screen, as "+3.3V", "+12V1", "+5V", "-12V", "5VSB", "PG" (except "+12V2" on LCD Screen); The voltage of PCI-e 6P / 4P / EPS P8 connectors is displayed by the LCD Screen as "+12V2"

NOTE: The voltage of IDE (HDD), Floppy, SATA connector is displayed by the lights on the left of the power tester, IDE (HDD) connector is displayed by "+12V" & "+5V" lights; Floppy connector is displayed by "+12V" & "+5V" lights; SATA connector is displayed by "+12V", "+3.3V" & "+5V" lights

NOTE: When you test the SATA connector, please confirm how many wires your connector is. When the 5-wire SATA connector is normal, the tester will light up three LED lights "+12v", "5V" and "+3.3v". When the 4-wire SATA connector is normal, the tester will only light up two LED lights "+12v" and "+5v"
