Product ID:
91266
Identifier:
B08LVL4J9L
Brand:
CHANZON
Model:
Shipping Weight:
0.07 lbs
Manufacturer:
CHANZON
Shipping Dimension:
6.3 x 5.51 x 0.51 inches
₱707
+ ₱ 150
Shipping Cost from USA to Philippines inclusive of custom fees.
Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.
Get it between 2026-06-06 to 2026-06-13.
Additional 3 business days for provincial shipping.
- Price and Stocks may change without prior notice
- Packaging of actual item may differ from photo shown
Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.
Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods
Transistor Type: High Power N-Channel Metal-Oxide-Semiconductor Field-Effect (NMOS) Transistor.
Transistor Features: Designed with excellent power dissipation capacity of 125W and high drain current of 6A.
Performance Specifications: Boasts drain-to-source voltage (VDSS) of 600V and low on-state resistance (RDS (on)) of 1.2Ω.
Application: Ideal for high-power switching and regulation applications in power supplies, motor control, and other advanced electronic circuits.

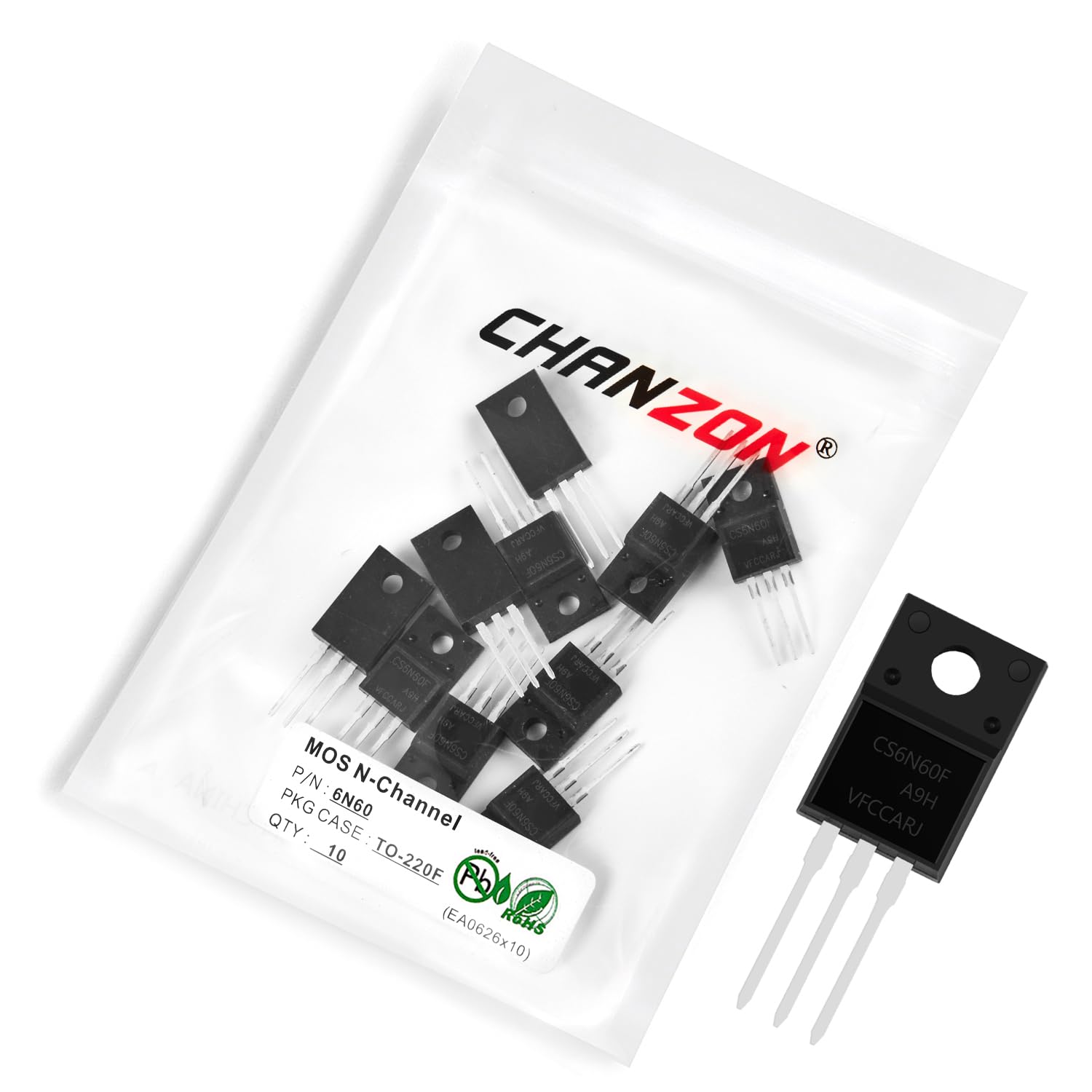

Package: Shipped in an Anti-Static bag for optimal electrostatic protection, guaranteeing ESD safety and prolonged shelf life.

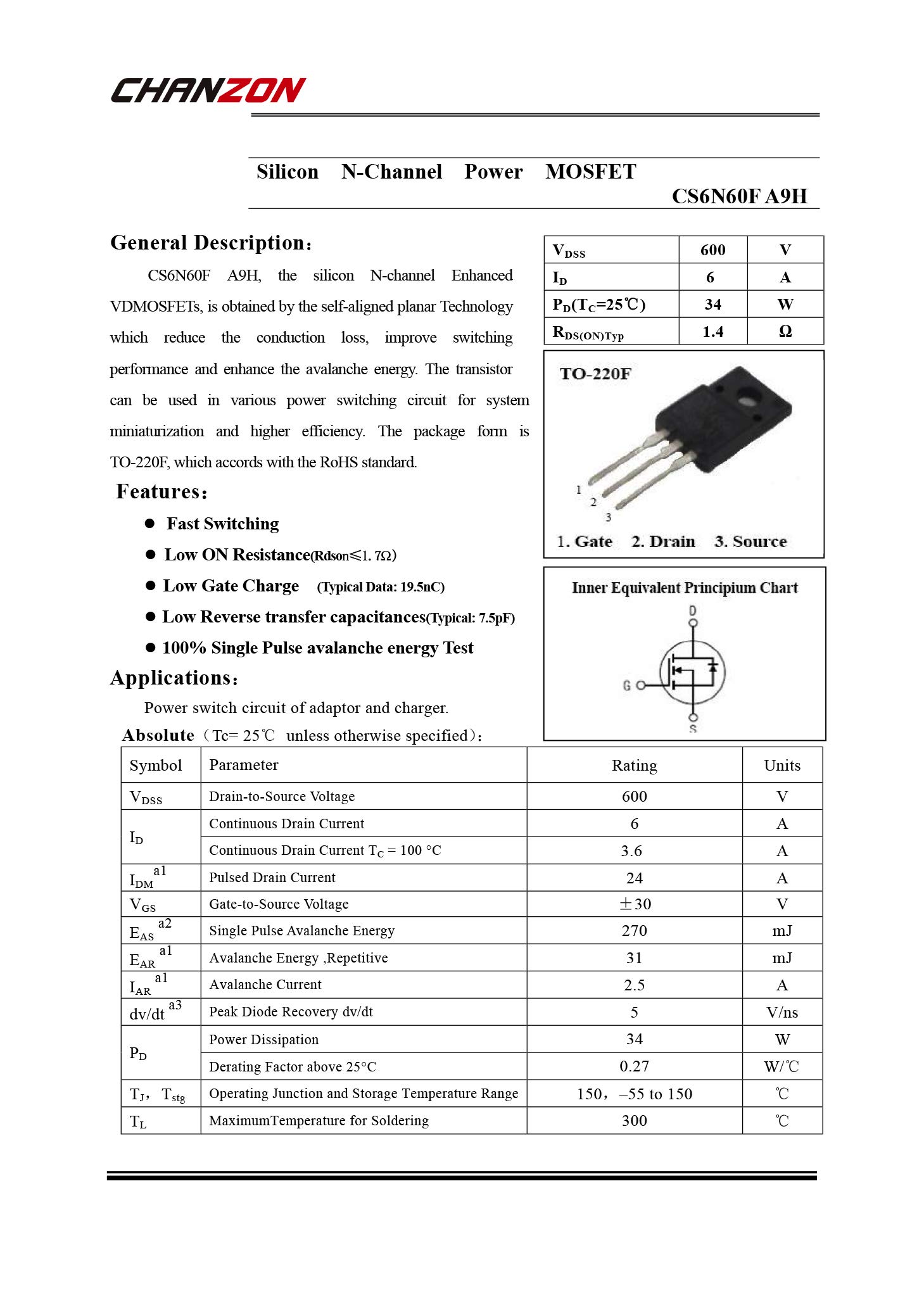

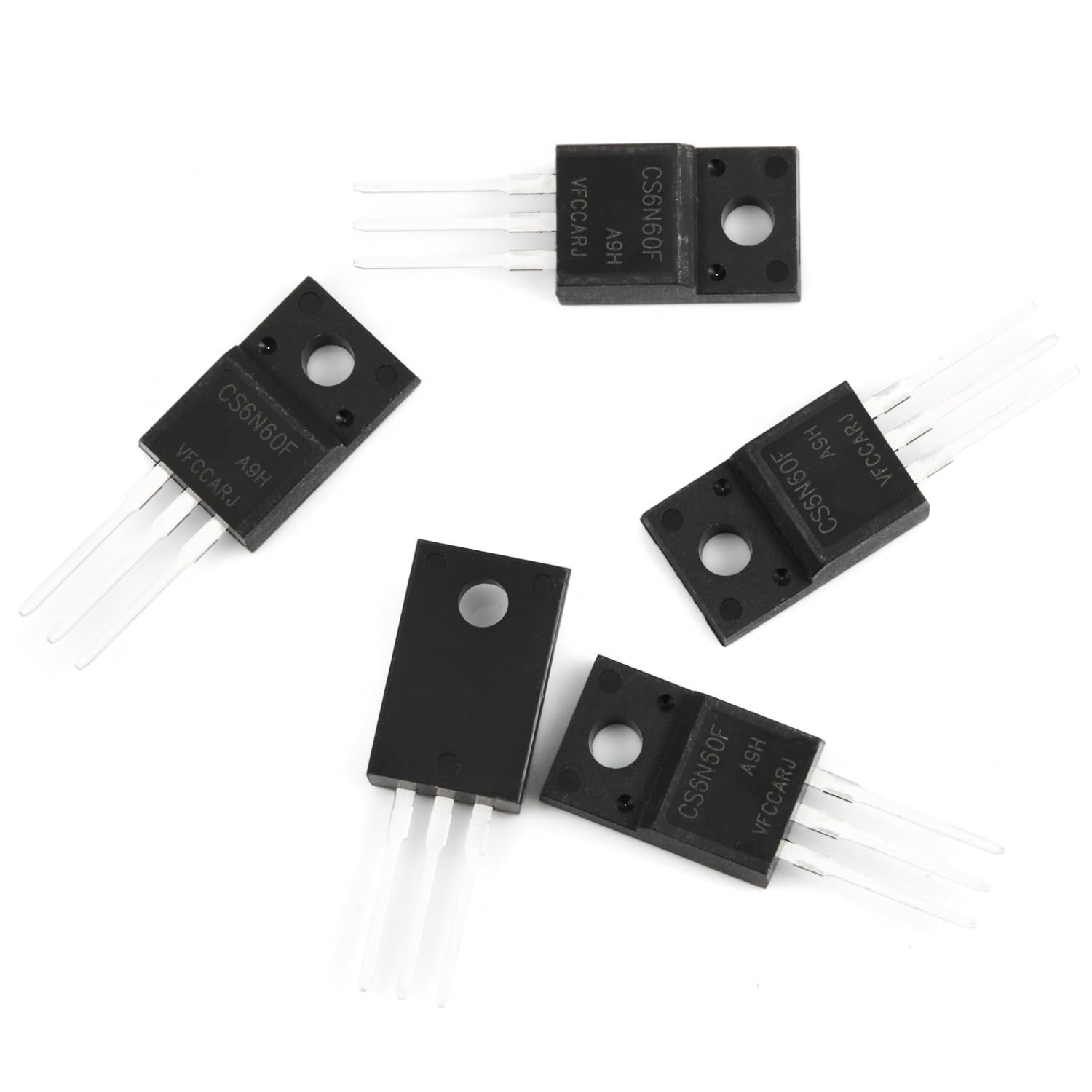

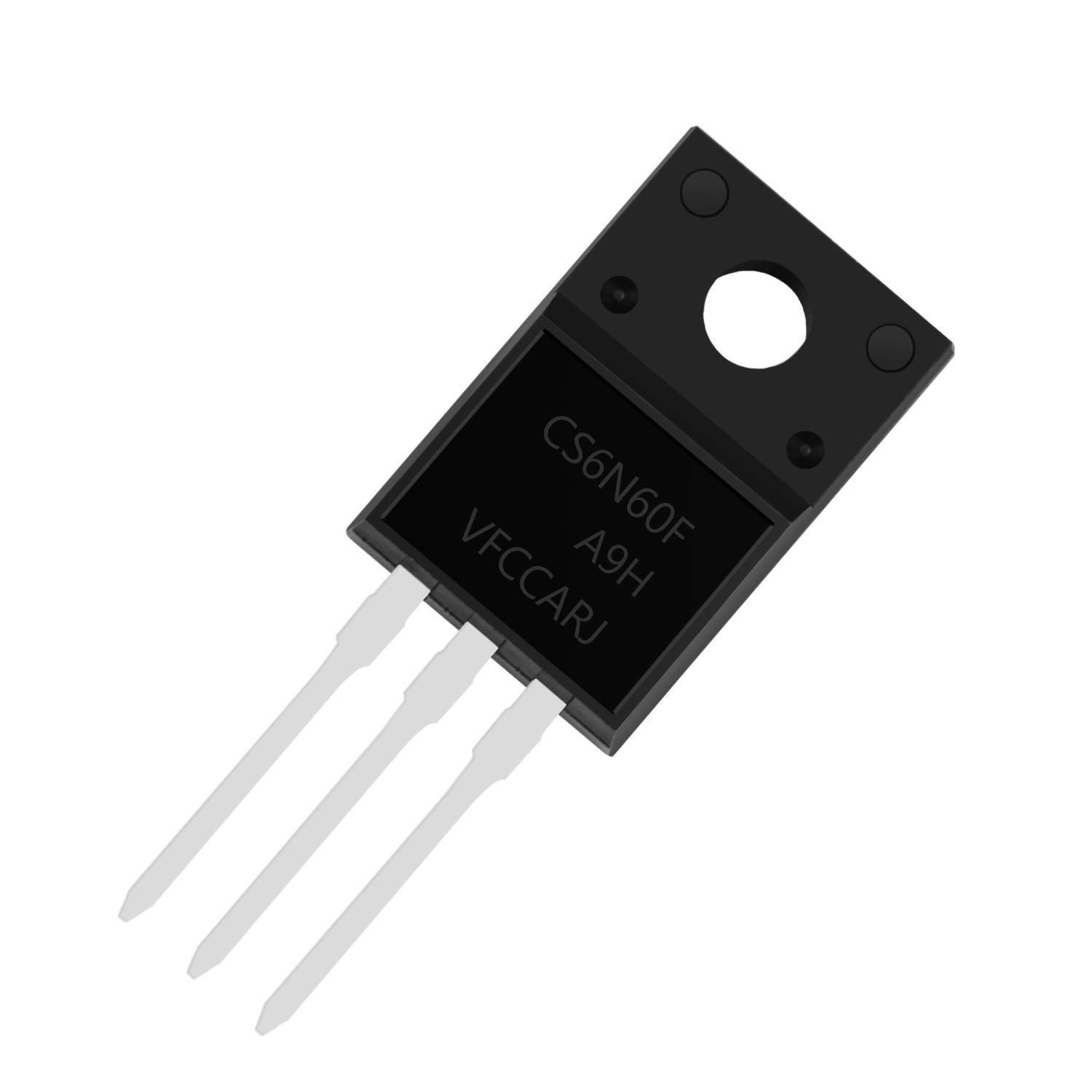

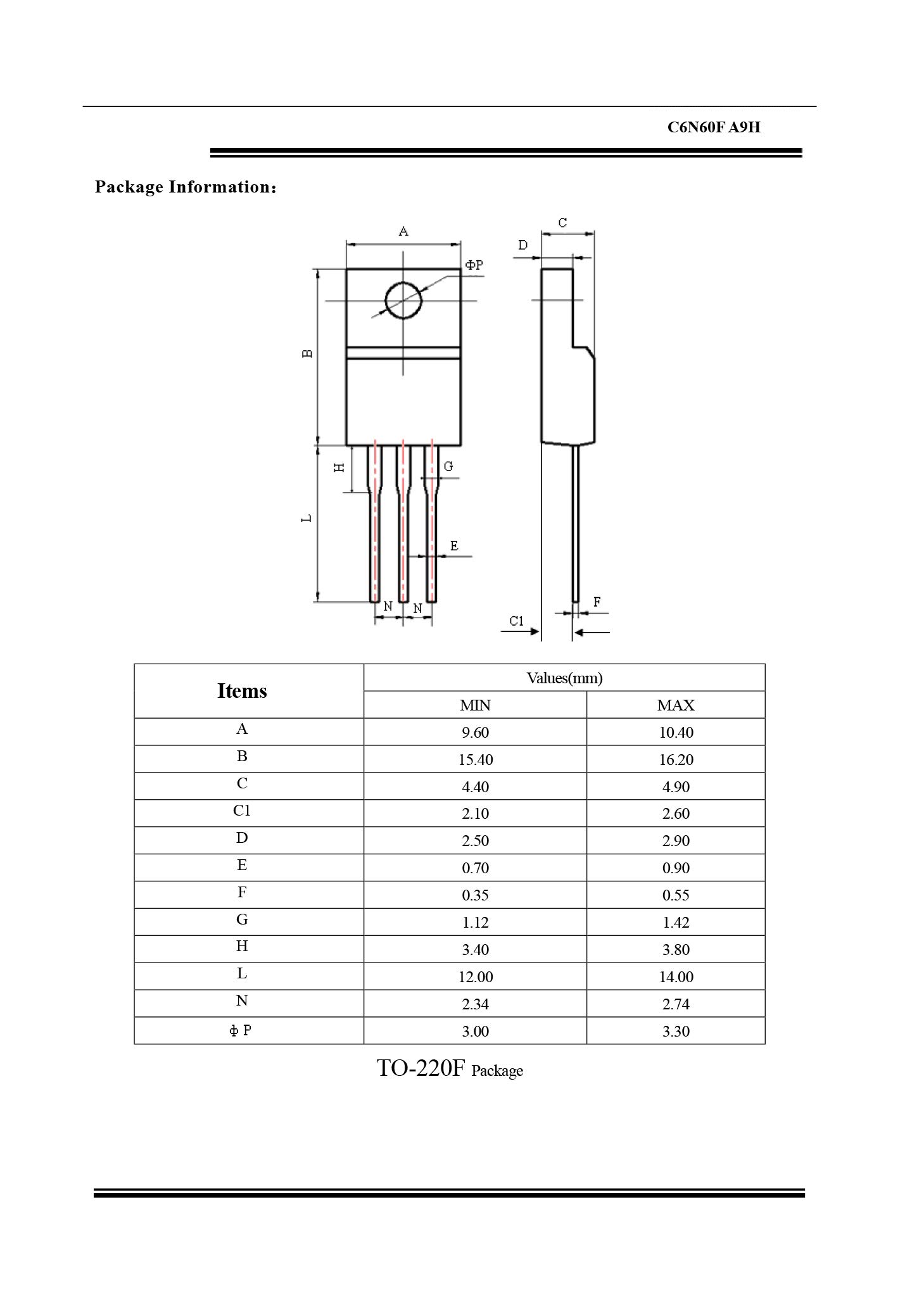

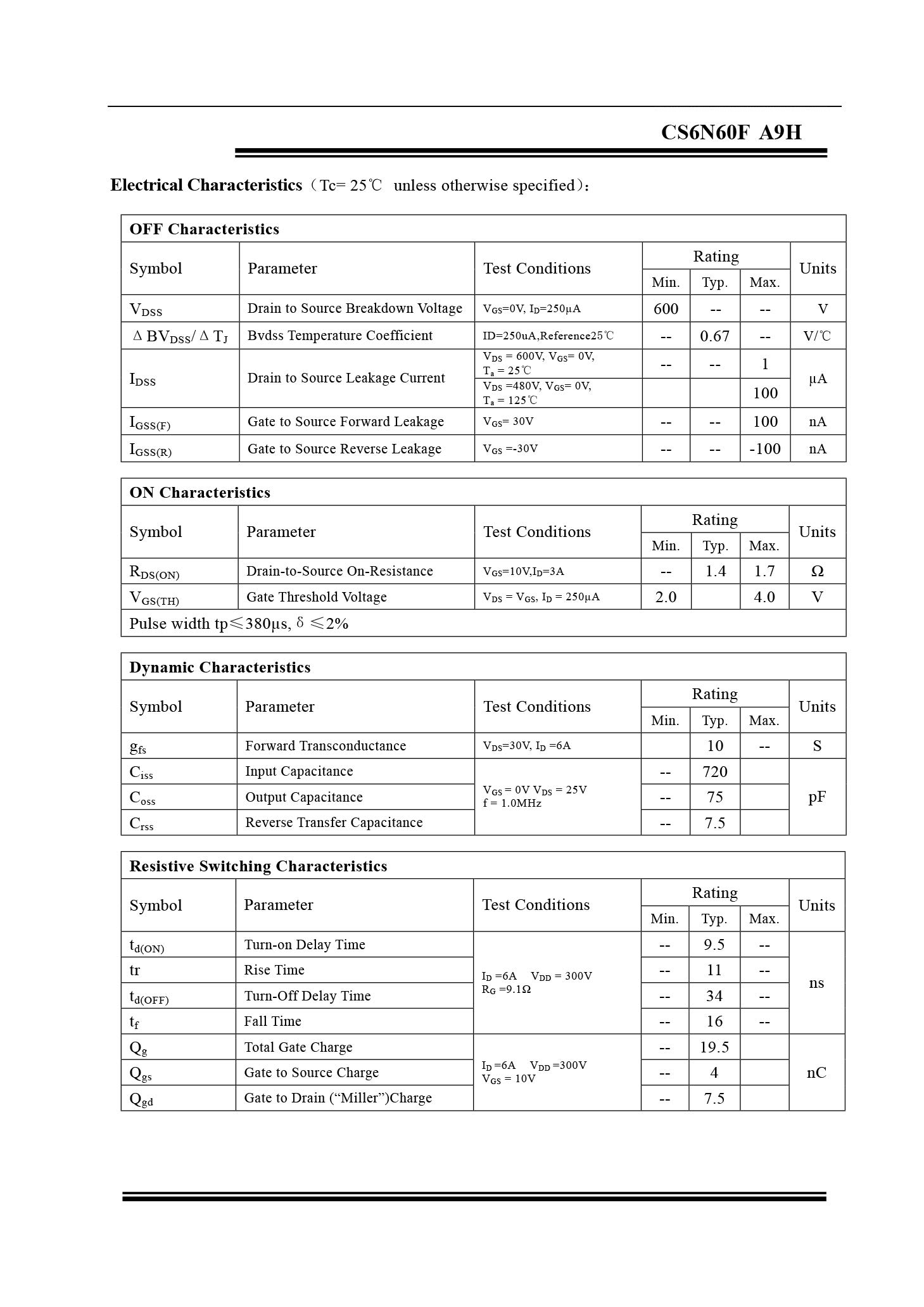

Product Description: This N-Channel Power MOSFET is designed for high-efficiency power switching applications, ensuring fast switching and low conduction loss. Ideal for use in power switch circuits of adaptors and chargers, it features a robust TO-220F package compliant with RoHS standards. Key Features: Fast Switching for quick response times. Low ON Resistance (Rdson ≤ 1.7Ω) for minimal power dissipation. Low Gate Charge (Typical: 19.5nC) for efficient operation. Low Reverse Transfer Capacitance (Typical: 7.5pF) for stable performance. Avalanche Energy Tested for reliability. Technical Specifications: Drain-to-Source Voltage (VDSS): 600V Continuous Drain Current (ID): 6A at 25°C, 3.6A at 100°C Gate-to-Source Voltage (VGS): ±30V Single Pulse Avalanche Energy (EAS): 270mJ Power Dissipation (PD): 34W at 25°C, derating factor 0.27W/°C Operating Junction Temperature Range: -55 to 150°C Dynamic Characteristics: Forward Transconductance (gfs): -- S Input Capacitance (Ciss): 720pF Output Capacitance (Coss): 75pF Reverse Transfer Capacitance (Crss): 7.5pF at 1.0MHz Resistive Switching Characteristics: Turn-on Delay Time (td(ON)): Typically 9.5ns Rise Time (tr): Typically 11ns Turn-Off Delay Time (td(OFF)): Typically 34ns Fall Time (tf): Typically 16ns Total Gate Charge (Qg): 19.5nC Source-Drain Diode Characteristics: Continuous Source Current (IS): 6A Diode Forward Voltage (VSD): 1.5V at IS=6.0A Reverse Recovery Time (trr): 203ns Thermal Performance: Junction-to-Case Thermal Resistance (RθJC): 3.68℃/W
