Product ID:
753833
Identifier:
B0BQF35B12
Brand:
YUANWIN
Model:
Lock600LBS
Shipping Weight:
5.48 lbs
Manufacturer:
YUANWIN
Shipping Dimension:
11.81 x 5.91 x 2.8 inches
Materials: Stainless steel, Anti-residual magnesium designed. This magnetic door lock provides a strong sense of security with its outstanding holding force 600Lbs (280KG) and significant features.

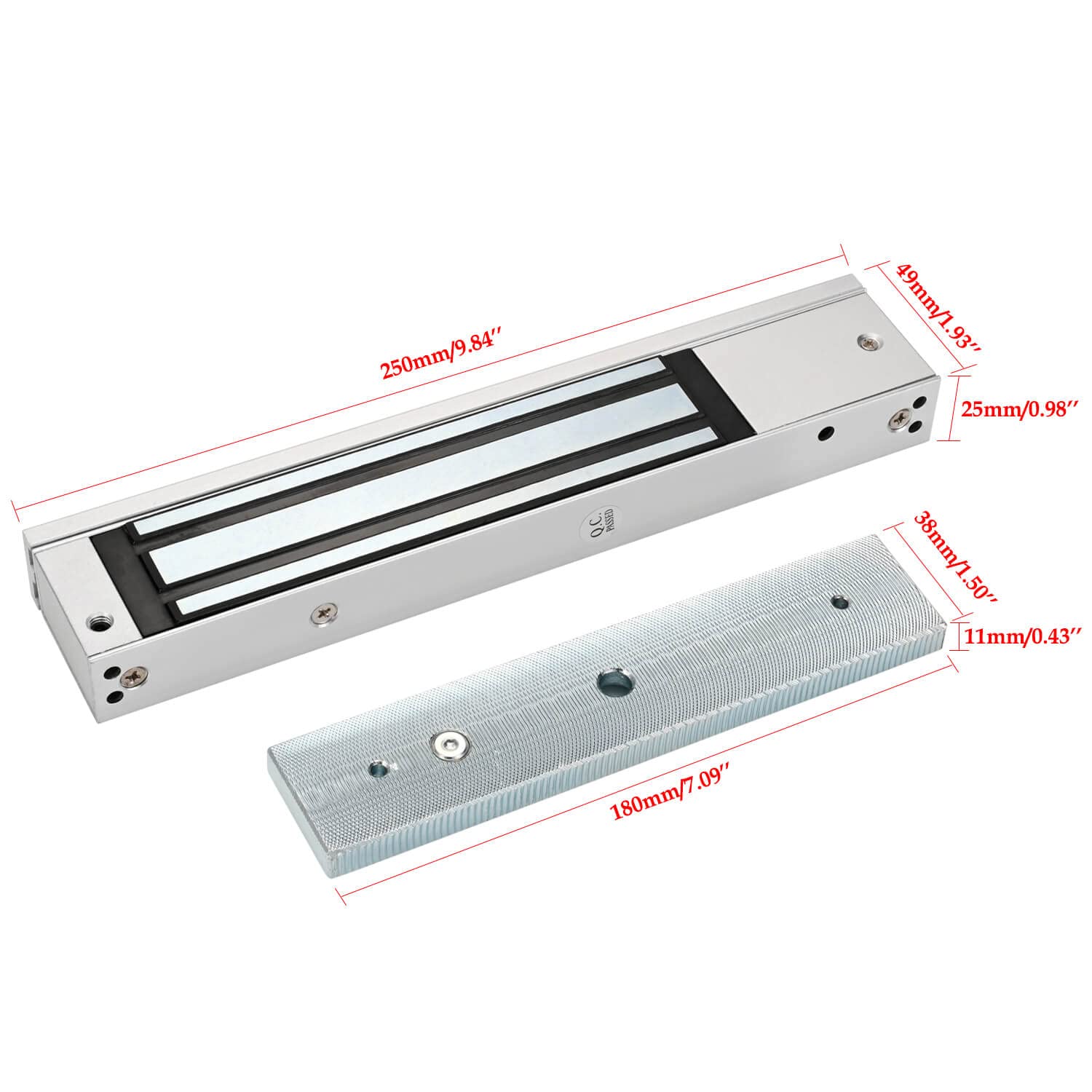

Size: The lock size is 9.84 x 1.93 x 0.98 inch (250 x 49 x 25mm); Armature plate: 7.09 x 1.50 x 0.43 inch (180 x 38 x 11mm). Holding Force: 600LBS (280KG).

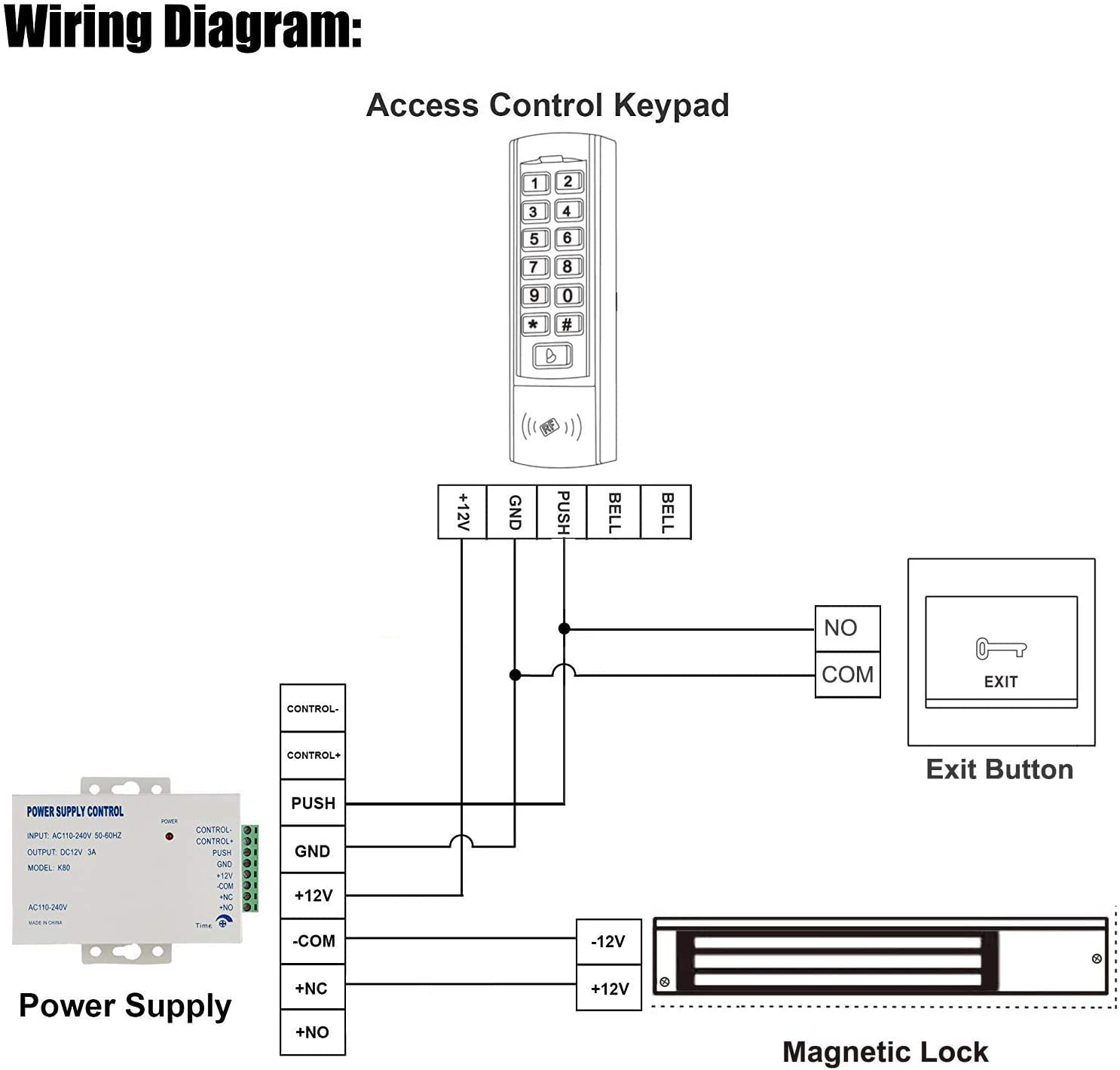

Mode: NC Mode (Fail-Safe Mode), Locked whilst power supply is operating, unlocked when power off; Voltage: DC12V.
Security protection: This electromagnetic lock has safety function. It is built in voltage spike suppressor.
Wide Applications: This electric magnetic door lock is suitable for Wooden Door, Glass Door, Metal Door, Fire Proof Door, Cabinet, etc.

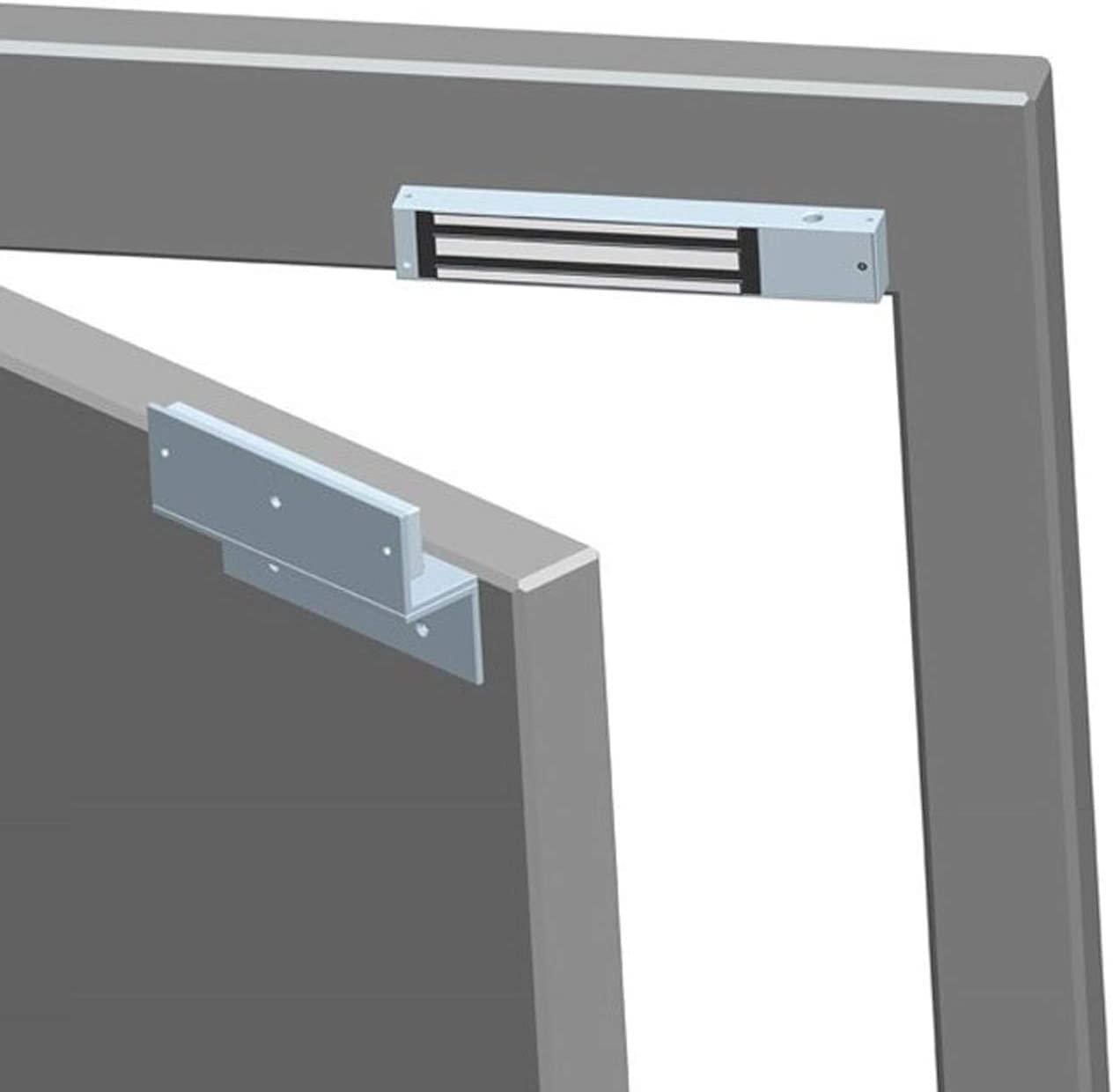

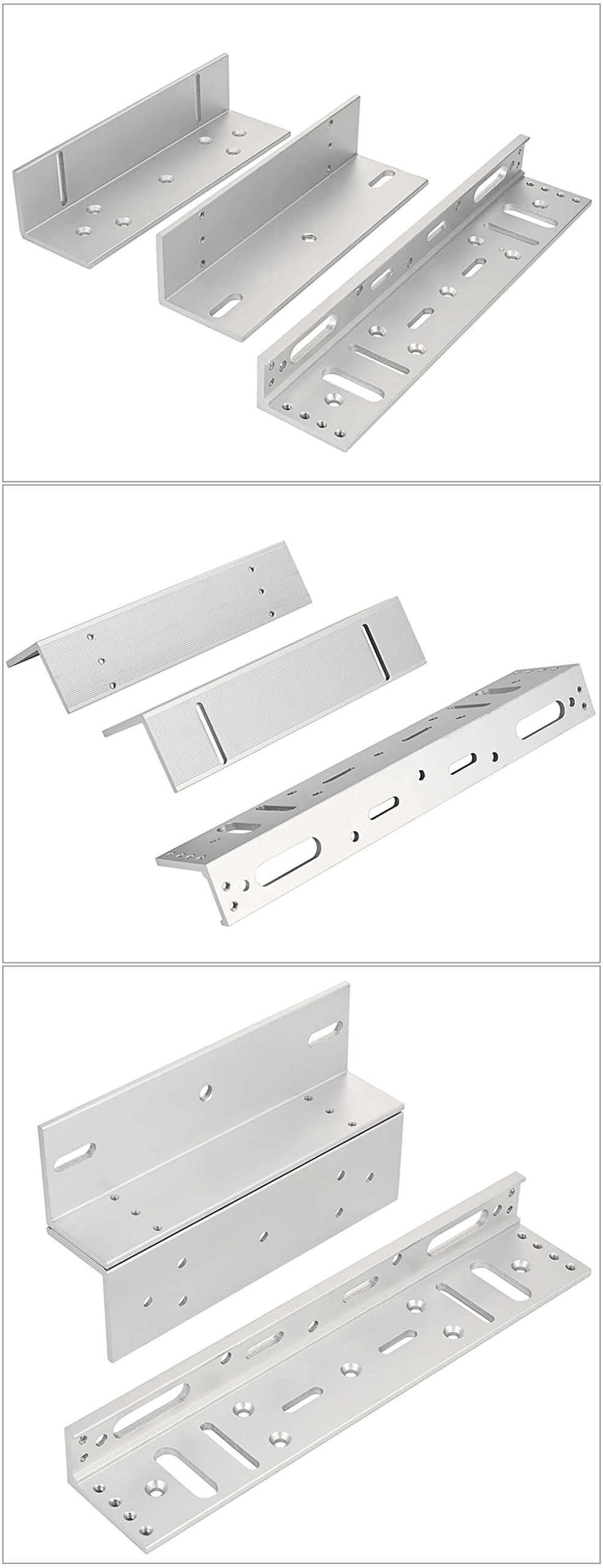

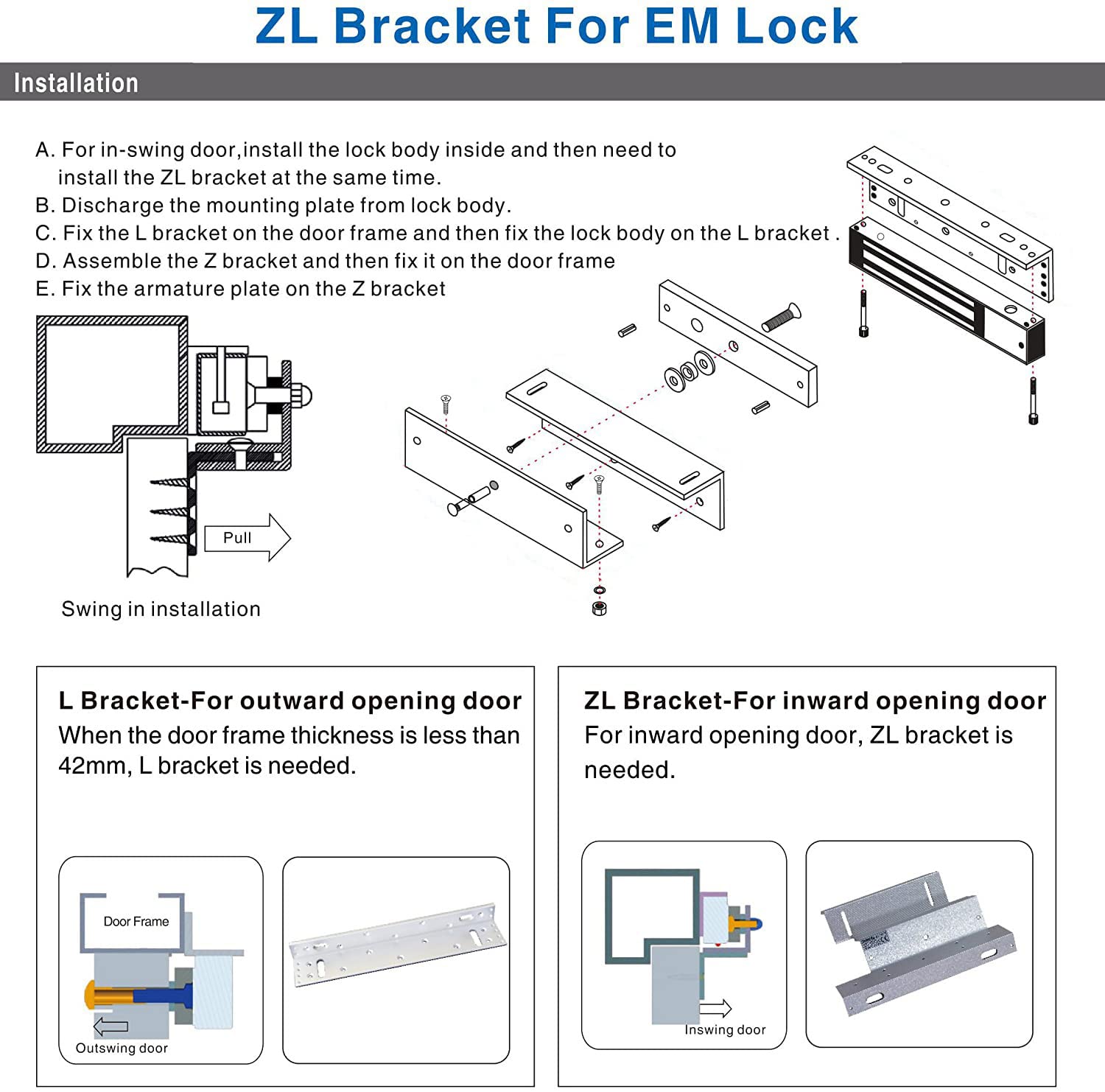

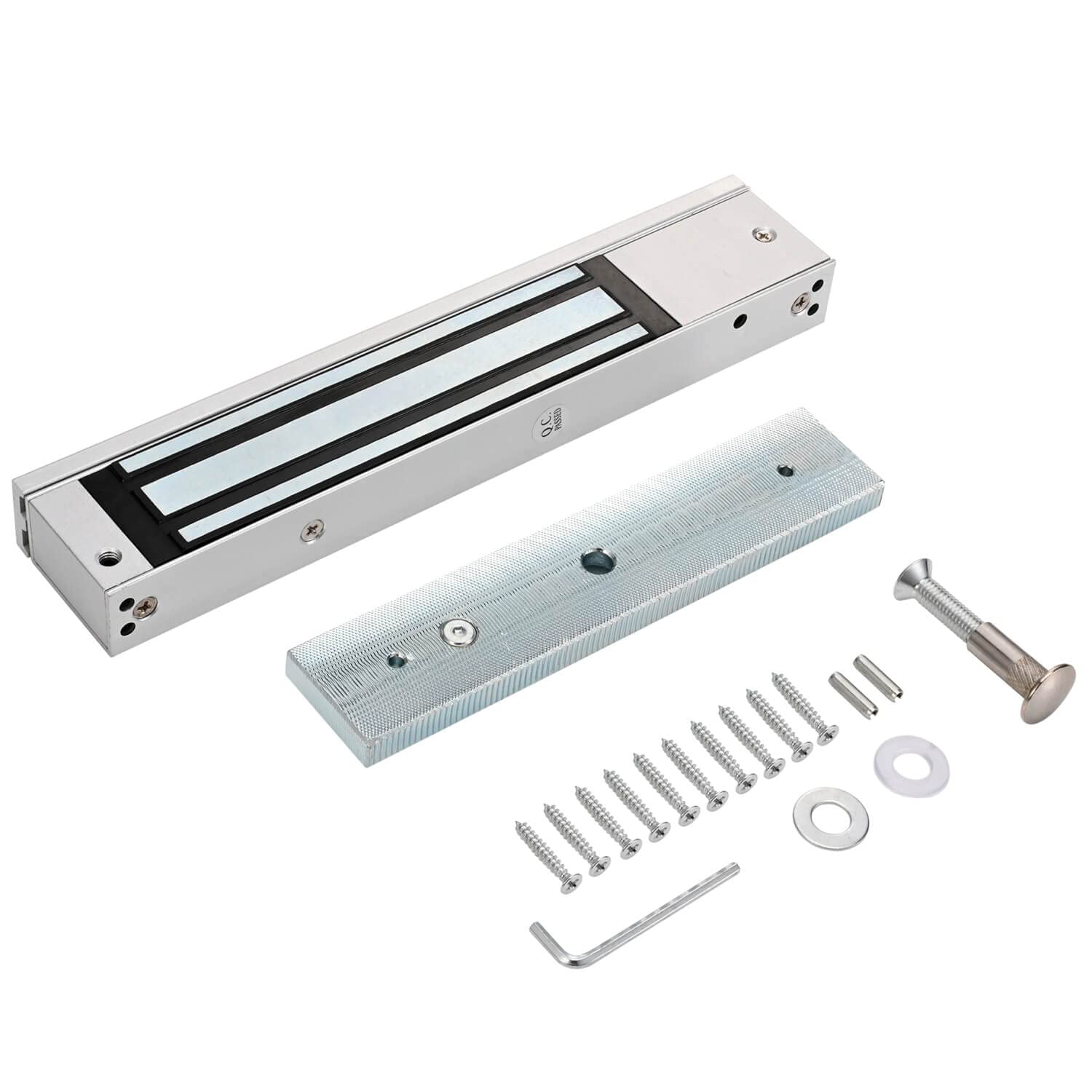

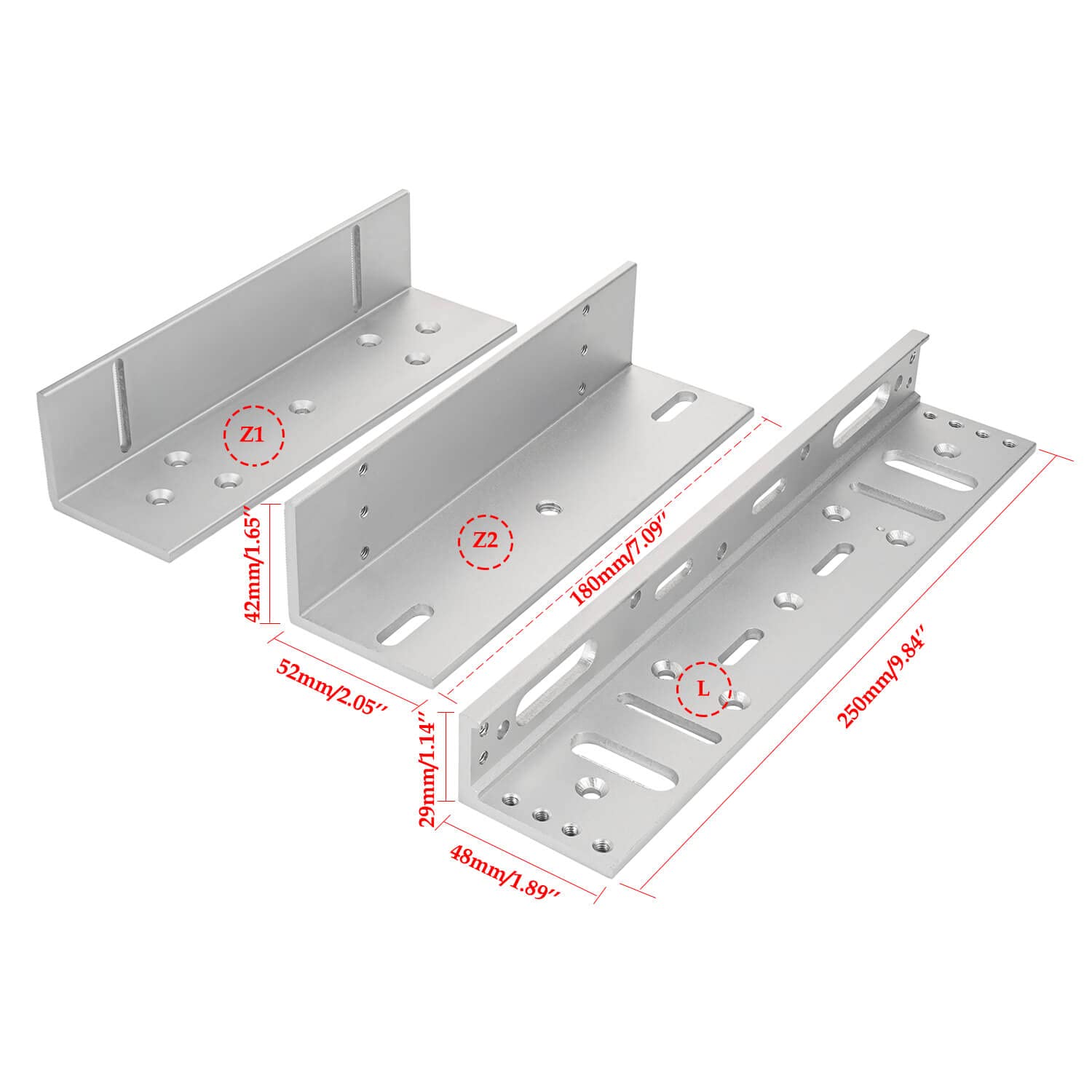

This 600LBS Holding Force electric magnetic lock consists of an electromagnet and an armature plate used for access control door locks. By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut. NC Mode (Fail-Safe Mode): The door will be closed when power is on; when power off, the door will open. It is suitable for wooden door, glass door, metal door, fire-proof door, Cabinet, etc. Please check if Z and L brackets are required for installation. Specification: Electromagnetic plate Material: Aluminum Alloy + Metal Plate Armature Plate Material: Zinc Cover Finish: Anodized aluminum Color: Silver Holding Force: 600LBS/280KG Input Voltage: DC 12V Operating Temperature: -10C to +55C (14 to 131F) Operating Current: 480mA Size: 9.84L x 1.93W x 0.98H (inch)/ 290L x 45W x 25H (mm) Armature plate: 7.09L x 1.50W x 0.43H (inch)/ 180L x 38W x 11H (mm) Package Weight: Approx. 4.0lb (1.78KG) Specification of Z and L Bracket: Material: High strength aluminum, sandblast finished Opening Mode: 90 degree door Suitable for Door: Wooden door and metal door Suitable for Lock: Electromagnetic lock series of 600LBS/ 280KG holding force Easy to install and convenient to use Package Weight: 0.60KG/ 1.33 pounds Package list: 1 * Electromagnetic Lock 1 * Armature Plate 1 * Screws Pack 1 * User Manual (English) Package List of Z and L Bracket: 1* "Z" Style Bracket (2 parts) 1 * "L" Style Bracket 1 * Screws Pack
