₱1,622
+ ₱ 434
Shipping Cost from USA to Philippines inclusive of custom fees.
Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.
Get it between 2025-11-06 to 2025-11-13.
Additional 3 business days for provincial shipping.
- Price and Stocks may change without prior notice
- Packaging of actual item may differ from photo shown
Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.
Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods
Product ID:
71114
Identifier:
B09TNXSWX3
Brand:
Newdeli
Model:
300A-12V
Shipping Weight:
0.84 lbs
Manufacturer:
Wenzhou Yuxuan Electronic Commerce Co.,LTD
Shipping Dimension:
3.66 x 3.03 x 2.99 inches

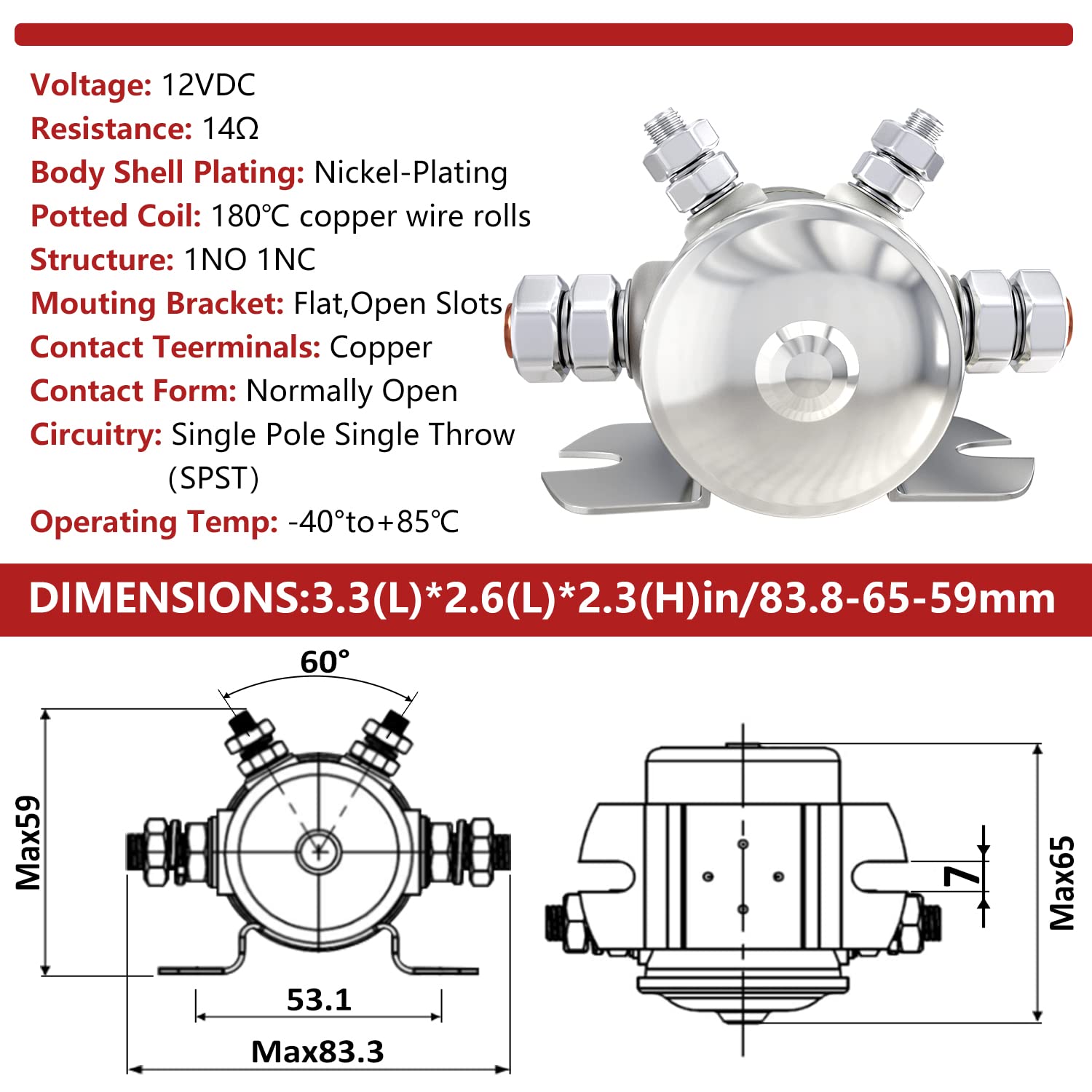

【Specification】:Max 300a continuous duty solenoid relay: Voltage: 12VDC; Resistance: 14Ω; Capacity: 10.2W; Maximum transient flash current: 300Amp; but Continuous Working Current recommend under 150 Amp,Bracket:Straight;Bracket mounting:Holes 5/16 x 19/32 2-13/64 on center.

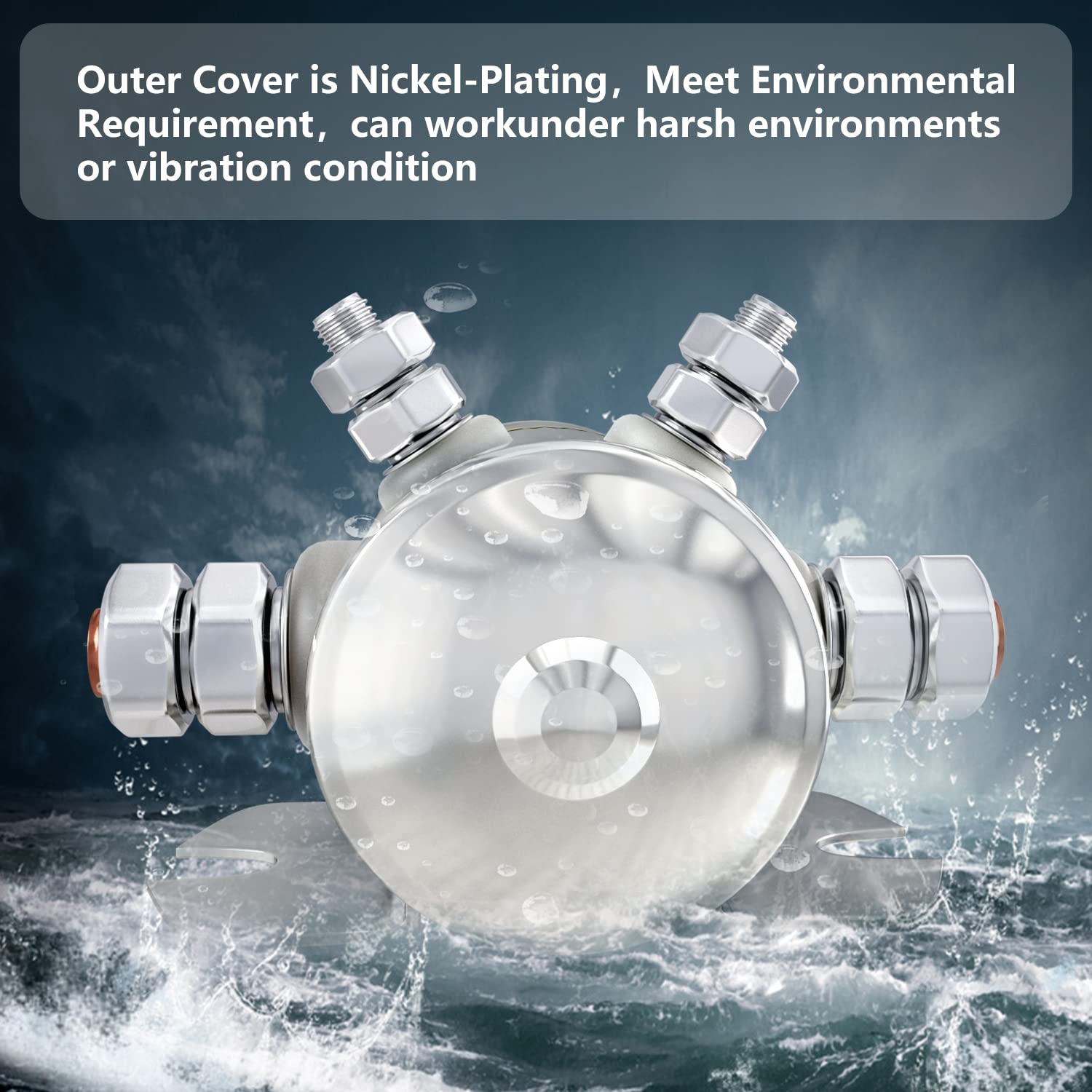

【High Quality】:The coil uses 180 ℃ copper wire, the electromagnetic relay is made of high-quality components,the contact: normally open (NO)/ 12VDC with 2 copper point. the Nickel-Plating outer layer and the inside of the canned coil, suitable for use in any environment,Sealed Unit Protects Solenoid From The Elements Helping Prevent Corrosion.
【Application】:Wiedly Used for Marine, Winch, Military Vehicles, Hydraulic Control Units, Golf Cart, Factory Machines.
【Replaces Part Number】:This Continuous Duty Solenoid Relay Replaces #70-111224，3635820，1114208，1114218，1114223，1114534，1114547.
【Note】: Normally Make 80A as Working Current, Need Break 5 sec on, 50 min off .
