Product ID:
184578
Identifier:
B0FKSR6CC7
Brand:
icikit
Model:
hackrf one r10
Shipping Weight:
0 lbs
Manufacturer:
Cirket
Shipping Dimension:
0 x 0 x 0 inches
Price of this item is not available.
1 MHz to 6 GHz operating frequency half-duplex transceiver up to 20 million samples per second
8-bit quadrature samples (8-bit I and 8-bit Q) compatible with GNU Radio, SDR#, and more software-configurable RX and TX gain and baseband filter software-controlled antenna port power (50 mA at 3.3 V)
SMA female antenna connector SMA female clock input and output for synchronization
convenient buttons for programming internal pin headers for expansion Hi-Speed USB 2.0 USB-powered open source hardware
The HackRF One comes in an injection-molded plastic case and includes a Micro USB cable. An antenna is not included. The ANT500 is recommended as a good starter antenna for the HackRF One.

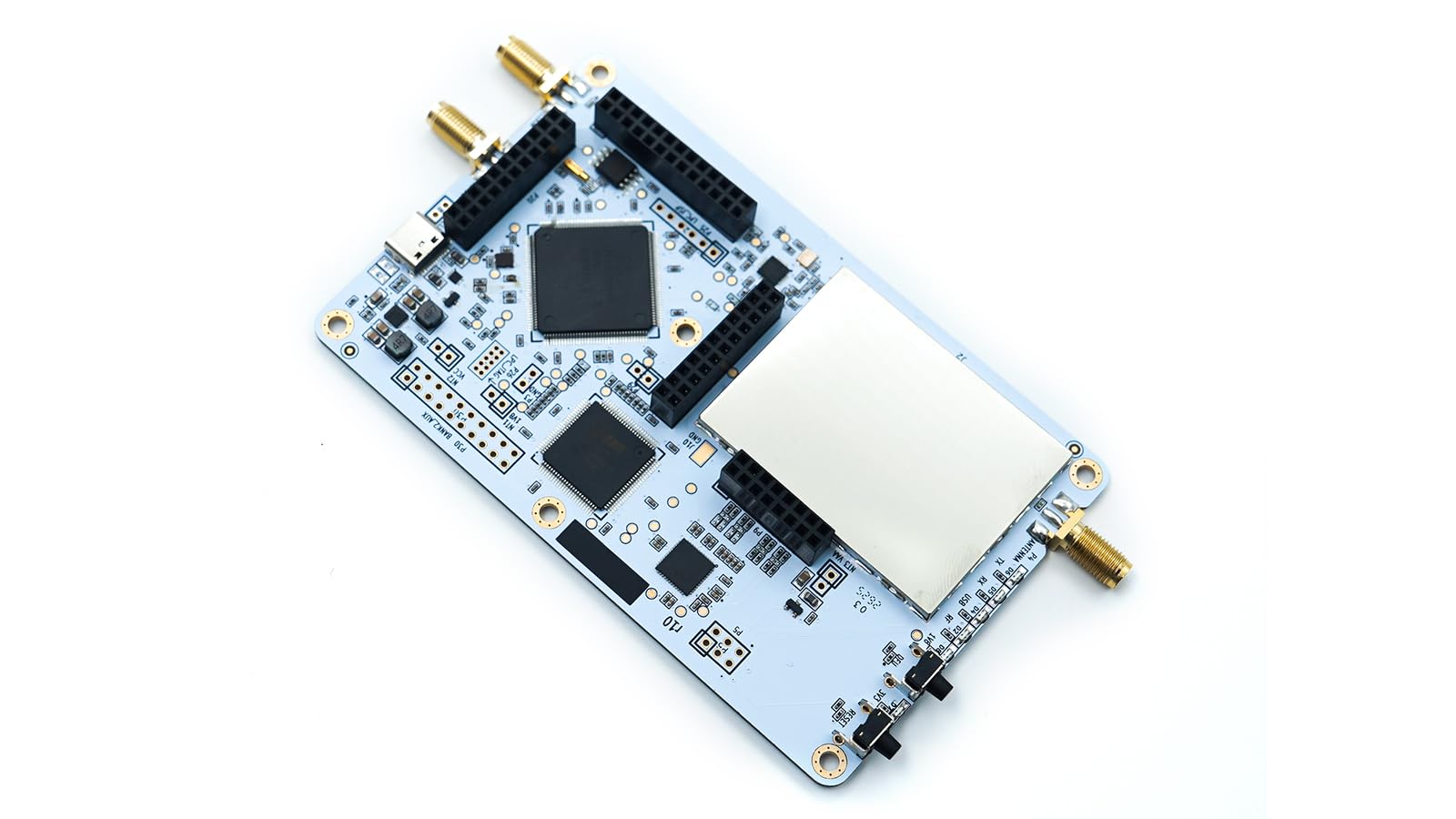

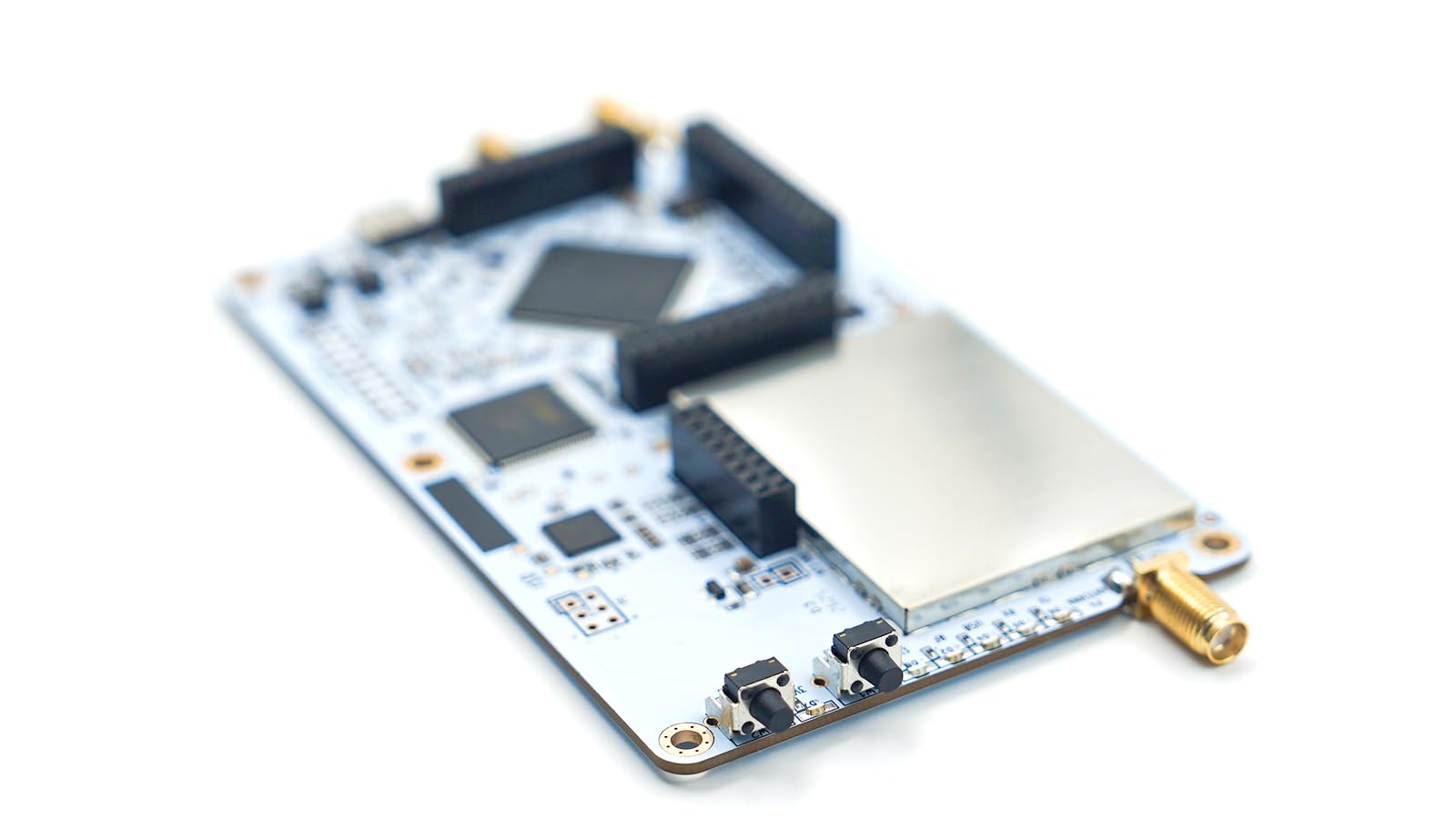

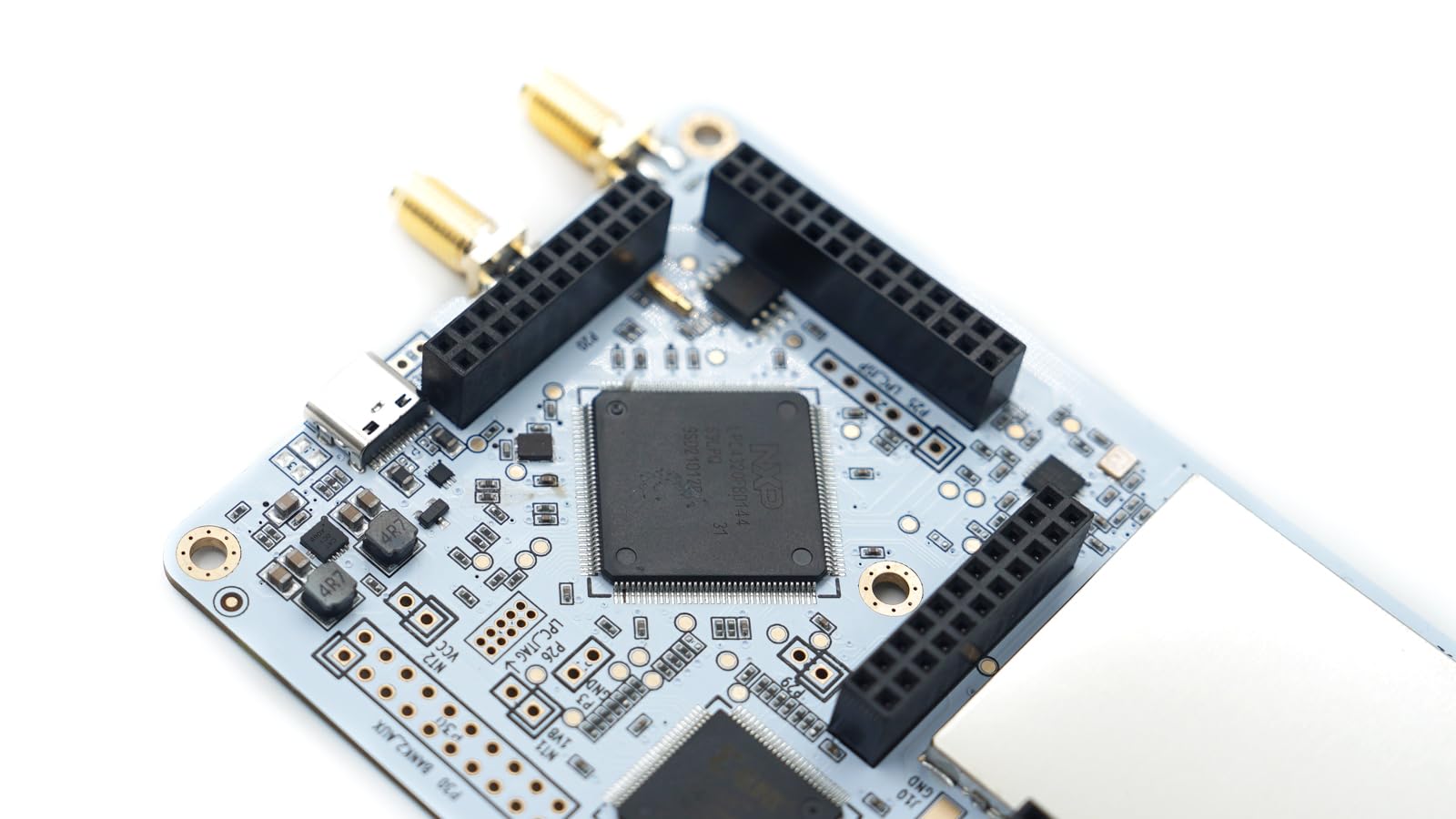

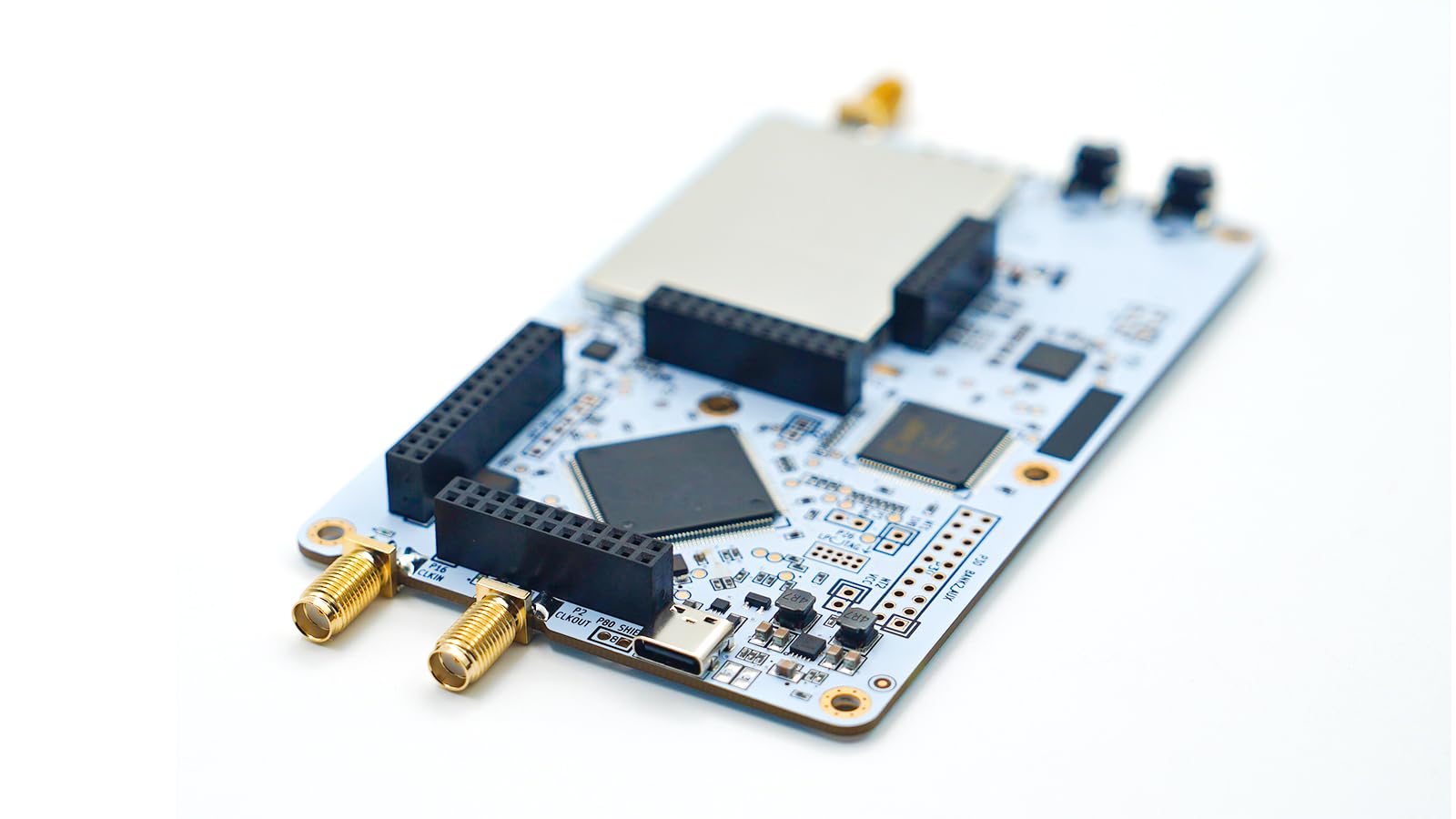

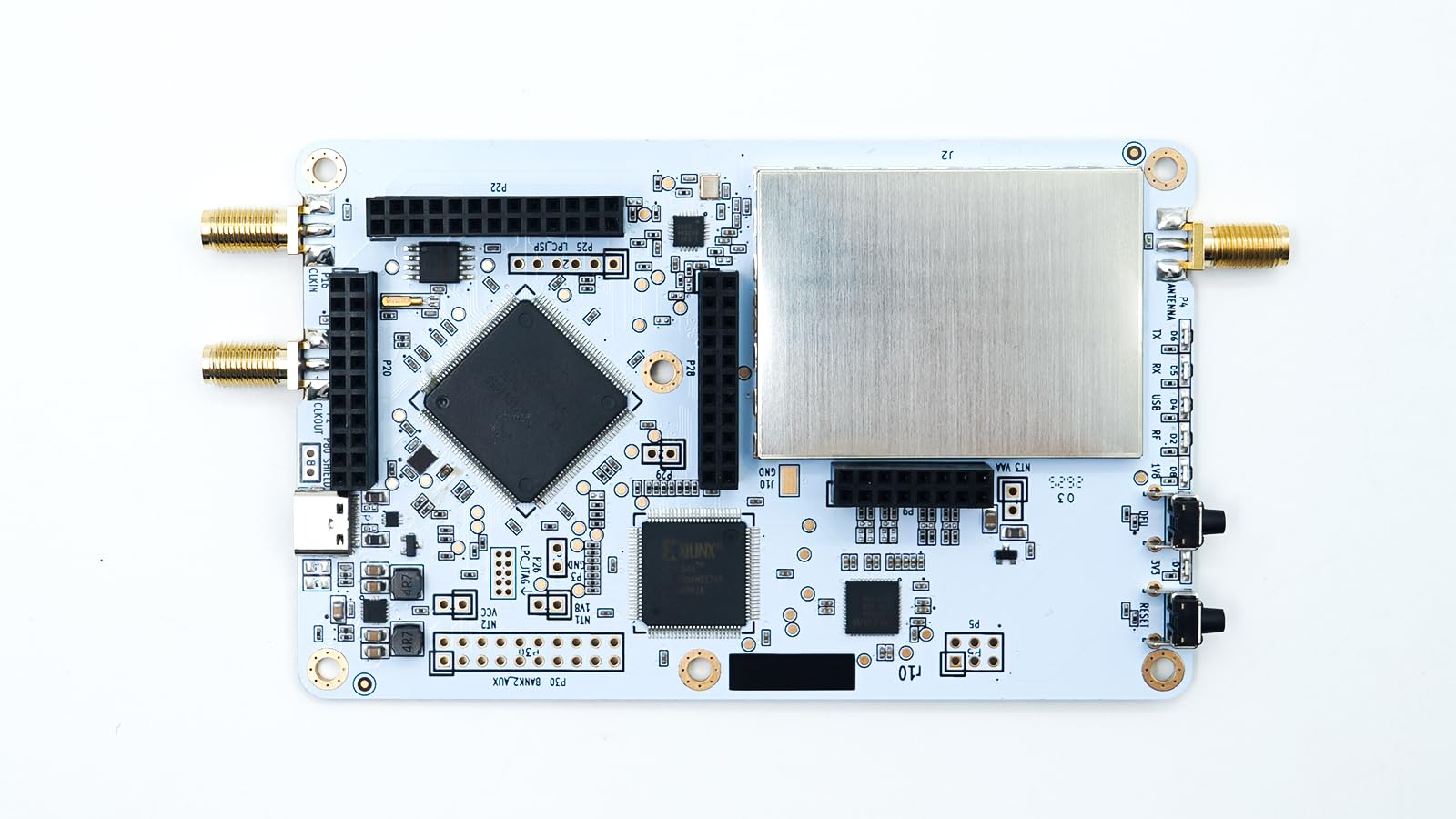

HackRF One is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz. Designed to enable test and development of modern and next generation radio technologies, HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.
