FEATURES

DESCRIPTIONS

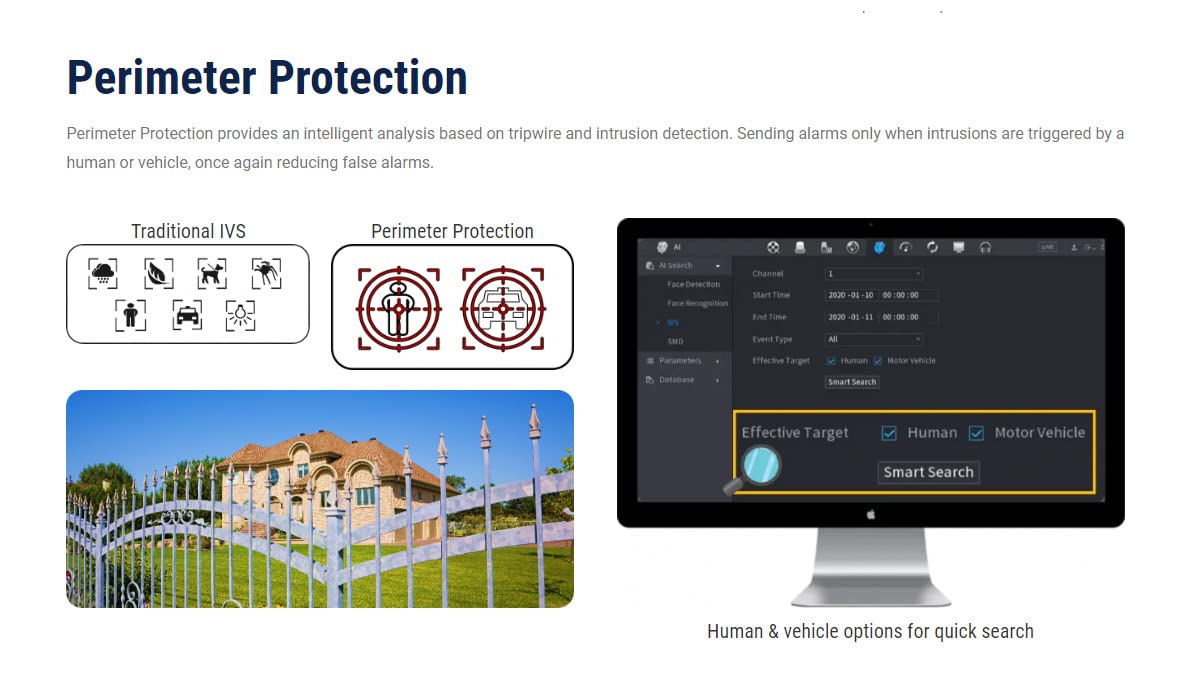

16Ch XVR 1U 1HDD Digital Video Recorder XVR501H-16-I3 Features: H.265+/H.265 dual-stream video compression Full-channel AI Coding HDCVI/AHD/TVI/CVBS/IP video inputs Max 24 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth 2 channels video stream (analog channel) Perimeter Protection and human face recognition 16 channels video stream (analog channel) SMD Plus IoT & POS functionalities General Power Supply: DC12V, 2A Power Consumption: Lower than 12 W Net Weight: 1.15 kg (2.54 lb) Gross Weight: 1.95 kg (4.30 lb) Product Dimensions: Mini 1U, 325.0 mm × 256.6 mm × 55.0 mm (W × D × H), 12.80” × 10.10” × 2.17” (W × D × H) Packaging Dimensions: 372.0 mm × 117.0 mm × 308.0 mm (L × W × H) 14.65″ × 4.61″ × 12.13″ (L × W × H) Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F) Operating Humidity: 10%–90% Installation: Desktop; (Some Models) Network Network Protocol: HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P Mobile Phone Access: iOS, Android smartphones Interoperability: Internet Standard IP Protocol 16.12, CGI Conformant Browser: Chrome, IE9 or above, Firefox Network Mode: single-address mode This 16Ch XVR 1U 1HDD Digital Video Recorder XVR501H-16-I3 in Diamond Series is highly recommended to work with: IP Network Cameras – Diamond IPC Coaxial Cameras – Diamond HD Cameras
