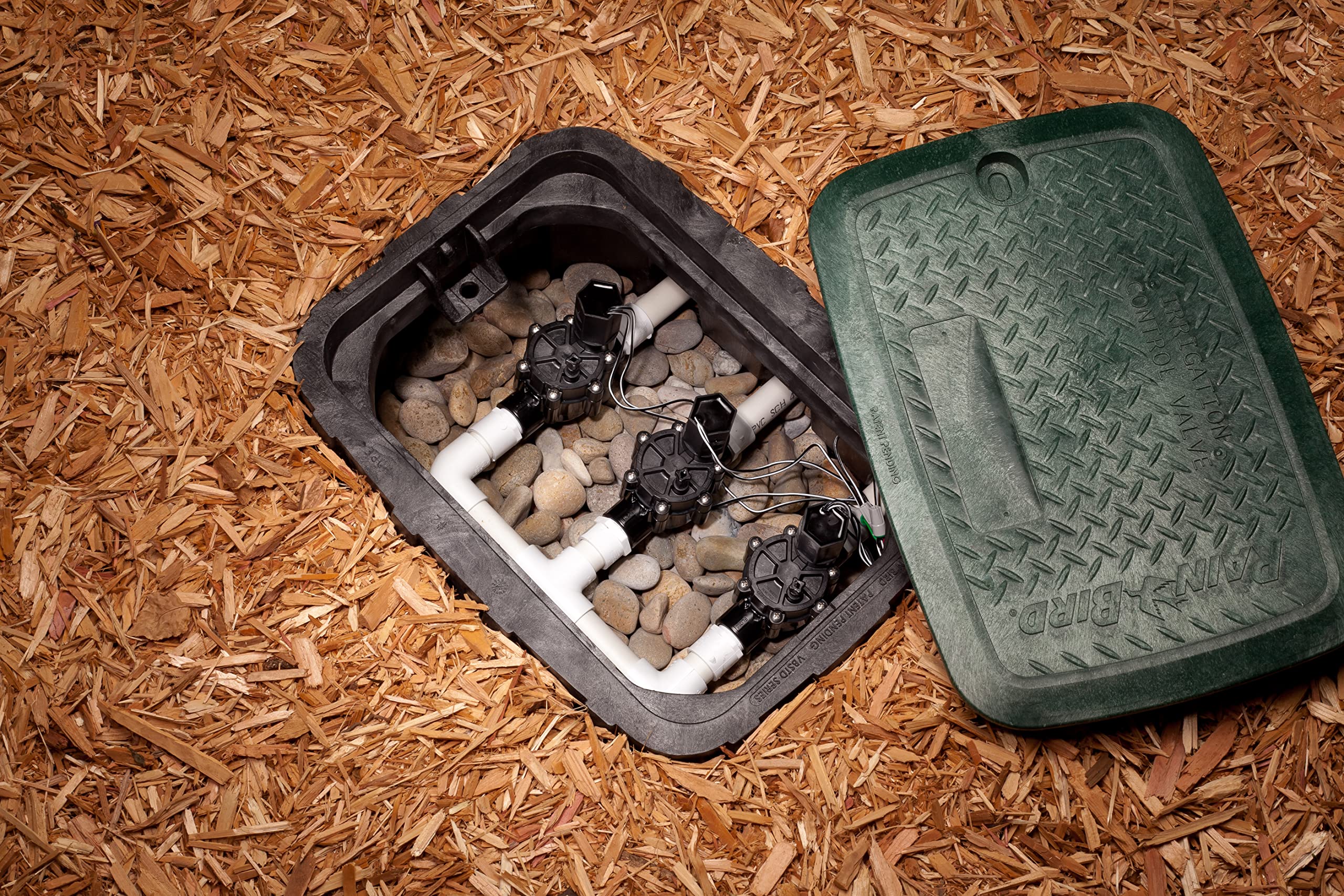

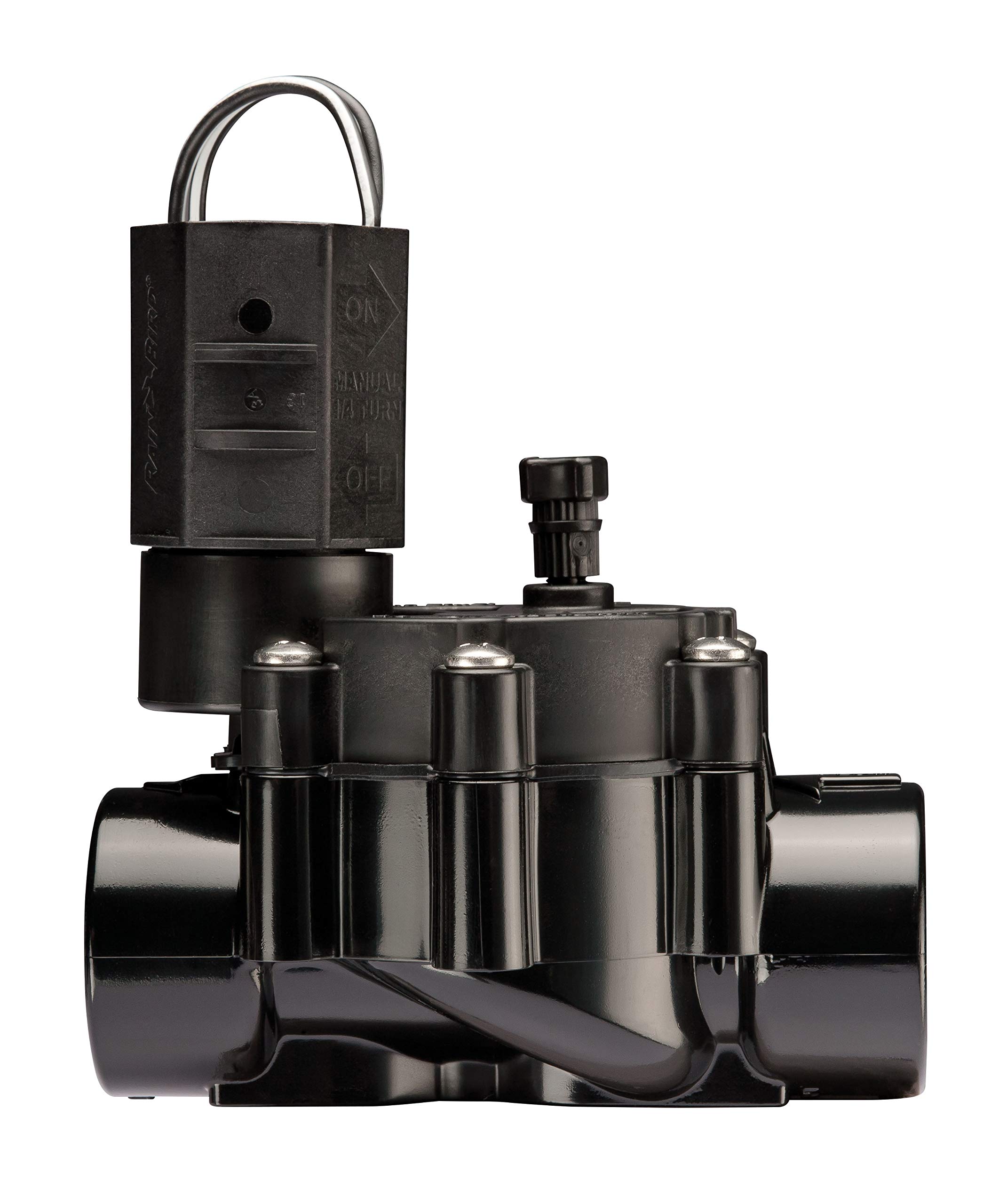

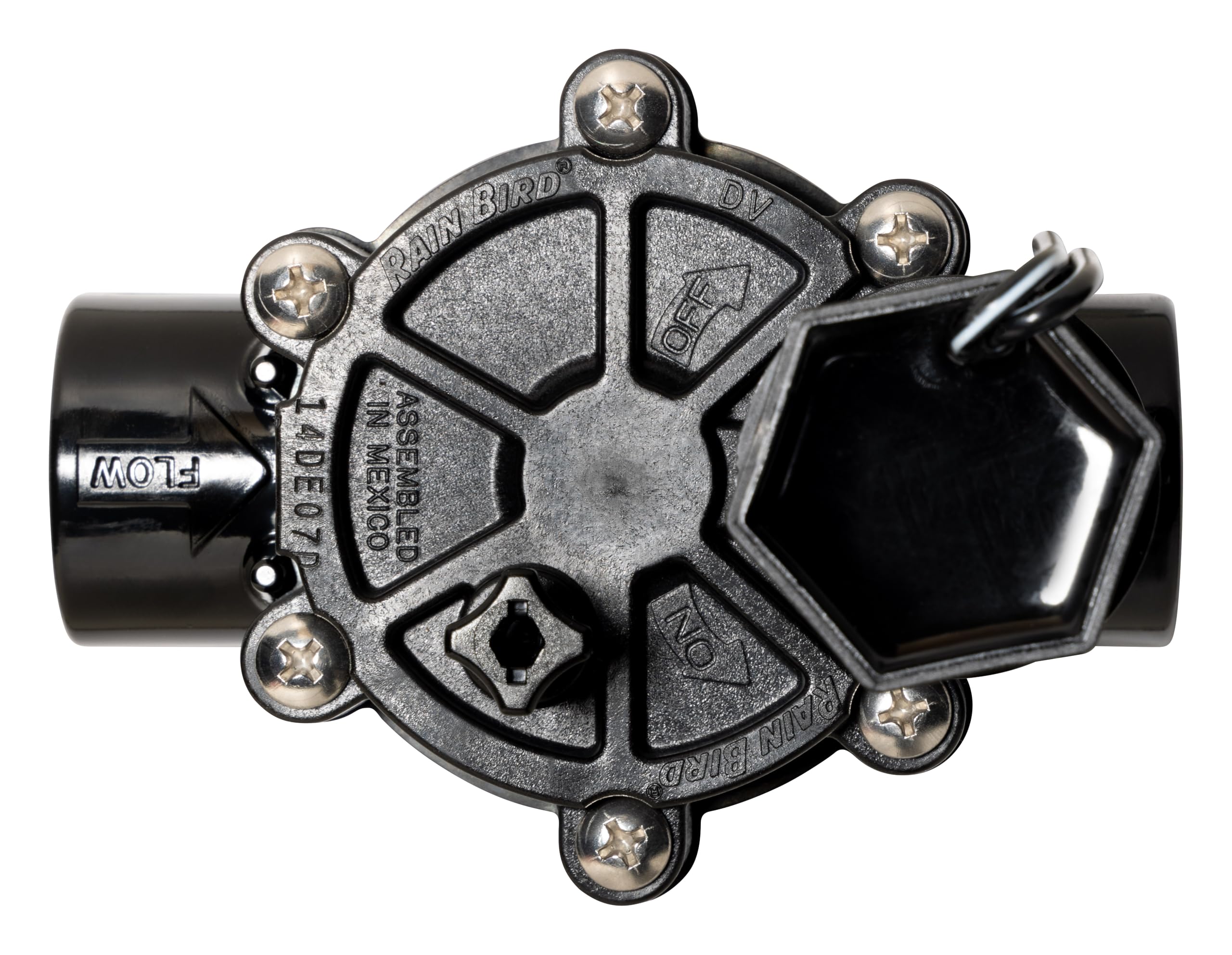

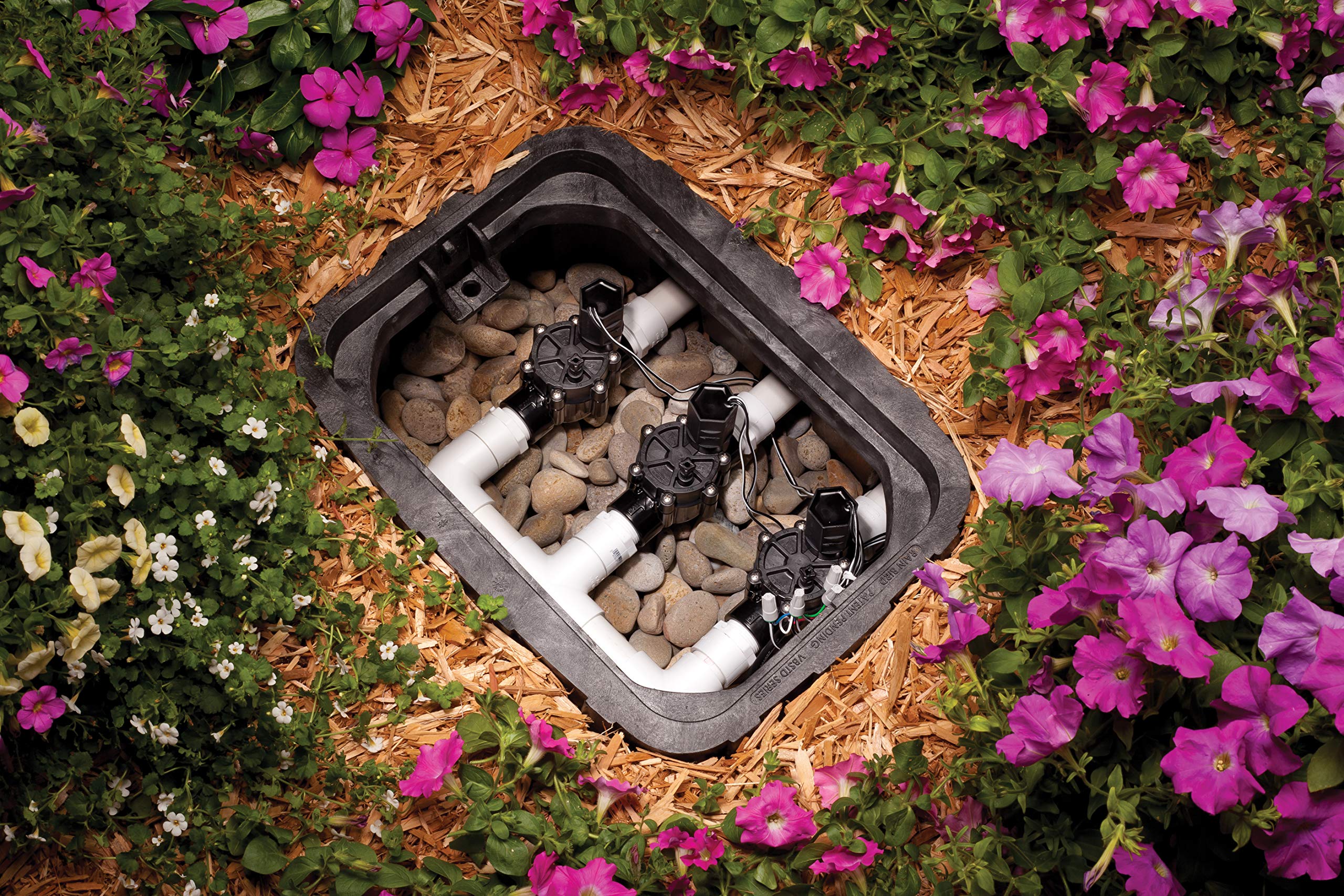

Product Description Rain Bird CP100 In-Line Automatic Sprinkler Valve, 1" Threaded Female Inlet x Female Outlet. Rain Bird manufactures only the highest quality In-Line valves. This residential and light commercial grade In-Line valve replaces all in-line irrigation valves installed below ground with 1" female threaded inlet and outlet. For use with any 24 volt AC irrigation timer/controller. Unique reverse-flow design helps prevent flooding in the event of internal diaphragm failure keeping the valve closed and saving water. Valve operates automatically or manually with manual bleed screw. Buna-N (nitrile rubber) diaphragm offers superior performance in harsh water environments. Features an energy-efficient, low power encapsulated solenoid with captured plunger. May be used with all types of watering devices including Rain Bird spray heads, rotors, and impacts. In-Line valves are installed below ground in a valve box downstream from the main line from a PVB or double-check valve. After installation and before startup, always flush the system of dirt and debris manually using the valve's external bleed screw. In-Line valves will not prevent back flow on their own; they require a back flow prevention device. Use In-Line valves in locations where the use of a pressure vacuum breaker (PVB) or a double-check valve is required by city codes to protect against back flow. Check local city codes to determine what type of valves are required. Also available (sold separately) in 3/4" model: CP075. Rain Bird “The Intelligent Use of Water” From the Manufacturer Rain Bird Corporation is a privately held company founded in 1933 during the agricultural boom in California. We’re recognized as the #1 manufacturer and provider of irrigation products and services in the world. With sales offices around the globe; we offer over 4,000 water-saving irrigation products in more than 130 countries. Since the very beginning, Rain Bird has produced and offered the industry’s broadest range of high-quality irrigation products for: farms, golf courses, sports arenas, commercial developments and homes. Over the past 80-years Rain Bird has received more than 450 patents worldwide. Including the first one for irrigation in 1935 on our original impact-drive sprinkler (U.S. Patent #1,997,901) which revolutionized agricultural food-production and ushered in a new era in irrigation worldwide. In 1990 this original impact sprinkler was designated a historic landmark by the American Society of Agricultural Engineers. Our products cover all aspects of irrigation…timers/controllers, pop-up rotary sprinklers, pop-up spray head sprinklers, sprinkler nozzles, irrigation valves, Drip irrigation, drainage and much more. These products have been chosen and installed worldwide in the largest and most prestigious projects for residential, commercial, agricultural and golf course irrigation. Rain Bird is committed to The Intelligent Use of Water™ extending beyond products to education, training and services for the industry and the community. Our legacy is to design and manufacture only products of the highest value and quality. We’re grateful to have received numerous recognition awards from many of our valued partners. Rain Bird “The Intelligent Use of Water"
