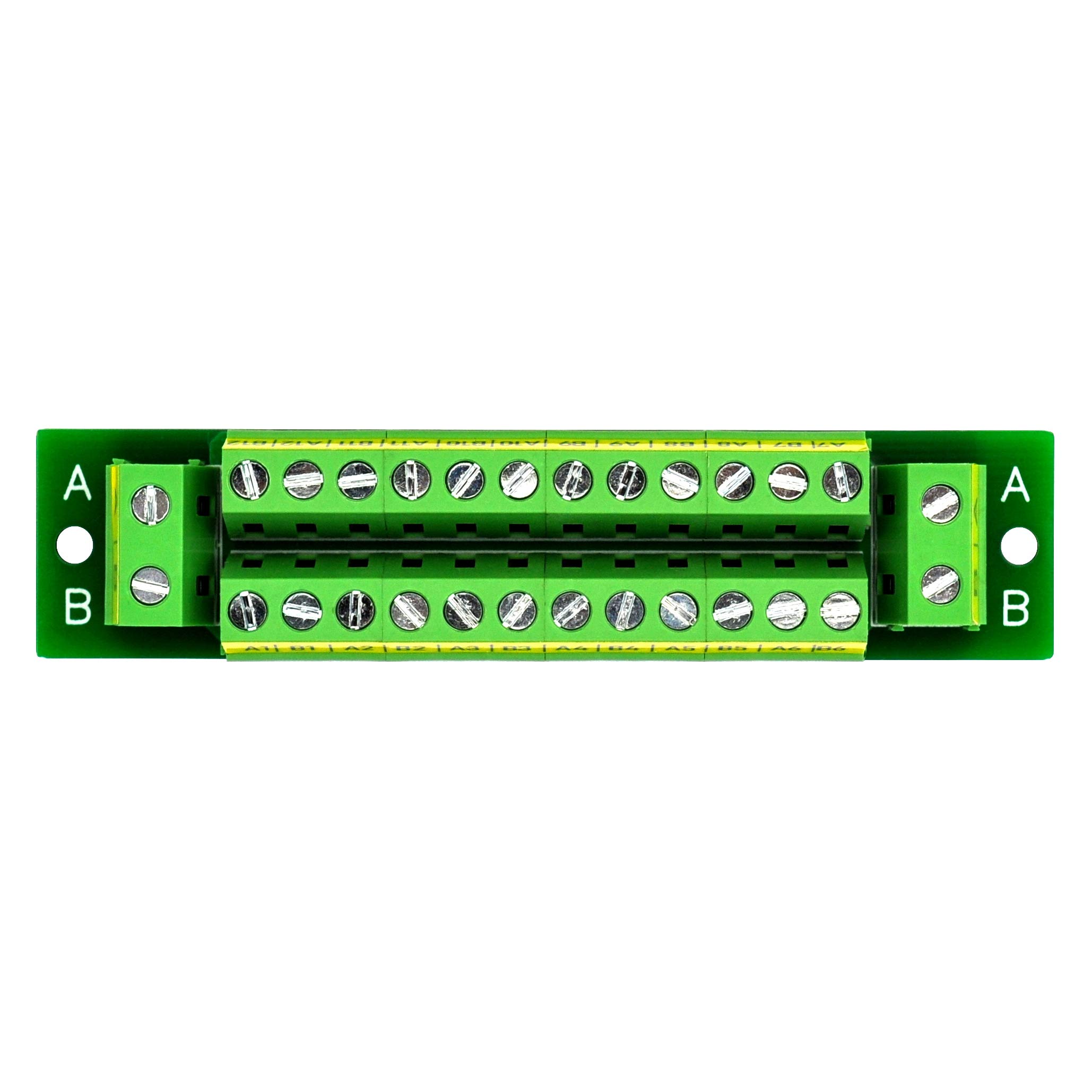

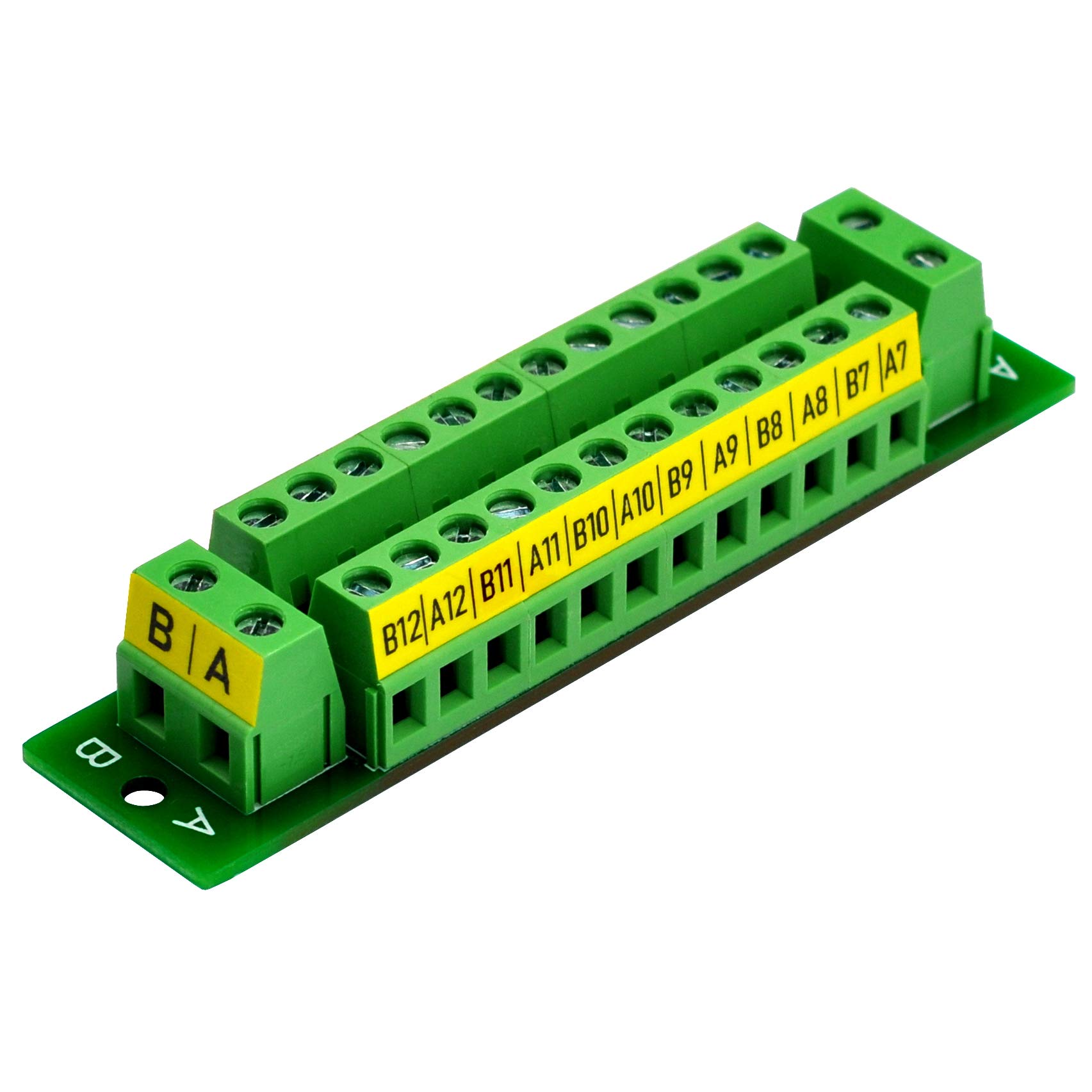

OONO 16 Amp 2x12 Position Terminal Block Distribution Module for AC DC

4.6 / 5

₱1,073

+ ₱ 150

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2026-06-06 to 2026-06-13.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

DETAILS

Product ID:

268589

Copy Link

Identifier:

B08TBXQ7H6

Brand:

OONO

Model:

D-1410

Shipping Weight:

0.11 lbs

Manufacturer:

CZH-LABS

Shipping Dimension:

4.96 x 2.09 x 1.14 inches

FEATURES

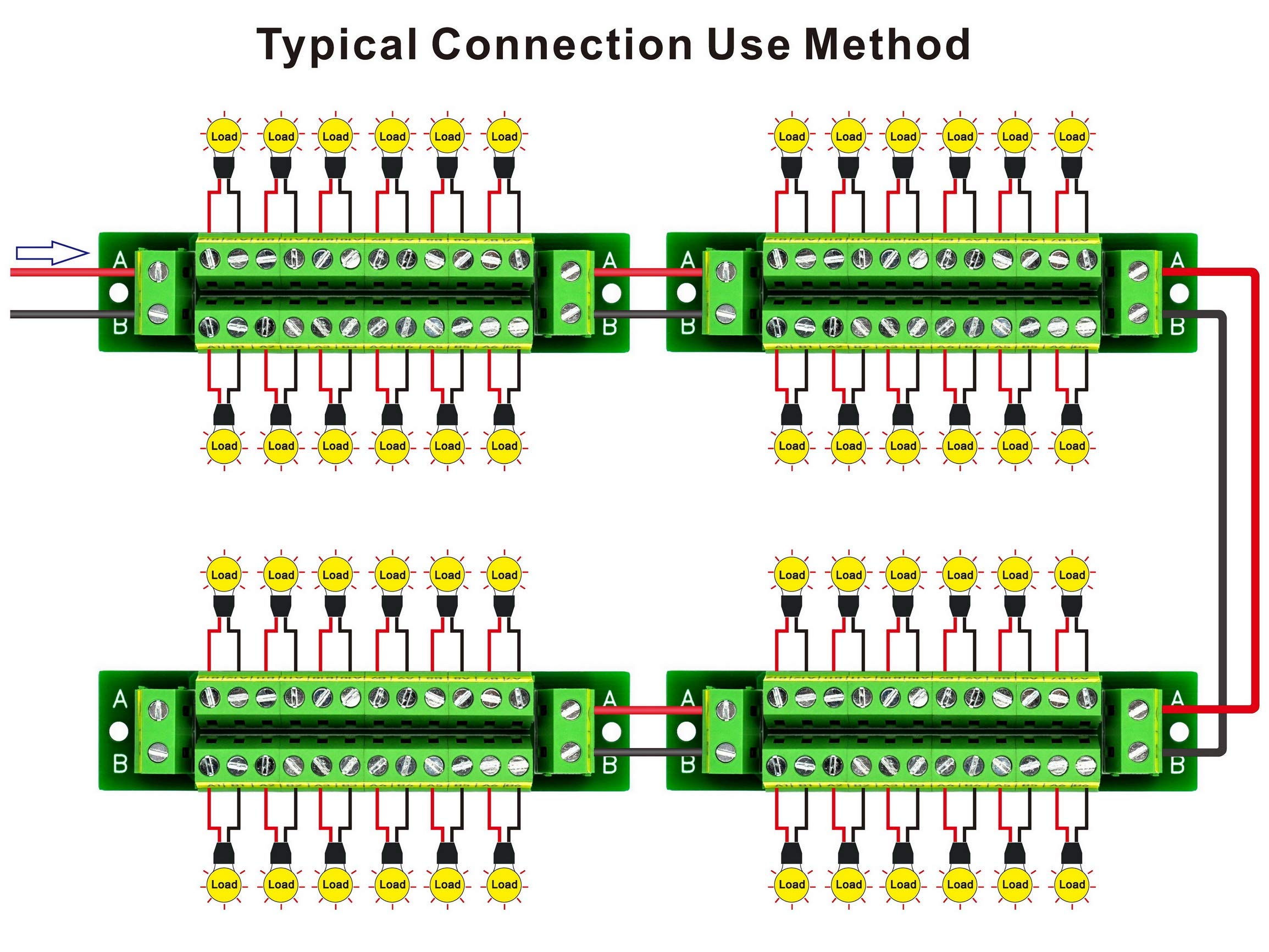

16Amp 48V 2x12 position screw terminal block distribution module. Support for multiple module extension connections.

Rated current 16 Amp(total input or output), Maximum voltage 48V

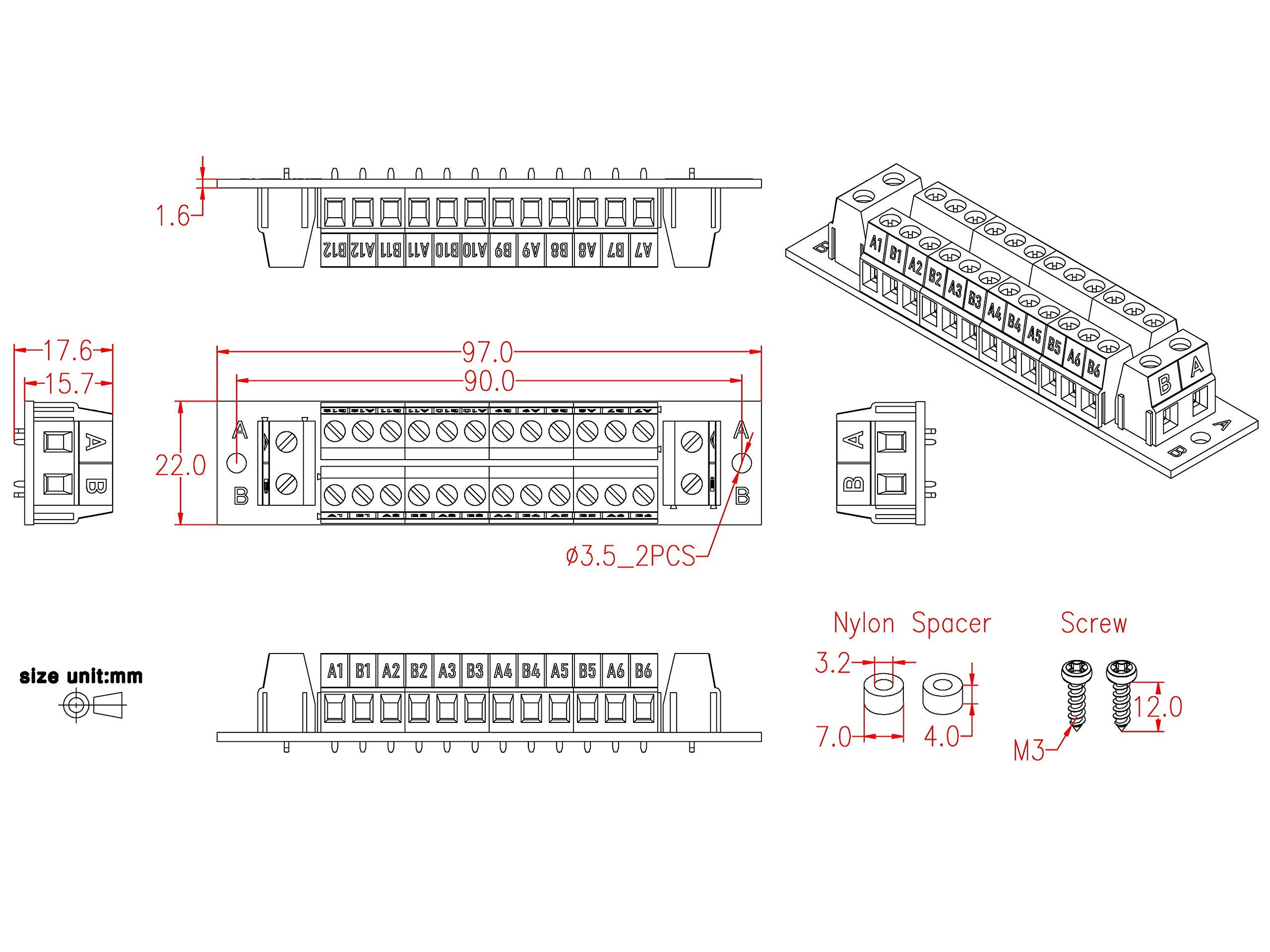

A / B terminal blocks, Pitch 7.5mm/0.295", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.

A1~B6 / A7~B12 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.

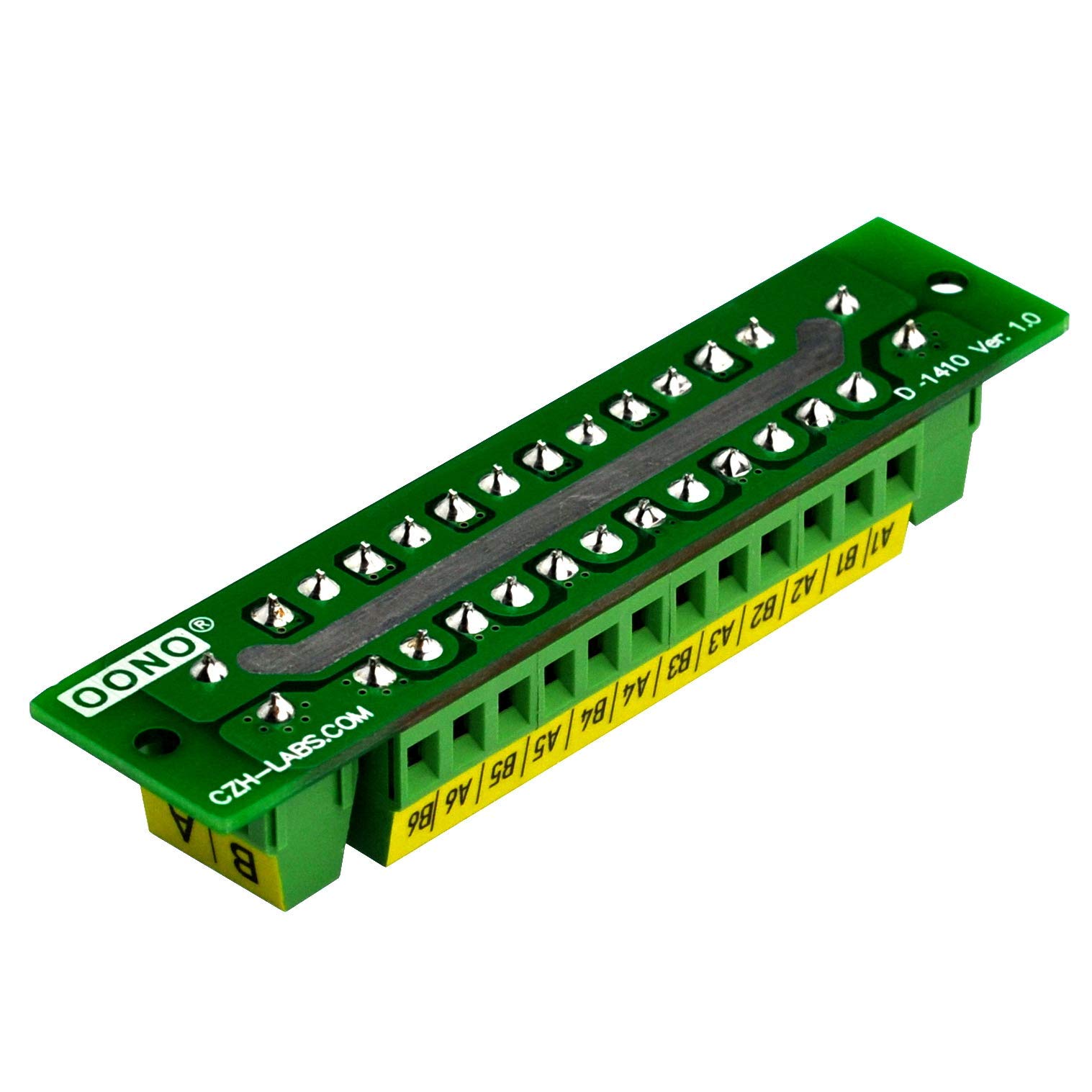

UL CE CQC certified terminal blocks, FR-4 glass fiber PCB.
