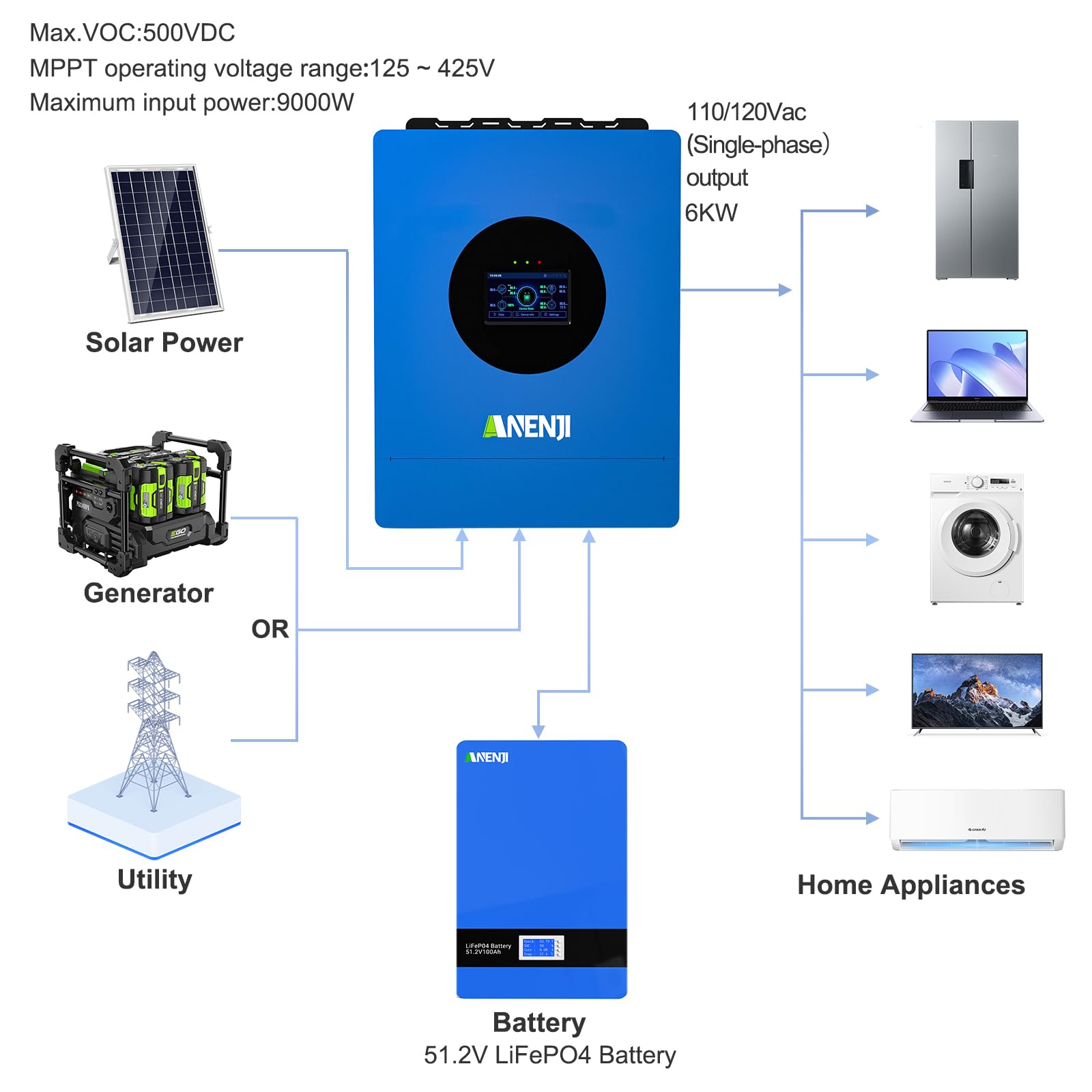

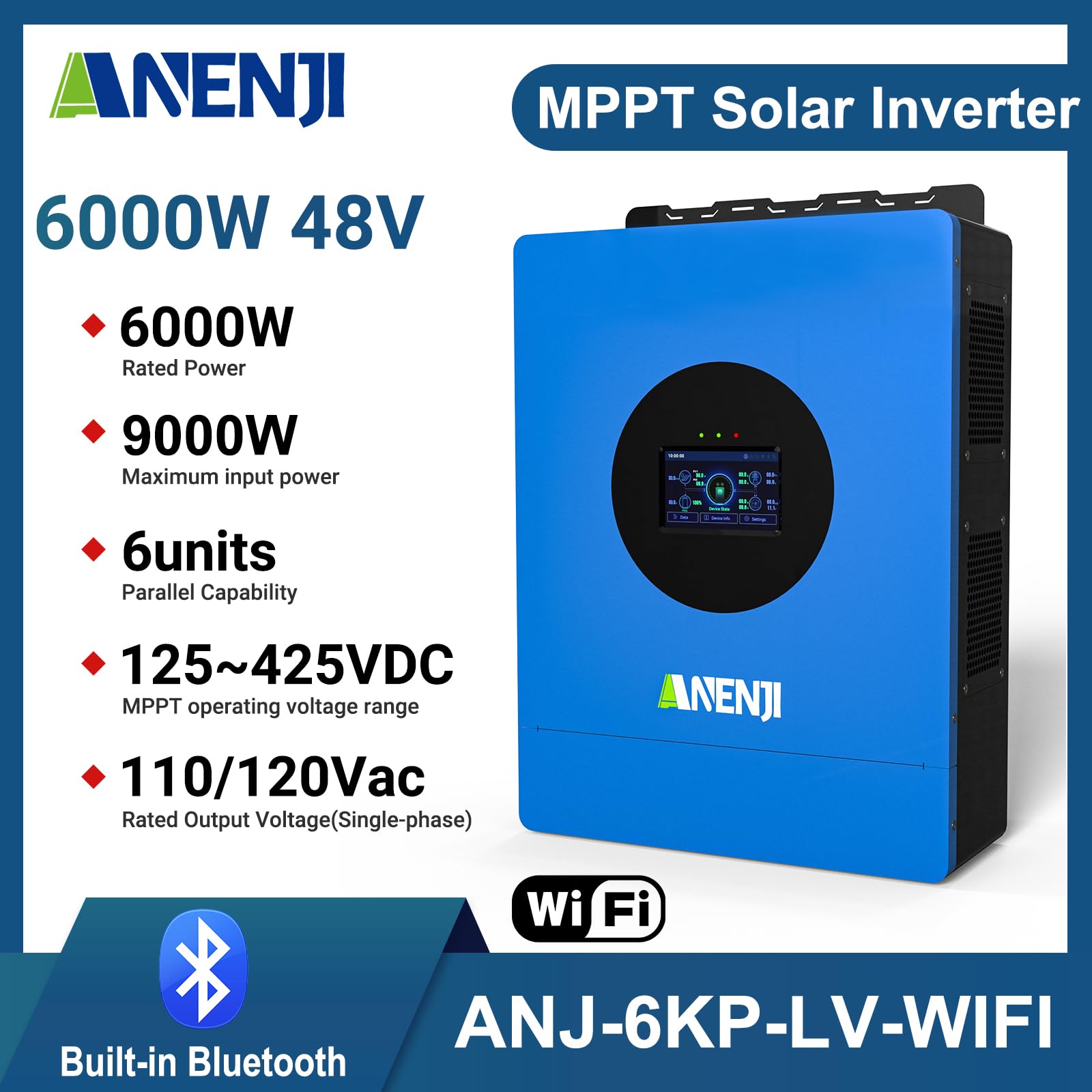

【6000W HYBRID INVERTER】Converts 48V DC to 120V AC and is equipped with a 120A MPPT solar charge controller.Integrated WiFi module, 2 AC outputs,Max. PV array power 9000W; Maximum AC input voltage is 120VAC; Max. PV array open-circuit voltage 500VDC; PV array MPPT voltage range 125VDC–425VDC; Max. solar input current 27A; Max. solar charging current 120A; Max. AC charging current 100A; Max. charging current (PV+AC) 120A.

【OPERATION WITH & WITHOUT BATTERIES】Hybrid inverters are equipped with a standard battery operation mode and simultaneously support battery-less operation. The inverter can supply the load directly from the photovoltaic array/AC power source without a battery needing to be connected. (If no battery is connected, the photovoltaic voltage must be at least 125 Vdc.) In addition, the inverter is equipped with a lithium battery activation function (disabled by default), which can be activated via setting [42] of the inverter.

【DIFFERENT OUTPUT MODES】The default setting is grid priority (UTL mode). In SOL mode, the load is primarily supplied with solar energy. If no solar energy is available, the load is supplied from the grid.In SBU mode, solar energy primarily supplies the load. If no solar energy is available, the load is supplied from the battery. In SUB mode, the battery is primarily charged with solar energy and then the load is supplied. If no solar energy is available, the load is supplied from the grid.

【THREE CHARGING MODES AND MULTIPLE PROTECTION FUNCTIONS】Via the inverter settings [16], three battery charging modes can be configured: Hybrid charging with solar and grid power (default setting), limited solar charging, and pure solar charging. In addition, the inverter has multiple protection functions that ensure safe and reliable charging. By adding a battery management system (BMS), the battery condition can be monitored and overcharging or deep discharge prevented, thereby extending the battery life.

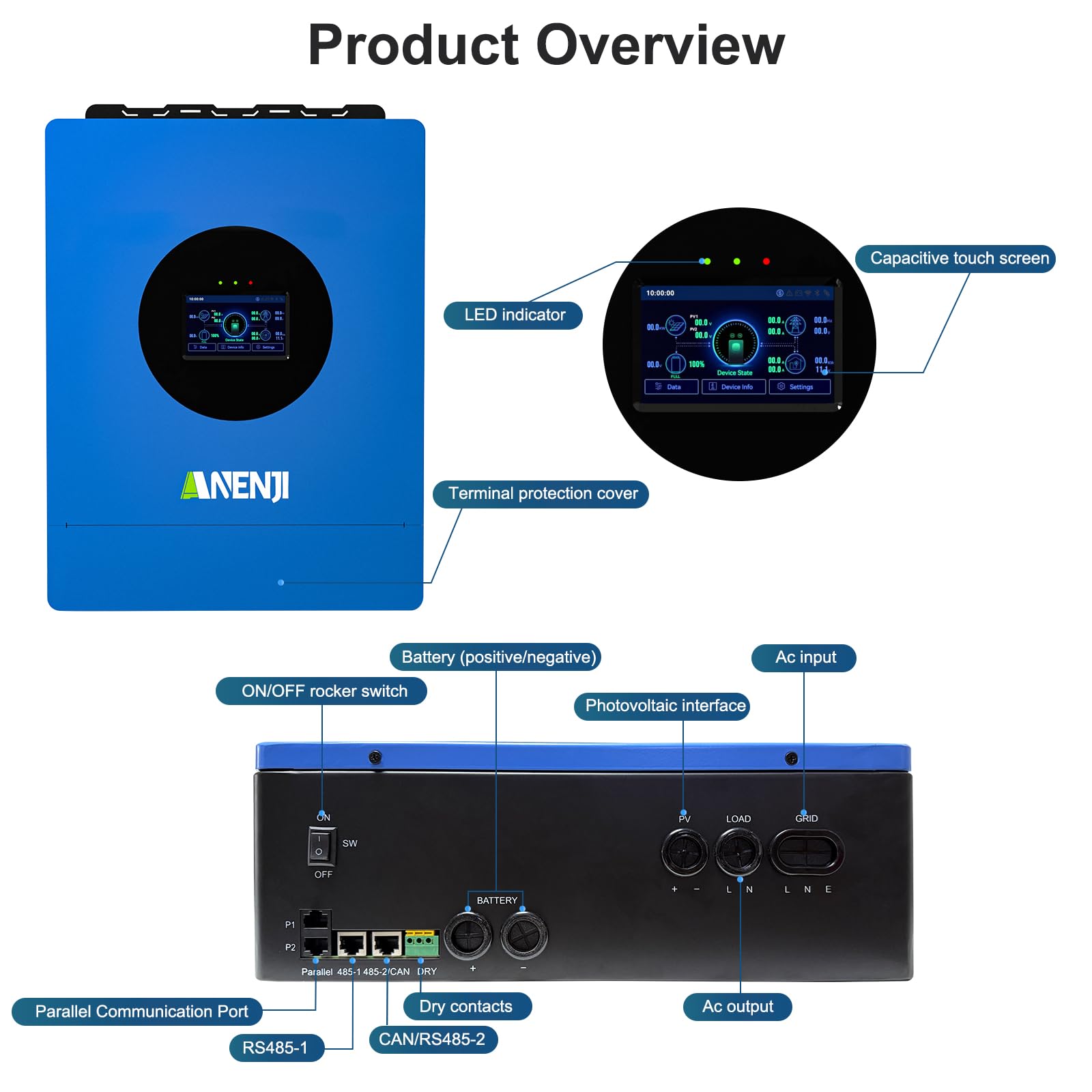

【LED CAPACITIVE TOUCHSCREEN FOR REAL-TIME MONITORING】New 48V solar hybrid inverter is equipped with an LED capacitive touchscreen that displays system data and operating status in real time. If problems occur during operation, a corresponding error code is displayed, helping you quickly resolve the fault! In addition, the inverter has three LED indicators that dynamically display system data, allowing you to see the operating status of the inverter at a glance – a very practical feature.

【FURTHER APPLICATION AREAS】This hybrid solar inverter is suitable for a variety of applications, such as RVs, camping boats, and household emergencies. It can power various electrical appliances, including stoves, rice cookers, lights, TVs, fans, and other consumers.
