FEATURES

DESCRIPTIONS

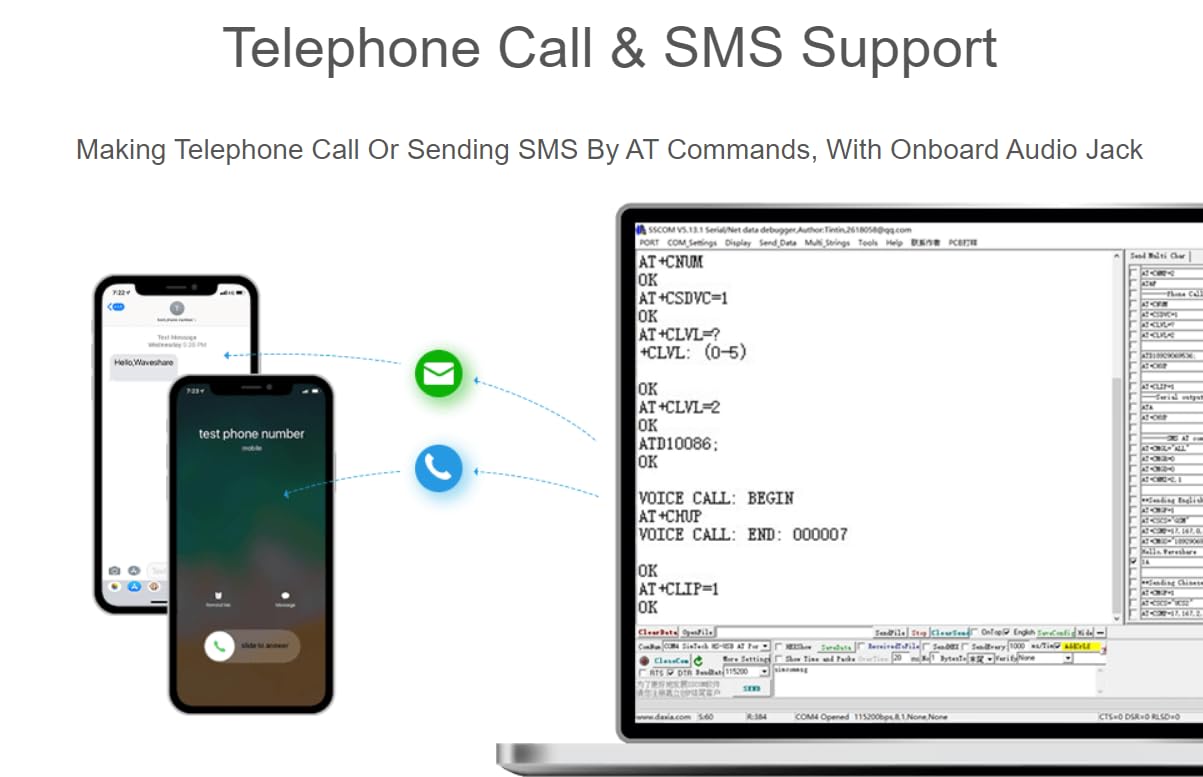

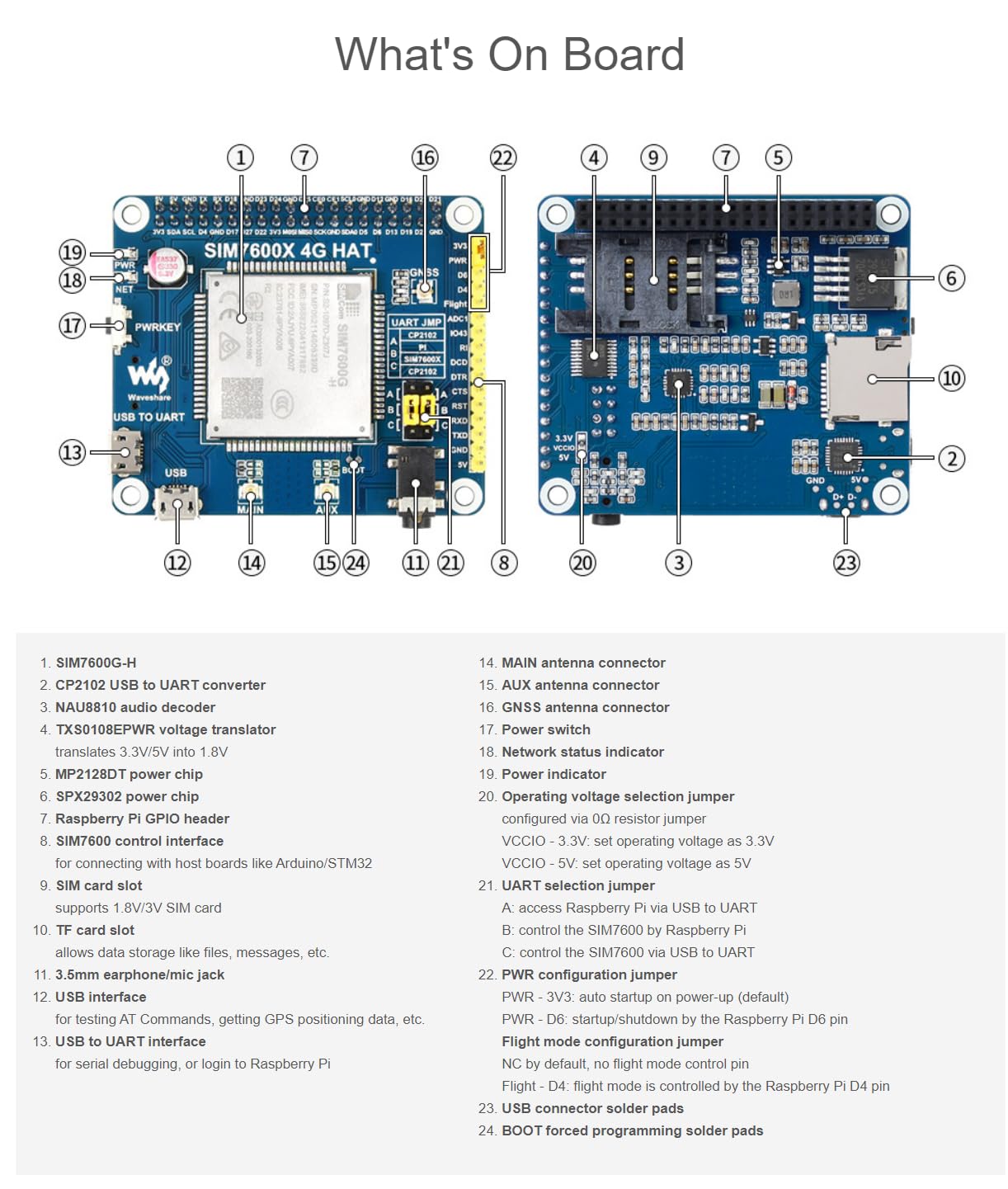

Features 40PIN GPIO extension header for connecting Jetson Nano. Supports dial-up, telephone call, SMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc. Supports GPS, BeiDou, Glonass, LBS base station positioning. Onboard USB interface, to test AT Commands, get GPS positioning data, and so on. Breakout UART control pins, to connect with host boards like STM32. SIM card slot, supports 1.8V/3V SIM card. Onboard TF card slot, which can be used to store files, text messages and other data. Onboard audio jack and audio decoder chip, for making telephone calls. 2 x LED indicators, easy to monitor the working status. Onboard voltage translator, the operating voltage can be configured to 3.3V or 5V via jumper. Baudrate: 300bps ~ 4Mbps (default: 115200bps) Autobauding baudrate: 9600bps ~ 115200bps. Provide complete supporting manuals (example programs such as RPi/Jetson Nano/STM32). PACKAGE CONTENT SIM7600G-H 4G HAT x1 LTE Antenna x1 GPS External Antenna (B) x1 USB type A plug to micro plug cable x2 RPi screws pack (2pcs) x1
