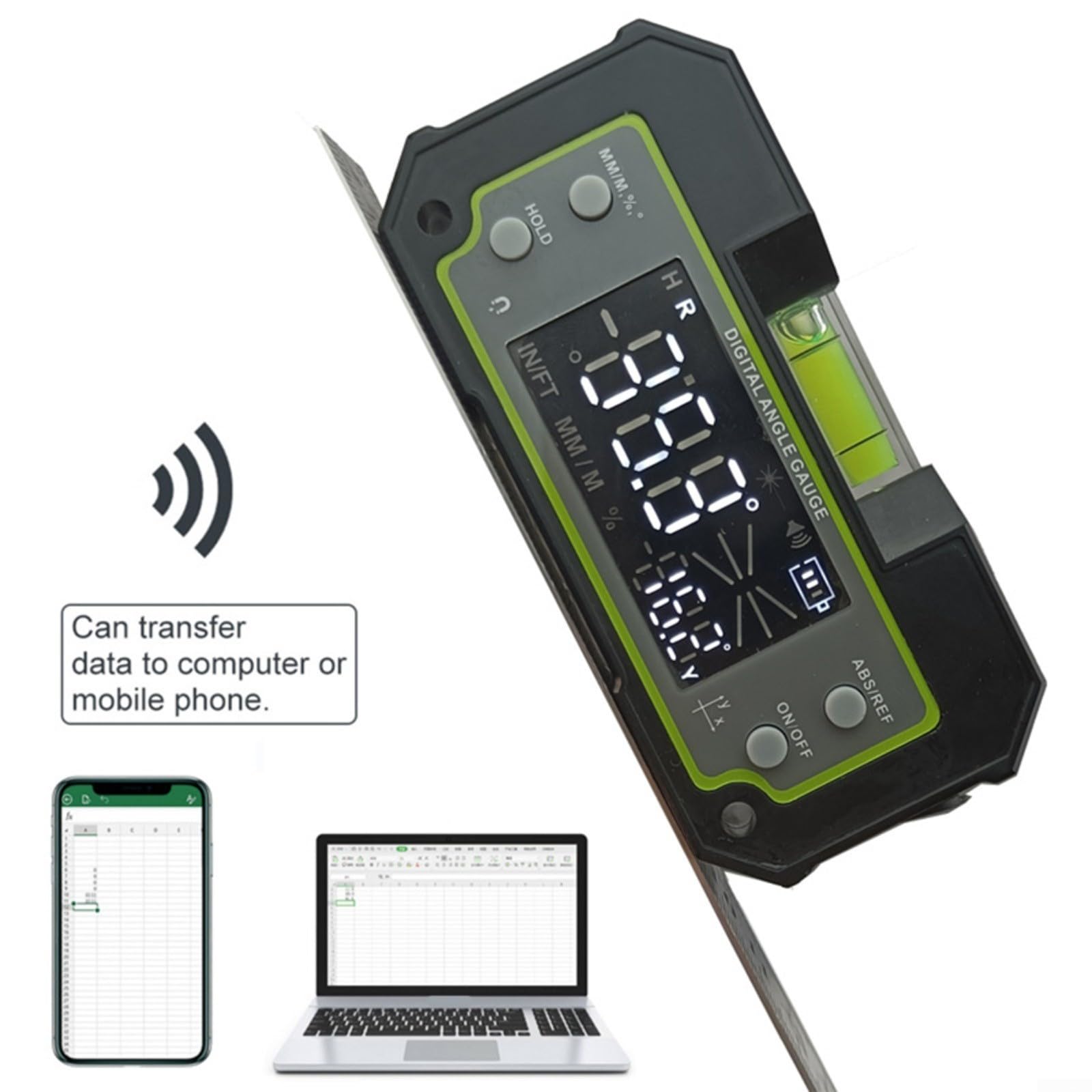

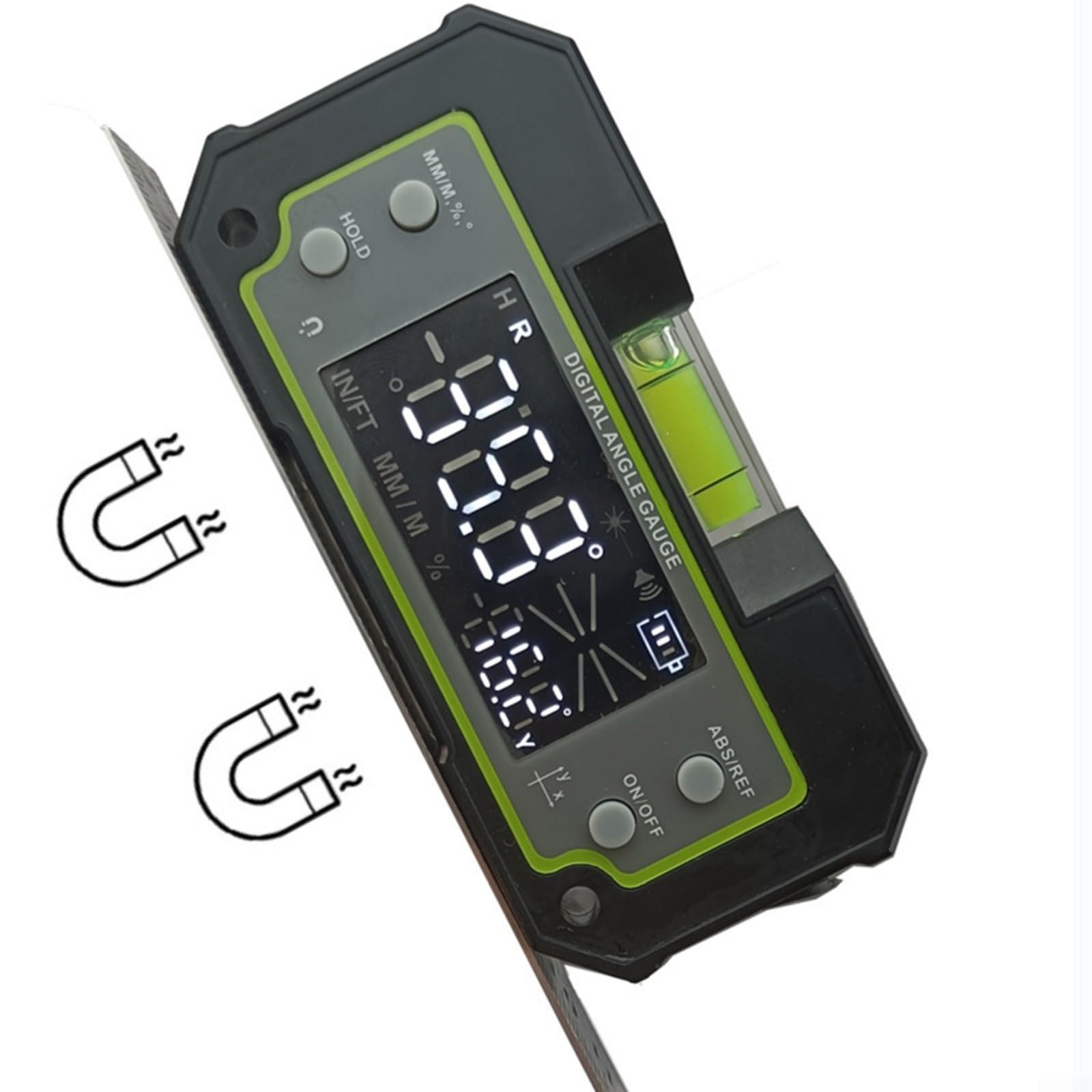

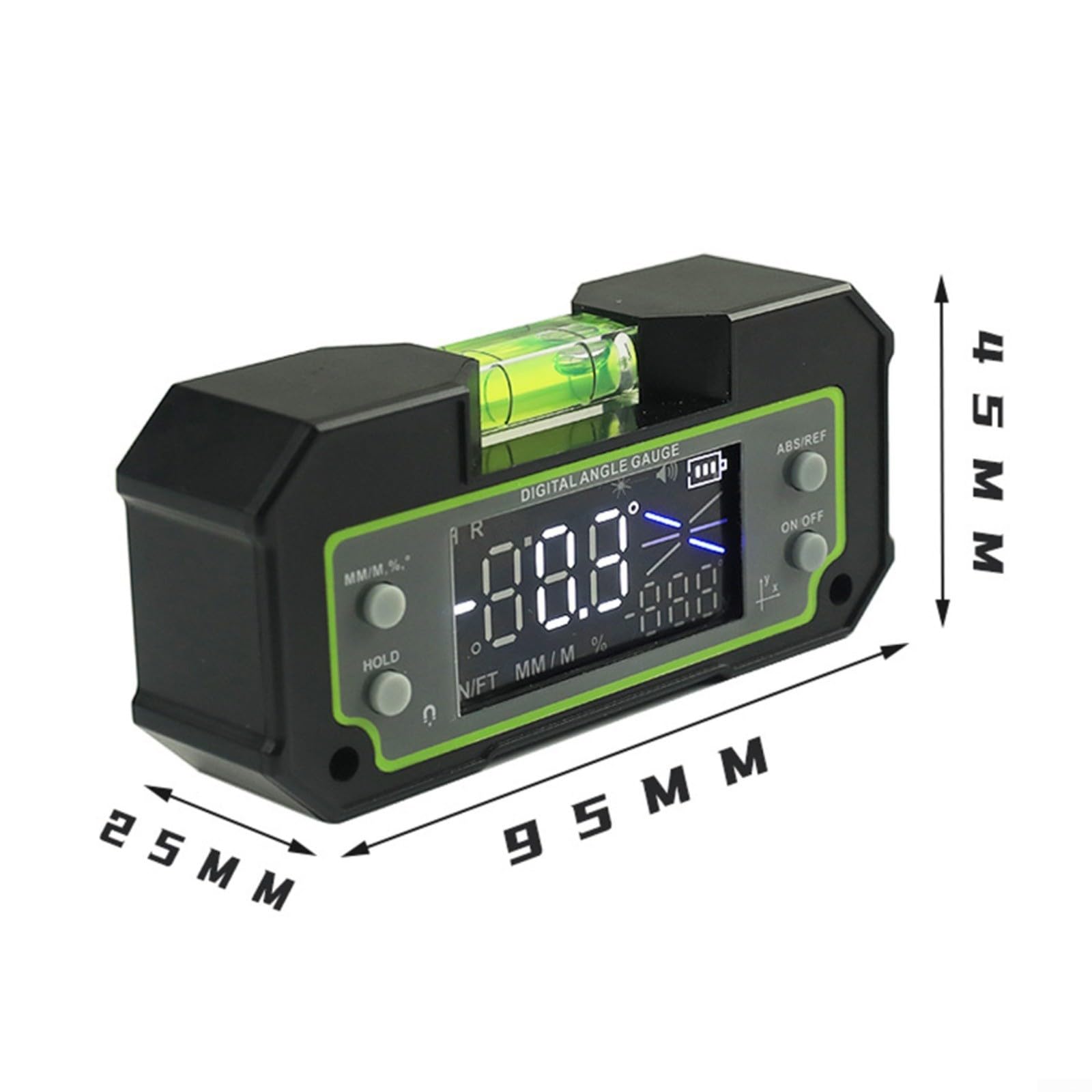

Feature: 1:Accurate measurement of angles with dual axis function and Type-C rechargeable connector, convenient to use anytime and anywhere. 2:Equipped with a magnet, this digital protractor can be firmly attached to the tool for stable measurement. 3: For accuracy with data storage and saving battery life by automatically shutting off after 3 minutes. 4:Large LCD display and backlight for clear display, easy to read readings even in low light conditions. 5:This digital protractor adopts plastic structure for easy one-handed operation, portable and durable. Technical data: Part Name: Digital Inclinometer Material: ABS plastic. Color: Black Size: as shown in the picture. Range: single axle 4 x 90 degrees/double axle 40 degrees. Resolution: 0.1 degree Accuracy: single axis 0.2 degree/double axis 0.3 degree Repeatability: 0.1 degrees. Power supply: 3.7V lithium battery Magnet: there are magnets only on the top and button for surface Wireless data transfer function: pairing: when the inclinometer and receiver with compatible Bluetooth devices (computer, mobile phone, etc.) are used together for the first time, the two need to be paired. The specific operation: turn on the compatible Bluetooth search function of the receiver (computer, mobile phone, etc. ), and hold the wireless transfer button on the inclinometer until the " " on the LCD screen of the inclinometer starts flashing, which indicates that the calibrator is entering search mode, release the wireless transfer button, wait for the receiving device to search for the device called K-XXXXXXxXxx, and then click Connect. After the connection is successful, " " will light up on the LCD screen of the pan/tilt control box. Data transfer (such as mobile phone and computer): After the connection is successful, open the office software and keep the interface active. Short press the wireless transfer button, and the SMS box can send data to the receiver device (computer, mobile phone). The data format is shown in the picture below. Main screen: 1. For single-axis measurement, the main screen only displays X-axis data. 2. For two-axis measurement, the main screen displays both X-axis and Y-axis data. Package content: 1 x Digital Inclinometer
