Product ID:
1027872
Identifier:
B0FJLNH3D6
Brand:
QUEMARQUE
Model:
MICROINVERTER
Shipping Weight:
3.58 lbs
Manufacturer:
GOTO7
Shipping Dimension:
13.39 x 9.45 x 4.53 inches
₱14,153
₱11,230
+ ₱ 2,016
Shipping Cost from USA to Philippines inclusive of custom fees.
Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.
Get it between 2026-06-12 to 2026-06-19.
Additional 3 business days for provincial shipping.
- Price and Stocks may change without prior notice
- Packaging of actual item may differ from photo shown
Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.
Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods
đăREVERSE POWER TRANSMISSIONăThis item adopts highly efficient reverse power transmission technology, in which the power is transmitted in the reverse direction when in grid-connected output mode, automatically detecting the load in the circuit and giving priority to its use, making the output more efficient in photovoltaic power generation application systems.
đăMAXIMUM POWER POINT TRACKINGăA powerful maximum power point tracking algorithm to optimize power harvesting from solar panels that precisely captures and targets the maximum output power point, resulting in a significant increase in power generation.
đăELECTRICAL ISOLATIONă The complete electrical isolation of the machine's output and input makes the entire power distribution system well insulated and the use of fully isolated boost circuits makes it safer and more reliable to use.
đă6-FOLD PROTECTIONă The product comes with over-temperature protection, under-voltage alarm, under-voltage protection, over-voltage protection, short-circuit protection, and overload protection. IP65 waterproof design and aluminum alloy material can effectively prevent rain from eroding the surface, you can use it with confidence.
đăFLEXIBLE INSTALLATIONăThis inverter can be stacked in any number of units, forming a single-phase parallel stacking system or easily forming a 3-phase system to provide three-phase AC power, which you can install according to your specific needs.
đăHD DISPLAYă This microinverter is equipped with an LCD display screen to monitor voltage, power, frequency, current, etc. so you can see the machine clearly in operation.
đăFULL DIGITAL CONTROLă The machine adopts full digital control technology, which makes the machine have a strong anti-interference ability, fast computing speed, and a high degree of intelligence. Its powerful functional system can meet your usage needs.
đăHIGH-QUALITY MATERIALă The microinverter is made of aluminum alloy, which is durable, corrosion-resistant, and not easy to rust. You can use it for a long time without frequent replacement.

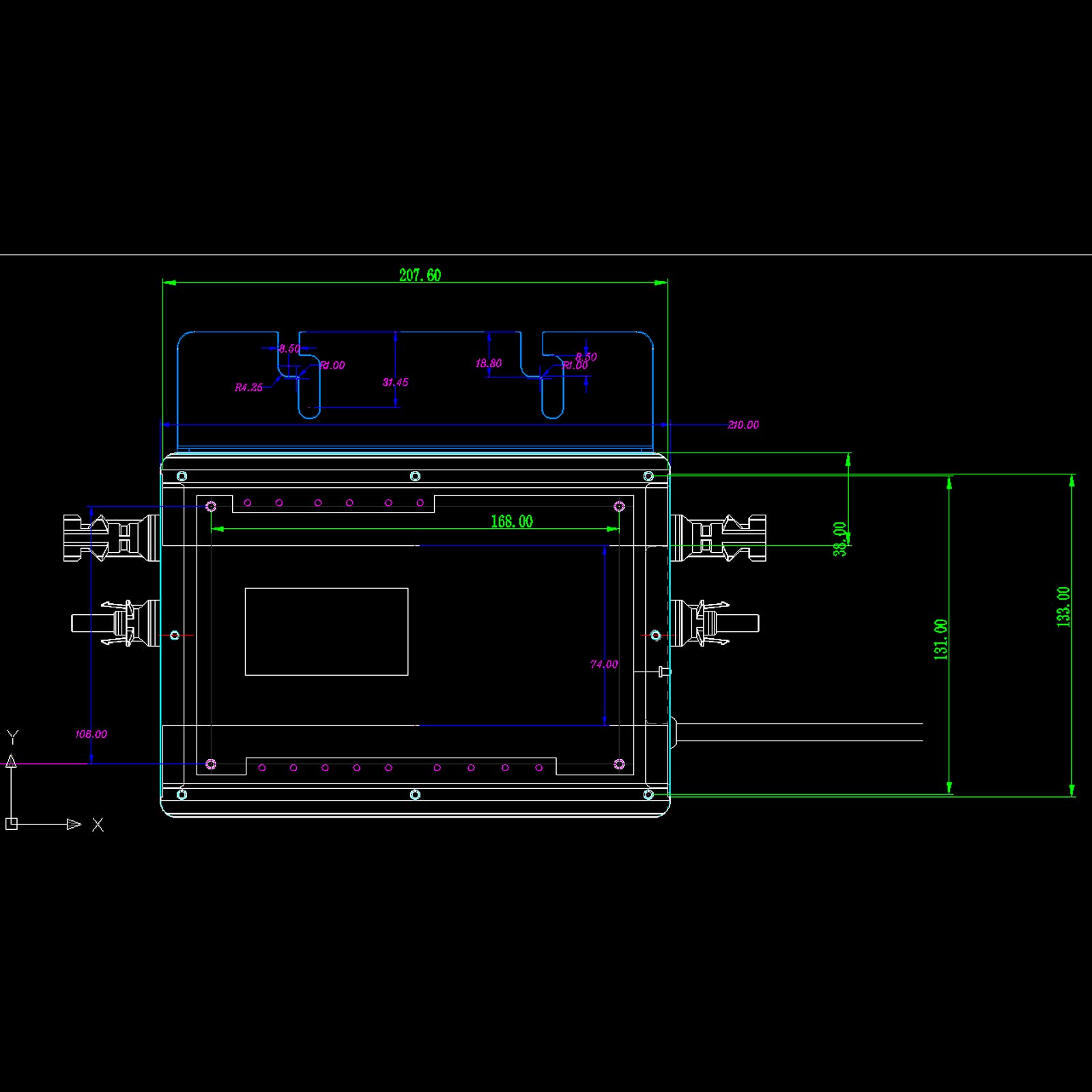

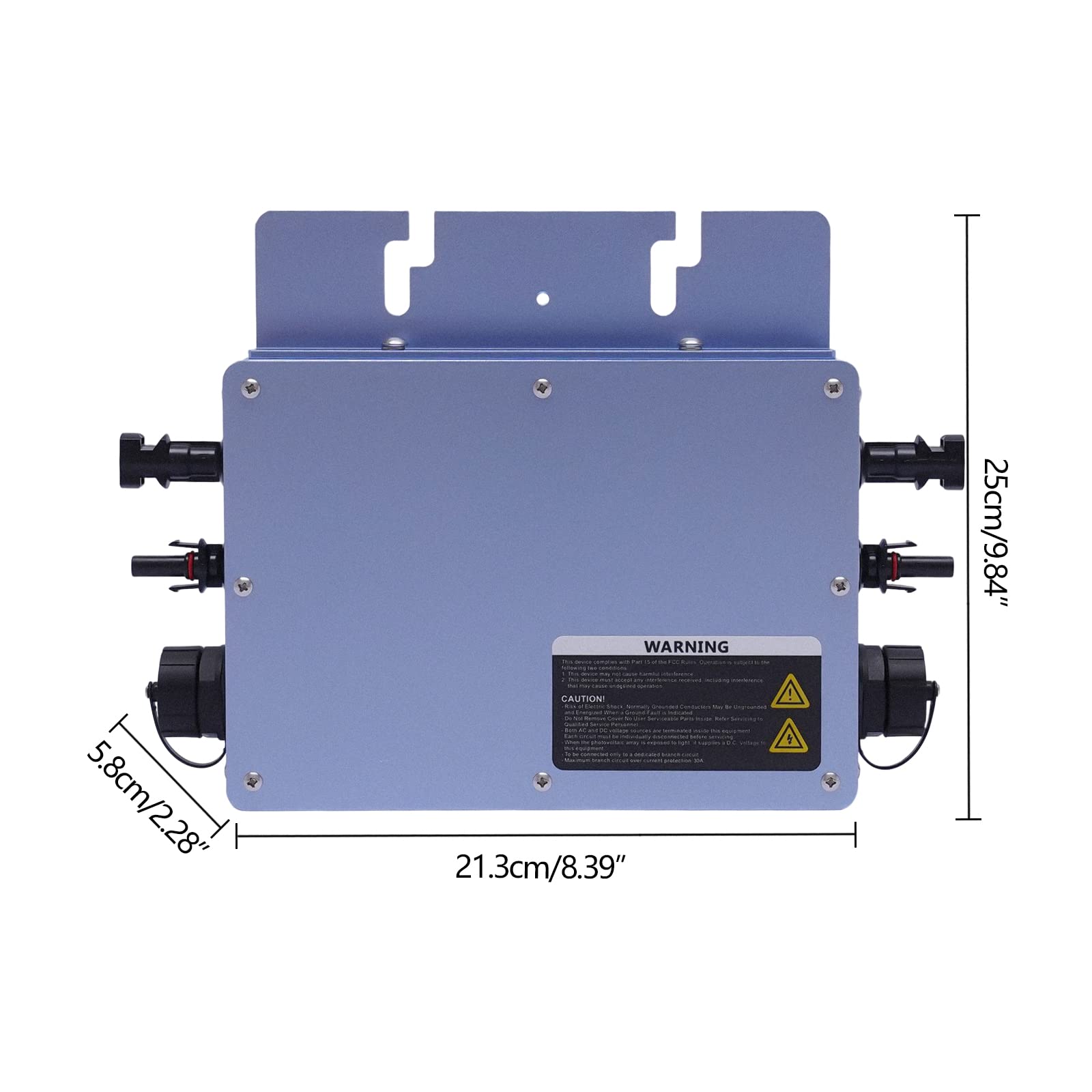

Details --Small Footprint: With dimensions of just 21.3*5.8*25cm/8.39*2.28*9.84inch, this micro-inverter does not take up much space and can be installed in even small shops. --Fixed Gasket&Washer: The gasket and washer in the package help you to mount the PV bracket with great ease. --Heat Dissipation Holes: The inverter body has multiple heat dissipation holes, which help the machine to dissipate heat and enable it to run smoothly. Application This product is applicable to 30V or 36V solar panels, 36V batteries. It can be used in residential and small commercial environments. It is suitable for various household appliances. It can convert the DC power generated by solar panels into AC power available for household appliances. Specification Model: WVC-600W Color: Blue Material: Aluminium Alloy Power: 600W Voltage: 110V Plug: US Standard Operating Temperature Range: -40â~60â/-40â~140â Waterproof Rating: IP65 Cooling Method: Self-cooling VOC Voltage Range: 36-48V Maximum Output DC Voltage: 54V Peak Power Tracking Voltage: 22-45V Operating Voltage Range: 17-50V Min/Max Startup Voltage: 22-50V Maximum DC Short Circuit Current: 40A Maximum Input Operating Current: 27.2A Peak Output Power: 600W Rated Output Power: 550W Rated Output Current: 4.58A Rated Voltage Range: 80-160VAC Rated Frequency Range: 57-62.5Hz Static MPPT Efficiency: 99.5% Max. Output Efficiency: 91.2% Nighttime Power Loss: <1W Total Flow Distortion: <5% Recommended Battery Parameters: 36V/20mah Gross Weight: 2.48kg/5.47lbs Net Weight: 1.63kg/3.59lbs Product Size: 21.3*5.8*25cm/8.39*2.28*9.84inch Package Size: 34*24*11.5cm/13.39*9.45*4.53inch Package Included 1* Micro Inverter 1* LCD Display 1* AC Connection Cable 1* English Manual Other Accessories for Installation Notes --Please read the operating manual completely before use. And pay particular attention to the safety instructions included. --Please note that our products are grid-connected, the AC output port has to be connected to the home grid in order to achieve grid-connected power generation. --When the input load is with solar panels, it is important that the VOC voltage is between 30-48V. We recommend that the solar panel is configured for 20% more power than the power of the product. For example, if the product is 600W, the total power of the solar panels should be between 700-750W.
