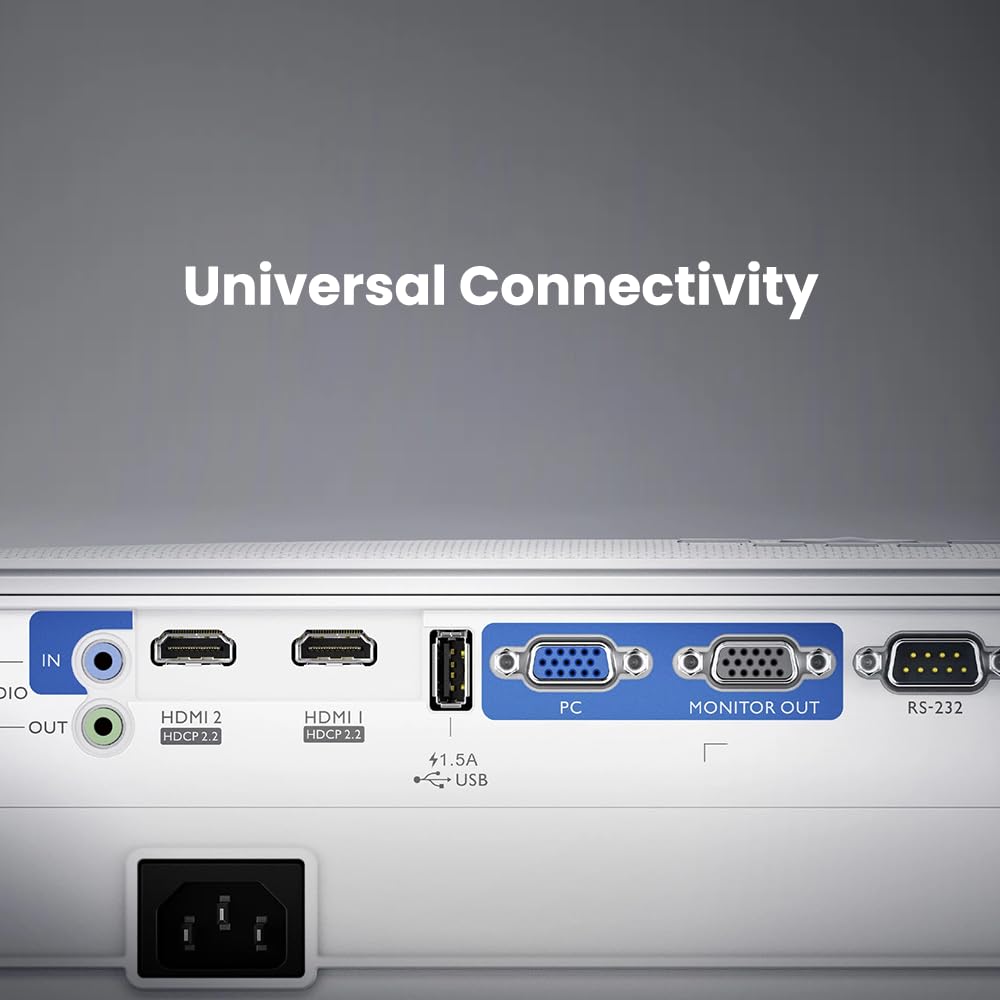

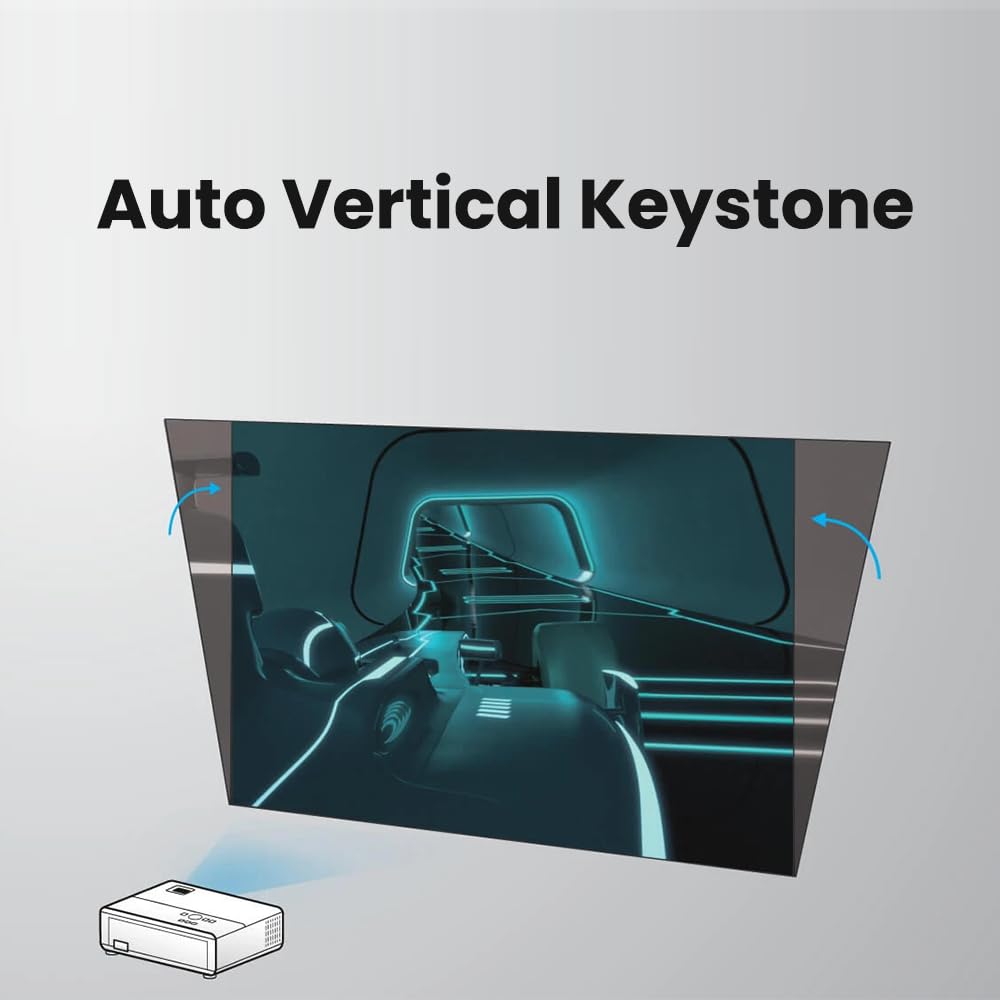

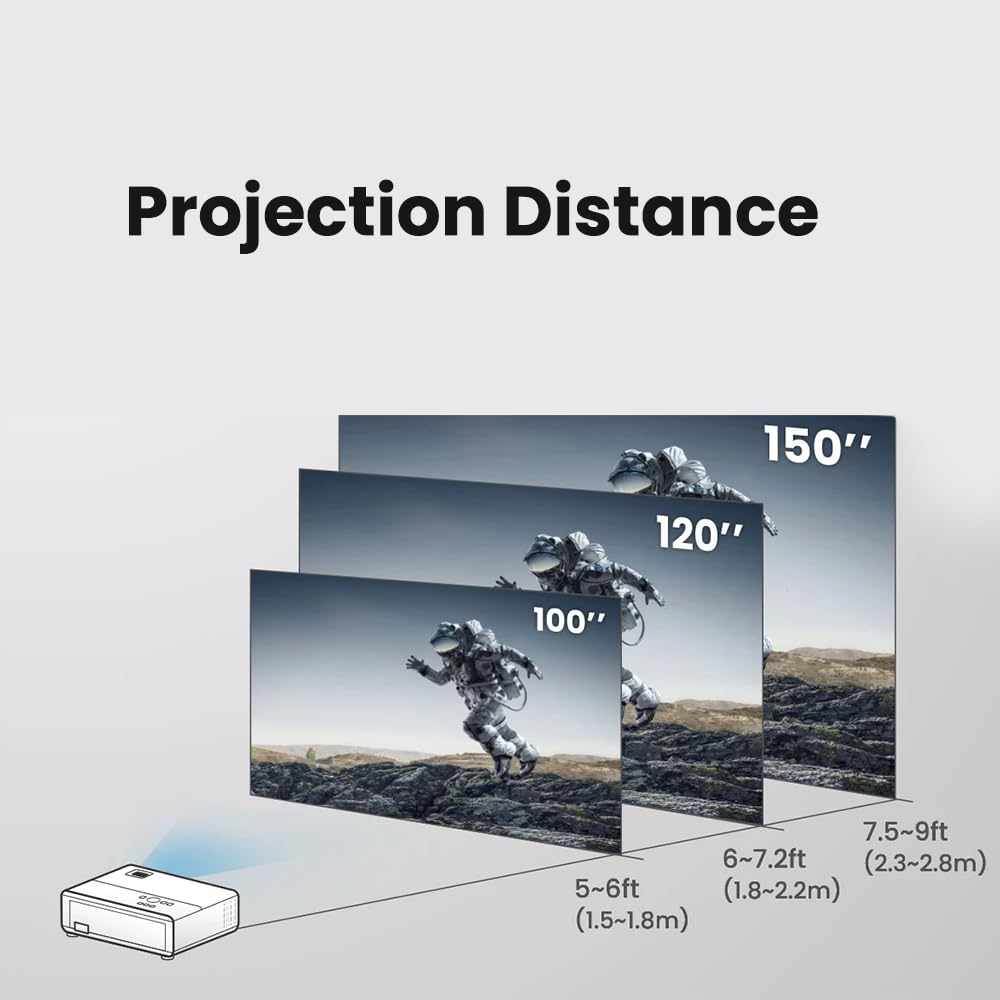

Main Specifications Resolution - 1080p (1920x1080) Brightness (ANSI lumens) - 3000lm Native Contrast Ratio (FOFO) - 10000:1 Speaker - 5W x 1 All Specifications Display Projection System - DLP Resolution - 1080p (1920x1080) Resolution Support - VGA(640 x 480) to WUXGA_RB (1920 x 1200) *RB = Reduced Blanking Brightness (ANSI lumens) - 3000lm Contrast Ratio (FOFO) - 10000:1 Display Color - 1.07 billion colors Native Aspect Ratio - 16:9 Light Source - Lamp Light Source Wattage - 240W Light Source Life - Normal 4000 hours , Economic 10000 hours , SmartEco 10000 hour, Lampsave 15000 hours Optical Throw Ratio - 0.69~0.83 (100"@1.5m) Zoom Ratio - 1.2x Lens - F/# = 2.6 - 2.78, f = 10.2 - 12.24 mm Keystone Adjustment - 1D, Vertical +/- 40 degrees Projection Offset - 102.5%±2.5% Clear Image Size (Diagonal) - 60"~120" Image Size - 30''~ 300"‎ Horizontal Frequency - 15K~102KHz Vertical Scan Rate - 23~120Hz Picture Picture Mode - Bright/ Vivid TV/ Cinema/ Sport/ Game/ User 1/ User 2/ (3D) Color Wheel Segment - RGBYCM Color Wheel Speed - 2X(50Hz, 60Hz) Rec.709 Coverage - >92% Audio Speaker - 5W x 1 Interface PC (D-Sub) - 1 Monitor Out (D-Sub) - 1 HDMI - 2, HDMI-1 (1.4a),HDMI-2 (1.4a/MHL/HDCP1.4) USB Type A - 1, USB-1 (2.0/ Power Supply) USB Type mini B - 1 (Service) Audio in (3.5mm Mini Jack) - 1 Audio out (3.5mm Mini Jack) - 1 RS232 (DB-9pin) - 1 IR Receiver - 2 (Front & Top) Security Bar - 1 Special Feature LumiExpert - Yes Compatibility HDTV Compatibility - 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Video Compatibility - NTSC, PAL, SECAM 3D Compatibility‎ - Frame Sequential: Up to 720p 60hHz, Frame Packing: Up to1080p 24Hz, Side by Side: Up to 1080i/p 24Hz, Top Bottom: Up to 1080p 60Hz Environment Power Supply - AC 100 to 240 V, 50/60 Hz Typical Power Consumption - 320W Standby Power Consumption - <0.5W Acoustic Noise (Typ./Eco.) - 33/29 Dba Operating Temperature - 0~40℃ Dimension and Weight Dimensions (W x H x D)(mm) - 296 x 120 x 224 mm Net Weight (Kg/ lbs) - 2.7 (5.95) Accessories (Standard) Carton - Yes, Brown Carton Remote Control w/ Battery - Yes (RCV013) Power Cord (by region) - x1 (1.8m) User Manual CD - x1 (27L) Quick Start Guide - x1 (18L) Warranty Card (by region) - Yes VGA(D-sub 15pin) Cable - x1 (1.5m) Lens cover - Yes Battery - AAA x2 Accessories (Optional) Carry Bag - Yes (5J.J3T09.001) Spare Lamp Kit - Yes 3D Glasses - Yes QCast HDMI dongle - Yes QCast Mirror dongle - Yes Wireless FHD Kit - Yes, WDP02 Wireless USB Dongle - Yes OSD OSD Language - Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese(28 Languages)
