Product ID:
71112
Identifier:
B09TP25H56
Brand:
Newdeli
Model:
Shipping Weight:
0.77 lbs
Manufacturer:
Wenzhou Yuxuan Electronic Commerce Co.,LTD
Shipping Dimension:
3.58 x 3.03 x 2.99 inches

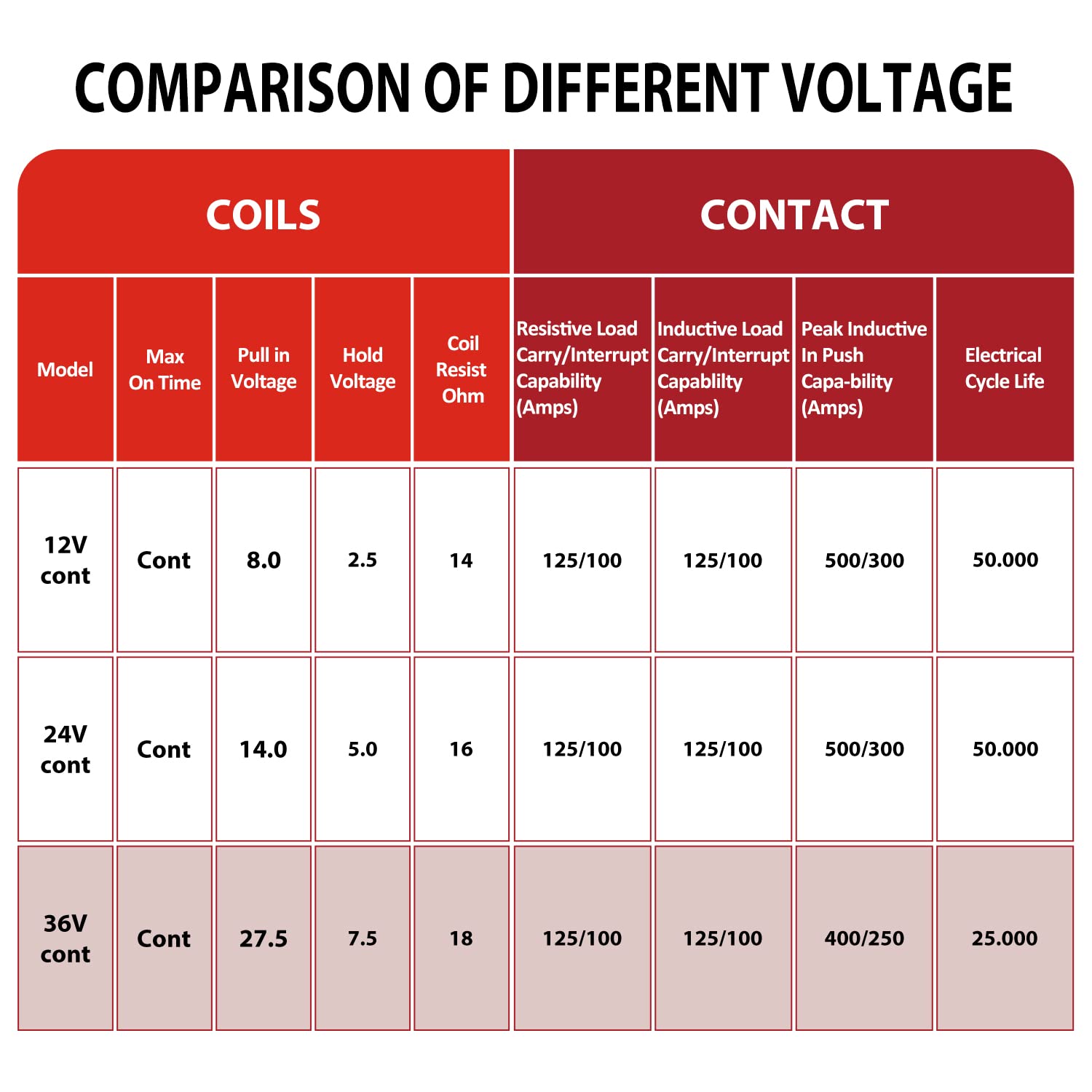

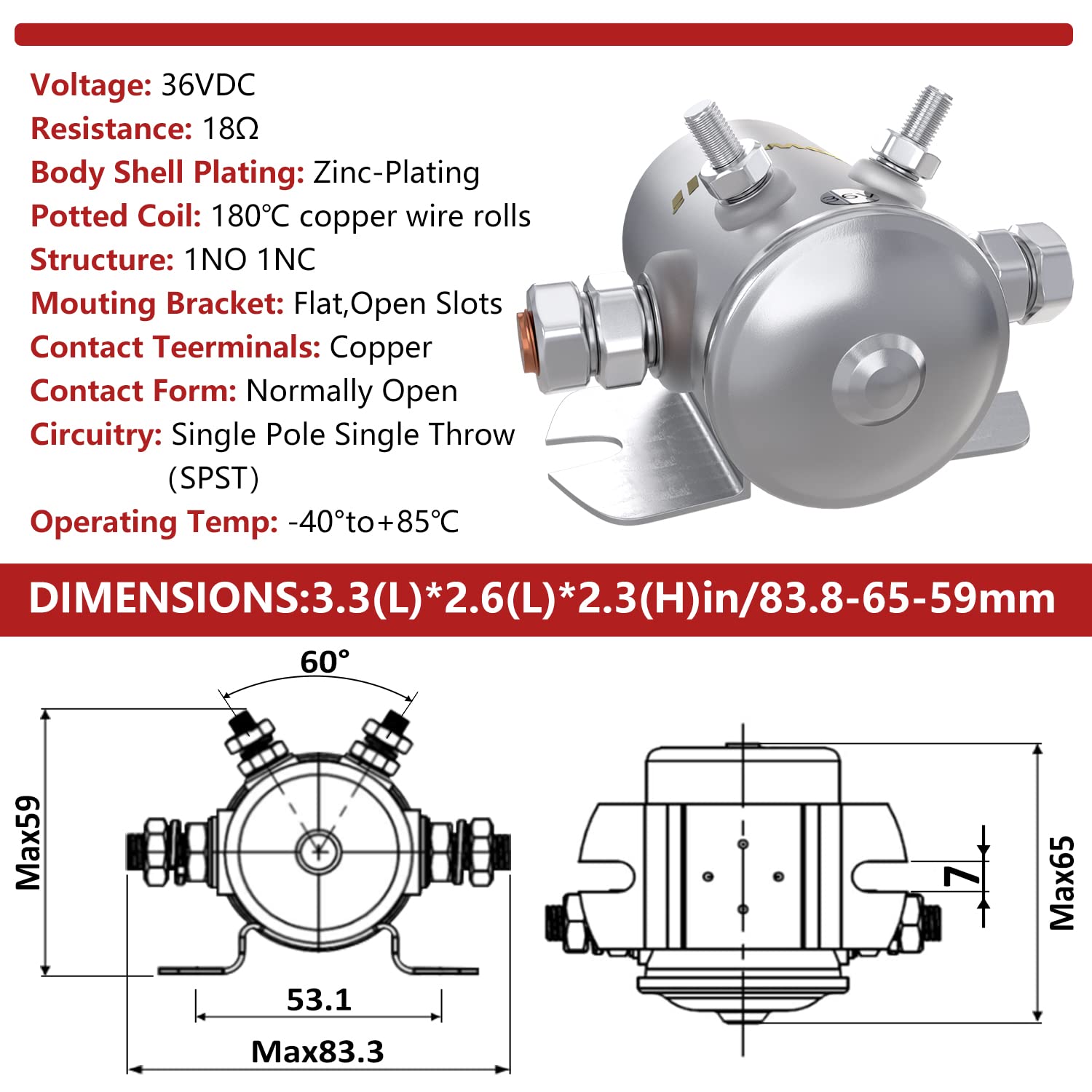

【Specification】4 terminal Heavy-duty Solenoid with Copper Contacts，Voltage: 36VDC; Resistance: 18Ω; Max Transient Flash Current: 200Amp; Continuous Working Current: Under 80Amp; Contact Studs: 5/16 -24 Studs Standard & Long; Bracket mounting: Holes 5/16 x 19/32 2-13/64 on Center.

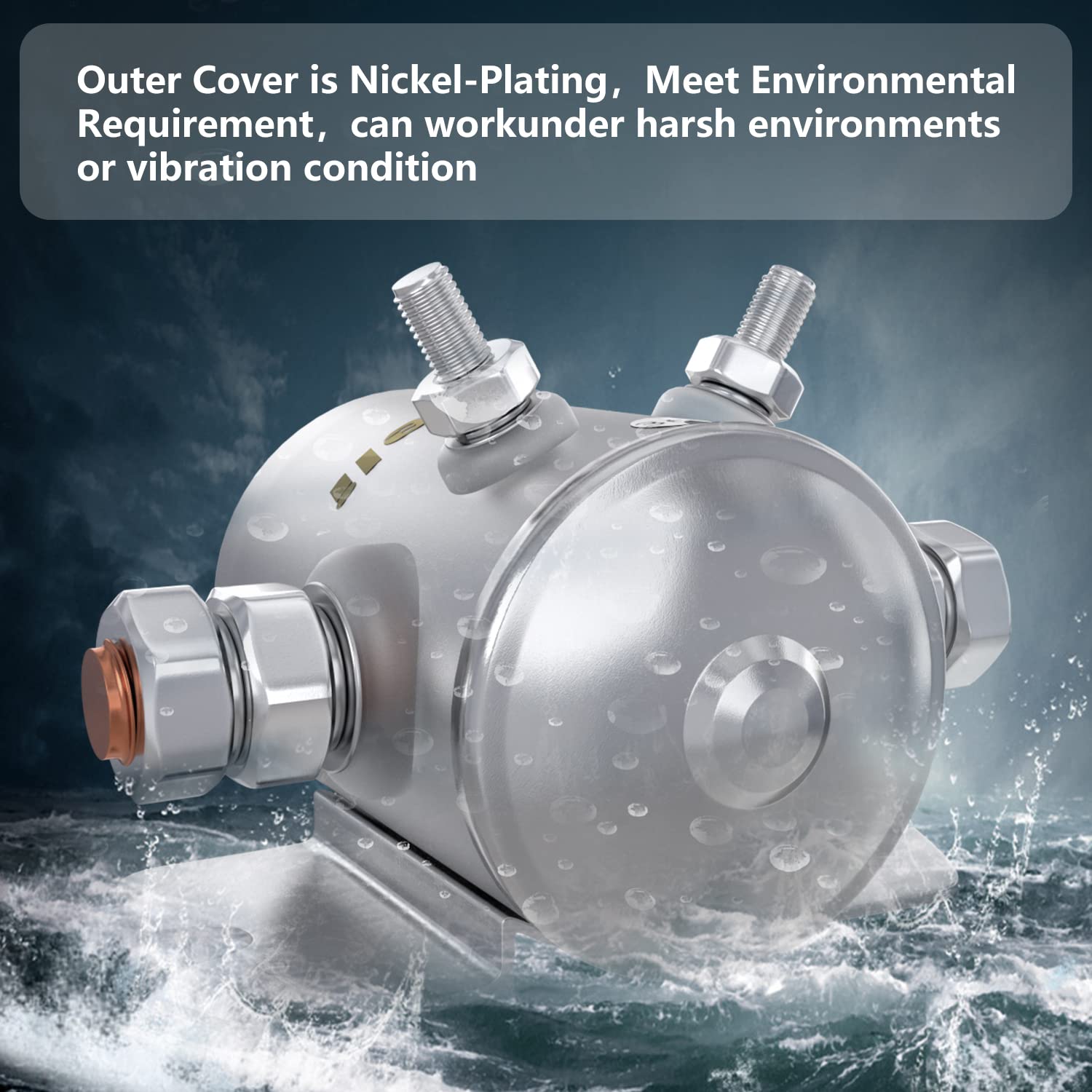

【High Quality】:The coil uses 180 ℃ copper wire, the electromagnetic relay is made of high-quality components,the contact: normally open (NO)/36VDC with 2 copper point, the galvanized outer layer and the inside of the canned coil, suitable for use in any environment,Sealed Unit Protects Solenoid From The Elements Helping Prevent Corrosion.100% OEM Match and Replacement.

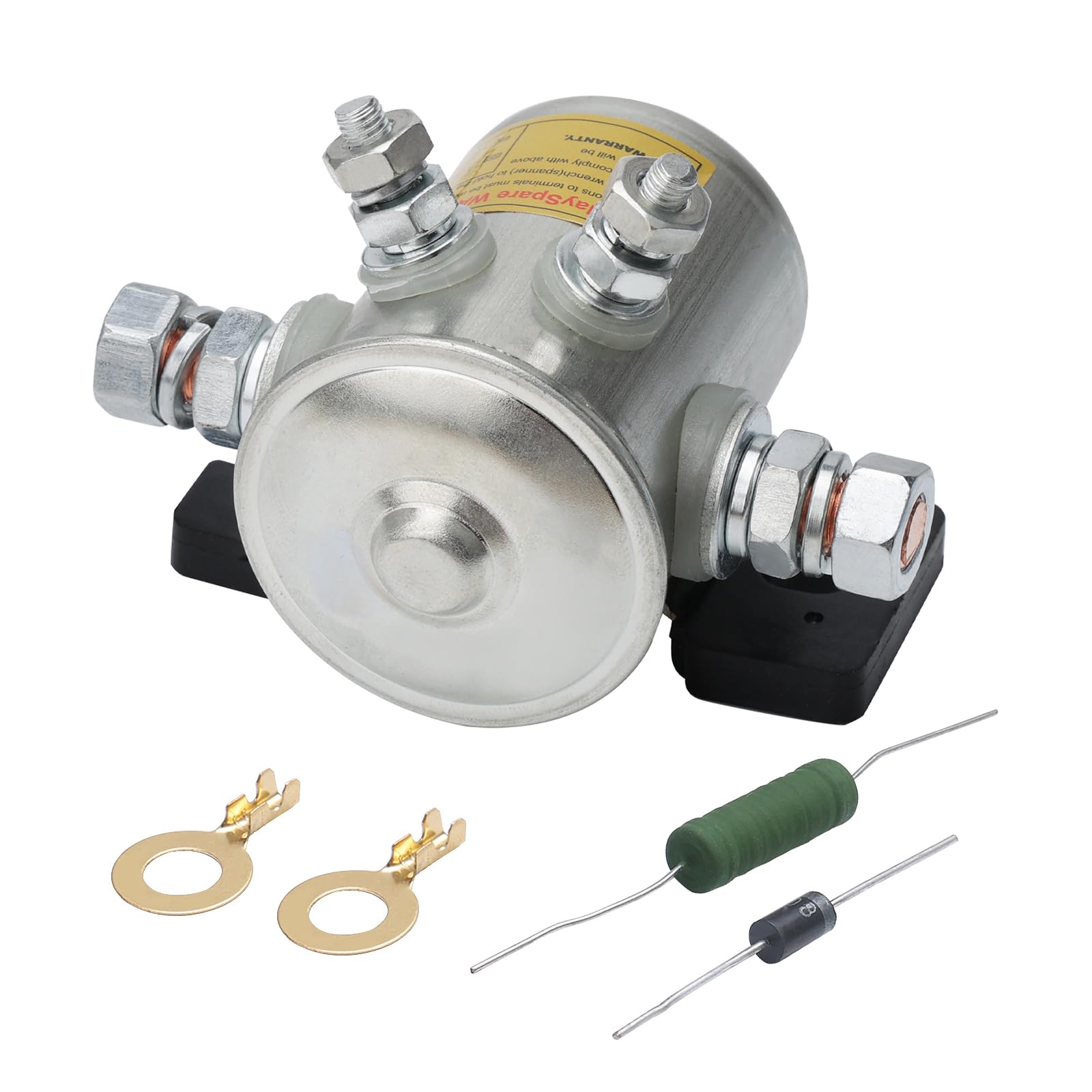

【Application】Acts as the conduit between the golf car battery and starter generator, Copper alloy contact terminals Insulated base w/ steel housing / MAKE SURE YOUR SMALL DIODE IS IN THE CORRECT DIRECTION WITH THE LINE POINTING TO THE POSITIVE SIDE.
【INSTIALL】：One side goes to Battery, opposite side to starter, top screw which is smaller goes to switch or key start only. It is already grounded internal.
【Replaces Part Number】# 70-120224、3016、11761-G1、27855-G01、27855-G02、31680-G1、SAS-4302、SAS-4303、SAS-5303A、SAS4302、Cole Hersee 24080、EZ-Go 11761GA、Prestolite 15-242、15-243、15-334。
