Condenser Fan AC Motor YZF18-25,18W Shaded Pole Motor for Refrigerator,Freezer,Small Ventilation Rquipment,UL Approved,Can Replace YZF10-20 YZF6-13

4.8 / 5

Available Options

ZF18-25 ₱4,083.00 ₱4,241.00 YZF6-13 ₱3,876.00

SAVE 26%

₱5,230

₱4,083

+ ₱ 1,764

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2025-11-29 to 2025-12-06.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

DETAILS

Product ID:

263961

Copy Link

Identifier:

B0C9Y7ZMKL

Brand:

WEFUMOT

Model:

ZF18-25

Shipping Weight:

3.03 lbs

Manufacturer:

weiguang

Shipping Dimension:

4.65 x 4.37 x 4.09 inches

FEATURES

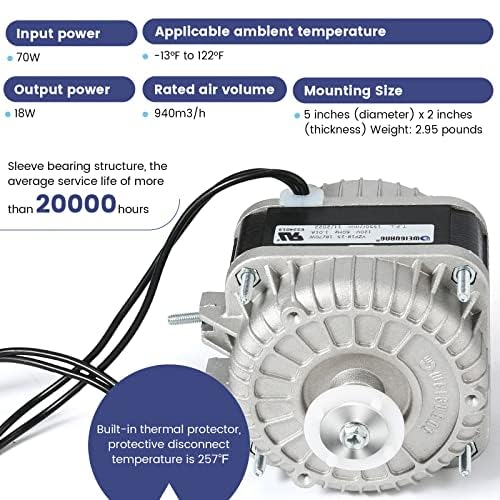

Specifications:120V 60Hz shaded pole AC motor YZF18-25,Input power 70W, Output power 18W, Current 1.01A, Rotational speed 1550r/min,UL certification,Widely used in condenser fan motor in refrigeration equipment

Working Environment:YZF18-25 AC motor is Class B insulation, and has built-in overheat protector, the protection temperature is 257 °F, the motor can work continuously in -13 °F to 122 °F ambient temperature

Load Capacity:YZF18-25 fan motor the maximum fan blades size that can be used is Φ254,28°，rated air volume 940m3/h，using sleeve bearing and can work continuously for more than 20,000 hours

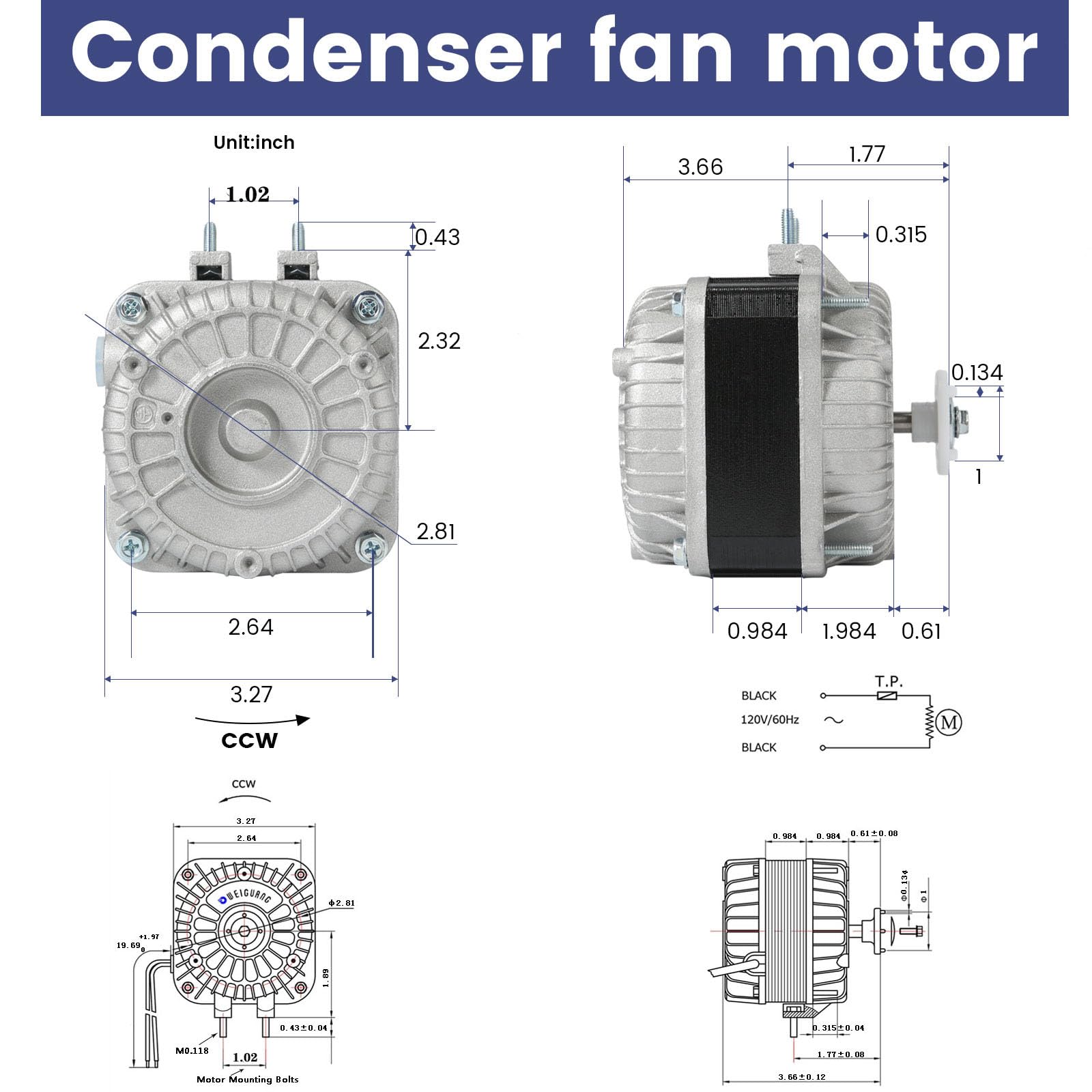

Installation Mode：YZF18-25 motor mounting pin spacing is 0.709 inches，it needs to be mounted horizontally or vertically with mounting brackets，the motor rotates counterclockwise

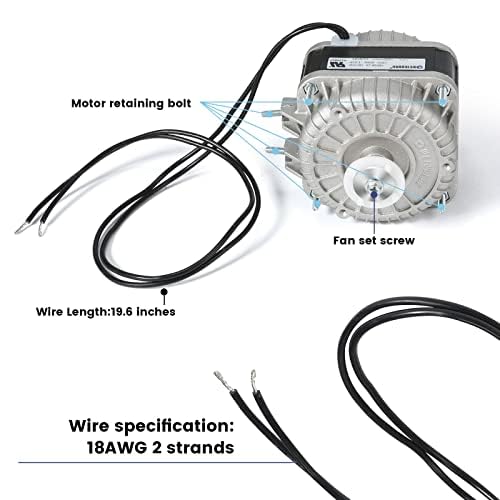

Connecting wire: Motor has two leads, specification 18AWG, UL certification, line length 19.68-21.65 inches, used to connect the two poles of the power supply, motor housing grounding wire
