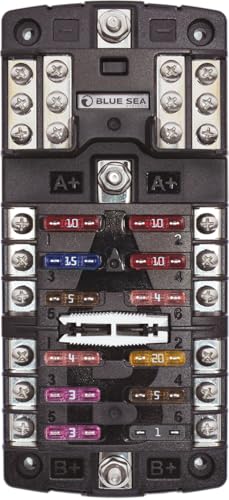

Blue Sea Systems 5032 ST Blade Fuse Block Dual 12 with Ground and Cover, 100 Amps

4.8 / 5

Available Options

SAVE 38%

₱6,944

₱4,444

+ ₱ 504

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2026-04-19 to 2026-04-26.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

DETAILS

Product ID:

109908

Copy Link

Identifier:

B00WM2MWQ4

Brand:

Blue Sea Systems

Model:

5032-BSS

Shipping Weight:

0.91 lbs

Manufacturer:

Blue Sea Systems

Shipping Dimension:

10.28 x 5.98 x 1.73 inches

FEATURES

Split Bus Fuse Block with ground for use when a mix of switched and 24-hour circuits are desired in the same block

Provides two isolated groups of six ATO/ATC circuits

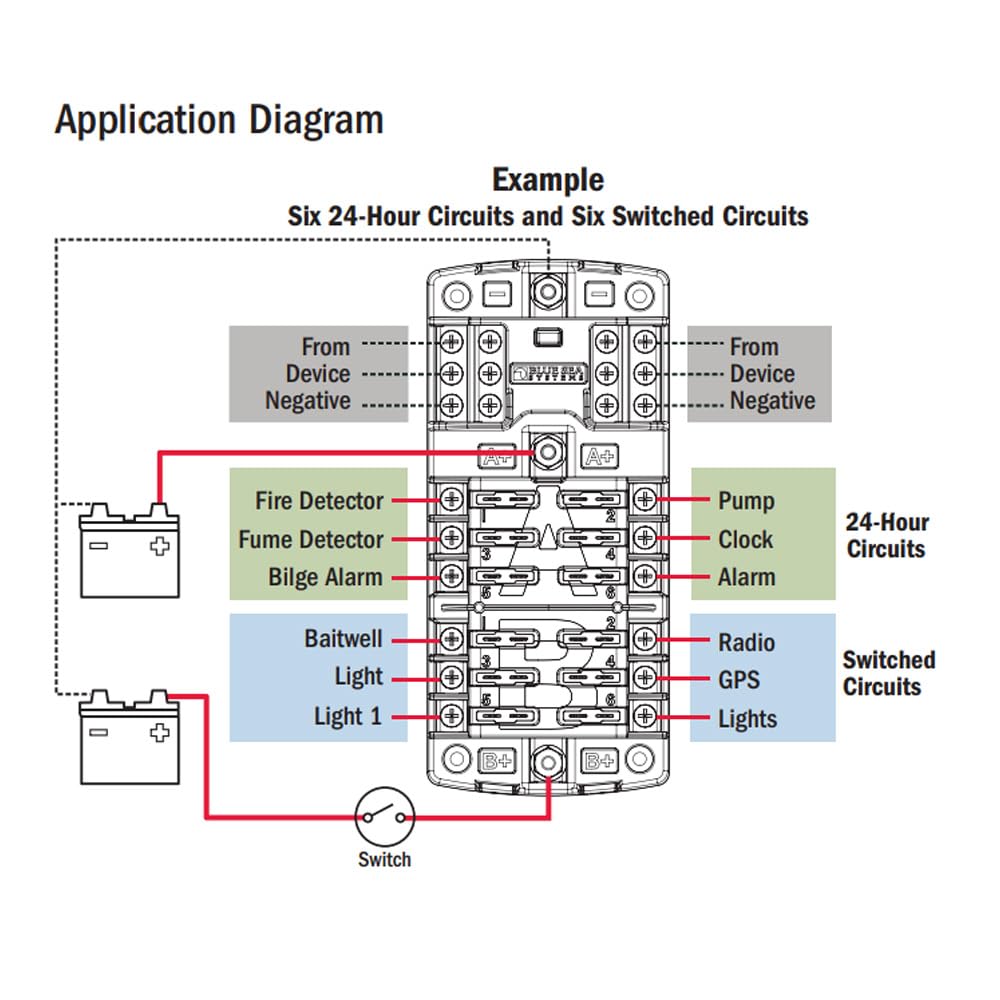

For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits

Screw terminals for securing wires accept ring terminals

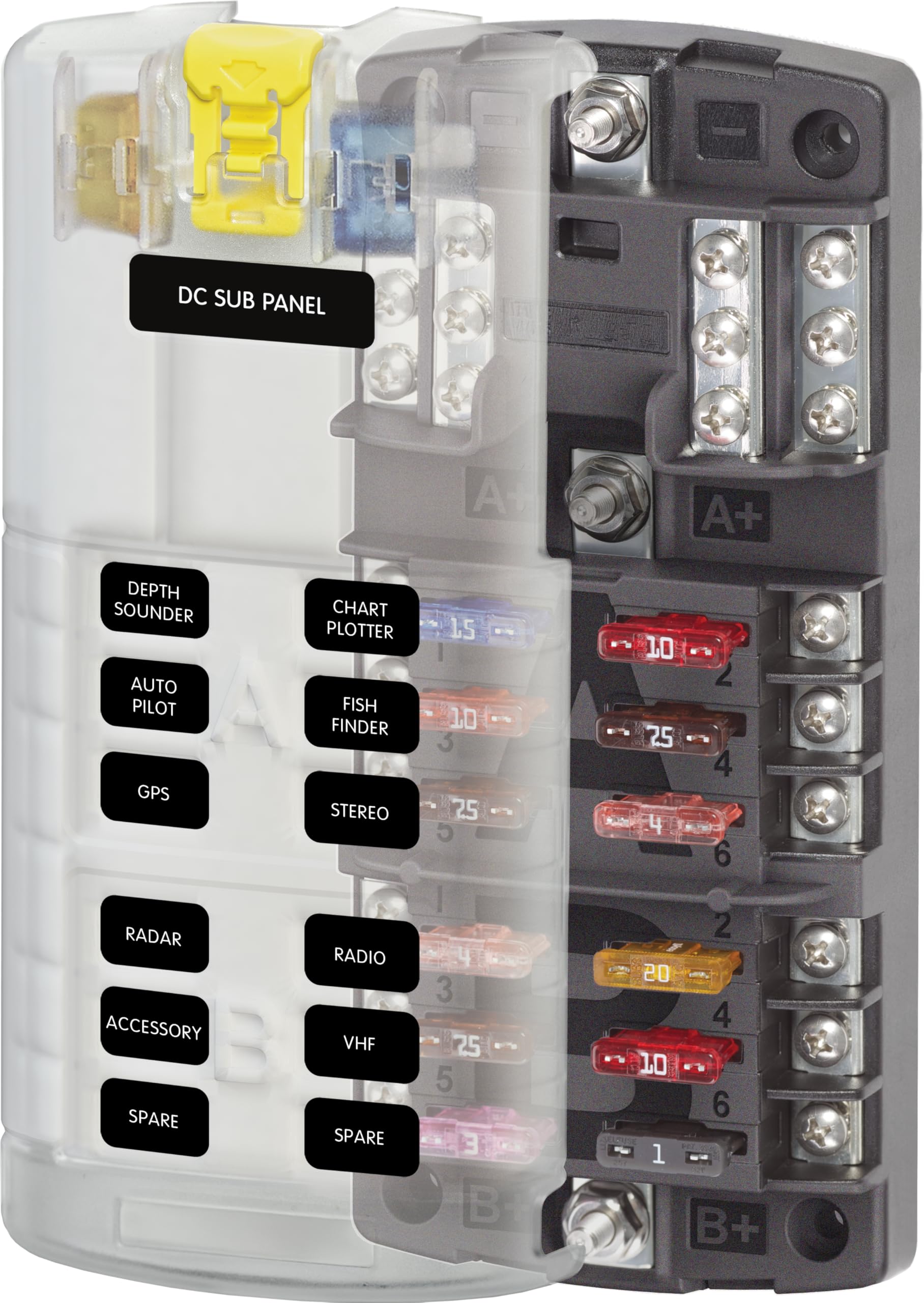

Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems

DESCRIPTIONS

Organize and protect circuits with a covered fuse block. Fuse Blocks are an effective method of protection to prevent damage to wiring and possible fire in the event of an over-loaded or short circuit. This Blue Sea Systems space-saving fuse block can provide protection for new installations or when the panel has run out of breakers. Often used for electronic installations, this fuse block can be fed by one breaker from the distribution panel and supply power to 12 additional circuits. Compact size allows it to be installed in tight spaces close to the loads they protect. Accept ATO/ATC fuses that provide protection from 1 amp to 40 amps.
