Chanzon 2N7000 TO-92 NMOS MOS N-Channel Power MOSFET Transistor, Ideal for Electronic Circuits (Pack of 100pcs)

4.6 / 5

₱890

+ ₱ 150

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2026-06-02 to 2026-06-09.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

DETAILS

Product ID:

81080

Copy Link

Identifier:

B083TF4K6L

Brand:

CHANZON

Model:

Shipping Weight:

0.05 lbs

Manufacturer:

CHANZON

Shipping Dimension:

4.02 x 3.7 x 0.31 inches

FEATURES

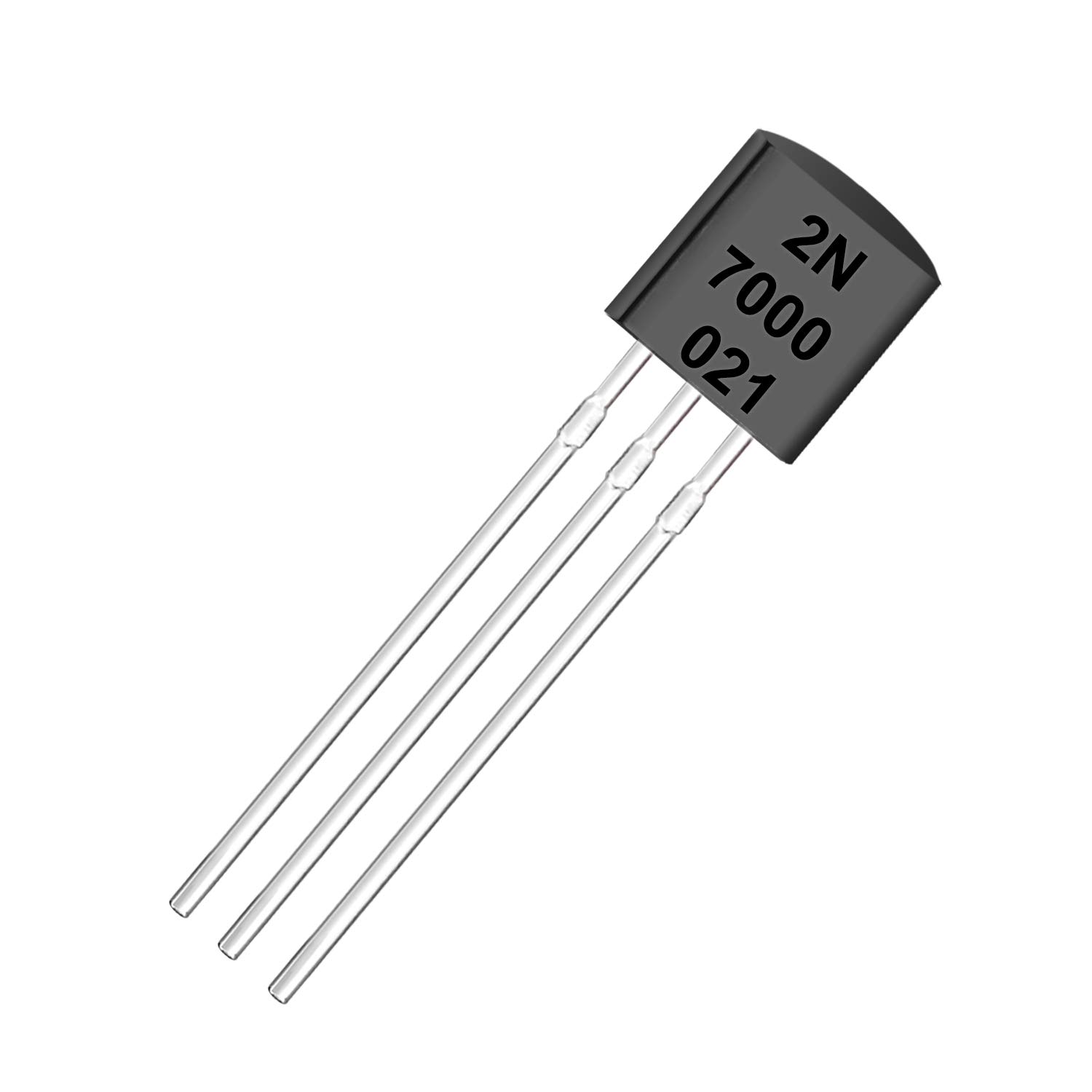

Transistor Type: High-Quality NMOS N-Channel Power MOSFET Transistor.

Transistor Polarity: N-Channel, Ideal for High Performance Power Switching Applications.

Specification: VDSS up to 60V, ID up to 0.2A, PD of 0.4W at a Ta of 25 ℃, with a low RDS(on) of 5.3 Ω.

Application: Versatile usage for amplification and power management in numerous electronic circuits, including power supplies and motor controls.

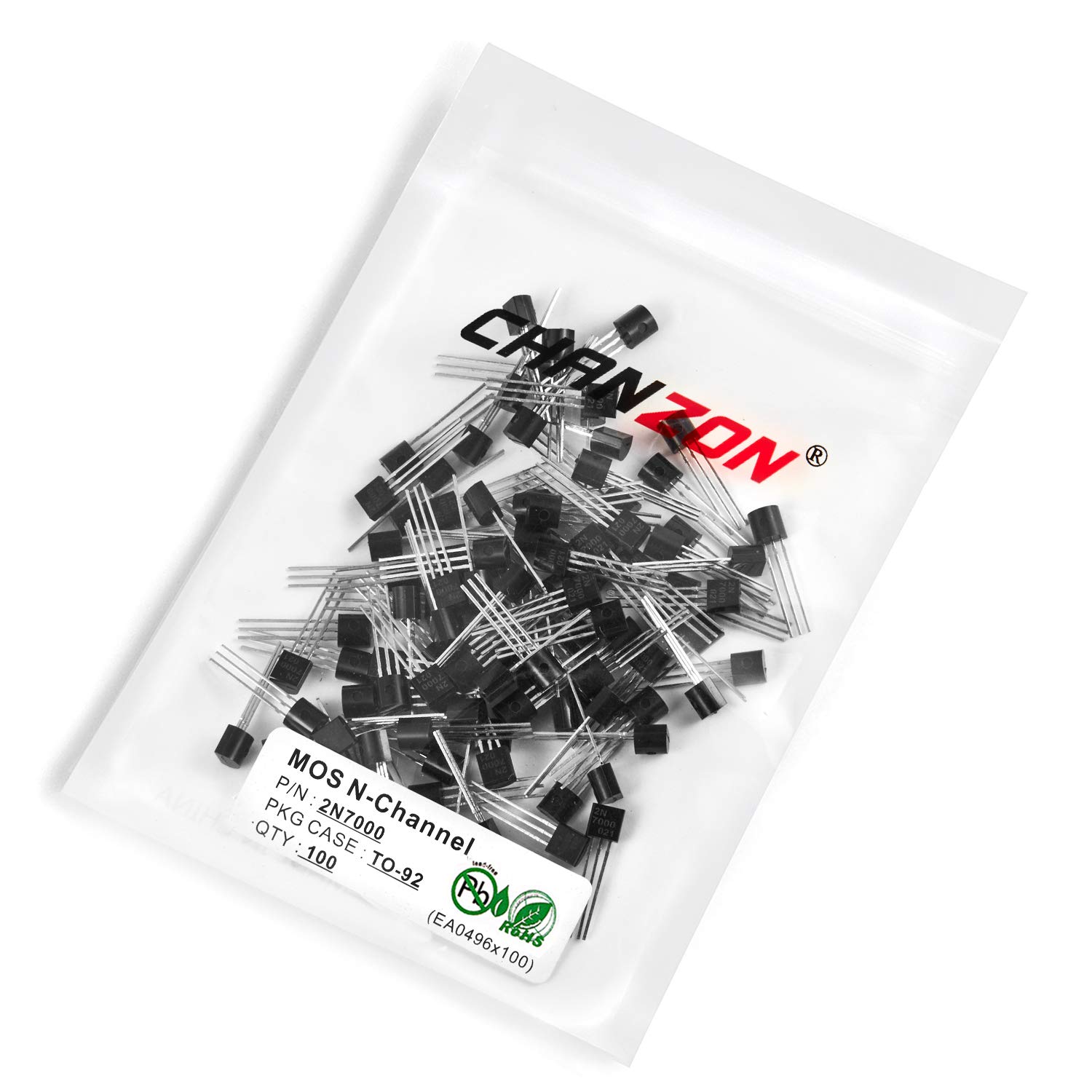

Package: Delivered in an Anti-Static bag providing superb electrostatic protection, ensuring ESD safety and long shelf life.

DESCRIPTIONS

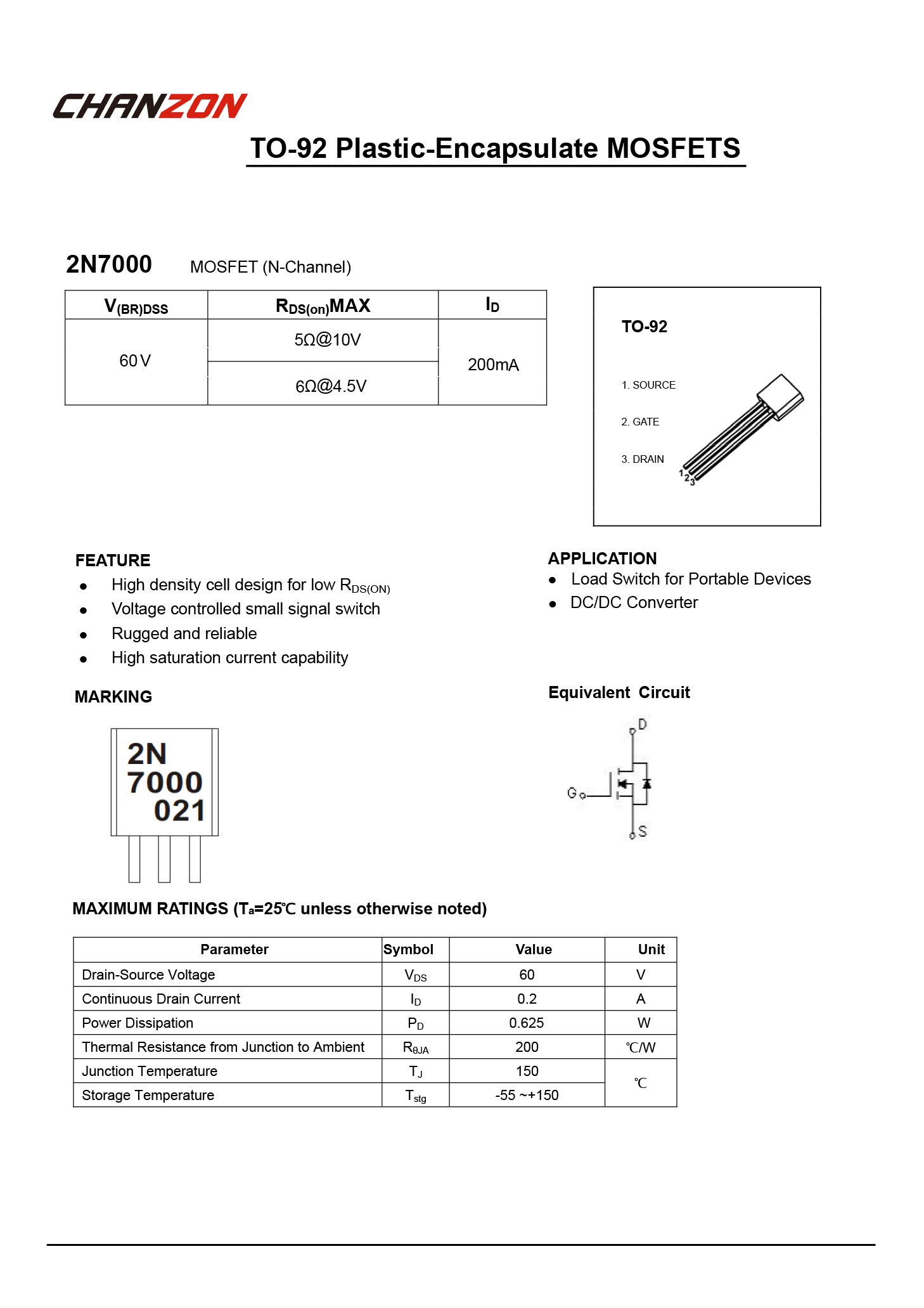

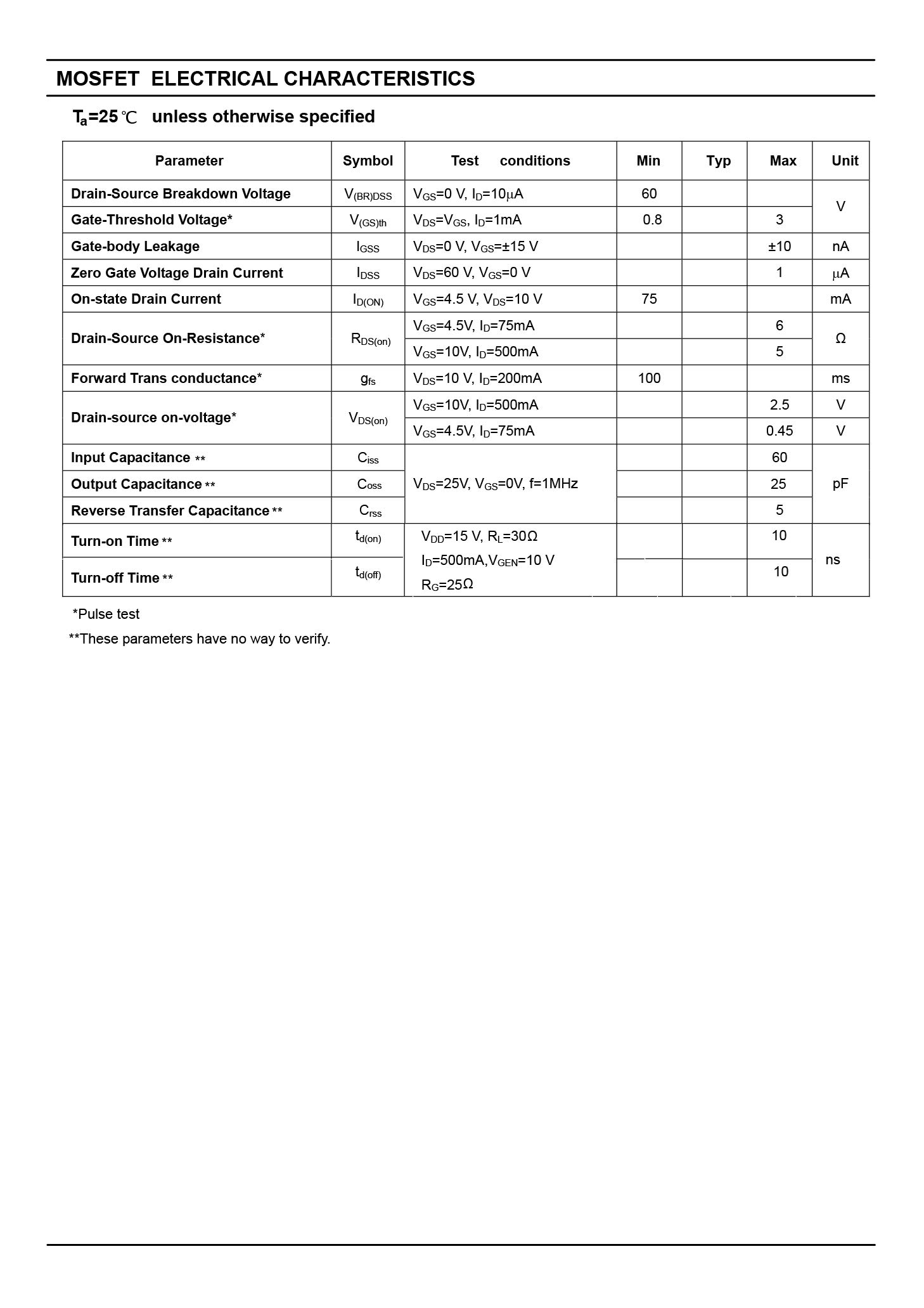

Product Description: The 2N7000 MOSFET is an N-Channel Enhancement Mode Field-Effect Transistor, designed for high-density cell construction to provide a low on-resistance (RDS(on)). It is a voltage-controlled small signal switch known for its ruggedness and reliability, making it ideal for a variety of applications. Key Features: Low RDS(on) for efficient power management High saturation current capability Reliable performance in various electronic circuits Max Ratings: Drain-Source Voltage (VDS): 60V Continuous Drain Current (ID): 0.2A Power Dissipation (PD): 0.625W Thermal Resistance from Junction to Ambient (RθJA): 200℃/W Junction Temperature (TJ): 150℃ Electrical Characteristics: Drain-Source Breakdown Voltage (V(BR)DSS): 60V Gate-Threshold Voltage (V(GS)th): 0.8 - 3V Zero Gate Voltage Drain Current (IDSS): 1μA On-state Drain Current (ID(ON)) at VGS=4.5V, VDS=10V: 75mA Drain-Source On-Resistance (RDS(on)) at VGS=10V, ID=500mA: 5Ω Drain-source on-voltage (VDS(on)) at VGS=4.5V, ID=75mA: 0.45V Input Capacitance (Ciss): 60pF Output Capacitance (Coss): 25pF Reverse Transfer Capacitance (Crss) at VDS=25V, VGS=0V, f=1MHz: 5pF Performance Metrics: Turn-on Time (td(on)): 10ns Turn-off Time (td(off)): 10ns (VDD=15V, RL=30Ω, ID=500mA, VGEN=10V, RG=25Ω) This MOSFET is perfect for use as a load switch in portable devices and DC/DC converters, ensuring efficient and reliable operation.
