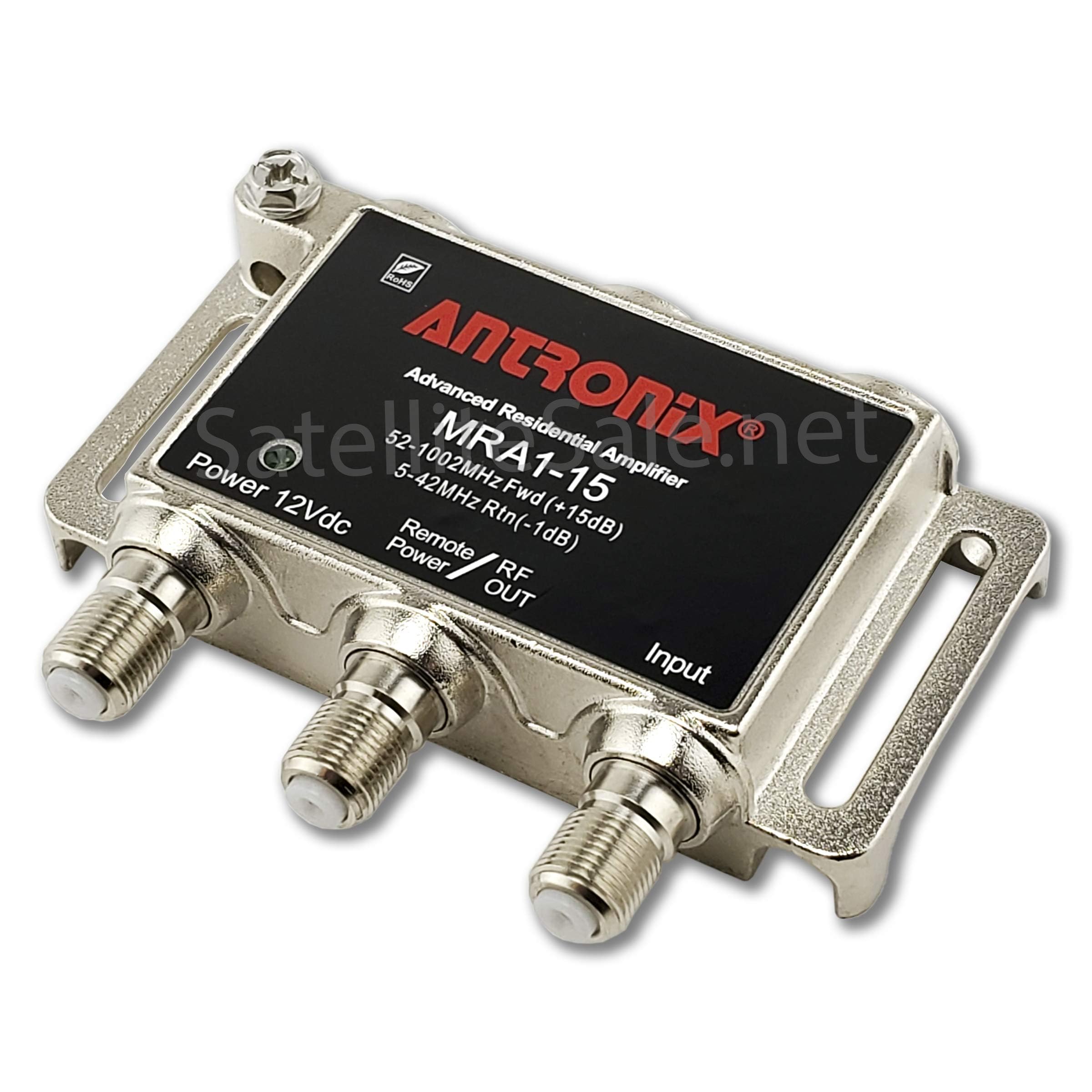

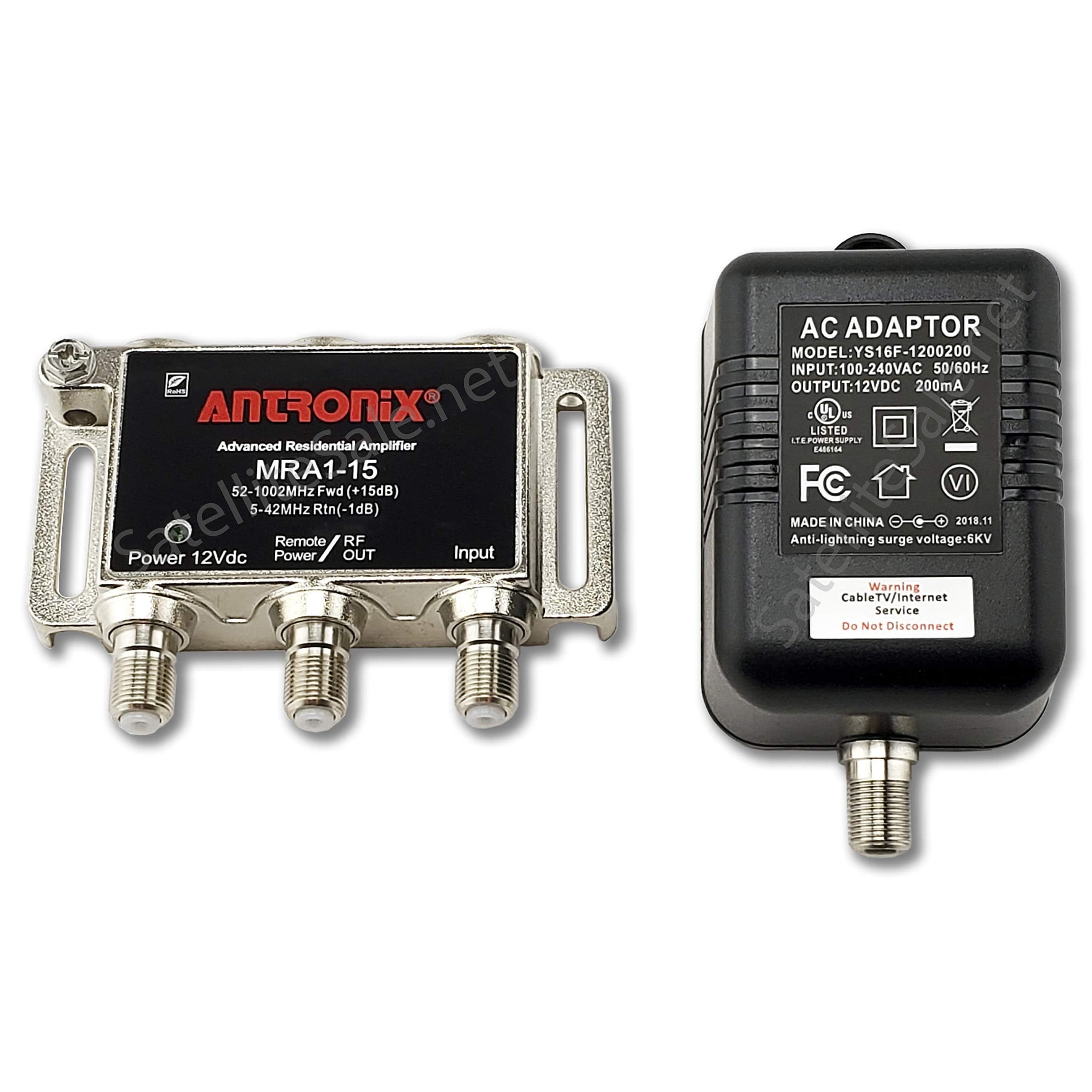

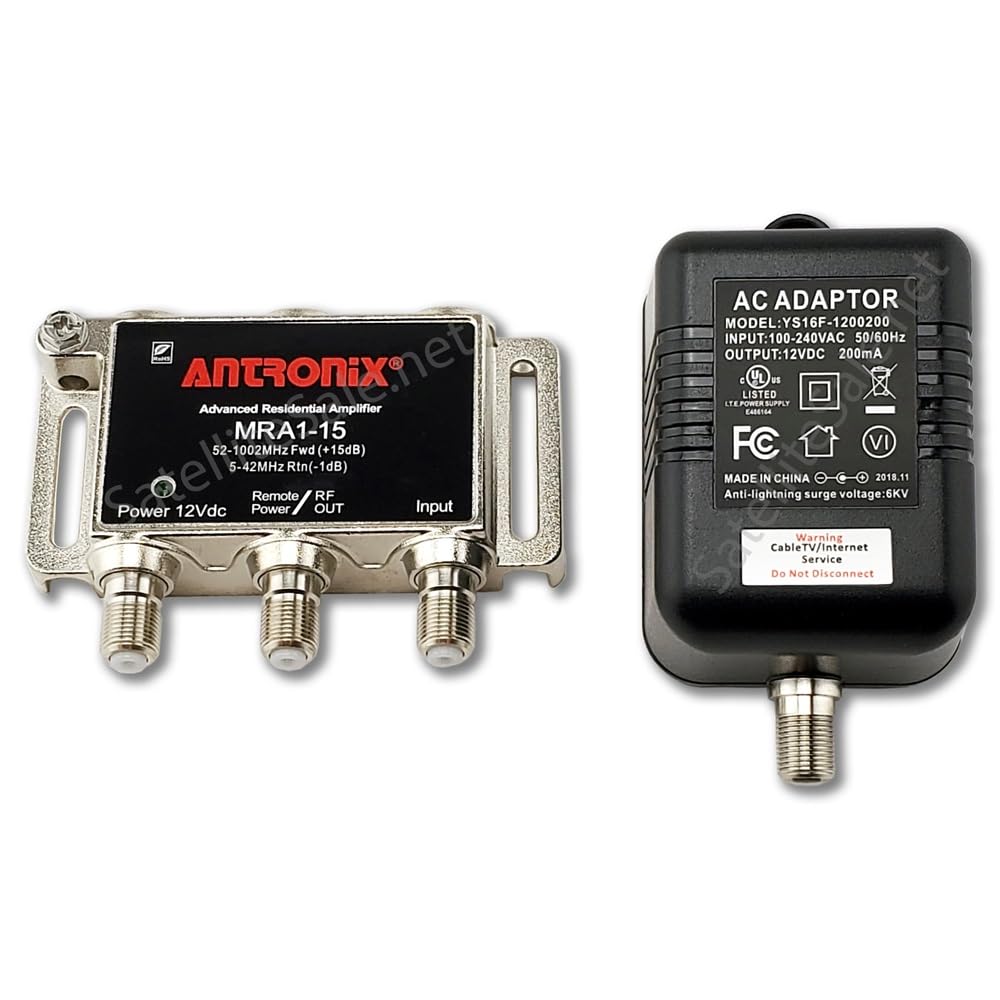

ANTRONIX Residential Amplifier MRA1-15/ACP with Power Adapter & Power INSERTER

4.1 / 5

Product ID:

140741

Identifier:

B00ASEB2SC

Brand:

ANTRONIX MRA Series

Model:

MRA1-15/AC

Shipping Weight:

0.64 lbs

Manufacturer:

ANTRONIX ®

Shipping Dimension:

4.45 x 3.9 x 3.35 inches

Share on Social Media

Share on Facebook

Share on X

Share on Instagram

Share on Tiktok

SAVE 12%

₱3,241

₱2,869

+ ₱ 217

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2025-11-21 to 2025-11-28.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

FEATURES

The micro-housing allows all output ports of the amplifier to be facing down to simplify coaxial cable wiring in NID enclosures or small spaces.

Patented auto-seizing F-port features a “Cam Activated Mechanism” to provide full contact pressure (>2,000 grams) on the center conductor for maximum reliability.

True 5-42 MHz return band and full 1 GHz downstream spectrum for more useable bandwidth.

Unique surge protection on all ports without the use of arc gaps which may cause high impulse noise during discharge.

Self-resetting circuit protection provides safe protection against short-circuits to minimize maintenance costs.

DESCRIPTIONS

The Antronix MicroAmp provides subscriber premise amplification in a small convenient package. The one output micro-housing allows all ports of the amplifier to be facing down to simplify coaxial cable wiring in NID enclosures or small spaces. Our patented CamPort provides the only auto-seizing F-port for maximum contact area and reliability for multimedia applications. Ideal for both indoor and outdoor applications, the MRA was engineered to withstand the harshest environmental threats with the capability of enduring repeated high power surges. Micro-Housing Our micro-housing offers the convenience of a small package without sacrificing performance. Port Configuration Ideal for NID Enclosures The micro-housing allows all output ports of the amplifier to be facing down to simplify coaxial cable wiring in NID enclosures or small spaces. CamPort Auto-Seizing F-port Patented auto-seizing F-port features a Cam Activated Mechanism to provide full contact pressure (2,000 grams) on the center conductor for maximum reliability. 3 dB Noise Figure Provides clean amplification of weak signals to overcome the poor noise figure in TV tuners and converters. 6 kV Combination Wave Surge Protection Unique surge protection on all ports without the use of arc gaps which may cause high impulse noise during discharge. 15 psi Sealed SCTE Compliant CamPort Sealed brass CamPort prevents water migration.
