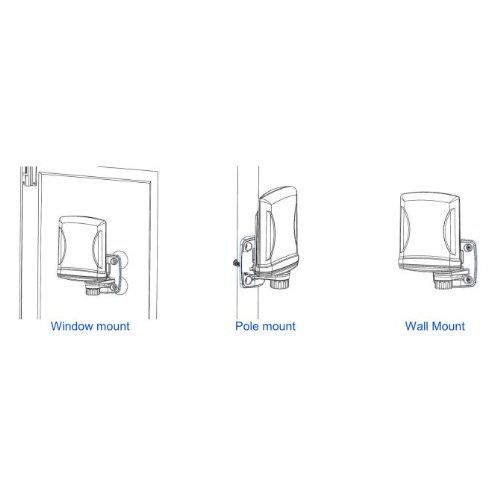

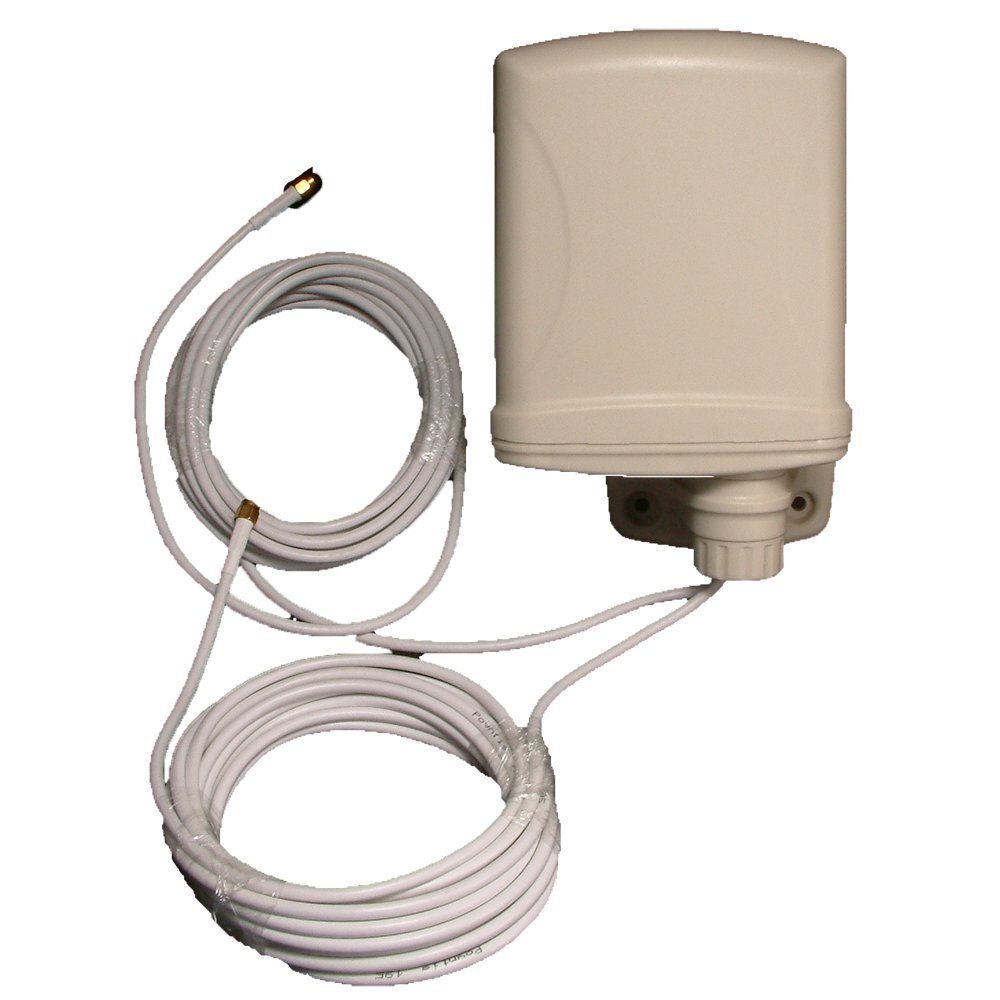

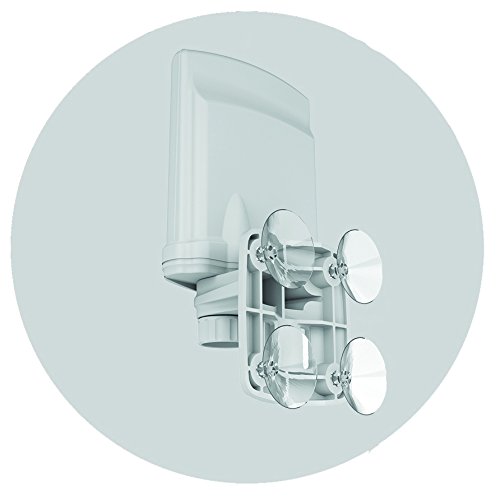

Product Description The XPOL-1, from Poynting, provides an innovative and future proof solution for 4G, 3G and 2G networks. The antenna is designed to be attached to the antenna connectors on your 4G Router. It is a unique window, wall or pole mountable antenna giving you dual polarisation in a full LTE band omnidirectional antenna. Incorporating two separately fed ultra wideband elements in a single housing, the antenna is equipped to provide client side MiMo and diversity support for the networks of today and tomorrow. Gain is min. 2 dBi across all bands: 790 – 960, 1710 – 2170, 2300-2400 and 2500 – 2700 MHz Bands. The weatherproof housing is designed for window, mast and wall mounting. For best operation this antenna should be mounted outdoors or on a window which has clear line of sight to the transmitter mast. The purpose of this antenna is to negate the signal loss due to the walls of the building by placing the antenna OUTSIDE. Optimum results will be obtained by placing the antenna outside, as high as possible and with the best line of sight to the mast. Trying to use this antenna inside will probably not help your signal. The antenna has 2 x 5 metres of low loss cable terminating in SMA Plug connectors. The XPOL-1 is NOT suitable for permanent mounting on a moving vehicle. If you are unsure as to the location of the cell tower the XPOL-1 is a great choice of omni-directional antenna. If you are sure as to where the cell tower is then the directional XPOL-2 is a great alternative to consider. It is worth noting this antenna is not suitable for the new 1400MHz channels being provided by Three. This antenna is designed to be used with a router however the router is not included. Set Contains: Poynting 4G-XPOL-A0001 Cross Polarised 4G Omni LTE Antenna
