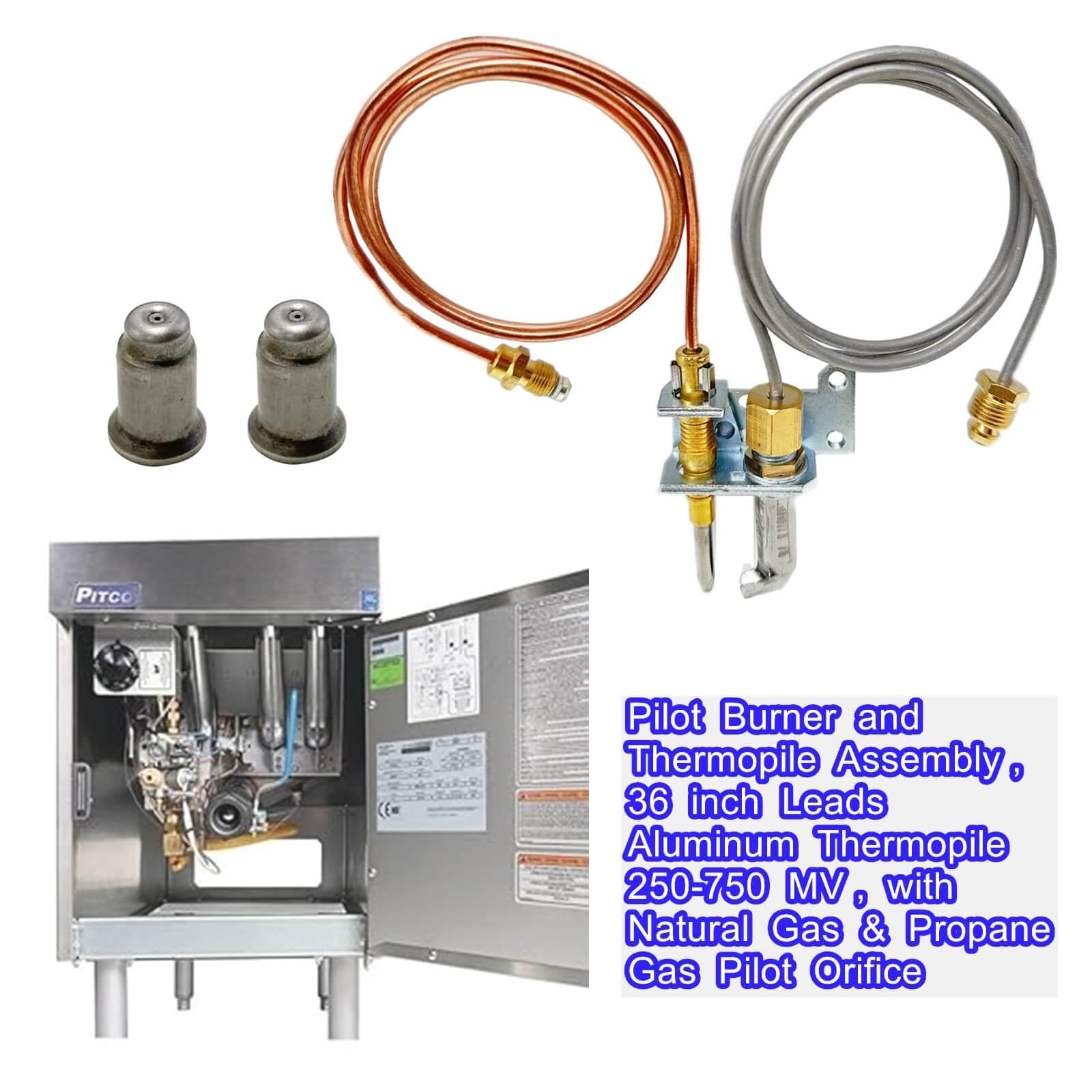

[Compatible With]: This Pilot Burner and Thermopile Assembly for All Points: 66704, 51-1467，for Robertshaw: 66704, 6CH14-10 ,for Vulcan: 00-412212-1, 112212-1, 112212-2, 412212-1, 412212-2 ,for Cecilware: F179A, F180A, 179F, F180A, F180F, GMF180A, GMF180F ,for Grindmaster: 180A, F179A, F179A/F180A, F179F, F180A, F180F ,for Imperial: 0310, 1095-16, 1095-26 ,for Royal Range: 3231, 3232 ,

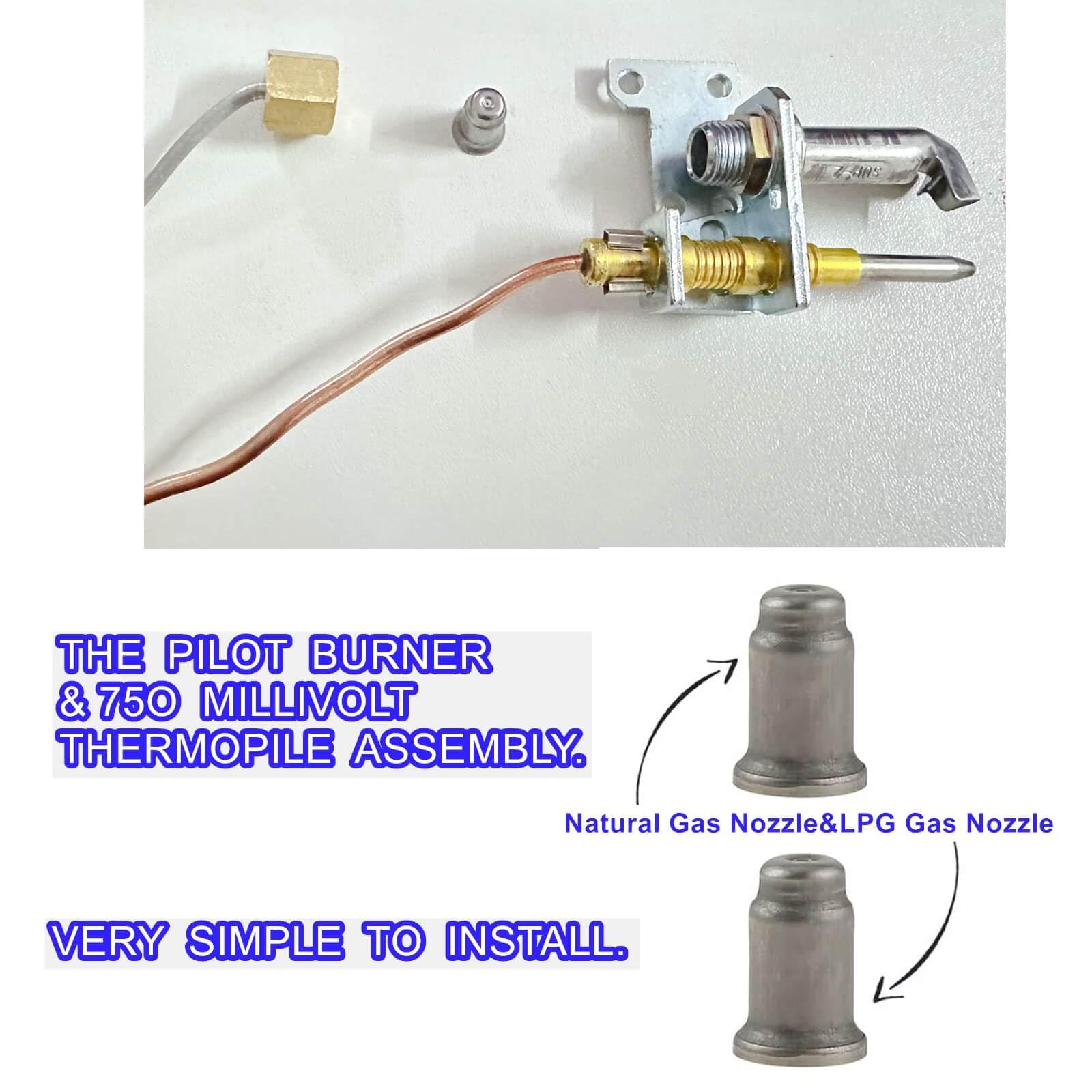

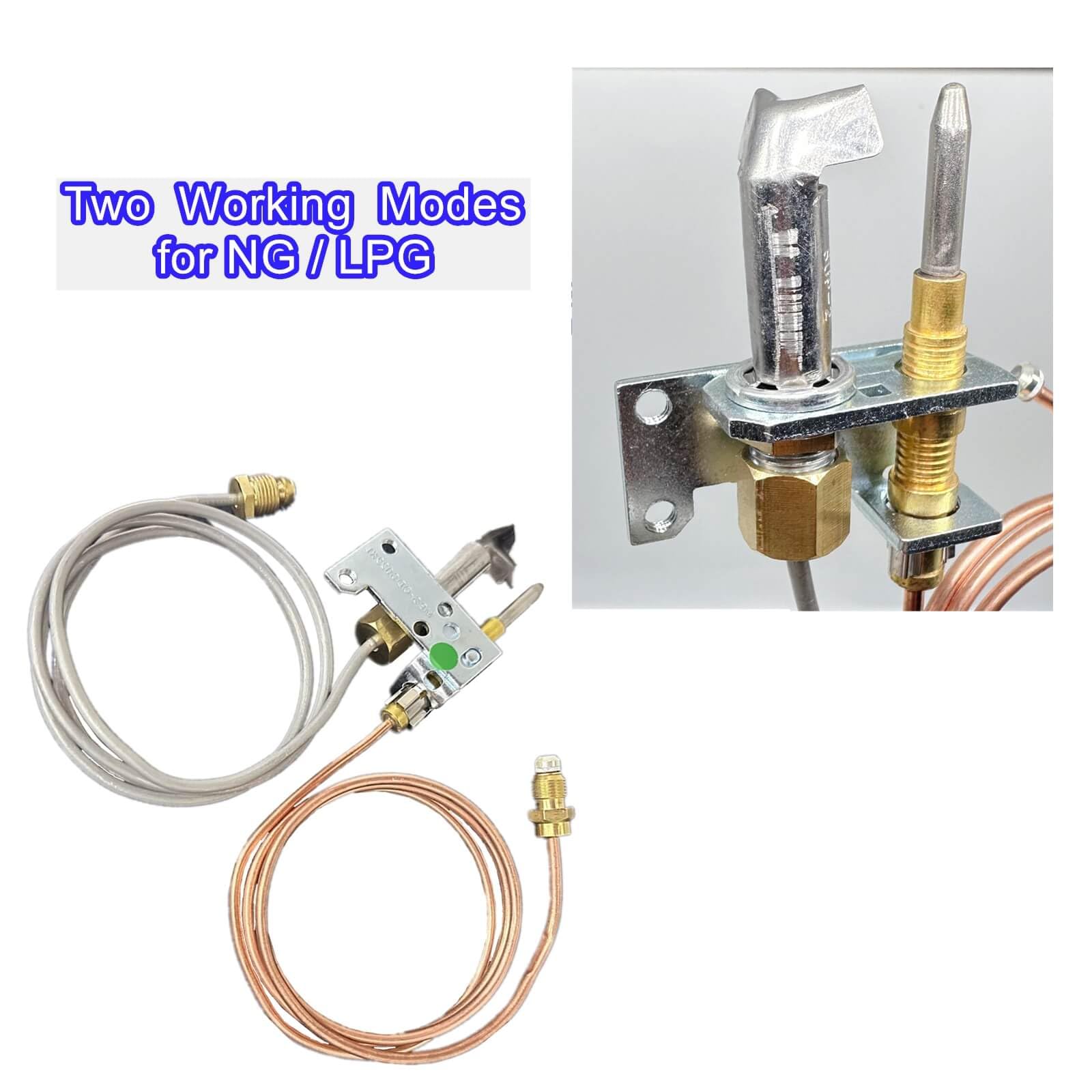

[Two Working Modes for NG/LPG]: The pilot burner assembly is designed with dual compatibility, featuring two separate nozzles for both natural gas and LPG. When you receive the assembly, it comes pre-installed with an natural nozzle, while the LPG gas nozzle is provided separately. it can be replaced according to needs.

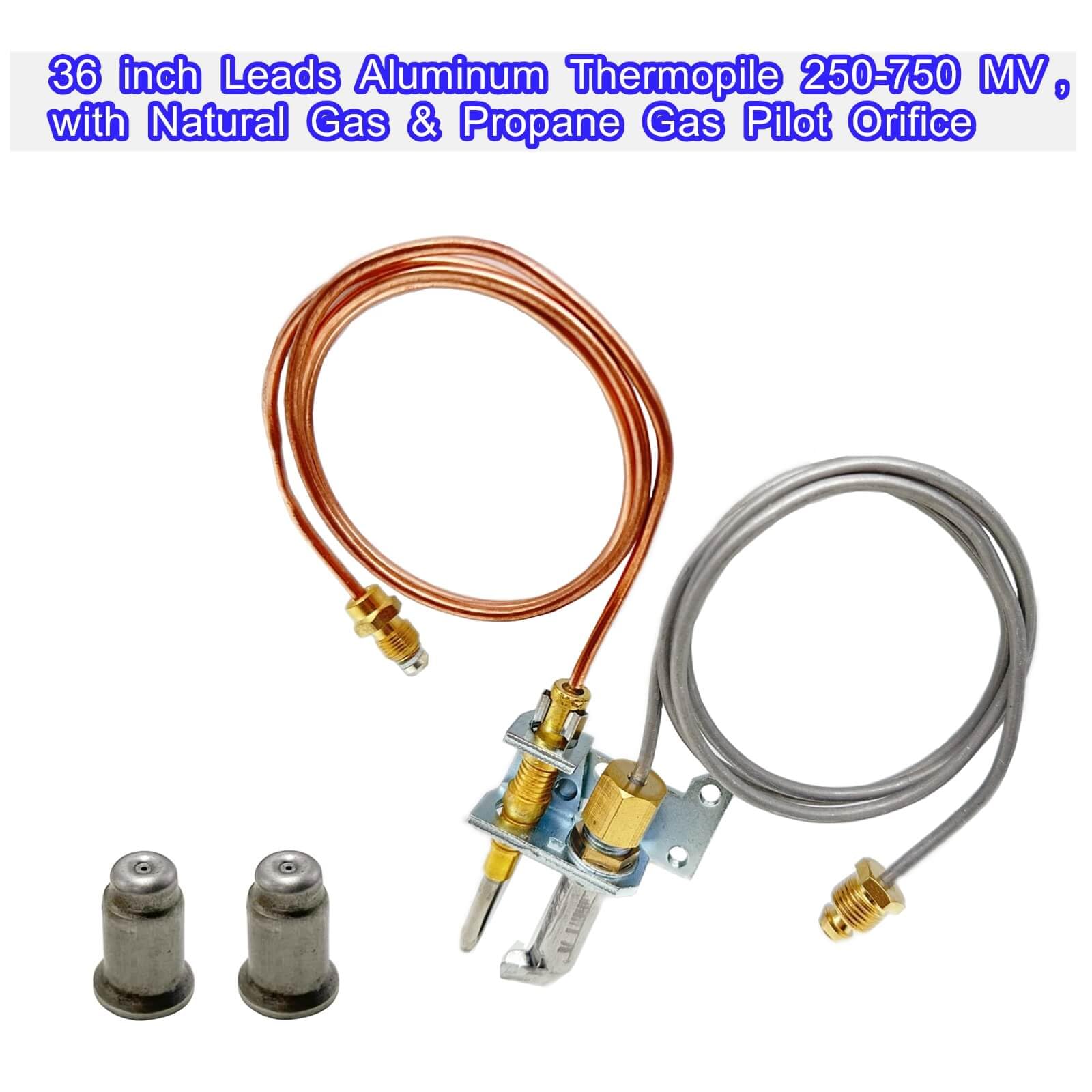

[High Quality]: This assembly features a high-quality aluminum thermopile with 250-750 MV output, providing durability and long-lasting performance for both natural gas and propane applications.

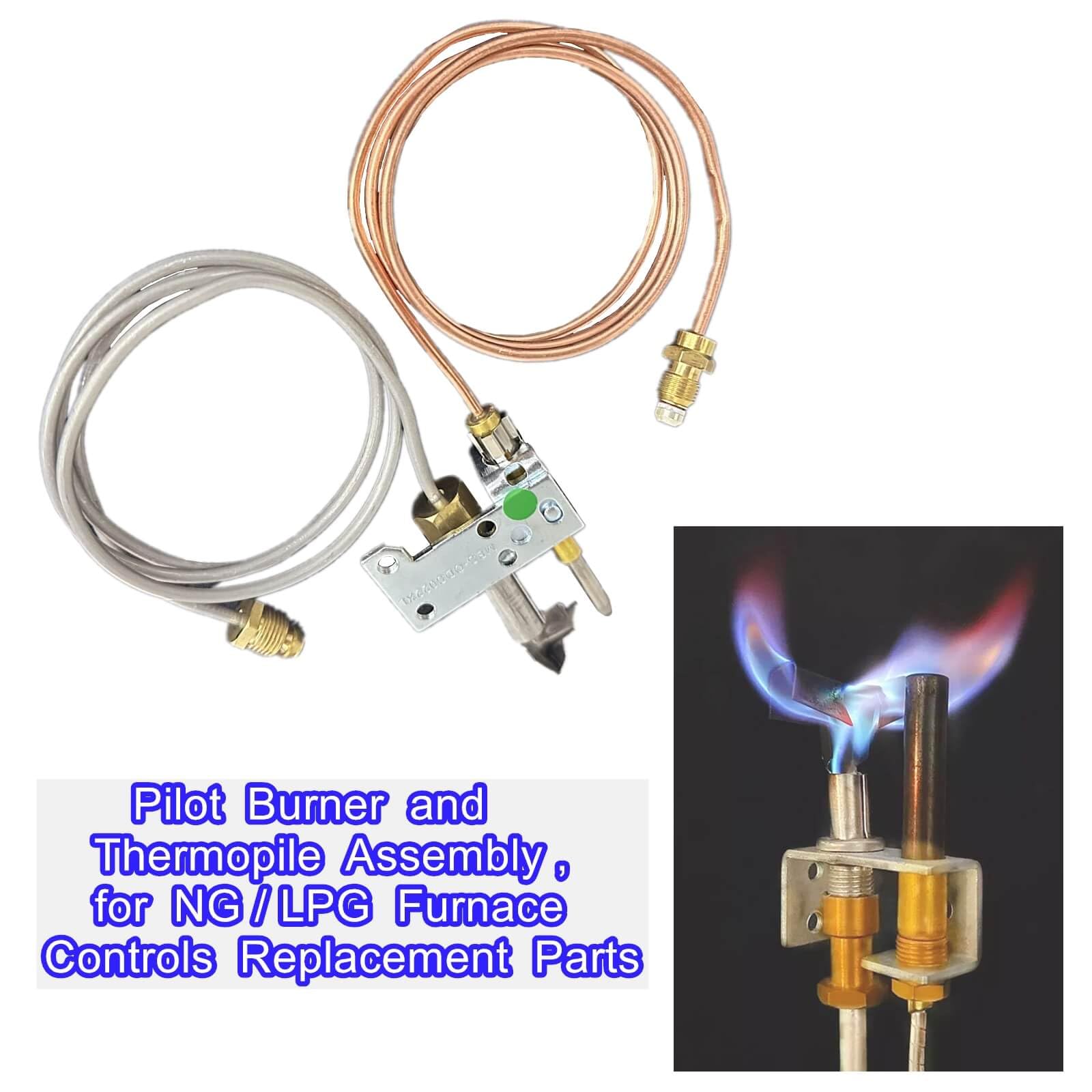

[Function]: The primary function of the pilot burner and 750mv thermopile assembly is to ensure the standing pilot light operates correctly, allowing the main burner gas to ignite properly when heat is needed. Thermopiles are used in gas applications to detect the presence of a flame, enhancing safety by shutting off the gas flow if no flame is detected.

[Installation]: The pilot burner inlet connects directly to a 1/4 inch tube, and the two lead connectors attach to other gas devices. Note: Avoid pressing or pulling hard on the wire-thermopile connection to prevent short circuits and low voltage issues.
