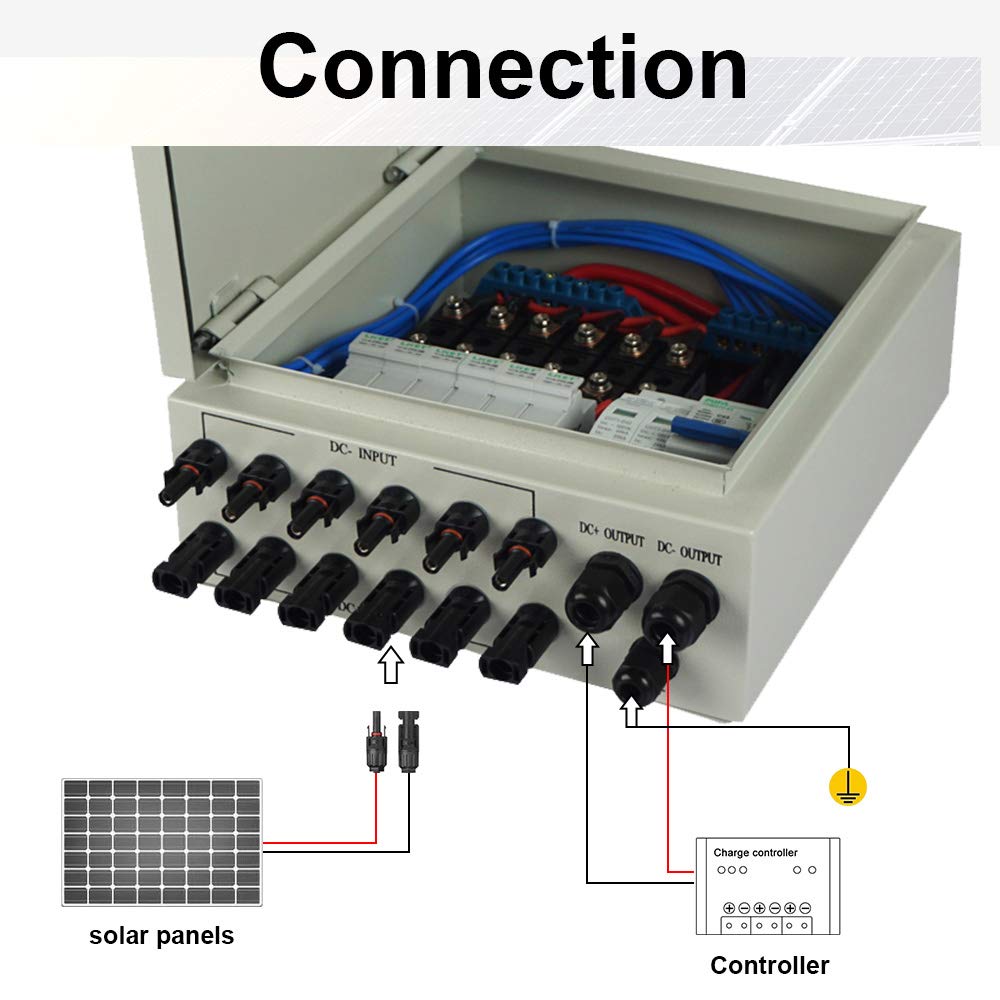

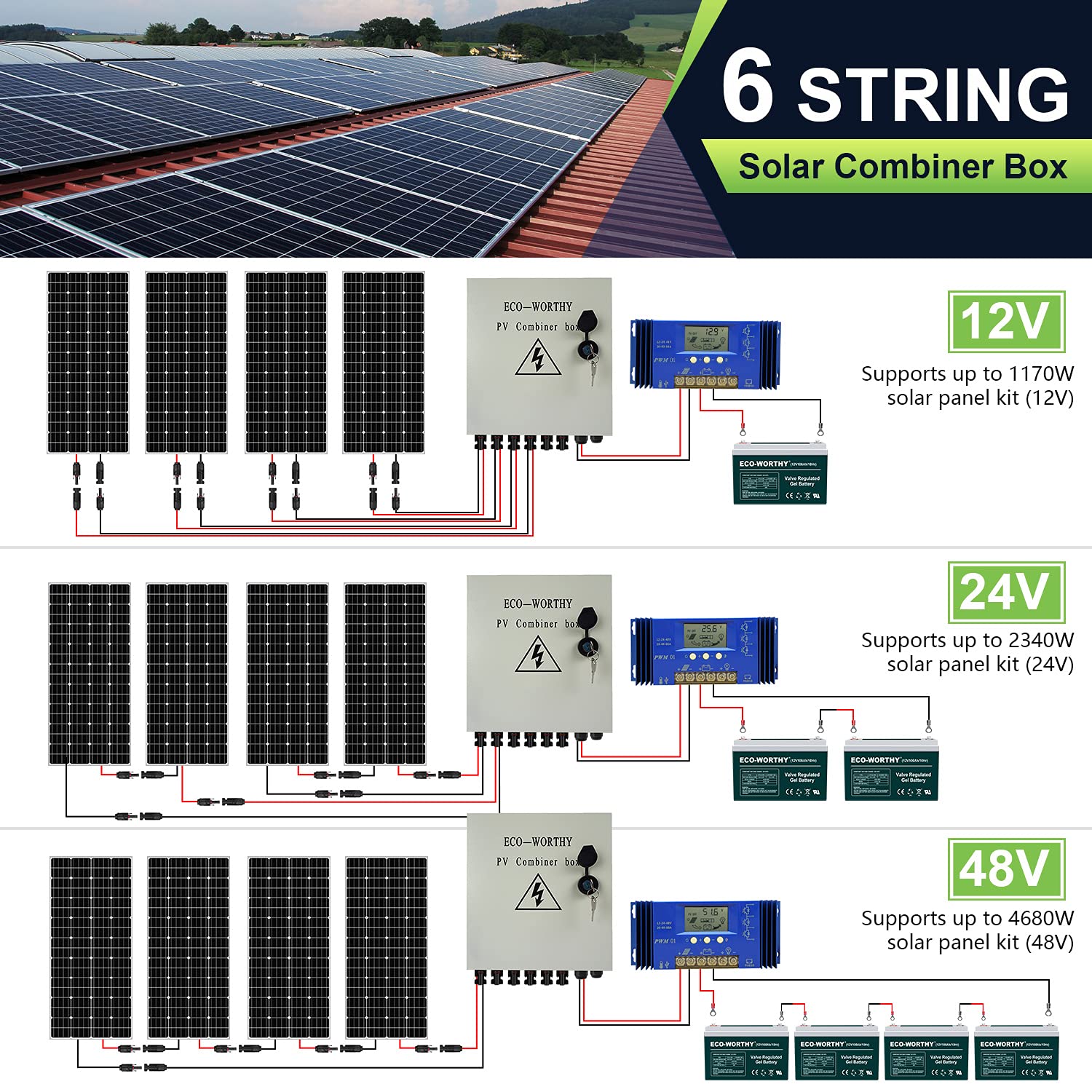

6 String Configuration, Max current of single PV input array is 10A .Each String Continuous Duty Rated at 250 Vdc.(Regardless of the specifications of the solar panels, regardless of the connection method is series or parallel, as long as the current and voltage of a single PV does not exceed 10A/250Vdc, you can connect the combiner box)

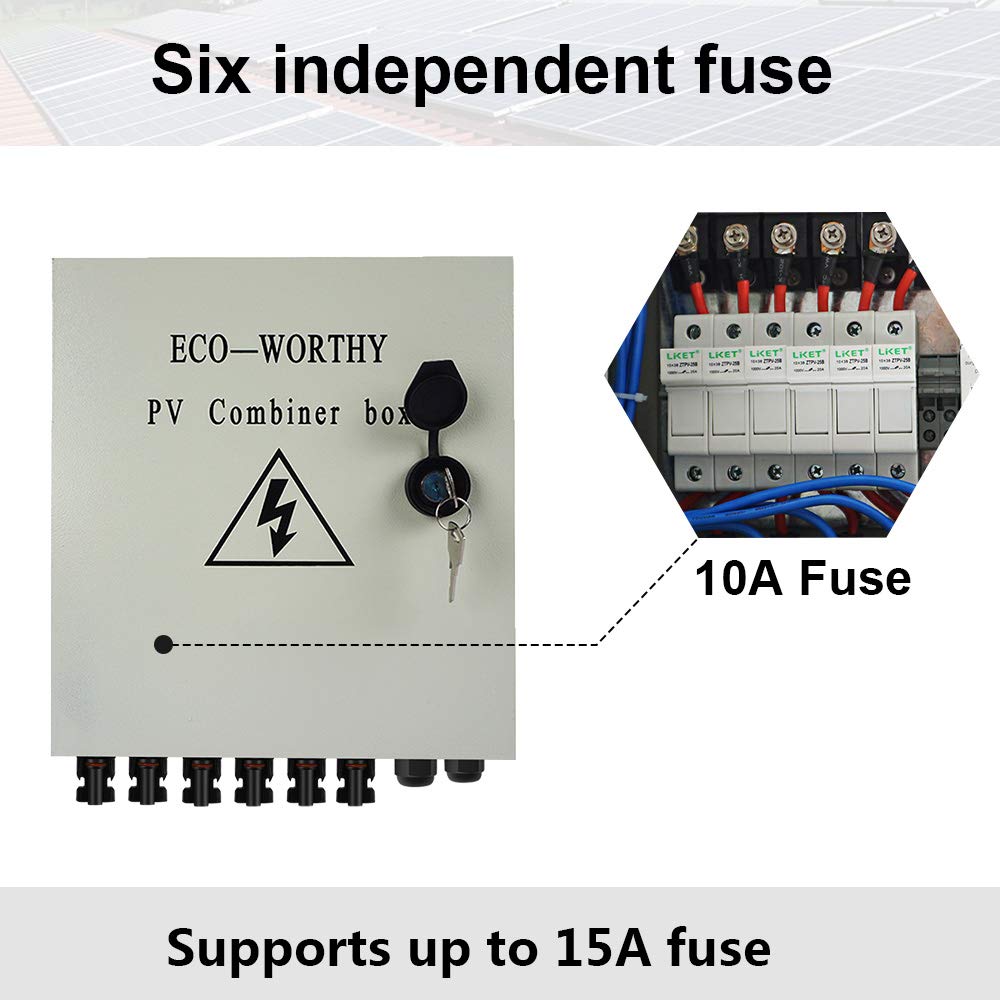

Single PV input array installs with high voltage fuse, its function over-load, over-charge protection

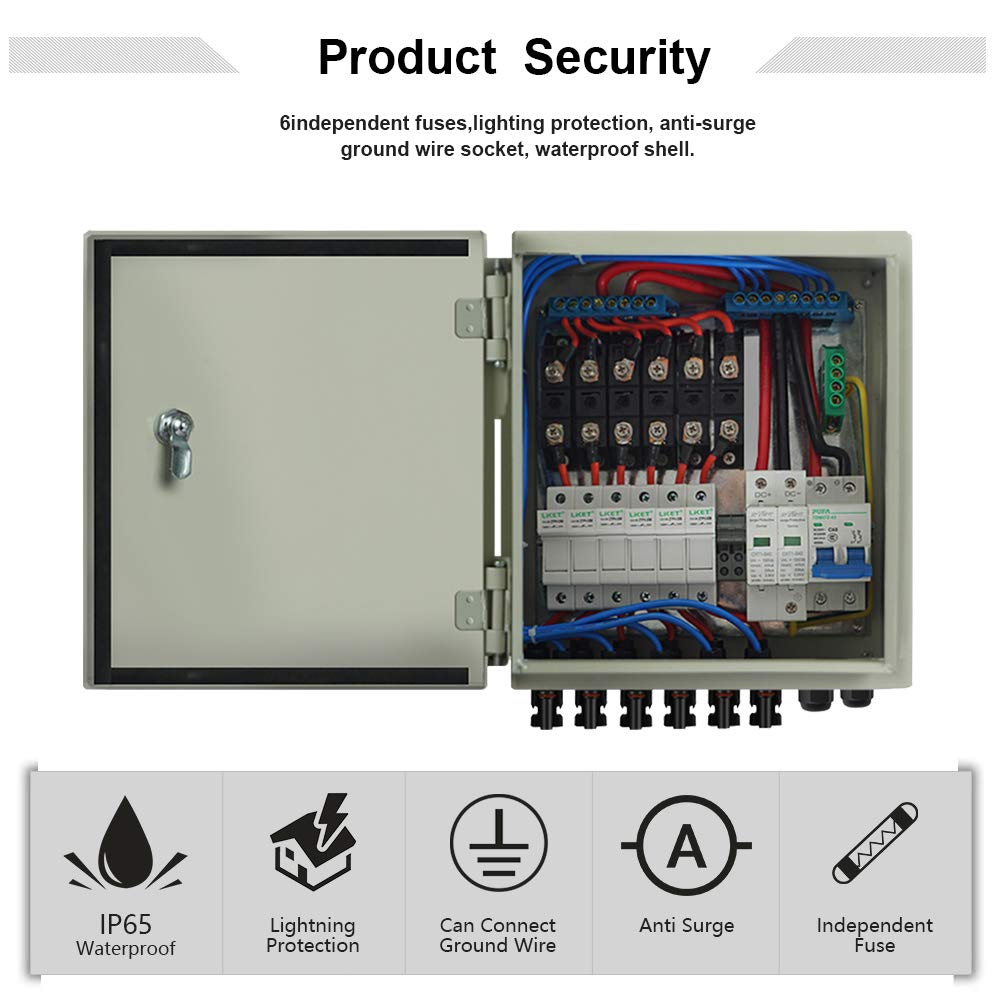

Anti-Backflow Diodes, Anti-Backflow & Anti-Reverse Protection,Touch-safe Circuit Breakers& Non-conductive Box

Professional high voltage breaker controls output, with anti-circuit protection and make the system more reliable, safety

This PV array combiner box includes Output Cable Glands & Safety Labels & Lightning/Surge Protection Module (1000V)
