Transistor Type: Power Metal-Oxide-Semiconductor Field-Effect (MOSFET) Transistor.
Transistor Polarity: N-Channel NMOS Transistor.

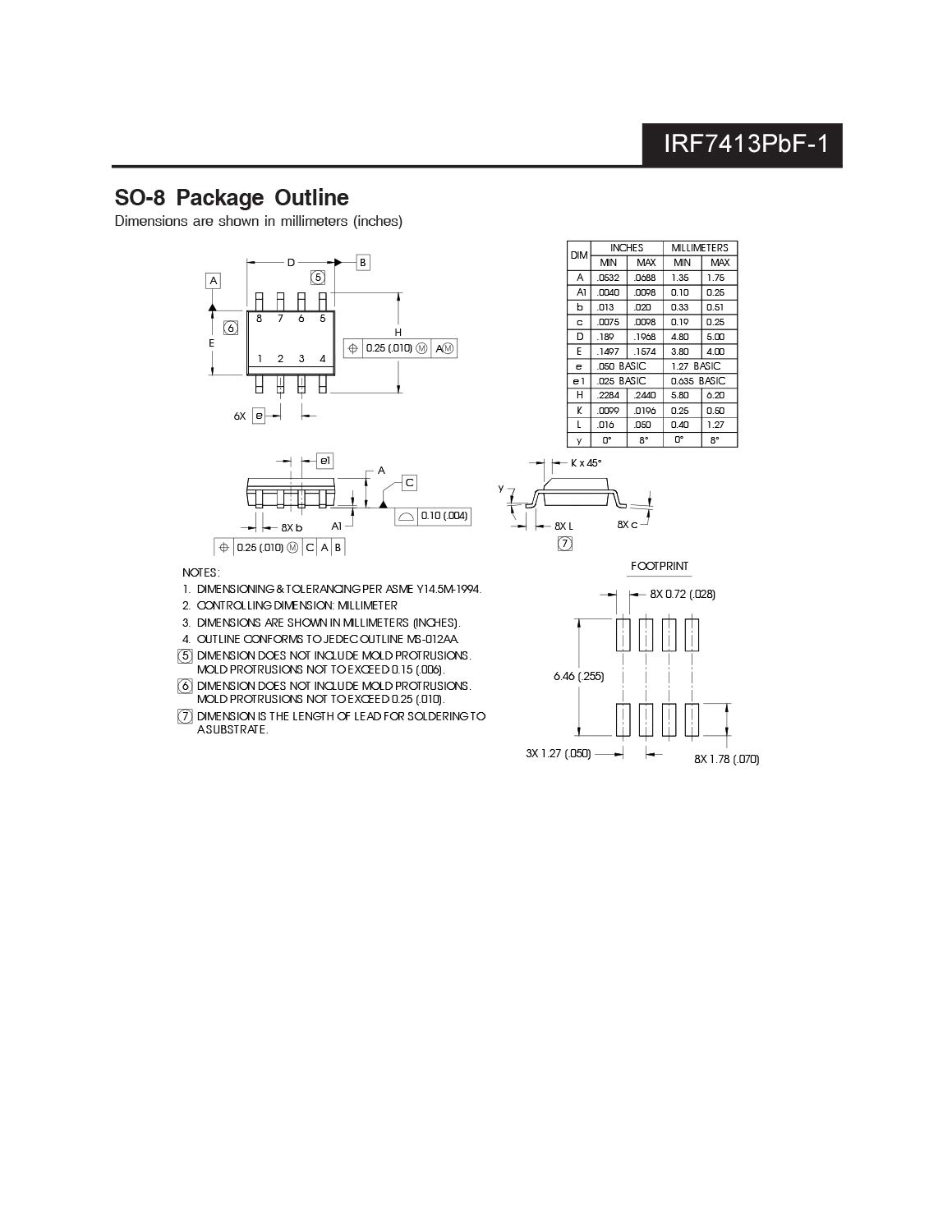

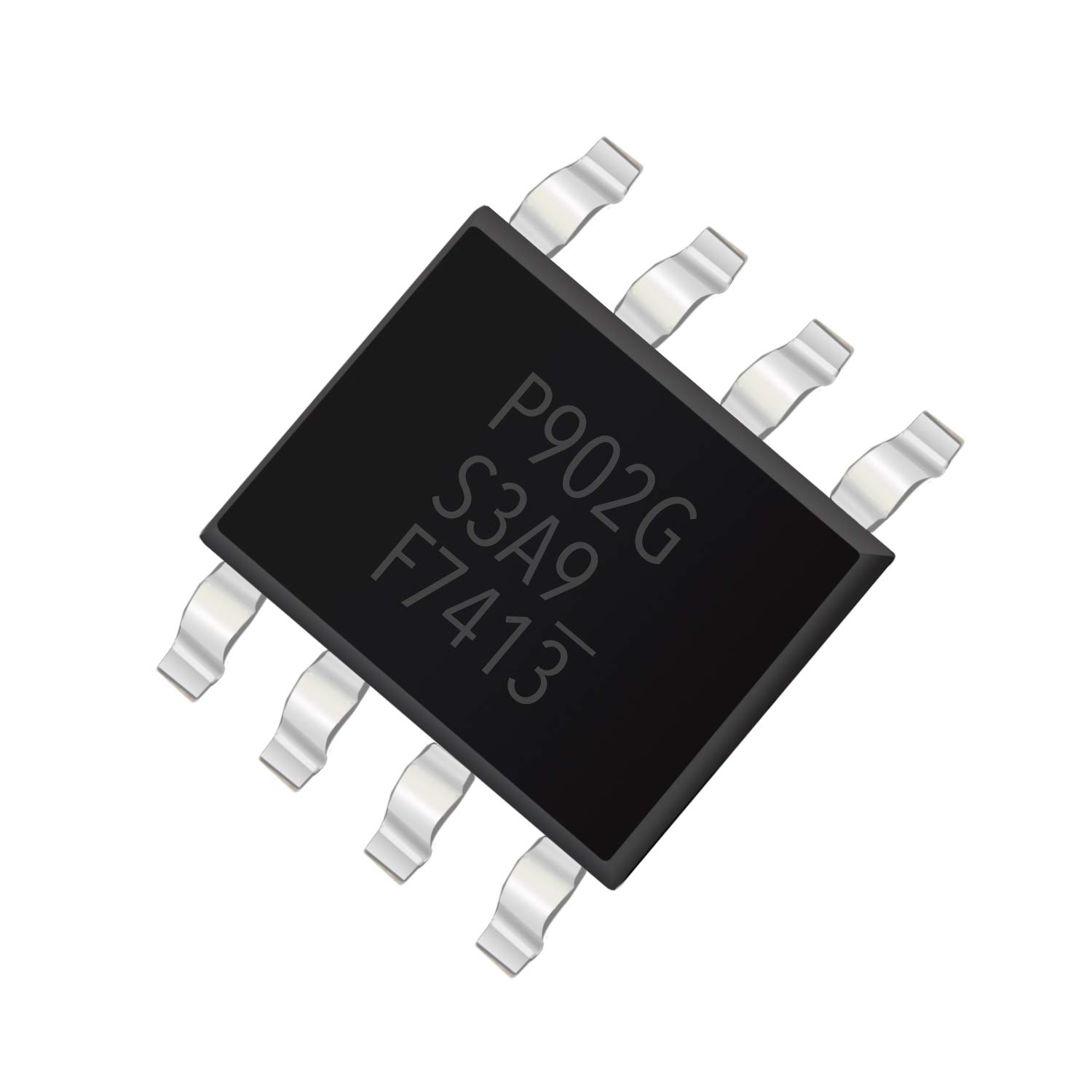

Specification: Product model IRF7413TR, advanced SOP-8 surface-mount packaging for optimal performance and space-saving.
Application: Typically used in power supply units, motor controllers, and various high-power switching and amplification applications.

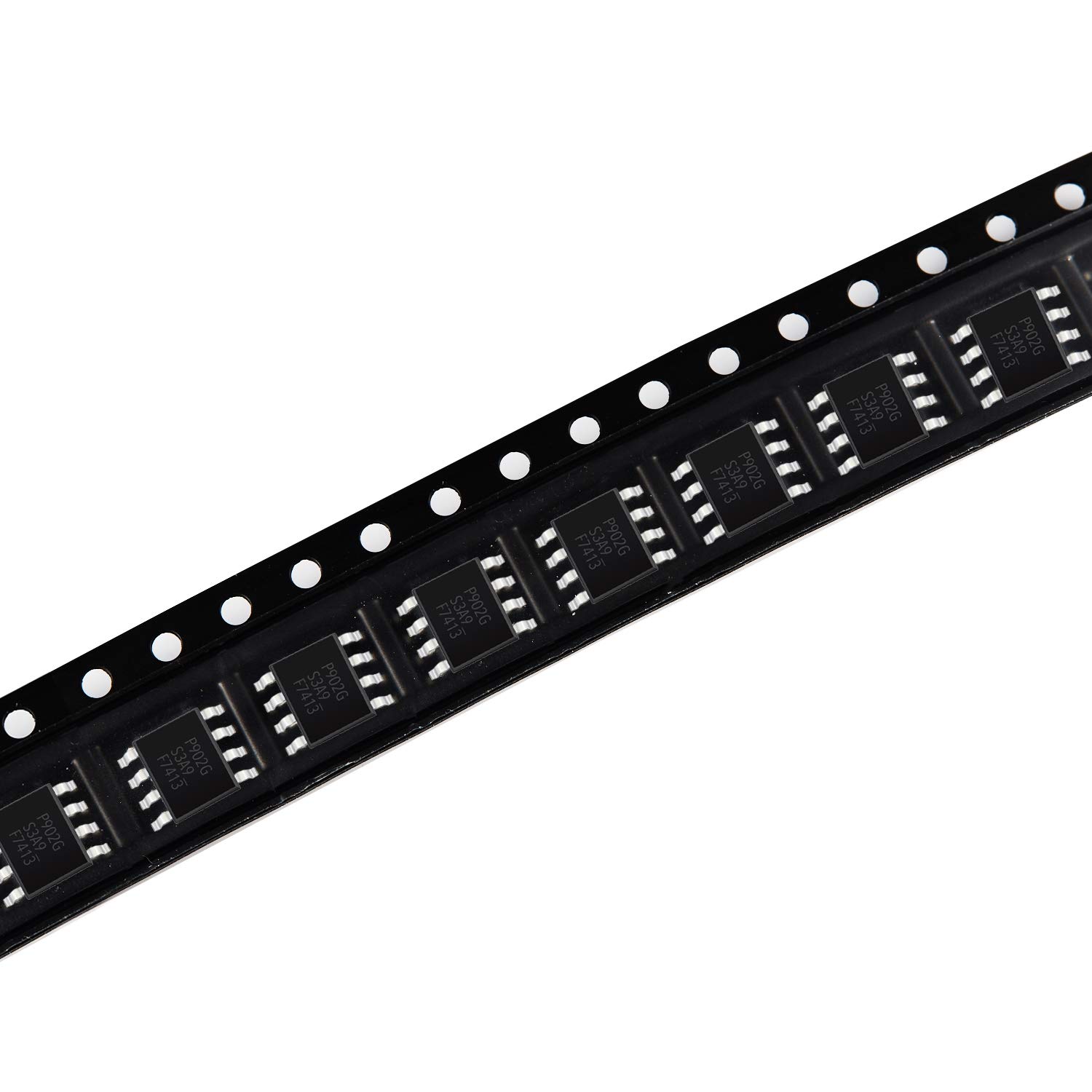

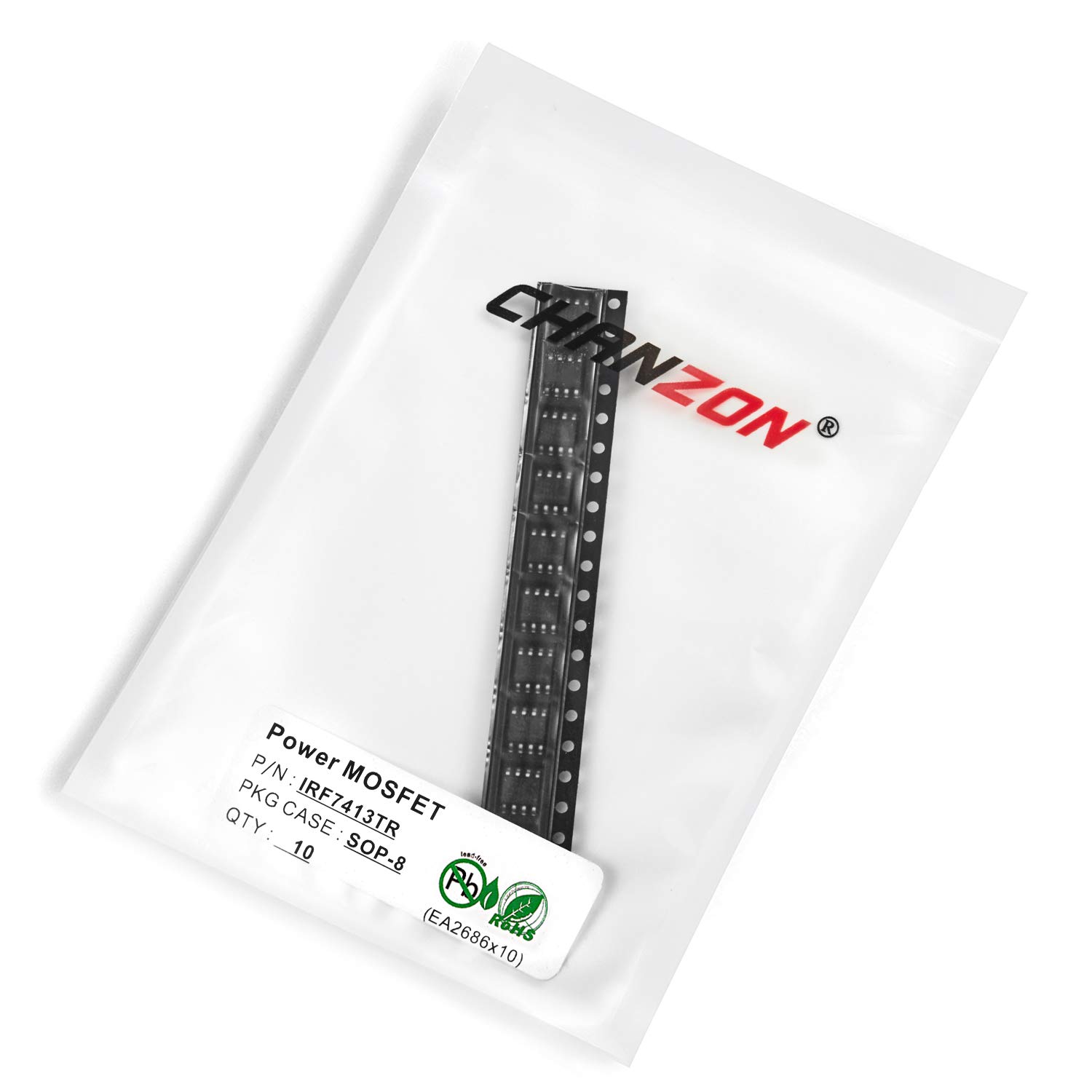

Package: Pack of 10, securely packaged in an anti-static bag for electrostatic protection and long shelf life.

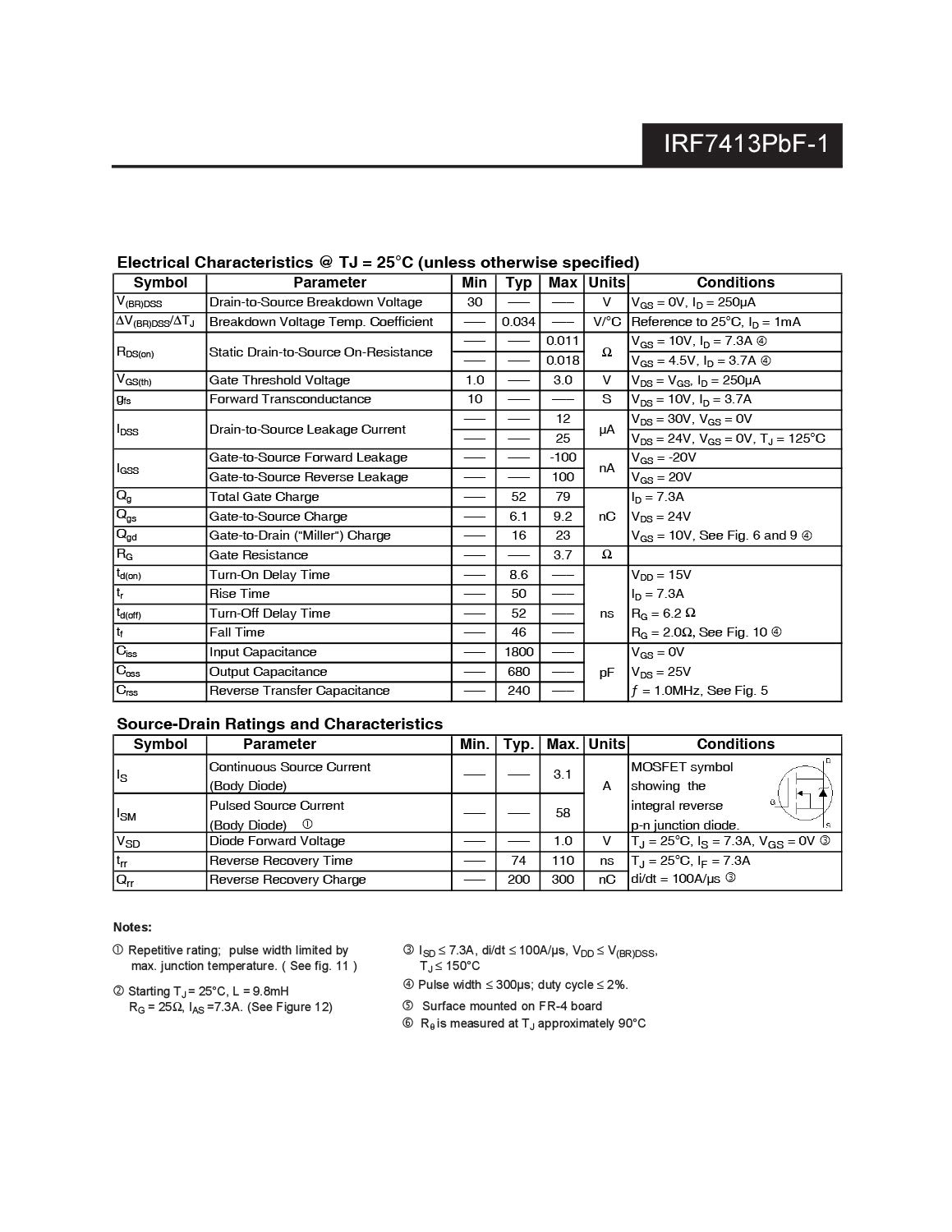

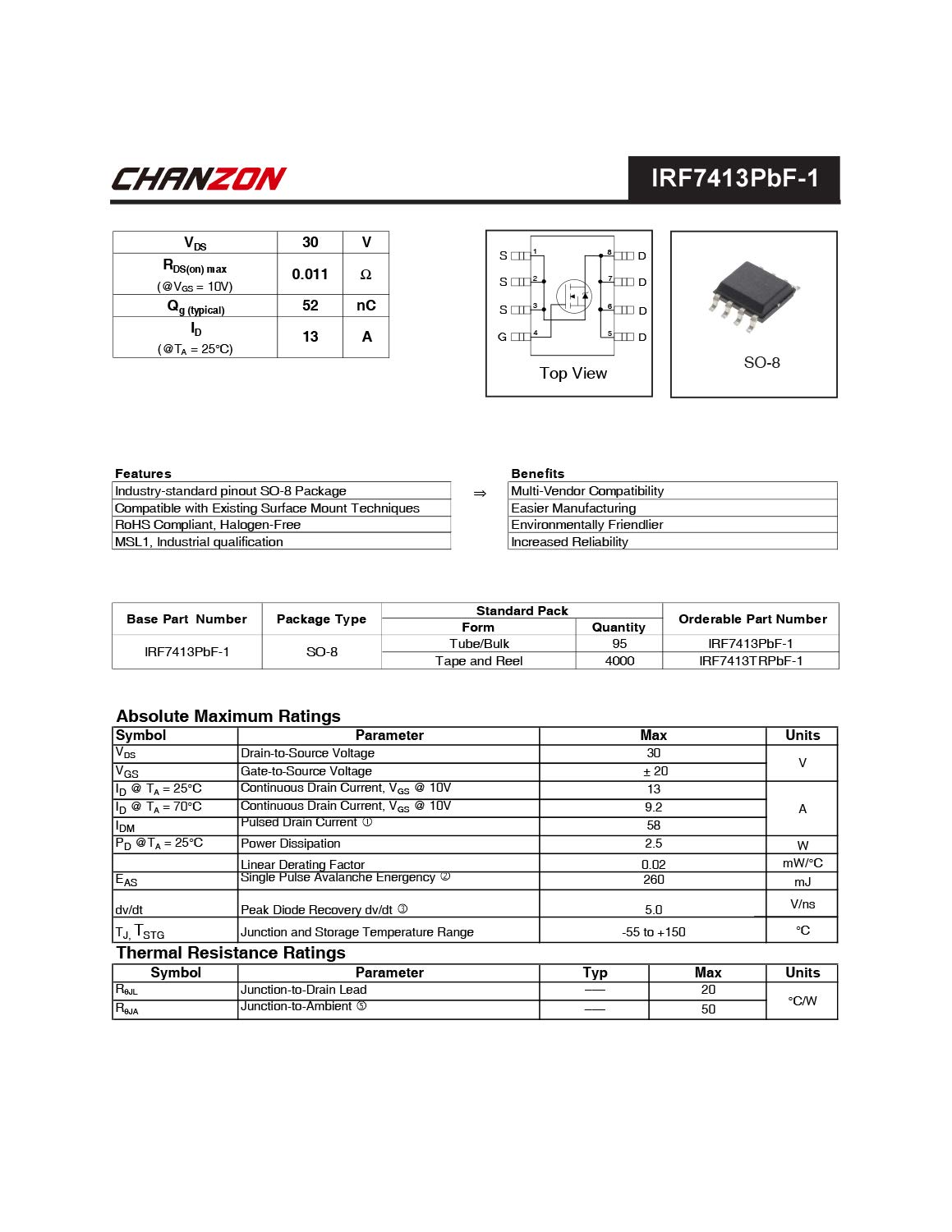

Product Description: This high-performance N-channel Power MOSFET is designed for high-efficiency power applications. It features a robust SO-8 package for compatibility with existing surface mount techniques and is RoHS compliant, ensuring environmental friendliness. Key Features: - Multi-Vendor Compatible with Industry-standard Pinout - Easier Manufacturing and Increased Reliability with MSL1 Qualification - Environmentally Friendly: RoHS Compliant and Halogen-Free Electrical Characteristics: - Drain-to-Source Voltage (VDS): Max 30V - Gate-to-Source Voltage (VGS): Operating range from -55°C to +150°C - Continuous Drain Current (ID): Up to 13A at 25°C, VGS @ 10V - Drain-to-Source On-Resistance (RDS(on)): Max 0.011Ω at VGS = 10V - Gate Charge (Qg): Typical 52nC - Turn-on Delay Time (td(on)): Typically 8.6ns - Rise Time (tr): Typically 50ns - Turn-off Delay Time (td(off)): Typically 52ns - Fall Time (tf): Typically 46ns - Input Capacitance (Ciss): Up to 1800pF - Output Capacitance (Coss): Up to 680pF - Reverse Transfer Capacitance (Crss): Up to 240pF Thermal Performance: - Junction-to-Ambient Thermal Resistance (RθJA): Max 50°C/W - Junction and Storage Temperature Range: -55 to +150°C Avalanche Energy: - Single Pulse Avalanche Energy (EAS): Up to 260mJ - Peak Diode Recovery dv/dt: Up to 200V/ns
