irhapsody 5 Pack 40/30 AMP 12V DC Waterproof Relay Kit with Heavy-Duty Pigtail, 5-PIN SPDT Automotive Relay

4.7 / 5

Available Options

5 Pack, 13 ₱2,624.00 Waterproof Relays With Diode ₱2,624.00

SAVE 14%

₱2,989

₱2,624

+ ₱ 552

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2025-11-19 to 2025-11-26.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

DETAILS

Product ID:

264975

Copy Link

Identifier:

B074FSZWVT

Brand:

iRhapsody

Model:

Shipping Weight:

1.23 lbs

Manufacturer:

IRHAPSODY

Shipping Dimension:

10.35 x 5.2 x 2.01 inches

FEATURES

Never go beyond its capabilities. Try to stay 10 to 15% below what the rate is for

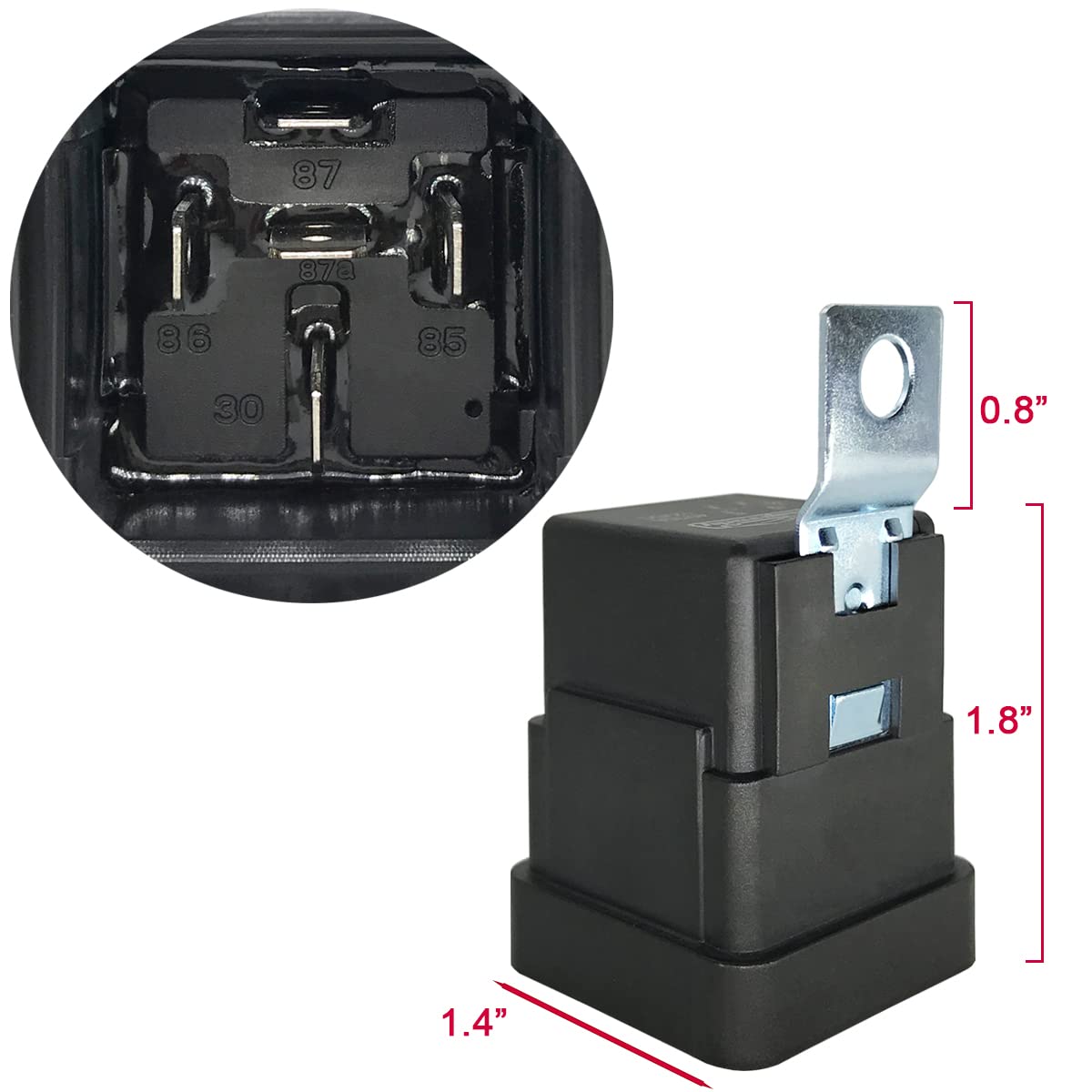

12-volt 5-prong relay. Excellent water-repellent and dustproof ability, but not using it in water

Be careful when inserting the relay into the socket. If you force it, you will bend the female connectors

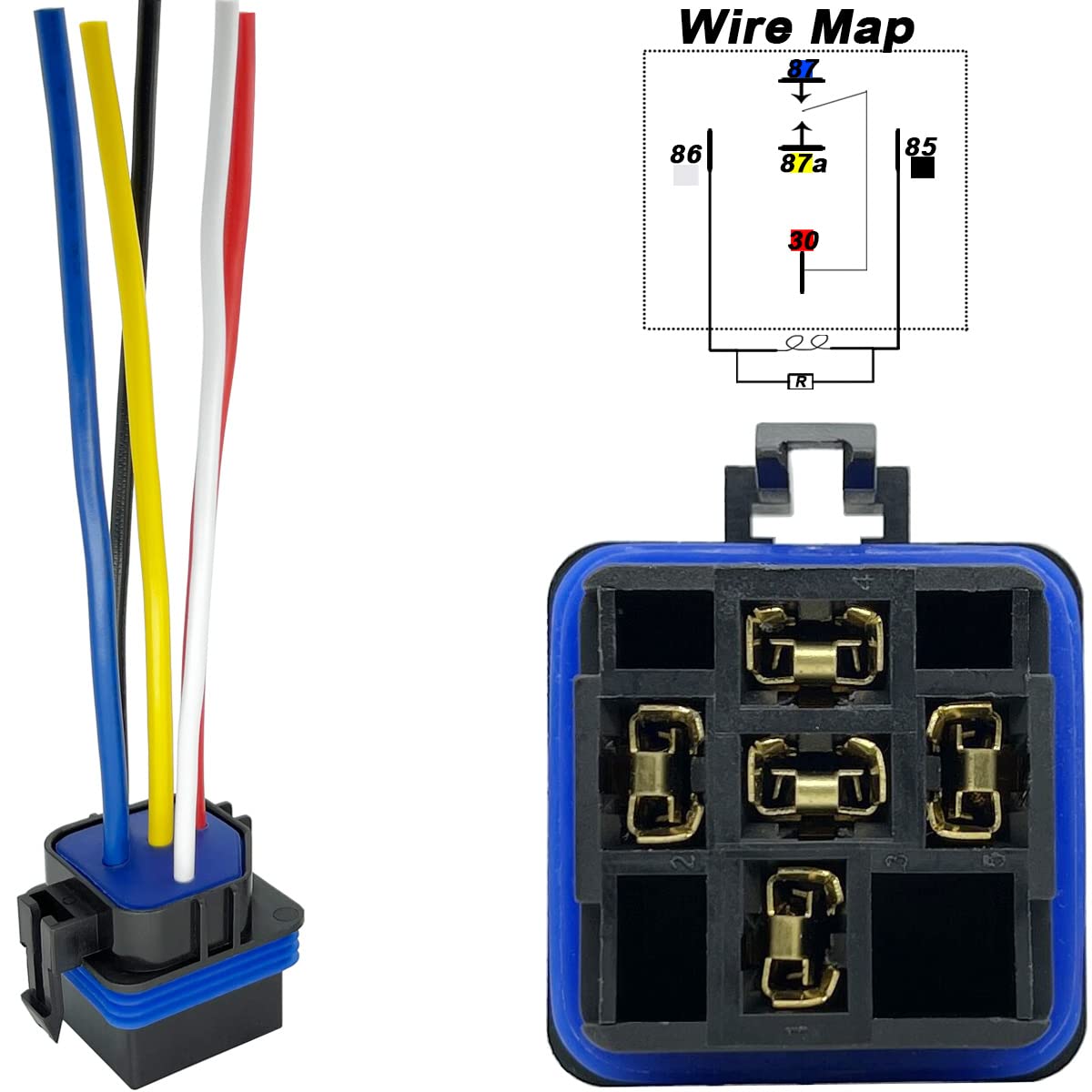

Primary leads use 12 a.w.g tinned copper wire. Coil leads use 16 a.w.g

Nominal Coil Voltage: 12 V DC; Coil Power: 1.8 W; Coil Resistance: 80 Ω; Must Operate Voltage: 6~8 V DC; Must Release Voltage: 0.6~3.6 V DC; Maximum Applied Voltage: 15.6 V DC

DESCRIPTIONS

Nominal Coil Voltage: 12 V DC Coil Power: 1.8 W Coil Resistance: 80 Ω Must Operate Voltage: 6~8 V DC Must Release Voltage: 0.6~3.6 V DC Maximum Applied Voltage: 15.6 V DC Contact Ratings: NO 40A 14V DC Contact Resistance: 100mMAX (at6VDC 1A) Max Switching Current: 40A Max Switching Power: 560 W Life Expectancy Electrical: 100,000 Operations (at30 Operations/minute) Life Expectancy Machanical: 10,000,000 Operations Temperature Range: -30 ~ +80 degrees Celsius Vibration Resistance: 10~55Hz, 1.5mm Shock Resistance: Operations Extremes: 10g. Damage Limits: 100g Hunidity: 40% ~ 85% Insulation Resistance: 100mΩ Min at500VDC Dielectric Strength Between Open Contacts: 500VAC (for one minute/sec) Between Contactw and coil: 750AC (for one minute/sec) Operate Tice: 7ms Release Tice: 5ms Package Content: 5 x 12VDC waterproof relay kit
