Shikiy Dial Indicator Torque Wrench Indicating Torquemeter Torque Testing 0-100n.m Watch Dial 1/2 Torque Wrench Needle Indicator Cursor Tool High Precision Spanner ± 3% Accuracy for Machining Field

Product ID:

127259

Identifier:

B0CSDHVNCW

Brand:

Shikiy

Model:

Shipping Weight:

0 lbs

Manufacturer:

Shikiy

Shipping Dimension:

0 x 0 x 0 inches

Share on Social Media

Share on Facebook

Share on X

Share on Instagram

Share on Tiktok

Price of this item is not available.

FEATURES

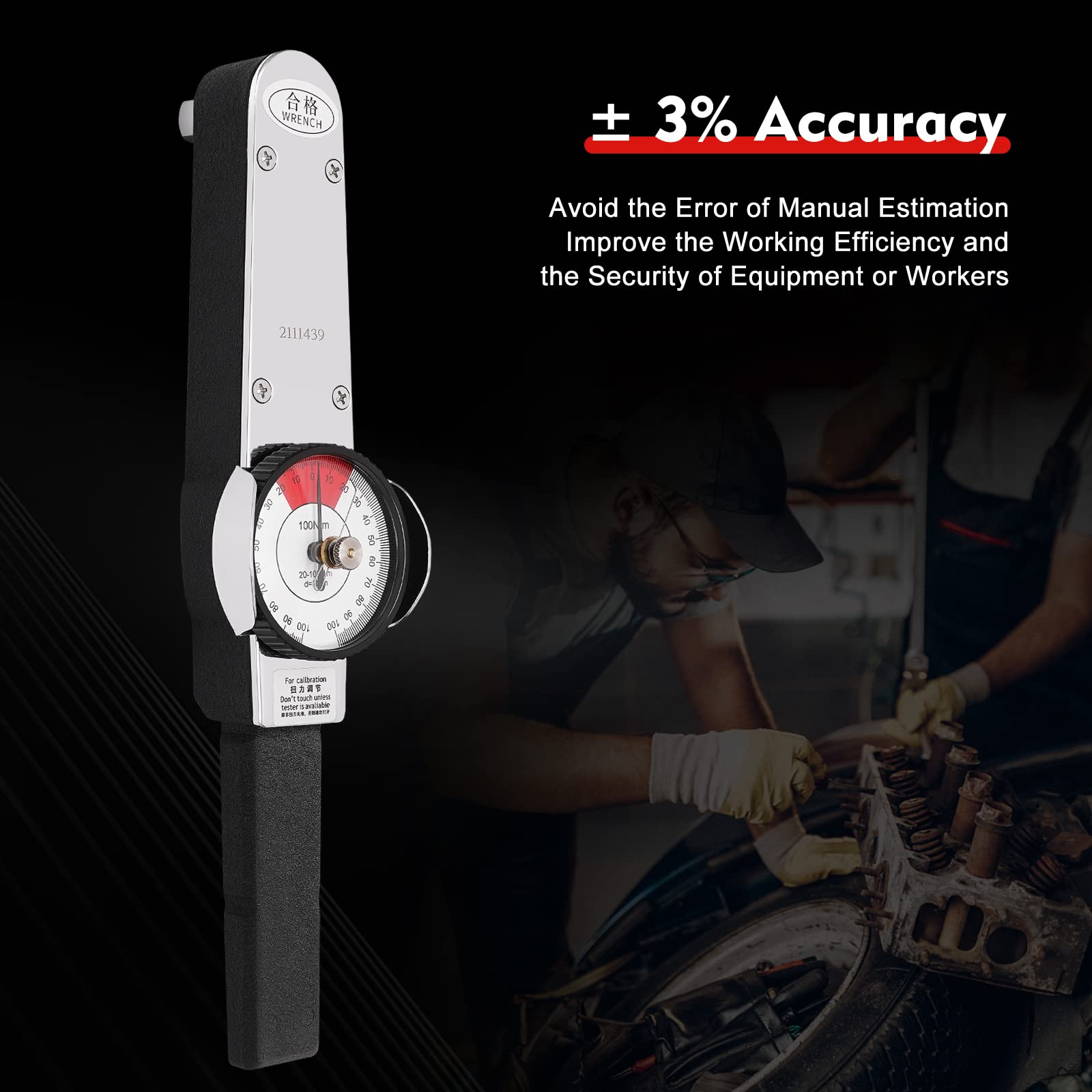

【High Accuracy】— The accuracy is up to ± 3%, which avoids the error of manual estimation to improve the working efficiency and enhances the security of equipment or workers.

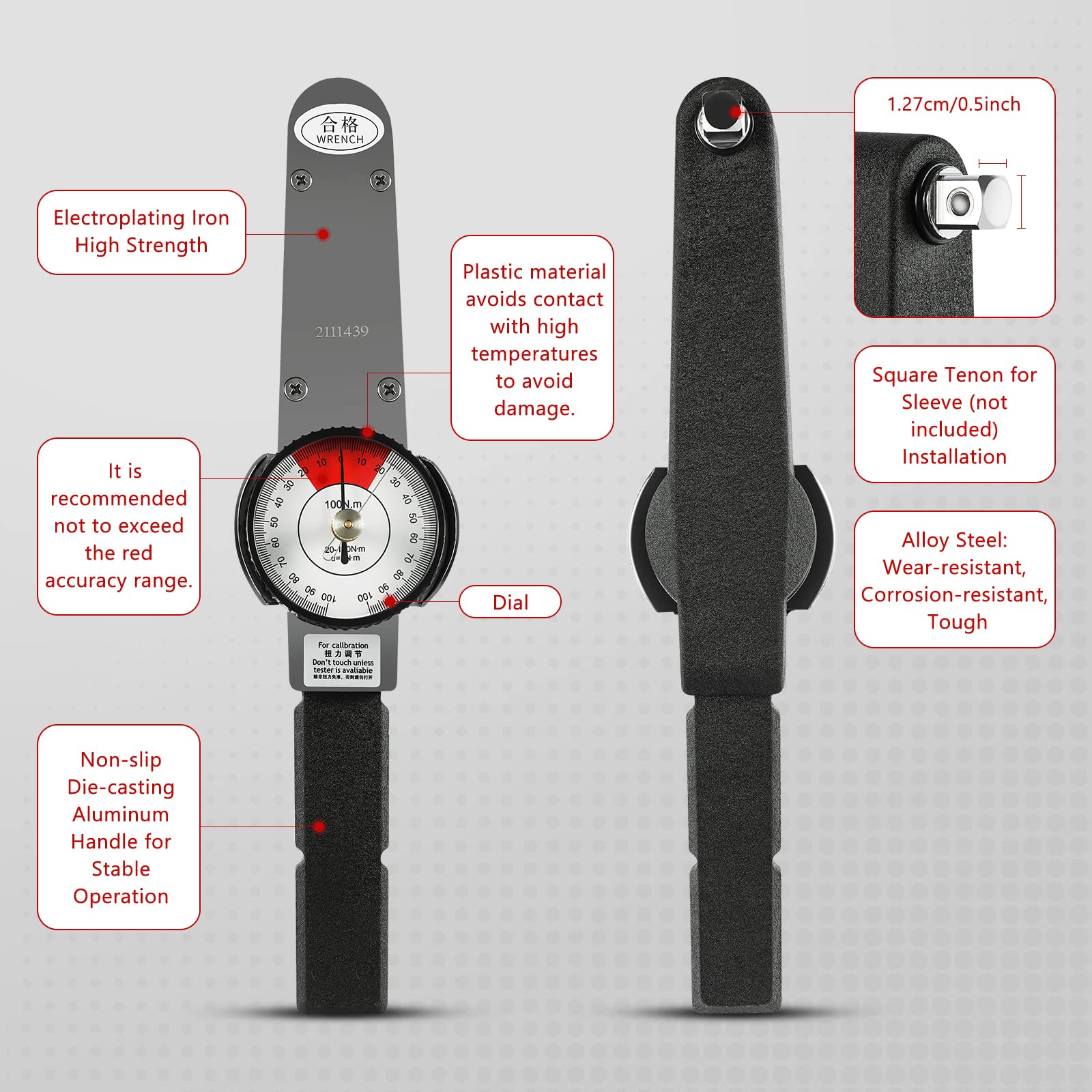

【Sleeve&Screws Replaceable】— It is easy to adapt to a wider range of usage scenarios by changing different sleeves and screws, such as hexagon sleeve, cross sleeve, one-shaped sleeve, external hexagon sleeve; external hexagon screw, internal hexagon screw, cross head screw, one-shaped screw on the square mortise and tenon. The sleeves and screws are not included, so you need to purchase them yourself.

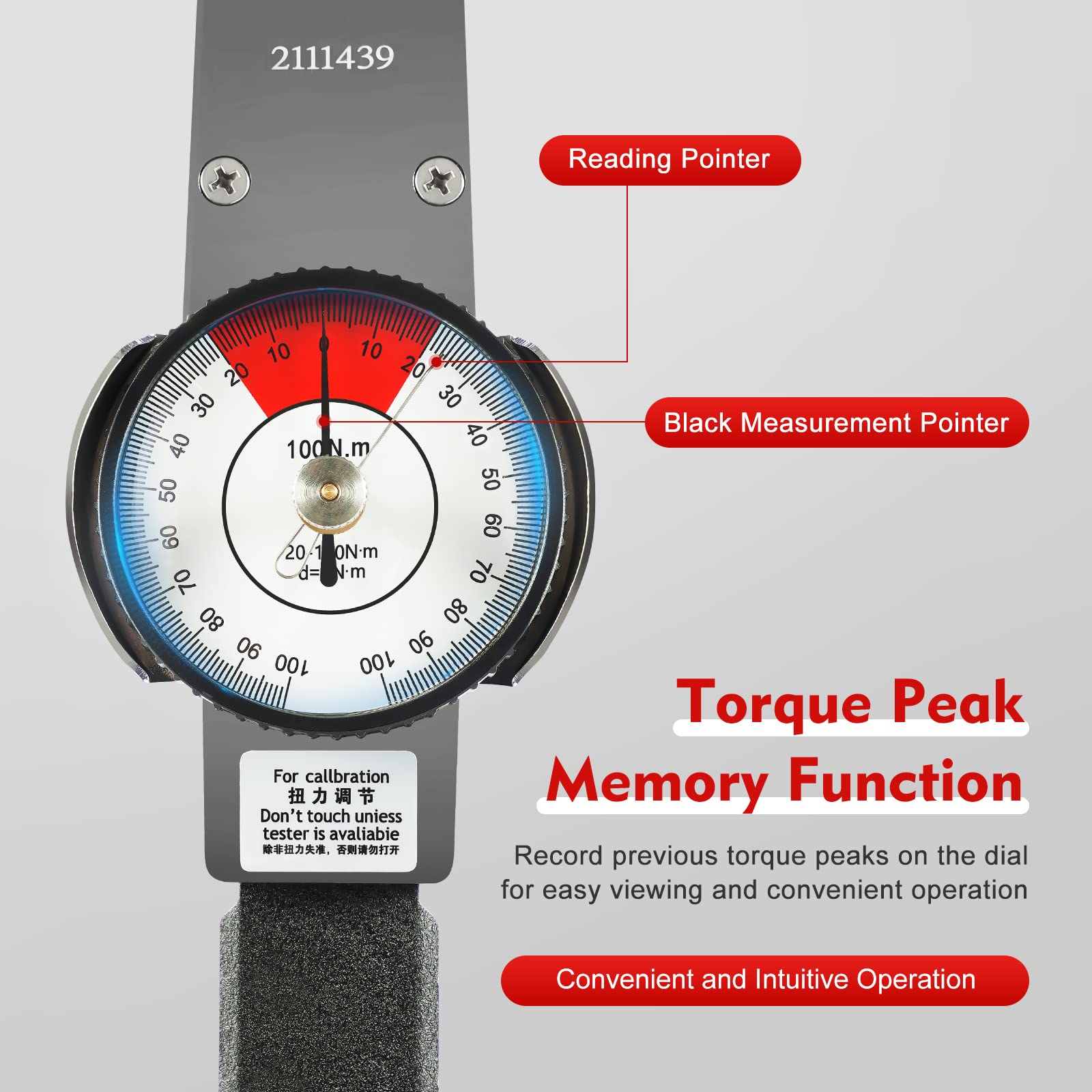

【Torque Peak Memory】— The torque peak memory function can record previous torque peaks on the dial for easy viewing by the user, making the operation more convenient and precise.

【Wide Measurement Range】— 0-100n.m. torque measurement range makes it adaptable to a wider range of usage scenarios.

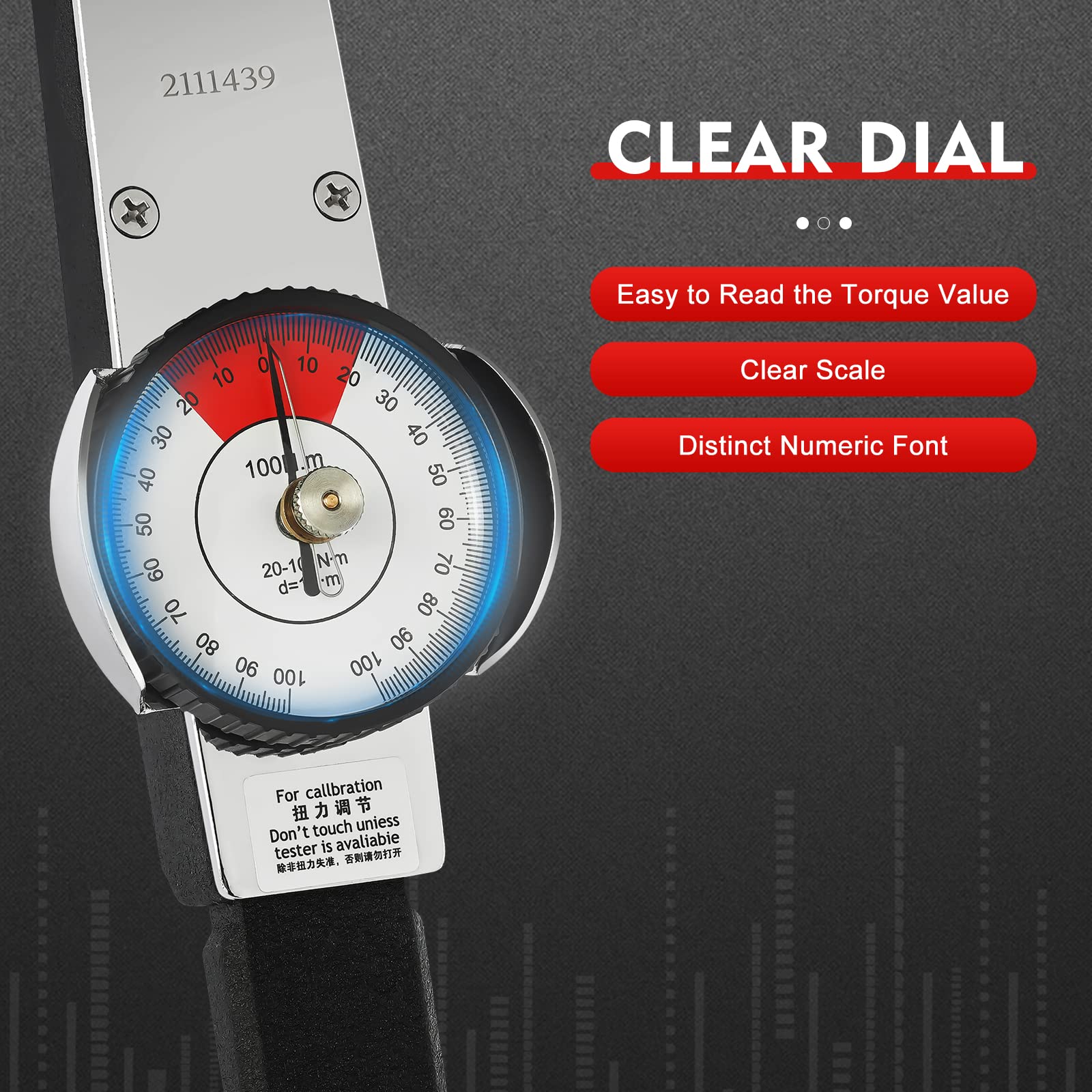

【Dual Pointer Design】— Black measurement pointer and yellow reading pointer make the operation more convenient and intuitive and avoid unnecessary losses caused by misjudgment.

DESCRIPTIONS

Application It is suitable for fastener torque testing where high accuracy is required and can be used for the machining field, automobile repair field, aviation field, heavy industry field, etc. How to Install Sleeve 1. Prepare the required sleeves (not included). 2. Put a section of the sleeve on the square tenon. 3. Put the screw into the sleeve. 4. Manually trigger the handle to read the torque. How to Use 1. Set the pointer to zero before use. When using the right/left hand, turn the knob above the dial counterclockwise/clockwise so that the yellow reading pointer is tight against the black measurement pointer; rotate the housing to zero the yellow reading pointer. 2. When using, apply a slow and steady tightening force until the yellow reading pointer is at the desired torque value. 3. When the force stops, the black measurement pointer automatically returns to the zero position and the yellow reading pointer remains at the indicated scale value, allowing accurate reading of the torque value. Turn the knob above the dial to return the yellow reading pointer to the zero position for the next use. Specification Material: Alloy Steel, Iron, Aluminum Process: One-piece Die-casting, Electroplating Color: Silver, Black Accuracy: ± 3% Drive Size: 1/2 Torque Range: 0-100 n.m. Square Tenon Size: 1.2*1.2cm/0.5*0.5inch Dial Diameter: 6cm/2.4inch Product Size: 31*4*3cm/12*1.6*1.2inch Package Size: 32*10*11cm/12.6*4*4.3inch Net Weight: 0.7kg/1.5lbs Gross Weight: 1.3kg/2.9lbs Package Included 1*Dial Torquemeter 1*Storage Box Notes 1. To ensure maximum accuracy, it is recommended not to exceed the red accuracy range in the dial. 2. The outer ring of the dial is made of plastic, so avoid contact with high temperatures to avoid damage. 3. Please do not disassemble or knock at will to avoid affecting the accuracy of the product. 4. Do not use beyond the torque range to prevent affecting the accuracy of the indication. 5. Please check it every 5,000 uses or one year of purchase. 6. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
