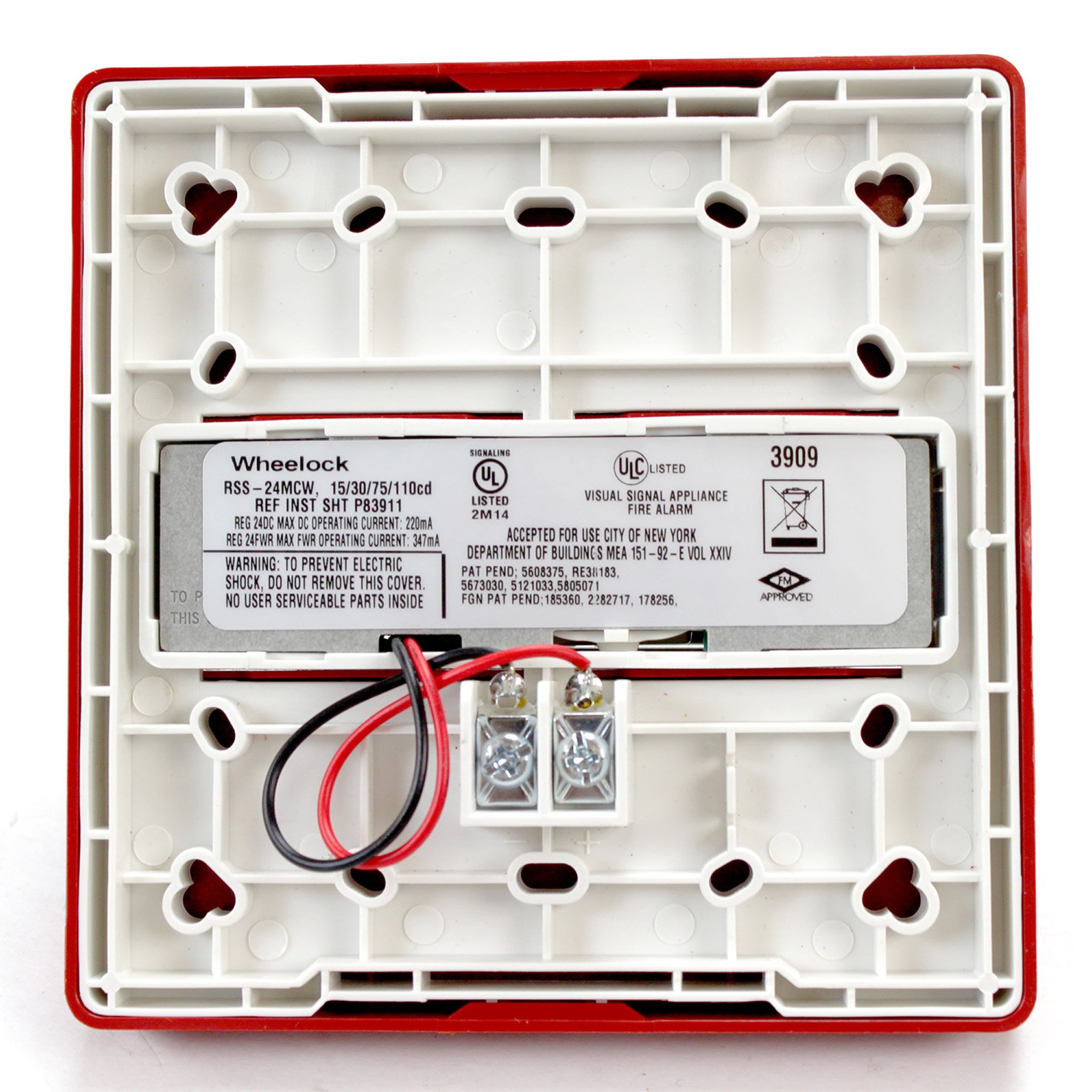

Wheelock RSS-24MCW-FR RSS-Series Indoor Wall Strobe, Red Housing, Plastic Housing Material, Xenon Lamp, Lexan Lens, Clear Lens, FIRE Lettering, 24 VDC

5 / 5

Product ID:

130145

Identifier:

B001UKKLI0

Brand:

Wheelock

Model:

RSS-24MCW-FR

Shipping Weight:

0.85 lbs

Manufacturer:

Cooper

Shipping Dimension:

5.31 x 3.82 x 3.11 inches

Share on Social Media

Share on Facebook

Share on X

Share on Instagram

Share on Tiktok

₱9,549

+ ₱ 217

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2026-06-08 to 2026-06-15.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

FEATURES

Approvals include: UL Standard 1971, New York City (MEA), California State Fire Marshal (CSFM), Factory Mutual (FM), and Chicago (BFP)

Field Selectable Candela Settings of 15/30/75/110cd

Strobes produce 1 flash per second over the regulated voltage range

Wide UL "Regulated Voltage" using filtered (DC) or unfiltered VRMS input voltage

Synchronize using the Wheelock sync modules or panels with built-in Wheelock Patented Sync Protocol

DESCRIPTIONS

Wheelock RSS-24MCW-FR RSS-Series Indoor Wall Strobe, Red Housing, UV Stabilized Plastic Housing Material, Xenon Lamp, Lexan Lens Material, Clear Lens, FIRE Lettering, 24 vdc The Wheelock patented Series RSS Strobe Appliances and Series RSSP Strobe Plates have lower current draw while maintaining outstanding performance, reliability and cost effectiveness. These versatile appliances will satisfy virtually all requirements for indoor, wall or ceiling mount applications. Strobe options for wall mount models include 1575 or the Wheelock Patented MCW multi-candela strobe with field selectable candela settings of 15, 30, 75, 110cd or the high intensity MCWH strobe with field selectable 135, 185cd. Key Features Approvals include: UL Standard 1971, New York City (MEA), California State Fire Marshal (CSFM), Factory Mutual (FM), and Chicago (BFP) ADA,NFPA, UFC,ANSI compliant. Meets OSHA 29 Part 1910.165 Field Selectable Candela Settings of 15, 30, 75, 110cd Strobes produce 1 flash per second over the regulated voltage range Wide UL "Regulated Voltage" using filtered (DC) or unfiltered VRMS input voltage Synchronize using the Wheelock sync modules or panels with built-in Wheelock Patented Sync Protocol Fast installation with in or out screw terminals using number 12 to number 18 awg wire Specifications Housing material: UV stabilized plastic Lamp type: Xenon Mounting method: Wall Current draw (DC): 0.060, 0.092, 0.165, 0.220 Lettering: Fire Indoor or Outdoor: Indoor Candela settings: 110 cd, 15 cd, 30 cd, 75 cd Voltage: 24V Housing color: Red Lens material: Lexan Operating temperature: 33.8 to 120.2 degrees fahrenheit (0 to 49 degrees centigrates) and maximum humidity of 93percent Lens color: Clear Dimensions: 2.6x 4.765 x 4.765 inches Weight: 0.39 lbs
