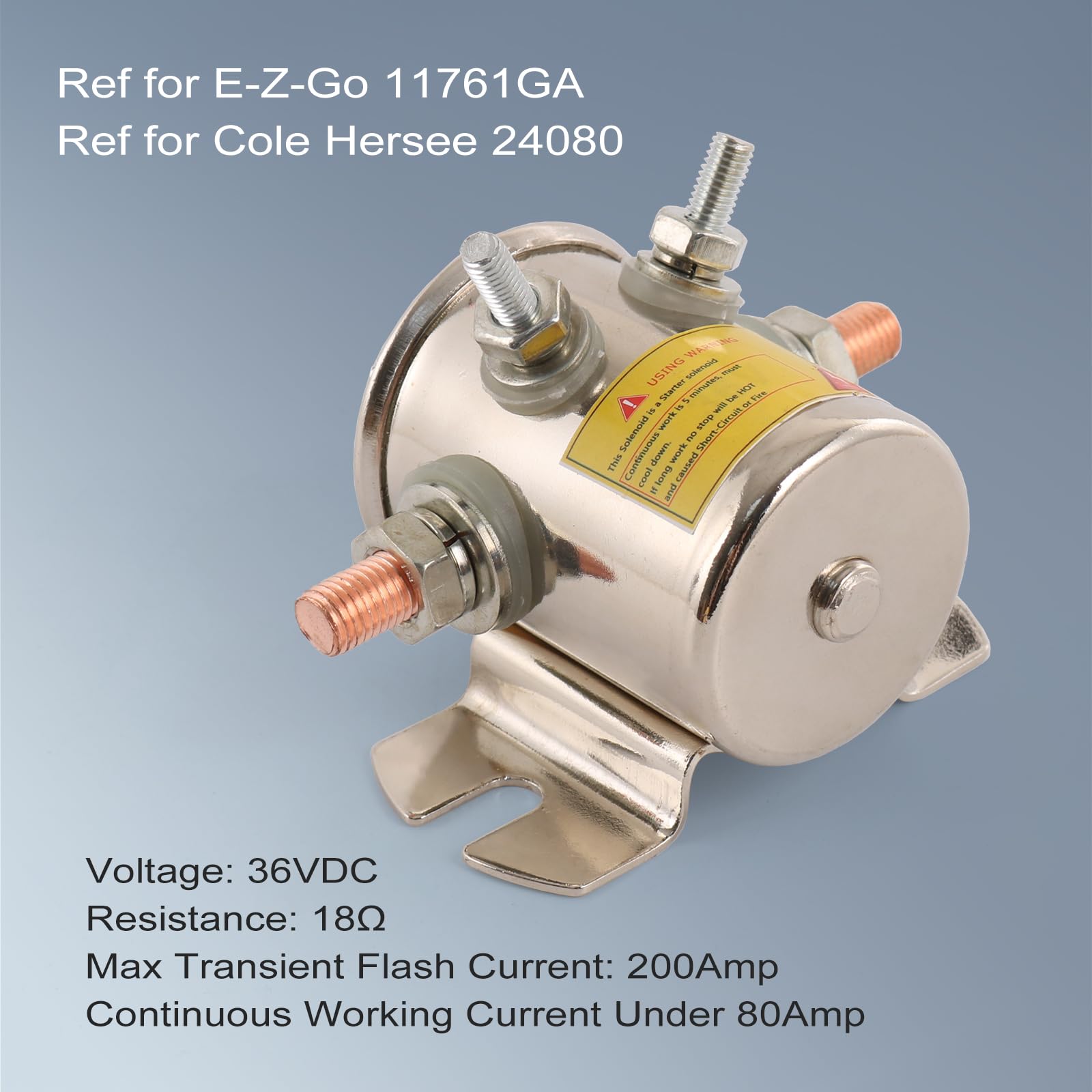

✦ 【Specification】 Voltage: 36VDC; Resistance: 18Ω ; Max Transient Flash Current：200Amp ; Continuous Working Current Under 80Amp ;

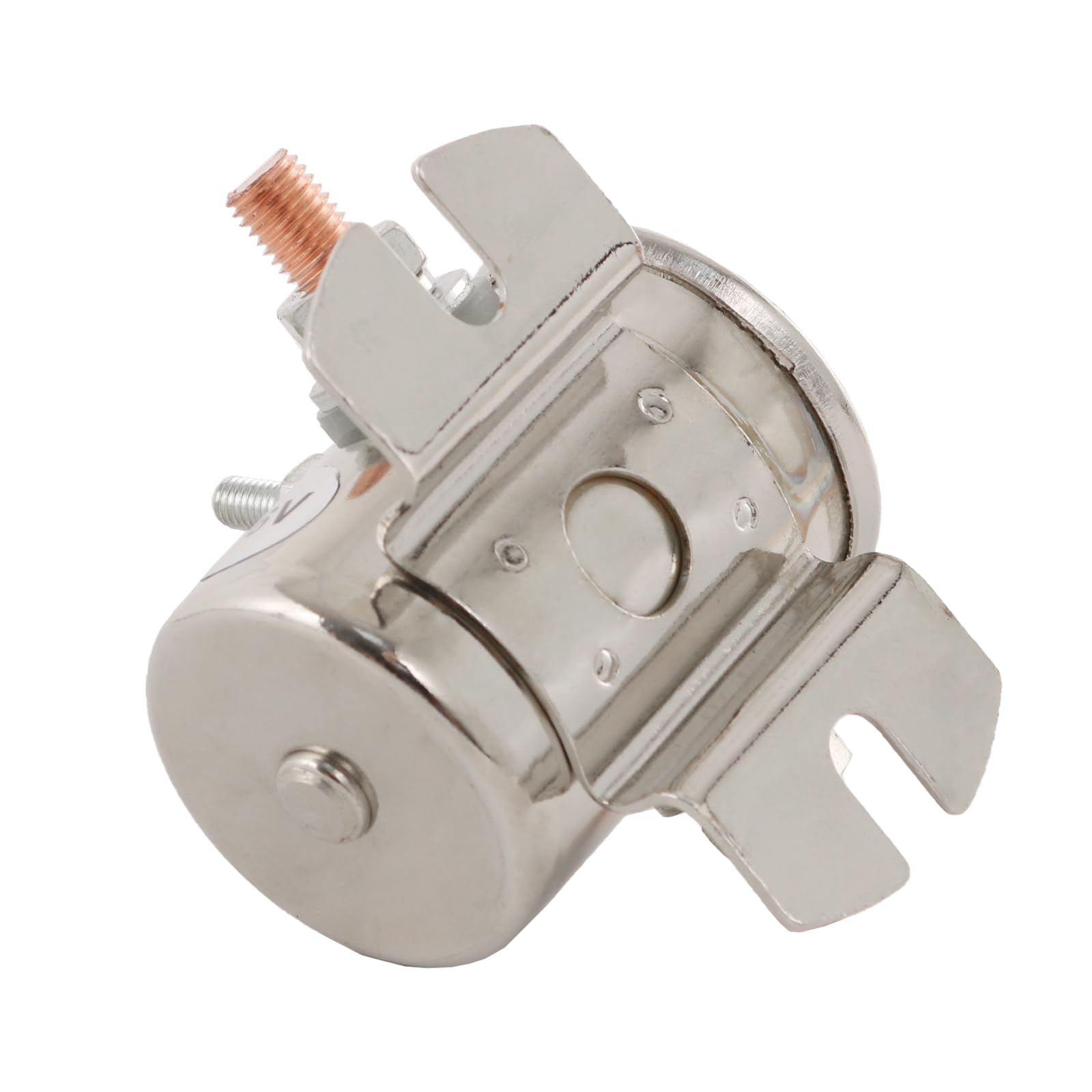

✦ 【Dimensions 】Contact Studs: 5/16 -24 Studs Standard & Long； Bracket mounting: Holes 5/16 x 19/32 2-13/64 on Center；

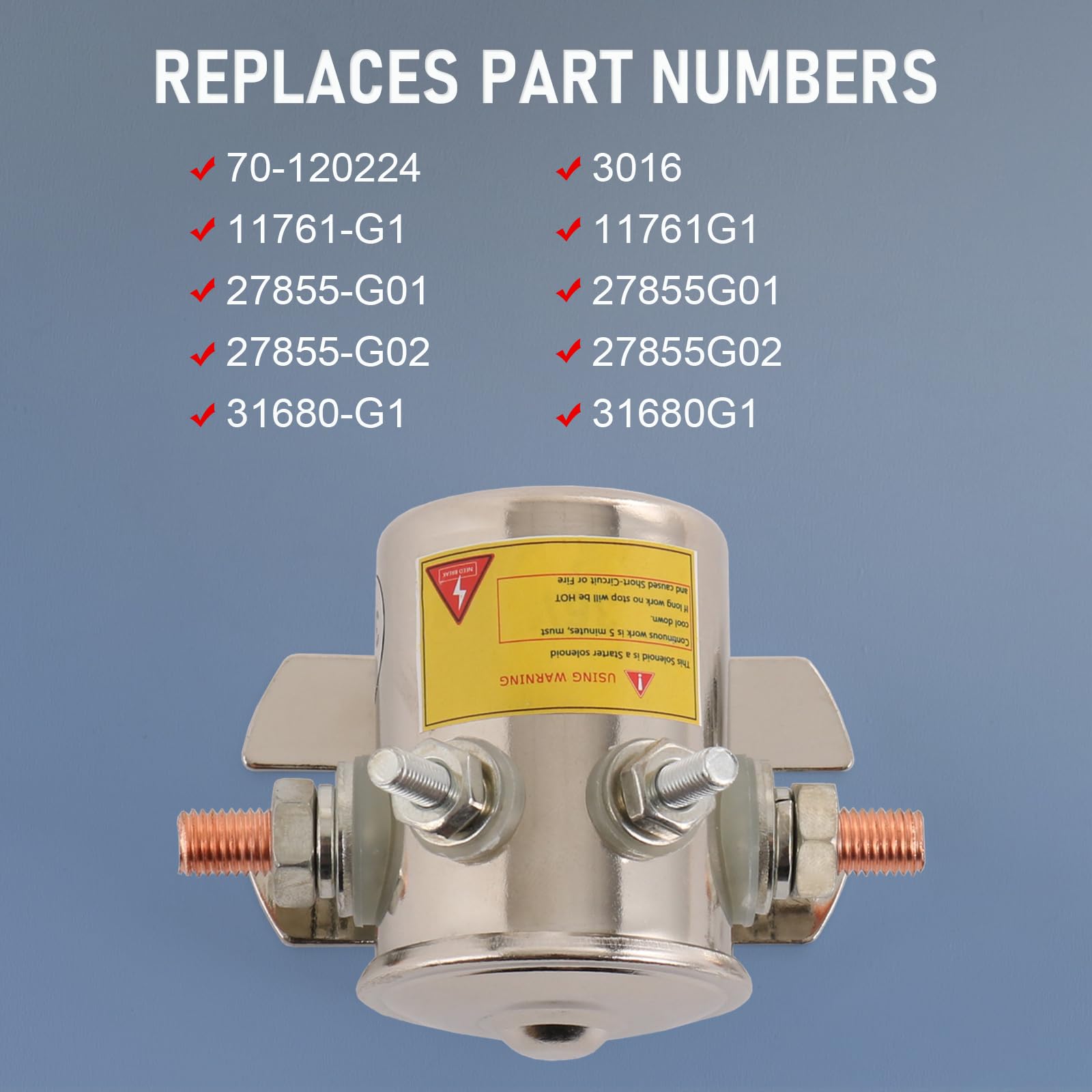

✦ 【Replaces Parts Number】 Replaces Part Number: 70-120224, 3016, 11761-G1, 27855-G01, 27855-G02, 31680-G1,Cole Hersee 24080, E-Z-Go 11761GA

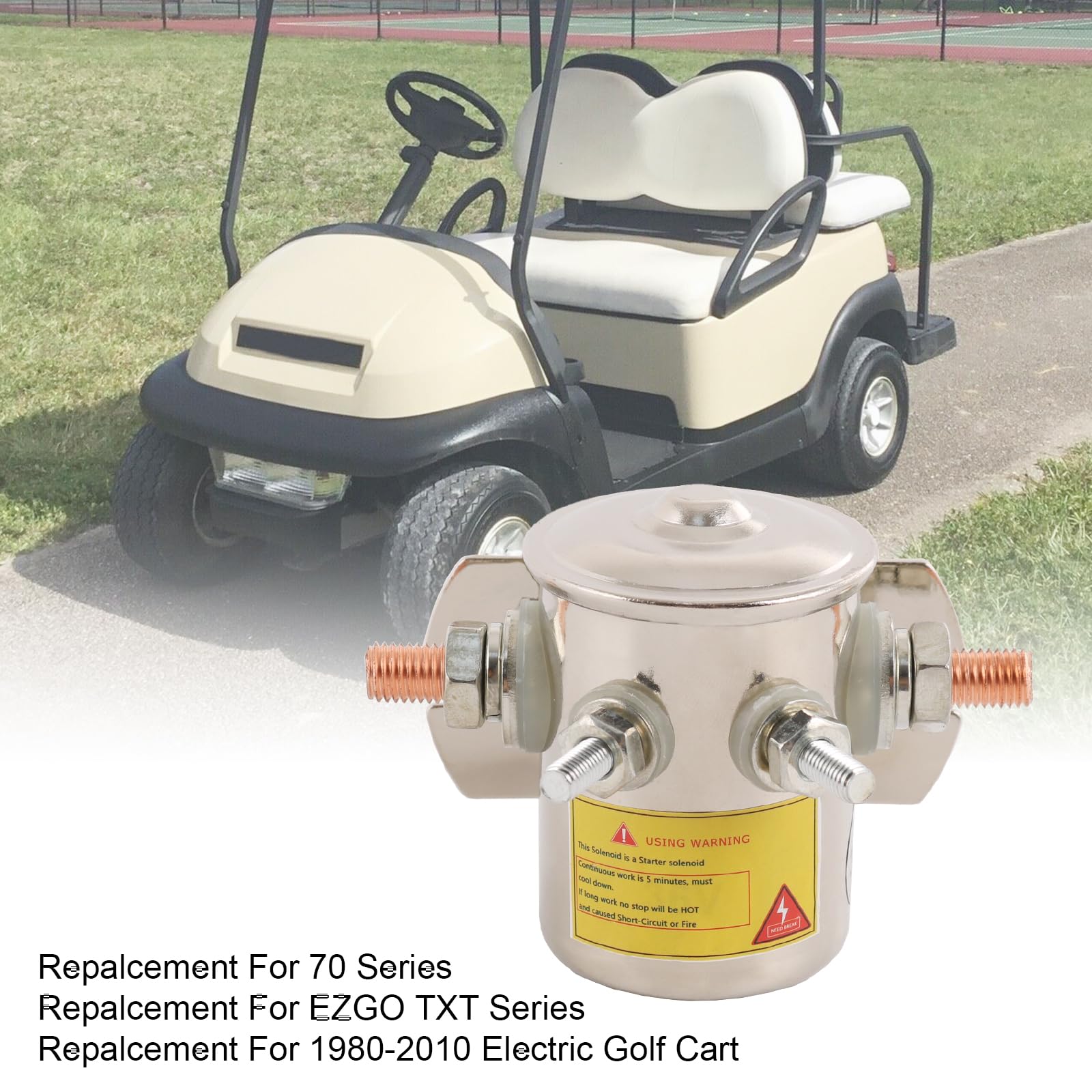

✦ 【Application For】36 Volt 4 terminal solenoid for EZGO TXT / Marathon 1980-2010 electric golf cart.

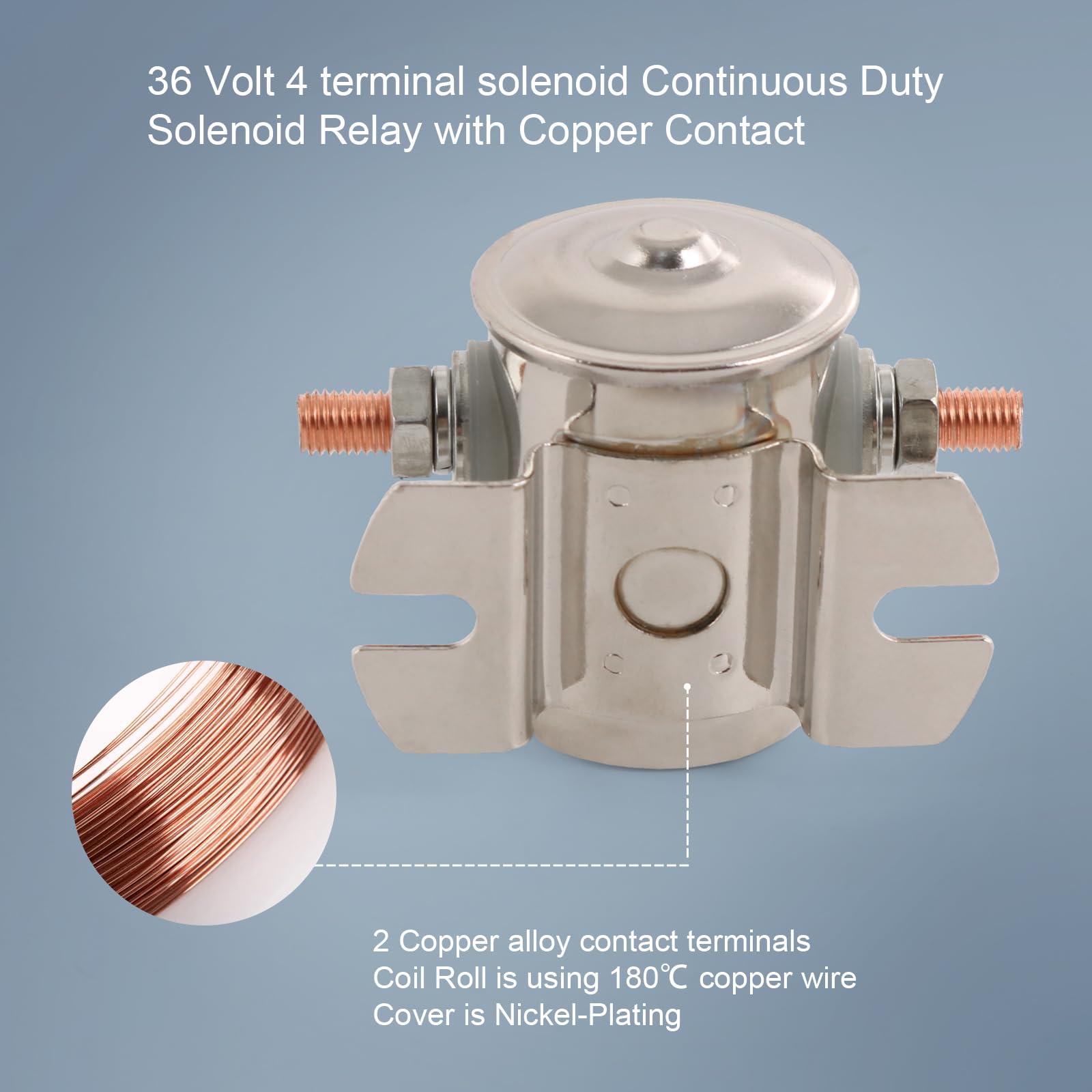

✦ 【Materials】4 Terminal Max 200A 24 Volt With 2 Copper alloy contact terminals Continuous Duty Solenoid Relay ,The The electromagnetic relay adopts high-quality components, Coil Roll is using 180℃ copper wire, Cover is Nickel-Plating, The Nickel-Plating outer layer and the inside of the canned coil, Sealed Unit Protects Solenoid From The Elements Helping Prevent Corrosion.

✦【Note】This is a start solenoid only finish work when your key start, if be Continuous Duty,can work 5 minutes under 150Amp, but NEED BREAK otherwise will be too hot to burned or fired ; Usually with 80Amp as working current, need Break 10 seconds on,30 minutes off

✦ 【One year Warranty 】All LDMINDA Parts comes complete with 1 year warranty. If the part ever fail on your vehicle，pls contact us for a replacement
