FEATURES

DESCRIPTIONS

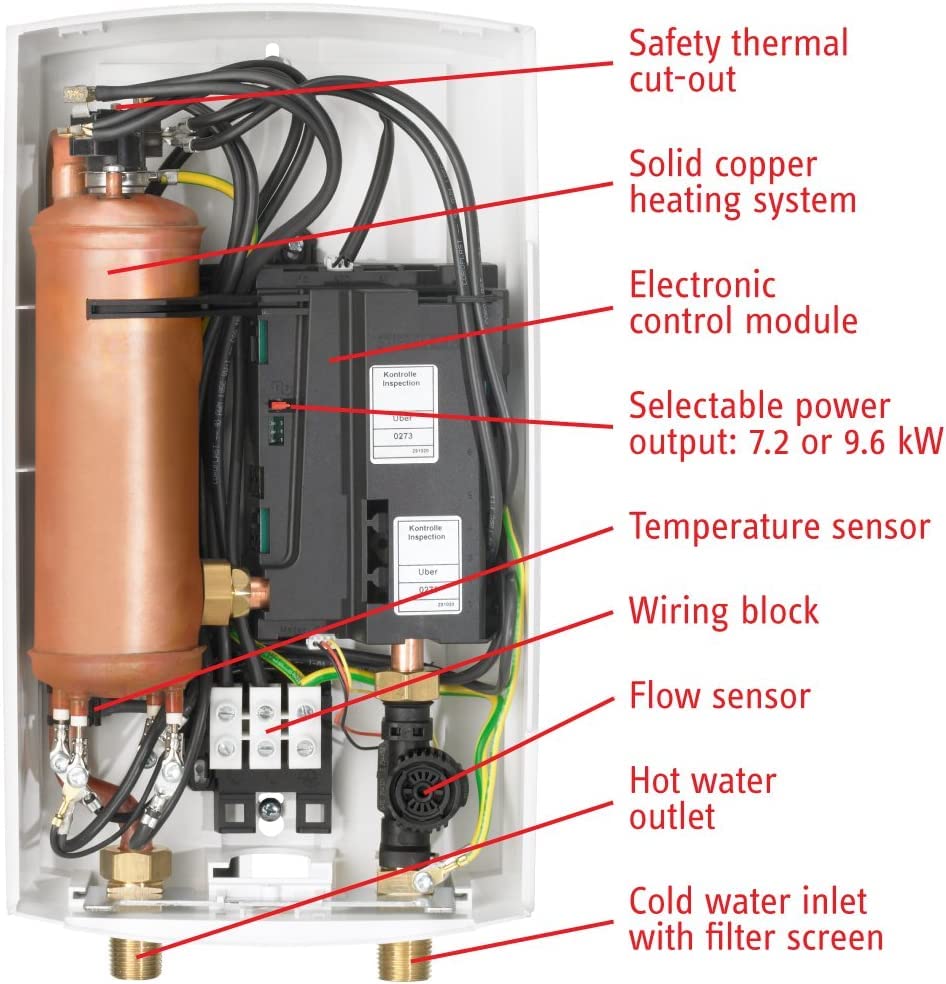

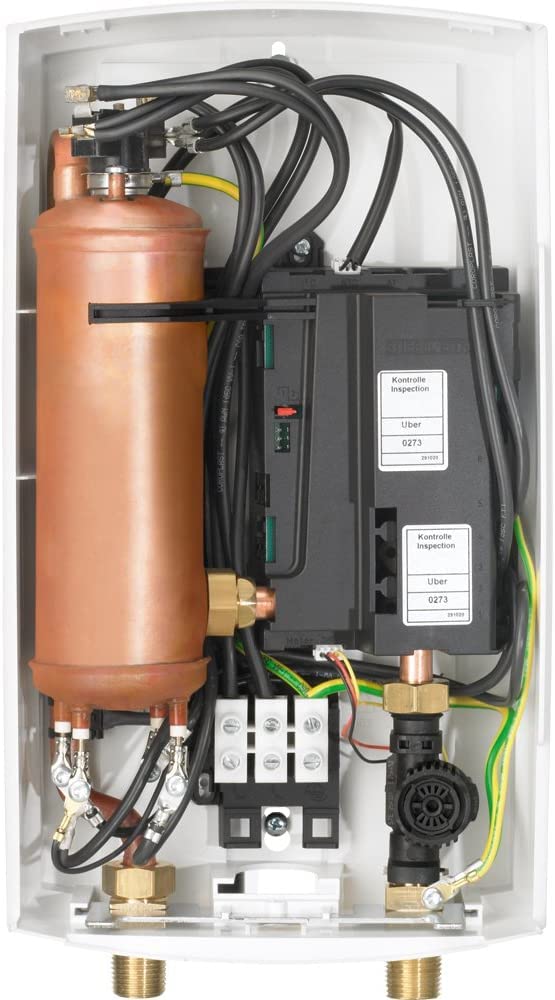

Stiebel Eltron 203671 DHC-E 8/10 Classic Series Tankless Electric Water Heater, Solid Copper Heating Chamber, Electronic Temperature Control for Single or Multi-point-of-use, Single Phase 50/60 Hz The DHC-E Classic is a powerful, flexible, point-of-use water heating solution in an affordable, compact package. There is no need for a T & P valve, drain or mixing valve. The design of the hot water plumbing system gets very simple and straight forward due to the advances introduced with the DHC-E Classic. Key Features: - Suitable for booster applications, accepting a maximum incoming water temperature of 131 °F (55 °C) - Advanced microprocessor controls - No scalding - Sleek design fits in anywhere - Seismic proof construction - Proprietary technology - Superior, reliable performance Specifications: - Phase: single 50/60 Hz - Voltage: 240 V or 208 V - Wattage: 7.2/9.6 kW; 5.4/7.2 kW - Amperage: 30/40 A; 26/35 A - Min. recommended circuit breaker: 30/40 A; 30/35 A - Min. recommended wire size: 8/2 AWG - Min. water flow to activate unit: 0.264 gpm (1.0 l/min) - Max. inlet water temperature: 131 °F (55 °C) - Nominal water volume: 0.13 gal (0.5 l) - Working pressure: 150 psi (10 bar) - Tested to pressure: 300 psi (20 bar) - Water connections: 0.5" NPT - Dimensions (WxHxD): 7.12 x 14.18 x 4.12 inches - Weight: 5.9 pounds
