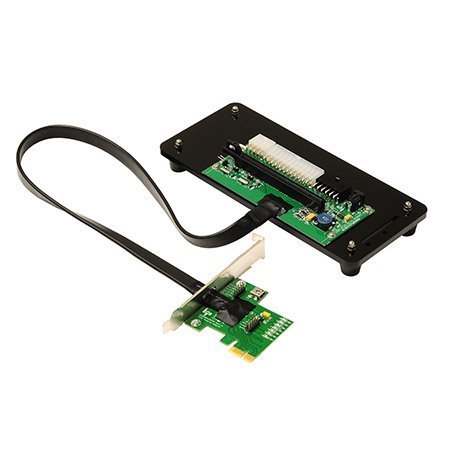

PE4C-HP060A V3.0 (eGPU PCIe x16 interface for PCIe Slot)

Pay with

PE4C-HP060A V3.0 Features

• Support two delay switch to avoid registration problems when boot. (SW1, SW3)

• Support two sets external pin to setup delay time. (J2, J4)

• PE4C V3.0 is PCIe 1-Lane 8.0Gbps bandwidth limit passive adapter in compliance with Expresscard 3.0 specification

• Allows user to test PCI Express x16 Add-in-Card on the PCIe Cable 60cm

• PE4C V3.0 package DO NOT include AC Adapter

About PE4C-HP060A V3.0

Product Description The PE4C-HP060A V3.0 is designed for Notebook PCs that converts PCI Express 16X Add-on Card to PCIe Slot with up to Gen3 (8Gbps) speed. This adapter allows you to use your existing PCI-E 16X Card in the notebook PC for gaming. Function · VGA card connection to computer or notebook PC · Support two delay switch to avoid registration problems when boot. (SW1, SW2) Special foot cone, avoid graphics card fan noise. · Support ATX power boot together function. · DC Jack: External 12V Power Input (Not included) Support two sets external pin to setup delay time. (J2, J3) · Option Products : PE4C-PM060A V3.0 –PCI-E to Express card adapter Specification · PE4C-HP060A V3.0 allows user to test PCI Express x16 Add-in-Card on the mPCIe slot– Cable 60cm. · Compliant with PCI Express 3.0 Specification: Maximum 8Gbps · Power Supply: ATX PSU, 12V DC Jack adapter, 8PIN connector (for D220P AC adapter),Three select one. System Requirements · Notebook PC or Desktop PC with an available PCI Express mini card slot · Windows 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) SP2 or later/ XP (32-/64-bit) SP3 or later Dimension & Weight · 22cm x 9.5cm x 4cm 200g Certifiction> · RoHS Operating Temperature · 0 ~ 70℃
