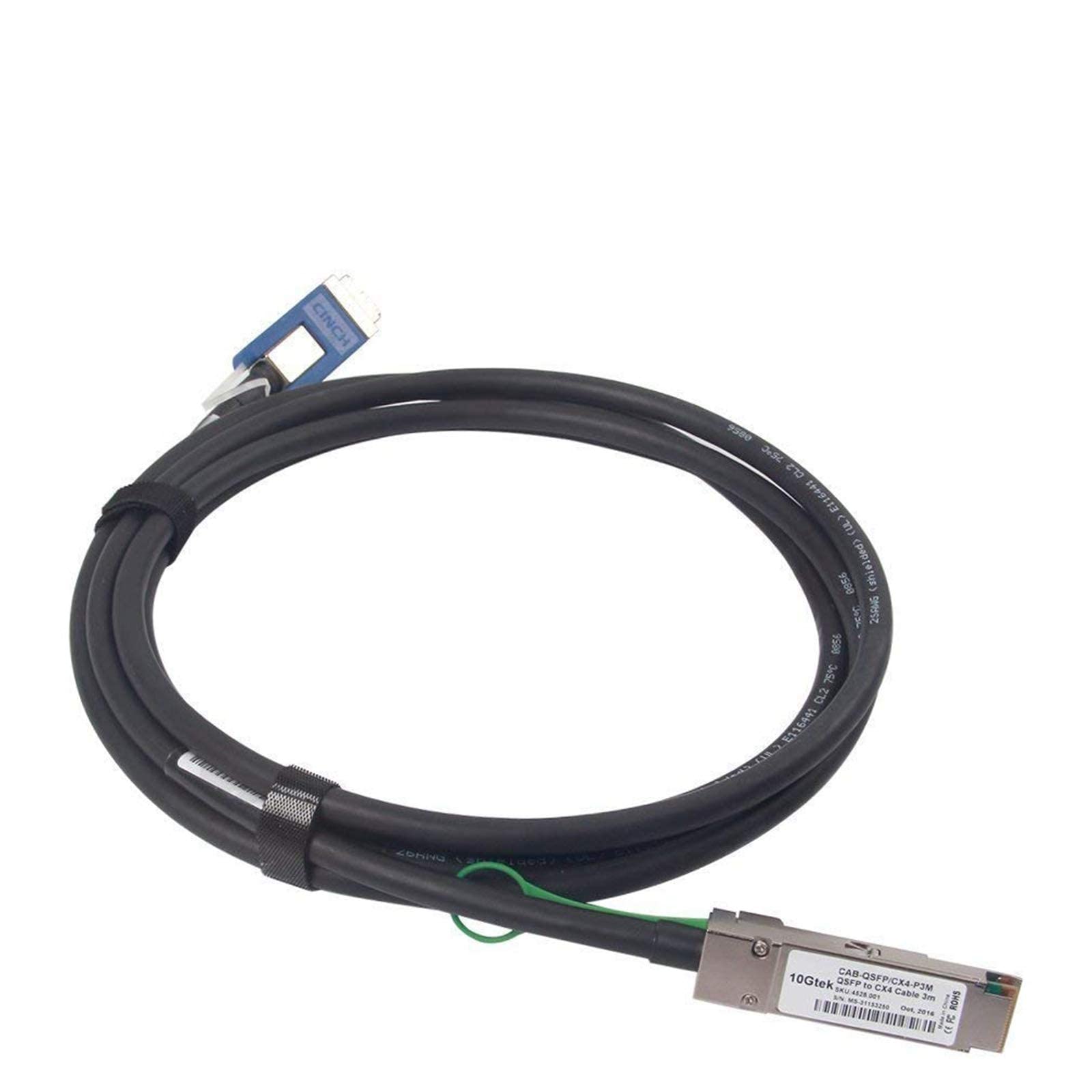

QSFP+ to CX4 Cable (DAC) 10Gb/s InfiniBand Twinax Copper Cable, Passive, 1-Meter(3.3ft)
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
QSFP+ to CX4 Cable (DAC) 10Gb/s InfiniBand Twinax Features
-
【QSFP+ (Quad Small Form-factor Pluggable Plus)】This is a high-speed four-lane fiber or copper interface that can reach data rates of 10 Gbps or higher per lane, so a QSFP+ port can provide up to 40 Gbps of aggregate bandwidth.
-
【CX4 Cable】The CX4 standard is a copper cable solution designed for InfiniBand and early 10 Gigabit Ethernet applications. It uses a Twinaxial (dual-axial) structure to achieve high-bandwidth, low-latency data transmission over short distances.
-
【10 Gb/s InfiniBand Twinax Copper Cable】This cable is suitable for InfiniBand networks and supports data transfer rates of 10 Gbps. Because it is a copper Twinax cable, it is particularly suitable for direct interconnection within short distances. It is usually more common in equipment connection scenarios between racks within data centers.
-
【Passive】Indicates that this is a passive cable, meaning it has no built-in signal amplification or regeneration electronics and relies on the electrical properties of the cable itself for signal transmission.
-
【CAB-QSFP/CX4-P1M】QSFP+ to Cx4/4x cables use cutting edge technology to provide an excellent hybrid cable solution for CX4/InfiniBand and QSFP rated switches, network adapters, and storage arrays.
About QSFP+ To CX4 Cable (DAC) 10Gb/s InfiniBand Twinax
10Gtek’s CAB-QSFP/CX4-P1M, QSFP+ to Cx4/4x cables have an QSFP+ connector and a Cx4/4x infiniband connector at the two sides of the cable respectively. The Quad Small Form-Factor Pluggable Plus (QSFP+) interface provides a low-profile, high-bandwidth, low power-consumption interconnect solution for HPC computer network and large data centers. They are commonly used for DDR/SDR infiniband applications. Specifications: QSFP to CX4(SFF-8470) Connetor Copper Passive 1-Meter AWG30 Low power consumption Excellent EMI performance High reliability Zinc die-cast QSFP connectors with pull-release latch SFF-8470 connectors with side squeeze latch High performance 8 pair wire construction Low cross-talk and pair-to-pair skew Fully compliant to QSFP MSA RoHS Compliant Wide operating temperature range: Standard: 0ºC to +70ºC Industrial: -40ºC to +85ºC Applications: 10-Gigabit Ethernet QSFP, 10GBASE-CX4 and SDR/DDR InfiniBand
